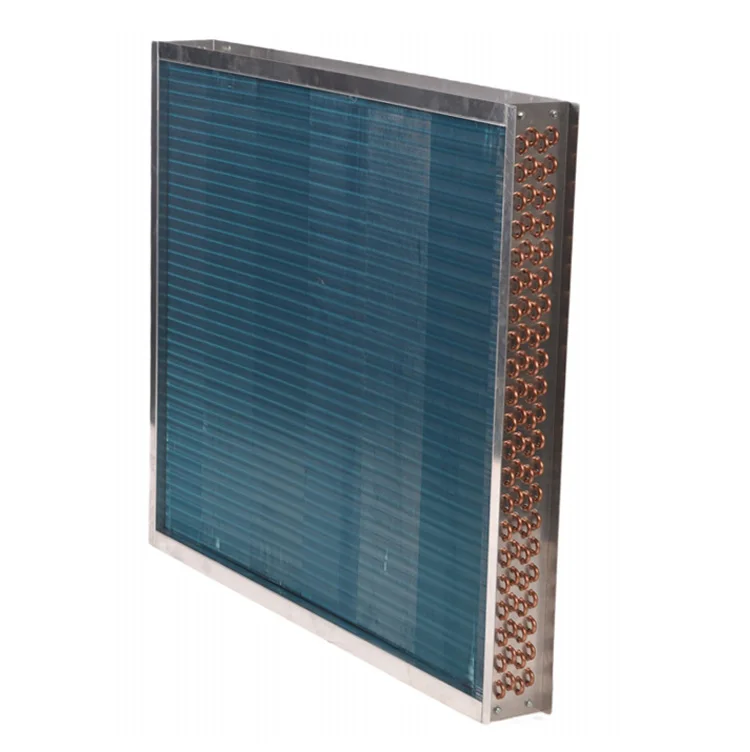

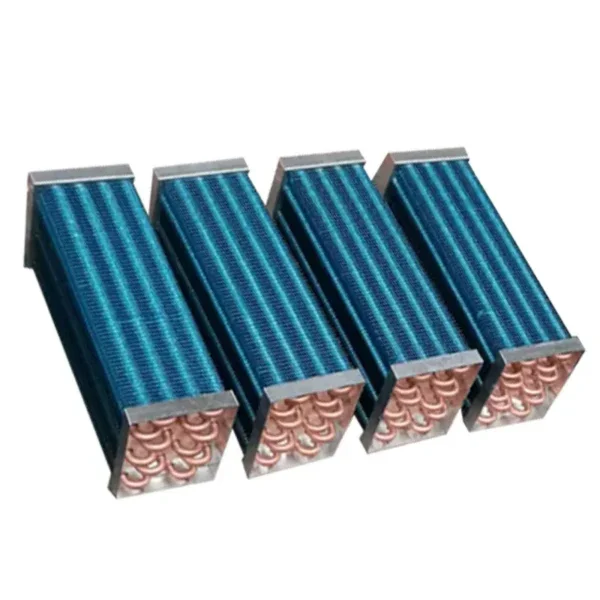

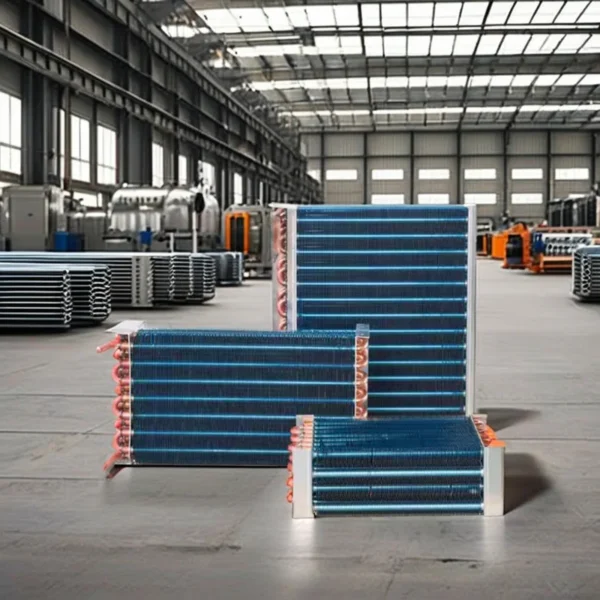

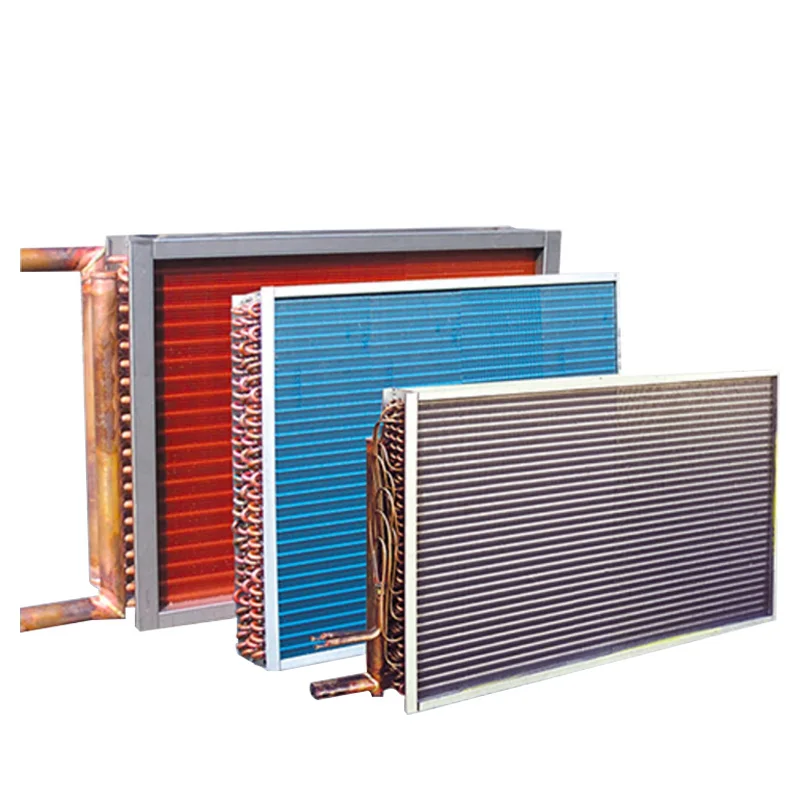

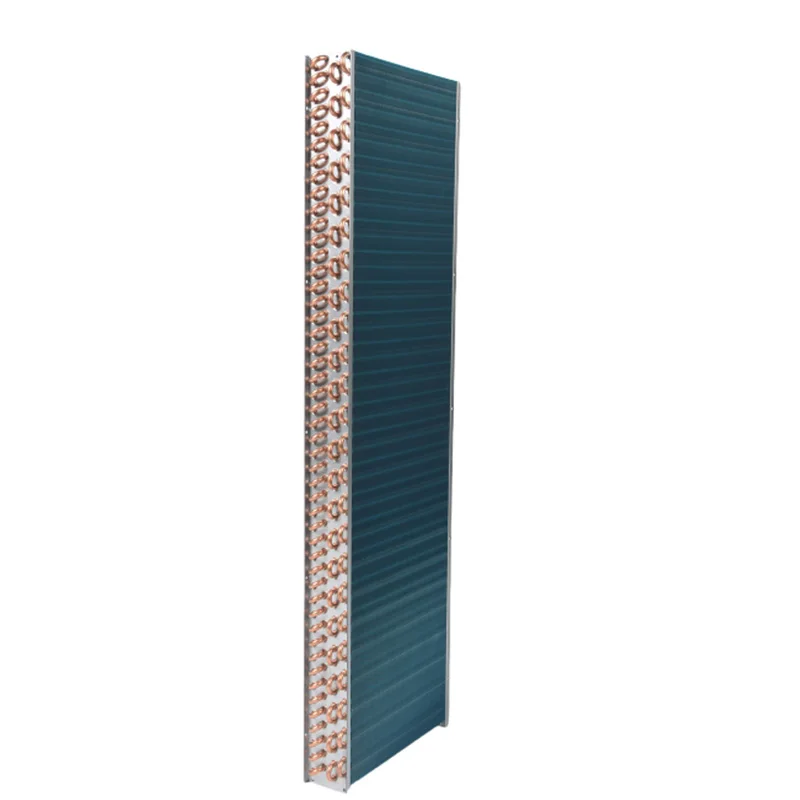

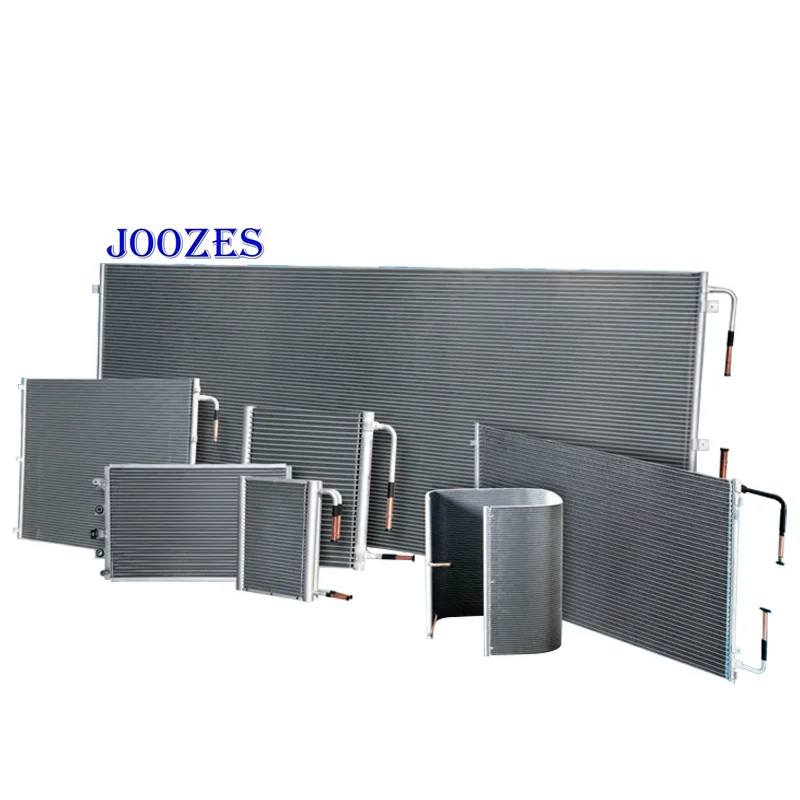

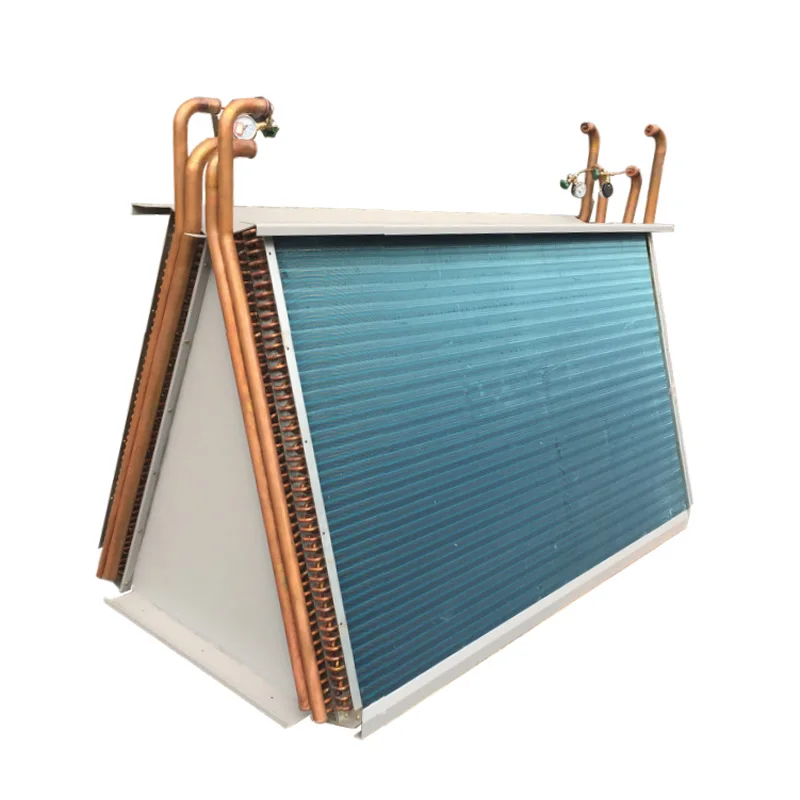

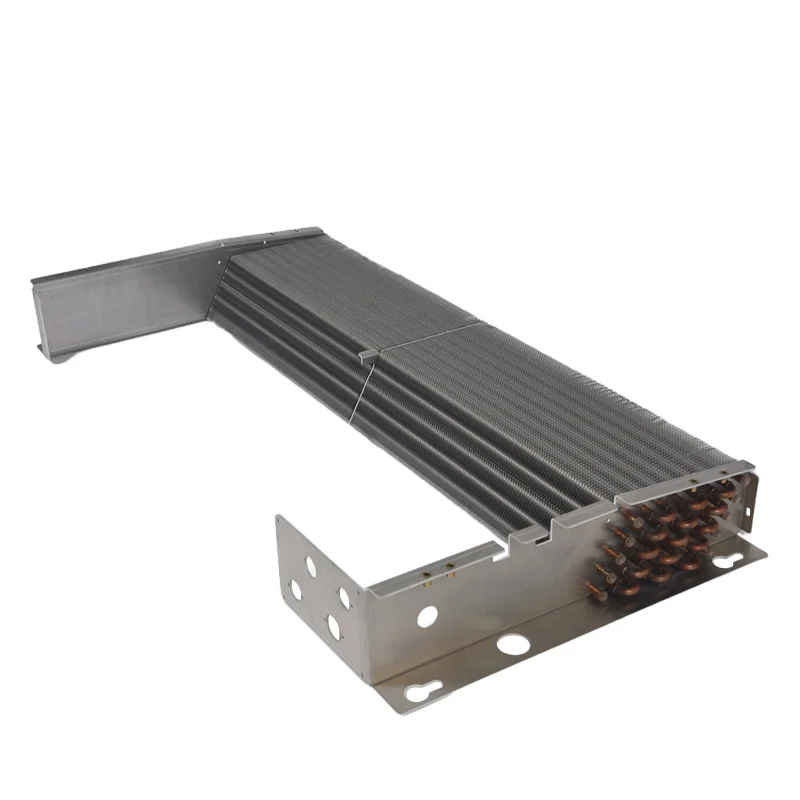

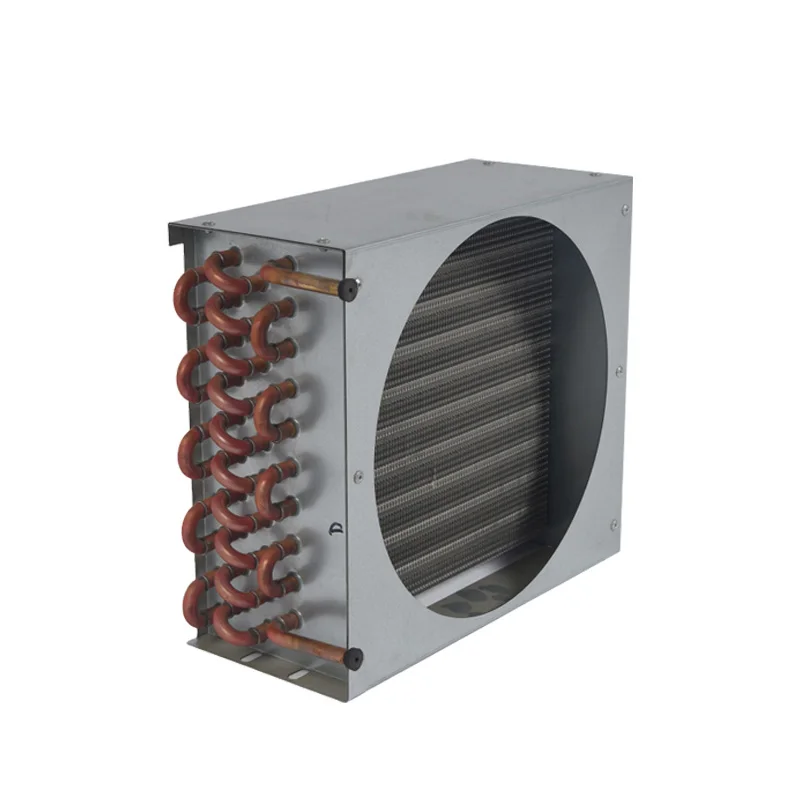

Air cooled condenser — material Brass, Metal, Aluminum Alloy, Copper, type Condenser. The complete factory specification follows. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Cooled Condenser
- Material: Brass, Metal, Aluminum Alloy, Copper
- Fin Material: Aluminun Fin
- Tube Material: CopperTube
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Application: Refrigeration Parts
Technical Specifications
| Application | Refrigeration Parts |
|---|---|
| Type | Condenser |
| Material | Brass, Metal, Aluminum Alloy, Copper |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 10 |
| Place Of Origin | Zhejiang, China |
| Brand Name | OEM/ODM |
| Product Name | Air Cooled Condenser |
| Fin Material | Aluminun Fin |
| Tube Material | CopperTube |
| Size | Customized Size |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description
1,With design drawings？
If there design drawings, please send your design drawings to our sales, we’ll quote according to your needs.
2,Without design drawings？
Please provide parameters such as air volume, air inlet conditions, external dimensions, chilled water inlet temperature, cooling capacity (or air outlet conditions) and other parameters, or provide corresponding parameters according to our company's measurement chart.
3.With process requirements？
Please inform us your process parameter requirements, we can provide technical advice at any time.
Material： | Copper ,aluminum ,galvanized steel | |
Fin: | Hydrophilic, bare | |

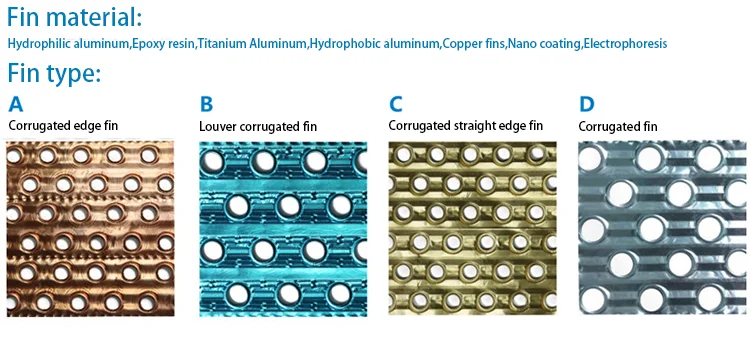

Fin type: | Corrugated fin, Louvered / Lanced fin | |
Tube: | Diameter 7mm, 7.94mm , 8mm,9.52mm 12.7mm,16mm | |

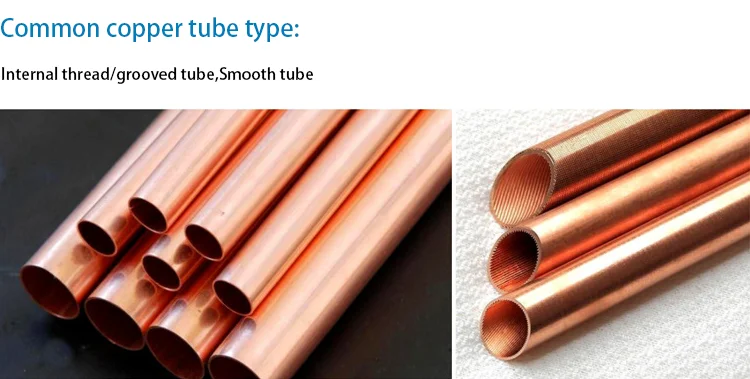

Tube type: | Grooved or smooth tube | |
Fin space between 1.3-5.3mm, adjustable according to the mold | ||
Widely used in refrigeration industry, cold room and other cooling system. | ||
We can supply products as per customized samples or drawing. | ||
Mould specification | ||||||||||||
0.D. of Tube, mm | Hole Spacing, mm | Row Spacing, mm | Tube Material / Fluid Path | Fin TyPe | Fin Spacing,mm | Fin Material | ||||||
7 | 21 | 12.7 | copper | Louver / Flat | 1.2-1.9 | |||||||
7 | 21 | 18.19 | Louver / Inwards Corrugated / Outwards Corrugated | 1.2-2.5 | ||||||||
7 | 19.05 | 16.5 | Louver / Inwards Corrugated / Outwards Corrugated | 1.2-2.5 | ||||||||
7 | 25 | 21.65 | Inwards Corrugated / Outwards Corrugated | 2.5-5.0 | ||||||||
7.94 | 22 | 19.05 | Louver / Inwards Corrugated / Outwards Corrugated | 1.2-2.5 | ||||||||
7.94 | 25 | 21.65 | Inwards Corrugated / Outwards Corrugated | 2.5-5.0 | ||||||||
9.52 | 25.4 | 15.88 | Louver / Inwards Corrugated / Outwards Corrugated | 1.2-2.5 | ||||||||
9.52 | 25.4 | 19.05 | Louver / Inwards Corrugated / Outwards Corrugated | A1.2-2.5 | ||||||||
9.52 | 25.4 | 22 | Louver / Inwards Corrugated / Outwards Corrugated | 1.2-2.5 | ||||||||
9.52 | 25 | 21.65 | Louver / Inwards Corrugated / Outwards Corrugated | 1.2-2.5 | ||||||||
12.7 | 31.75 | 27.5 | Inwards Corrugated / Outwards Corrugated | 1.2-7.5 | ||||||||
12.7 | 35 | 35 | Inwards Corrugated / Outwards Corrugated | 2.5-7.5 | ||||||||
12.7 | 50 | 50 | Inwards Corrugated / Outwards Corrugated | 2.5-7.5 | ||||||||
15.88 | 38 | 33 | Inwards Corrugated / Outwards Corrugated | 2.5-5.0 | ||||||||
Sheet Metal Parts: lron /Stainless Steel/Aluminium Alloy | ||||||||||||

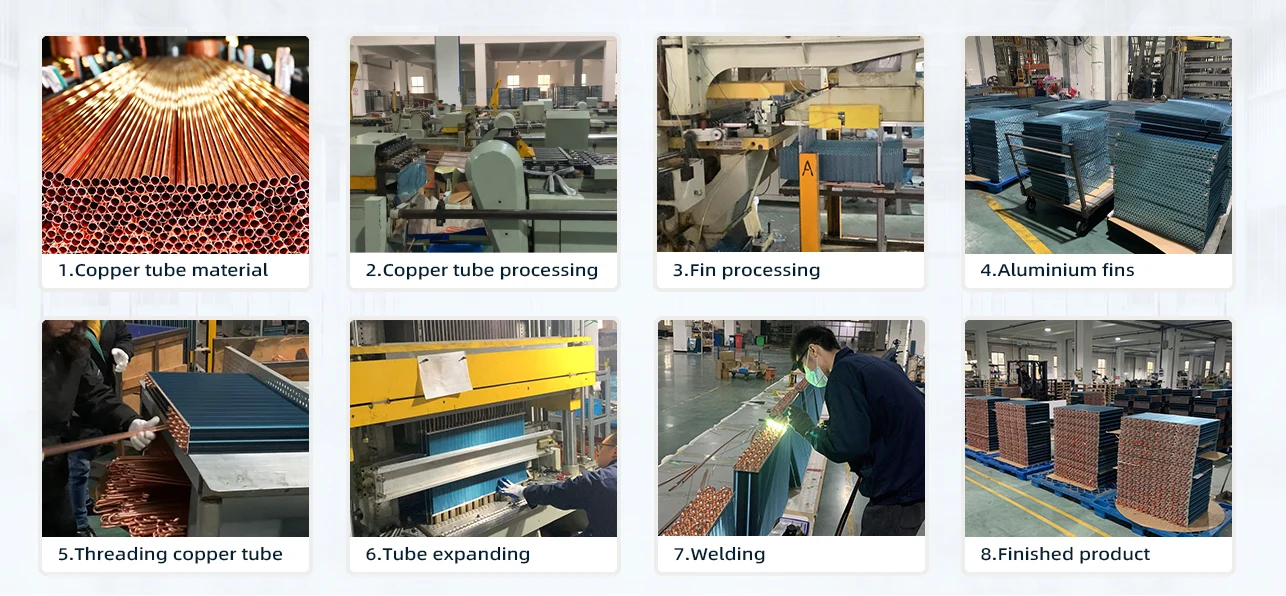

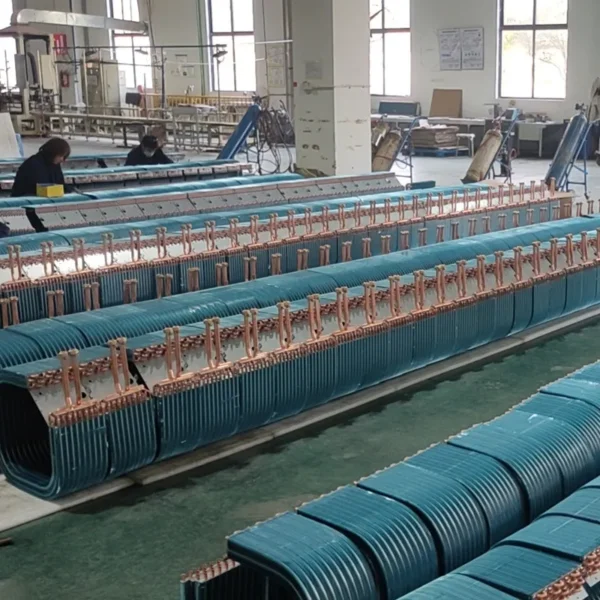

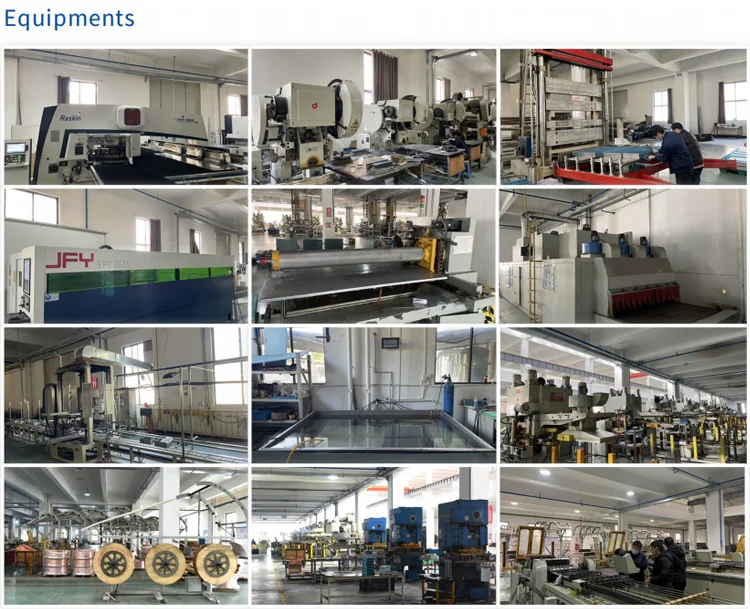

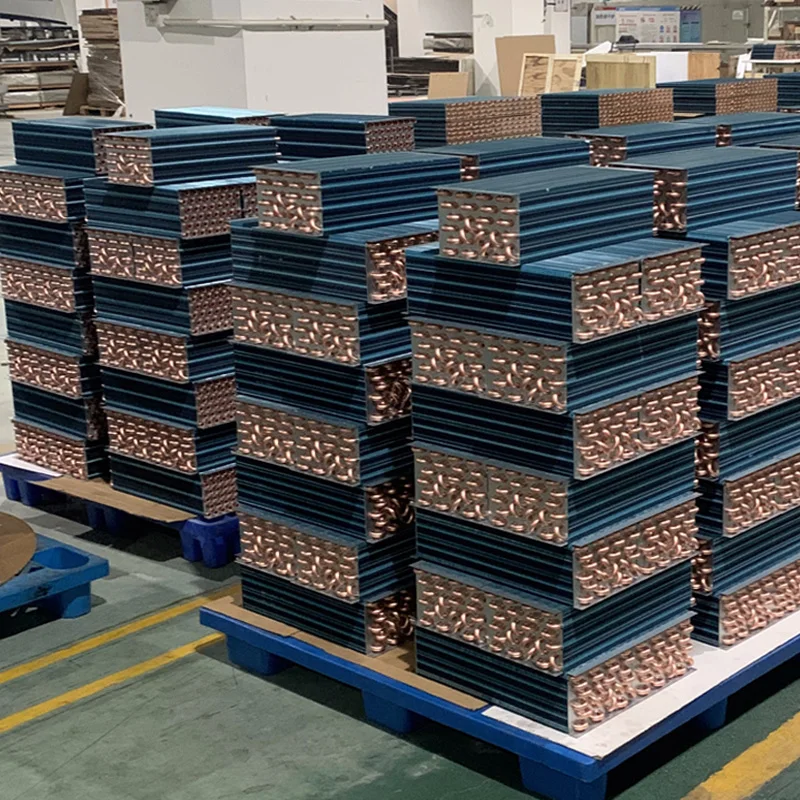

production process
Specification
Condenser and Evaporator Coil for Household Air Conditioner
Condenser for Air Source Heat Pump
Evaporator for Air Source Heat Pump
Condenser for Display Case
Evaporator for Display Case
Condenser for CRAC
Condenser and Evaporator for Dehumidifier
Evaporator for Bus/Truck Air Conditioner
Evaporator for Split Air Conditioner Indoor Machine
Cooling Unit for Solar Panel
Radiator for Solar Panel
Condenser for CRAC
Company Profile
NINGBO JIUZE ELECTRIC APPLIANCE CO., LTD located at No.299, Zhuangqiao Street, Jiangbei District, Ningbo, Which is a professional designer and manufacturer of condenser, evaporator, radiator, compressor, dehumidifier for the cooling and heating industry since 2021, mainly used in various air-conditioning equipment, air-source heat pumps, industrial dehumidifiers, and other fields. We have been committed to providing the best services and meeting the needs of businesses through reliable quality, competitive price, and rapid delivery. The company has always adhered to people-oriented, honest, pragmatic, and innovative concepts,advancing with the times and having the courage to open up. We sincerely invite new and old friends domestic and abroad to cooperate and seek common development.
Exhibition
Certifications

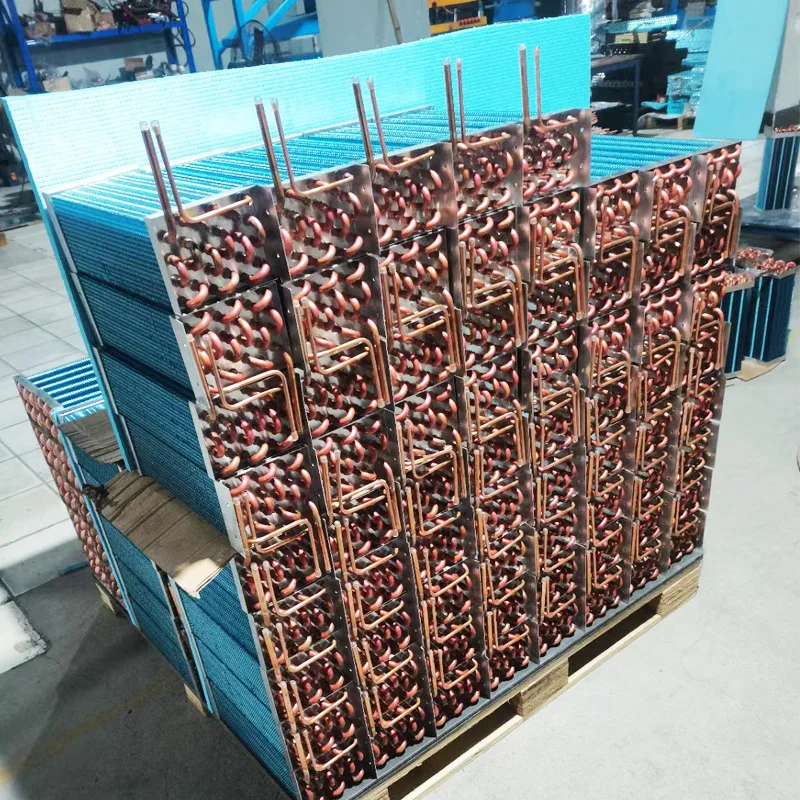

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Are you a factory or a trading company? A1: We are one of the largest refrigeration equipment manufacturers in China.
Q2: When can I get the price? A2: We usually quote within 24 hours after we get your inquiry.You can call us or contact us by email if very urgent so that we can reply your inquiry priority.
Q3: Does a sample available for testing? A3: Yeah, you can get samples for testing after price confirmation. Q4: What about the lead time for mass production? A4: It depends on the order quantity and the season you place the order.
Q5: What is your terms of delivery？ A5: You can choose FOB, CFR, CIF etc at your convenient.
Note: We can also customize product according to your requirements, we can customize drawings and samples, we can produce straight-line tube type, L type, U type, V type hydrophilic aluminum foil evaporator, the price will fluctuate due to the price of raw materials, please refer to our actual quotation.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–49 unit: US $20 / unit
- 50–999 unit: US $18 / unit
- 1000–9999 unit: US $15 / unit
- 10000+ unit: US $13 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air cooled condenser?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Jiuze Electric Appliance Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, Trading Company. Browse the full Ningbo Jiuze Electric Appliance Co., Ltd. range on HVACR Nexus.
