Cooling Room Refrigeration Evaporator, 380V, 14.8-49.3 kw

Key specification for this cooling room refrigeration evaporator: 380V/three Phase/50HZ, cooling capacity 14.8-49.3 kw. Everything below is reproduced from the factory data sheet. Made by Taizhou Nanfeng Cold-Chain Co., Ltd. (18 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Cooling Room Refrigeration Evaporator

• Power Supply: 380V/three Phase/50HZ
• Cooling Capacity: 14.8-49.3 kw
• Airflow: 13000-26000 m3/h
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China
• Single Package Size: 220X50X60 cm

Technical Specifications

Product Details

Series air cooler Room temp.≥-20℃ Fin spacing 6.0 mm R404A

Main performance

Model	Model	Surface	Fan motor (220-240V.50/60Hz)									defrost  Heater (240V/50Hz)
				m2	Quantity	Fan Diameter(mm)	Air flow（ｍ3/h)	Air Throw(m)	Input Power(W)	Coil	Drain Pan
NF3.5/301-6	1000	3.5	1	300	1700	7	90	320W*2	420W
NF5/301-6	1300	5	1	300	1700	7	90	320W*2	420W
NF7/301-6	1800	7	1	300	1700	7	90	440W*2	550W
NF9/302-6	2400	9	2	300	3400	8	180	760W*2	850W
NF12/302-6	3200	12	2	300	3400	8	180	760W*2	850W
NF14/303-6	3800	14	3	300	5100	11	270	1120W*2	1250W
NF17/303-6	4400	17	3	300	5100	11	270	1120W*2	1250W
NF19/304-6	5000	19	4	300	6800	12	360	1500W*2	1500W
NF23/304-6	5900	23	4	300	6800	12	360	1500W*2	1500W

Model	Connection Dimension(inch)						Installation Dimension (mm)			Water Drain(inch)
		Inlet	Outlet	W	H	A	B
NF3.5/301-6	3/8	5/8	360	430	410	295	1/2
NF5/301-6	3/8	5/8	360	430	410	295	1/2
NF7/301-6	3/8	5/8	360	430	570	295	1/2
NF9/302-6	3/8	5/8	360	430	960	295	1/2
NF12/302-6	3/8	5/8	360	430	960	295	1/2
NF14/303-6	1/2	7/8	360	430	1430	295	1/2
NF17/303-6	1/2	7/8	360	430	1430	295	1/2
NF19/304-6	1/2	7/8	360	430	1900	295	1/2
NF23/304-6	1/2	7/8	360	430	1900	295	1/2

Products Description

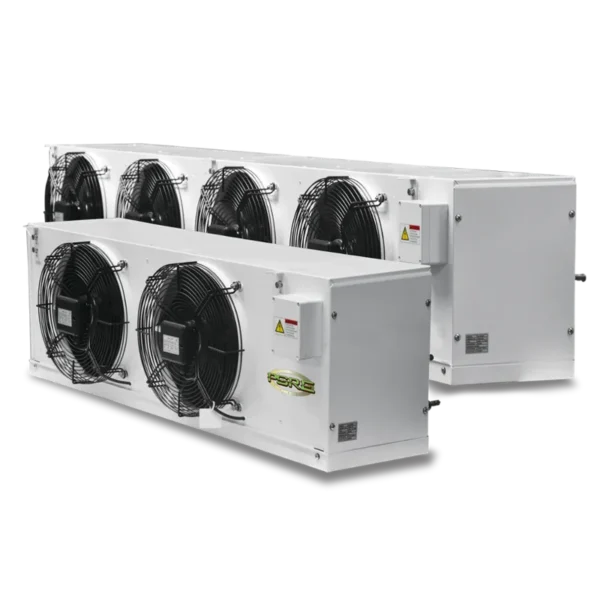

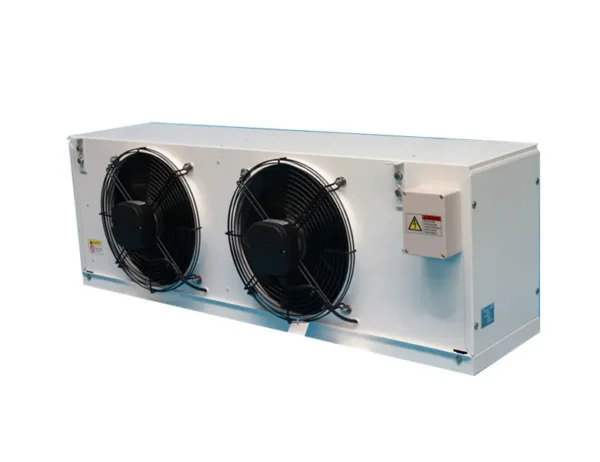

NF series ceiling type air cooler is suitable for medium , high and low temperature various types of cold storage and

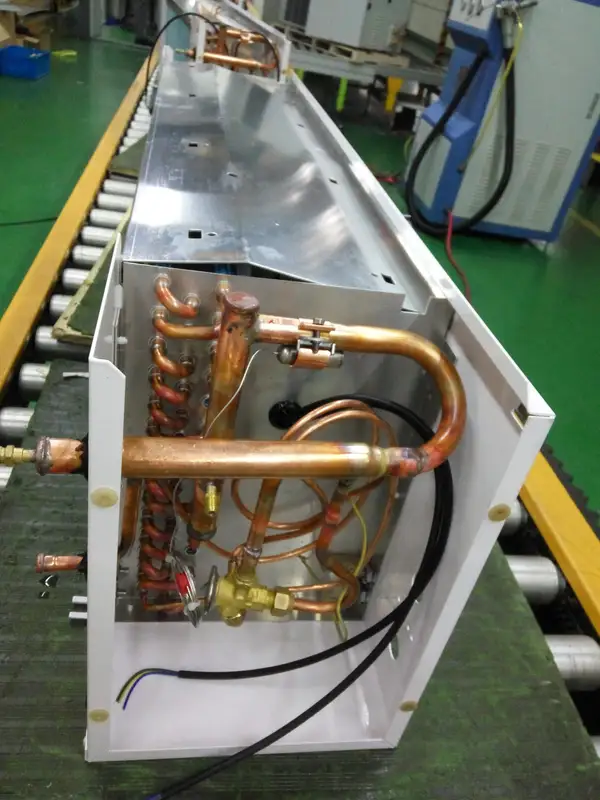

freezer.The outer shell is made of high quality anti-oxidation alloy aluminum plate, corrosion-resistant, light weight, intermalpre-installed supercooled pipe, Danfoss expansion valve, matching efficient extemalrotor or DC fan lenergy saving up to 50%).high heat transfer efficiency, easy installation and use.

Main Feature

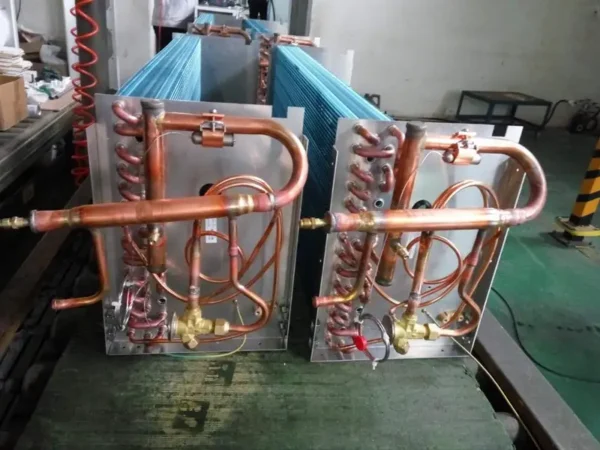

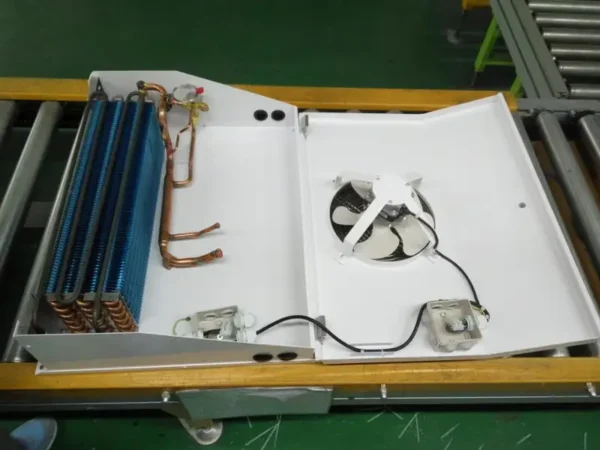

1.The high-efficiency fin tube group is made of high-quality copper wall iron-wall tubes and aluminum fins, and is cleaned and pressure tested at 30 bars; 2.White spray aluminum plate, high corrosion resistance, compact shock resistance, no pollution; 3.The defrosting heating pipe is located in the fin tube group and on the water tray; 4.All connections are grounded, waterproof junction box with rubber threadod hole plugs. All materials are carefullyselected to ensure durability. 5.Can be equipped with expansion valve, supercooled pipe: 6.The cooling fan can be changed from an electric heatdefrosting mode to ahot-gas defrosting mode by adding one-way values and orifice plates。

Certifications

The company has ISO9001:2000, ISO1400, CE, CB, RoHS and other quality, environmental protection system certification and national industrial product production license.

Company Introduction

Taizhou Nanfeng Cold-Chain limited company was set up in 1999, which specializes in the development, manufacture and sales of refrigeration equipment. The company’s core products are DC inverter condensing unit, Danfoss fully equipped condensing unit, High quality condensing unit and so on. The DC inverter condensing unit is very Super Energy Saving (40%-60%), Super Silent( as low as 45dB) and so on. Danfoss fully equipped condensing unit is high reliable, high efficiency, strong durability and other advantages.

The company has a professional R&D team and a group of dedicated employees. It has automated assembly lines, imported leak detection equipment, type labs, and production process management software systems to ensure the quality of all products of the company and also ensure the company’s new product development and production supply ability.

Exhibition

The company’s major markets are Europe, Australia and other developed countries and regions. It is positioned in the high-end refrigeration market and provides OEM and ODM services to customers in developed countries such as the United Kingdom and Australia. Since 2009, the company has settled in the Alibaba International Station platform. It has always upheld the business principles of honesty and trustworthiness in international trade and enjoyed a good reputation among its customers. In 2018, we began to enter the domestic market. We are committed to creating value for customers with truly high-quality refrigeration equipment.

FAQ

Q1: Are you a factory or a trading company?

A1: We are a factory.

Q2: Is a sample available?

A2: Yes, but the sample will be at your charge.

Q3: What is the main market for your products?

A3: Our main market is in North America, Europe and Australian.

Q4: What is your warranty?

A4: We can assure you one year against manufacturing defect.

Q5:Can you provide OEM/ODM service and make OEM logo for us?

A5:Yes,we can provide OEM service and make OEM logo for you.

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–49 unit: US $459 / unit
  • 50+ unit: US $249 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cooling room refrigeration evaporator?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the cooling room refrigeration evaporator be supplied for my local voltage?

The standard configuration is 380V/three Phase/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
