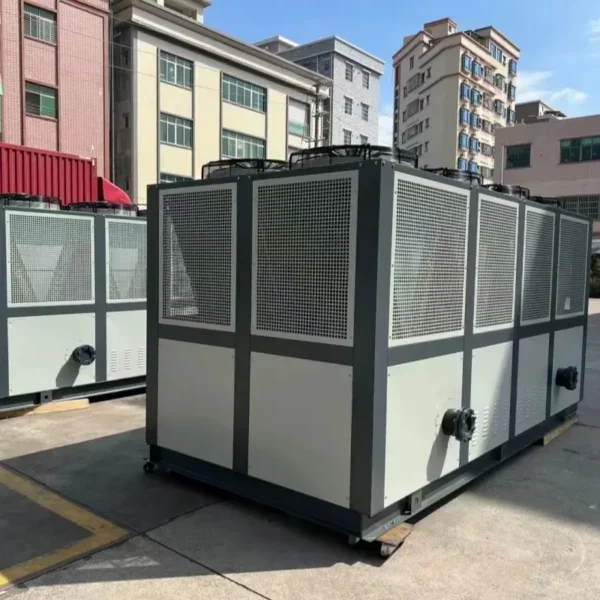

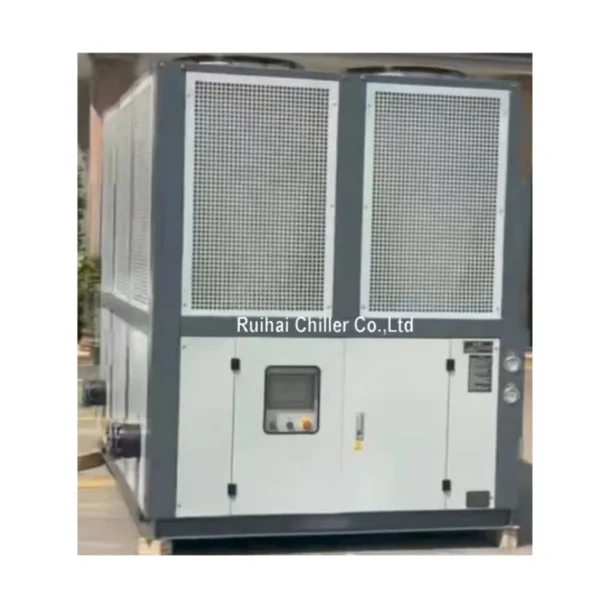

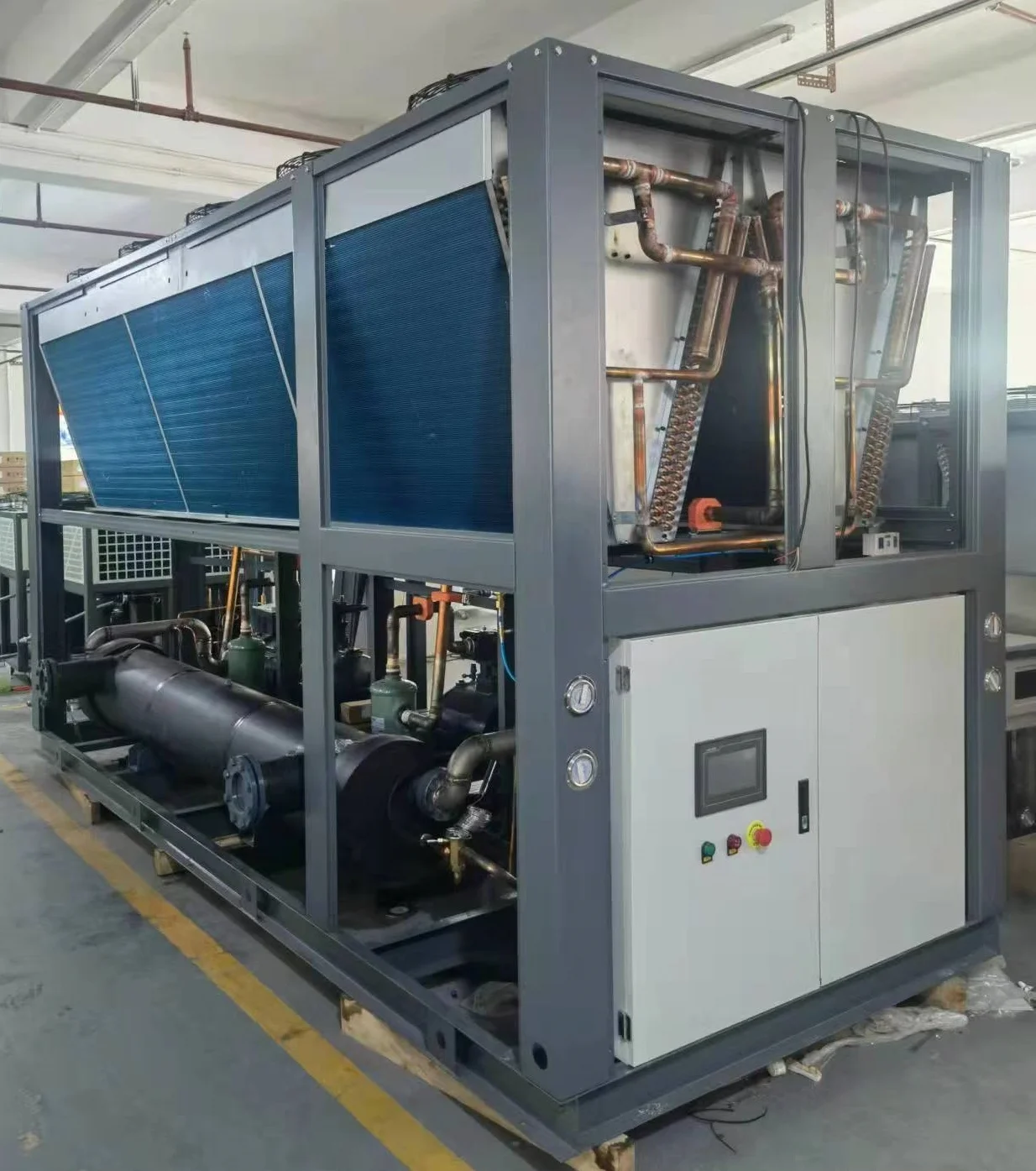

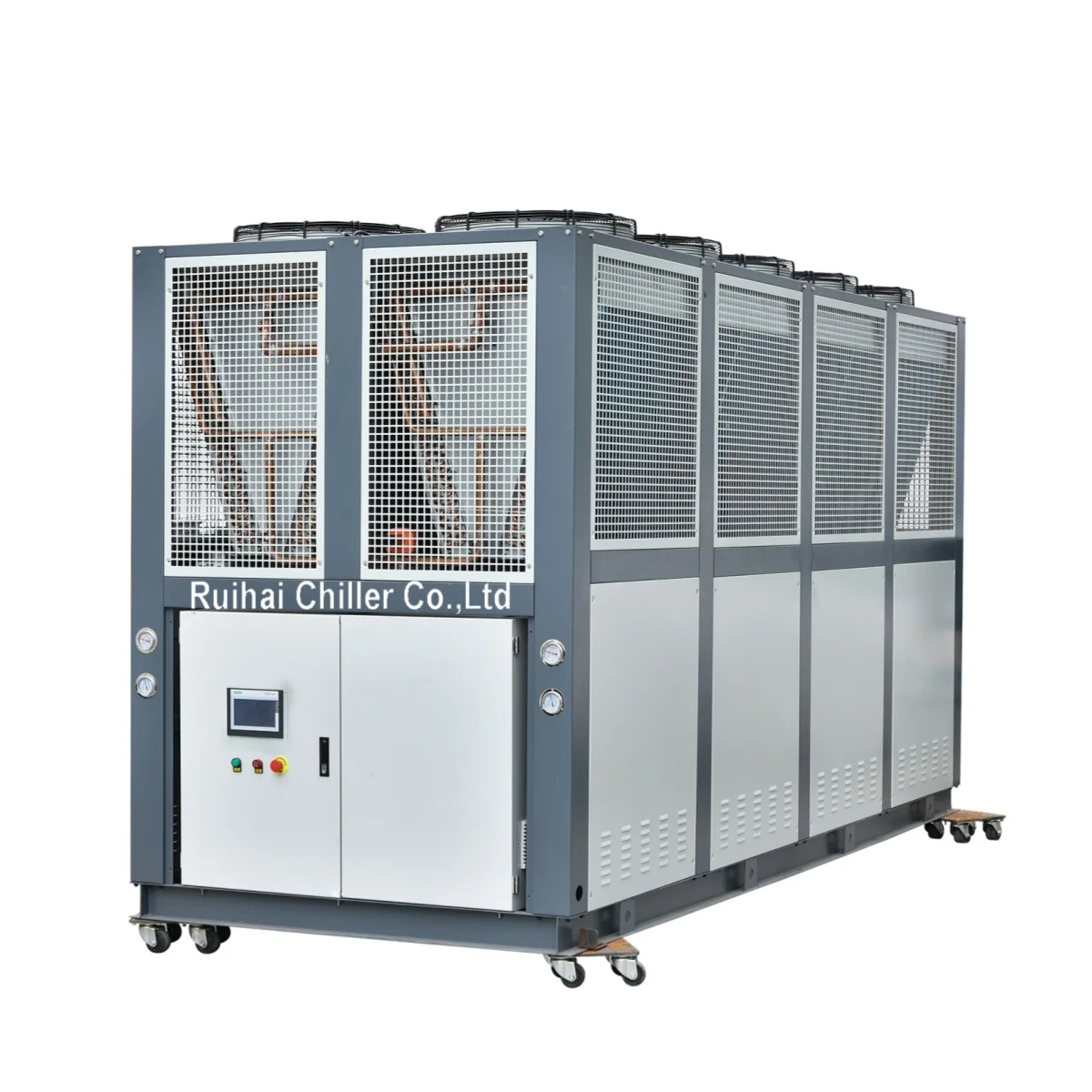

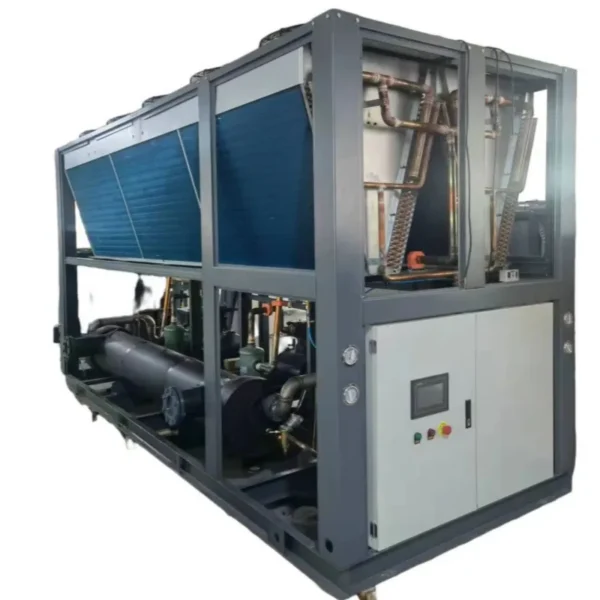

The air cooled screw chiller listed here carries 380 V, 118.8kw, documented exactly as the manufacturer publishes it. Made by Shenzhen Ruihai Refrigeration Equipment Co., Ltd. (1 year on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Cooled Screw Chiller
- Model Number: RHP-315AD
- Power: 118.8kw
- Power Supply: 380V/50HZ/3PH or 380V/60HZ/3PH
- Total Power Consumption: 118.8kw
- Voltage: 380 V
- Refrigeration Capacity: 315kw
Technical Specifications
| Voltage | 380 V |
|---|---|
| Power | 118.8kw |
| Warranty | 1 Year |
| Model Number | RHP-315AD |
| Place Of Origin | China |
| Weight (Kg) | 3180 |
| Refrigerant | R407c/R134A |
| Refrigeration Capacity | 315kw |
| Power Supply | 380V/50HZ/3PH or 380V/60HZ/3PH |
| Compressor Quantity | 1 |
| Total Power Consumption | 118.8kw |
| Controller | Demai |
| Evaporator | Shell+ tube |
| Size | L3800 x W1900 x H2200 mm |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
| Model No. | RHP-315AD | |
| Refrigeration Capacity | 315kw ( or 270900Kcal/h ) | |
| Temp. Control Range | 5ºC ~35ºC | |
| Power Supply | 380V-3Phase-50Hz | |
| Total Power Consumption | 118.8kw | |
| The Max Running Current | 205A | |
| Refrigerant | Type | R407C |
| Charge Qty | 42kg x2 | |
| Control | Thermal Expansion Valve | |

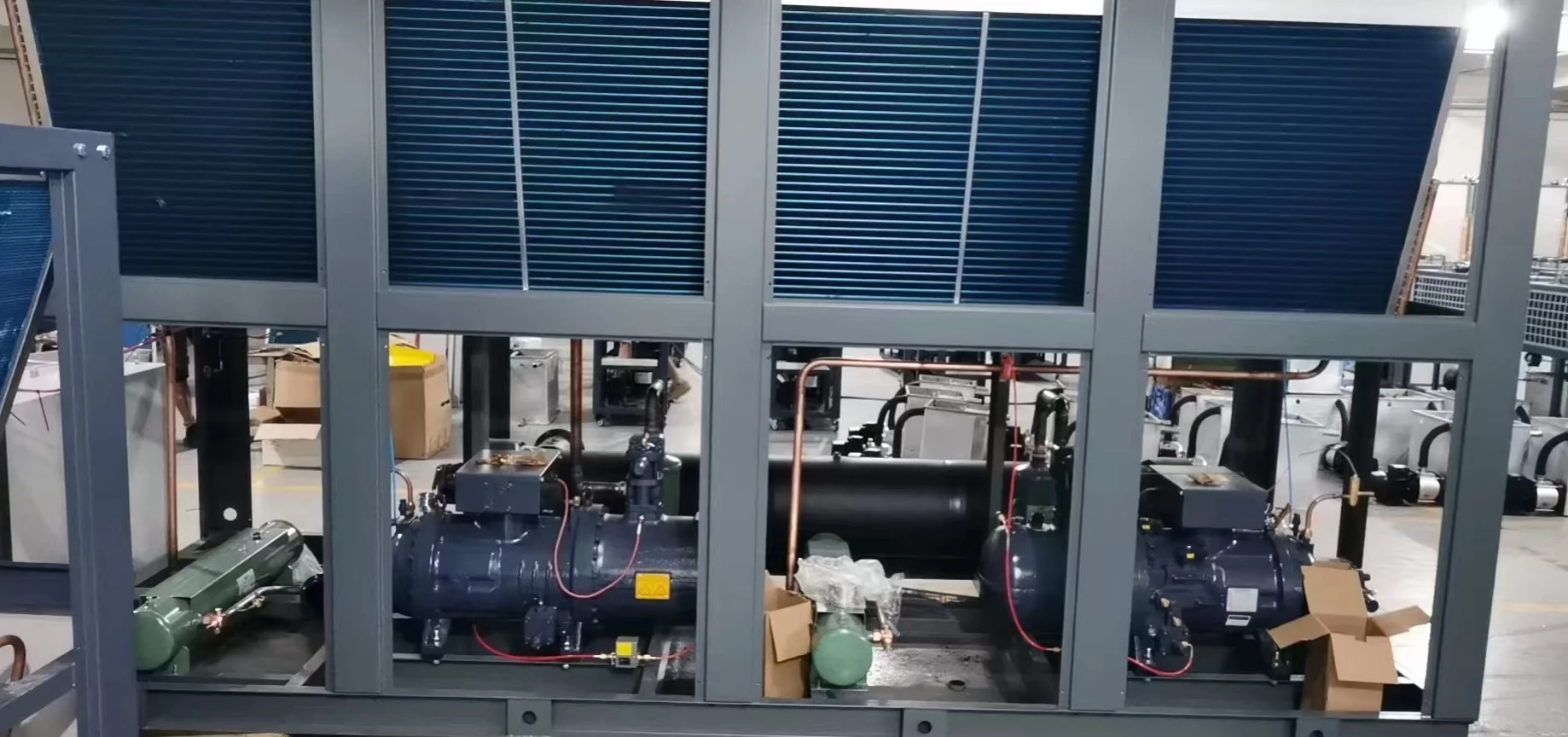

| Compressor | Type | Semi Closed Screw Type |
| Starting Mode | Y-Δ | |
| Input Power | 55KW x2 | |
| Range of Energy Regulation | 25%-50%-75%-100% | |

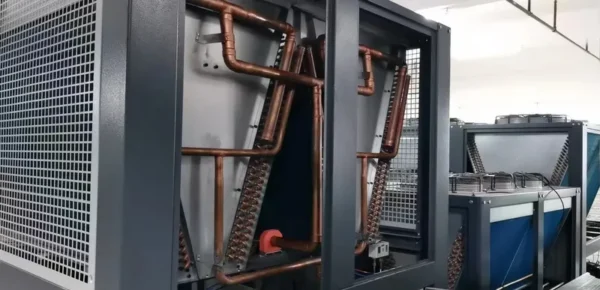

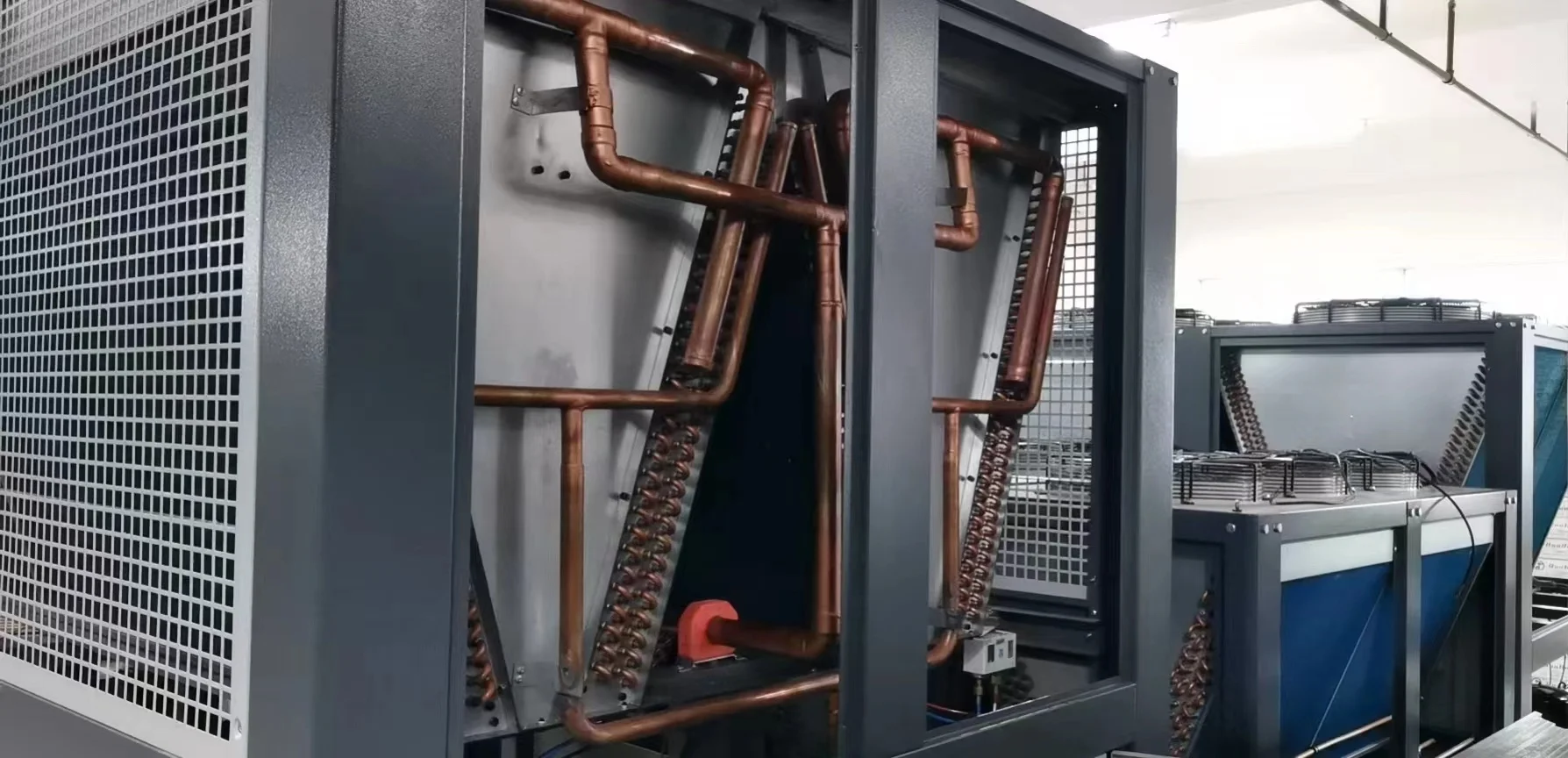

| Condenser | Type | Efficient Copper Aluminum Fin with Internal Thread Copper Tubes |
| Fan | Type | Aluminum Alloy Axial Fan ( High Air Volume & Low Noise ) |
| Cooling Air Flow | 116000m3/h | |
| Fan Power | 1.1kw x 8 | |

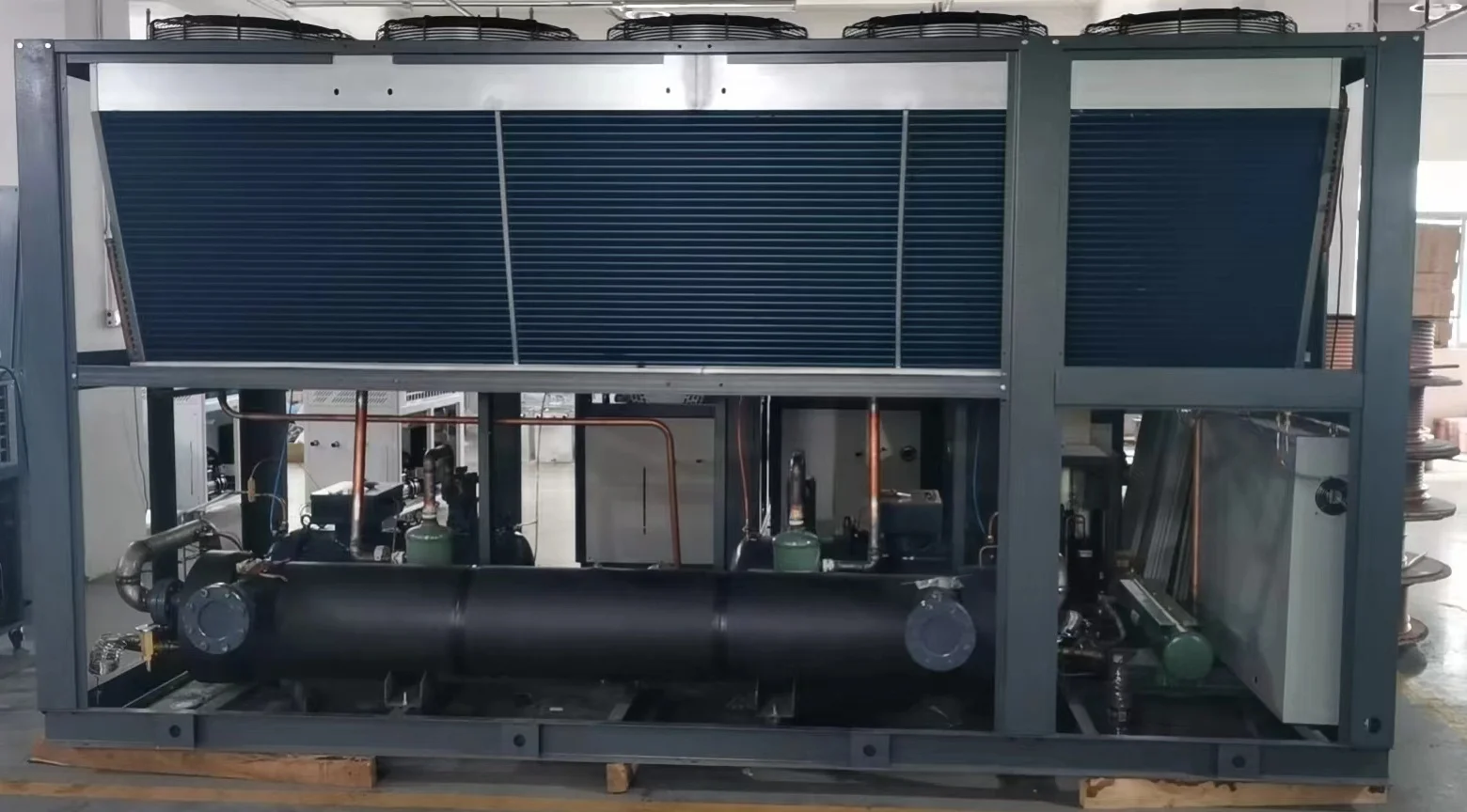

| Evaporator | Type | Shell and Tube / Brazed Plate Heat Exchanger |
| Chilled Water | 54m3/h | |
| Water Resistant | 38Kpa | |
| Inlet/Outlet Pipe | Dia.5" | |

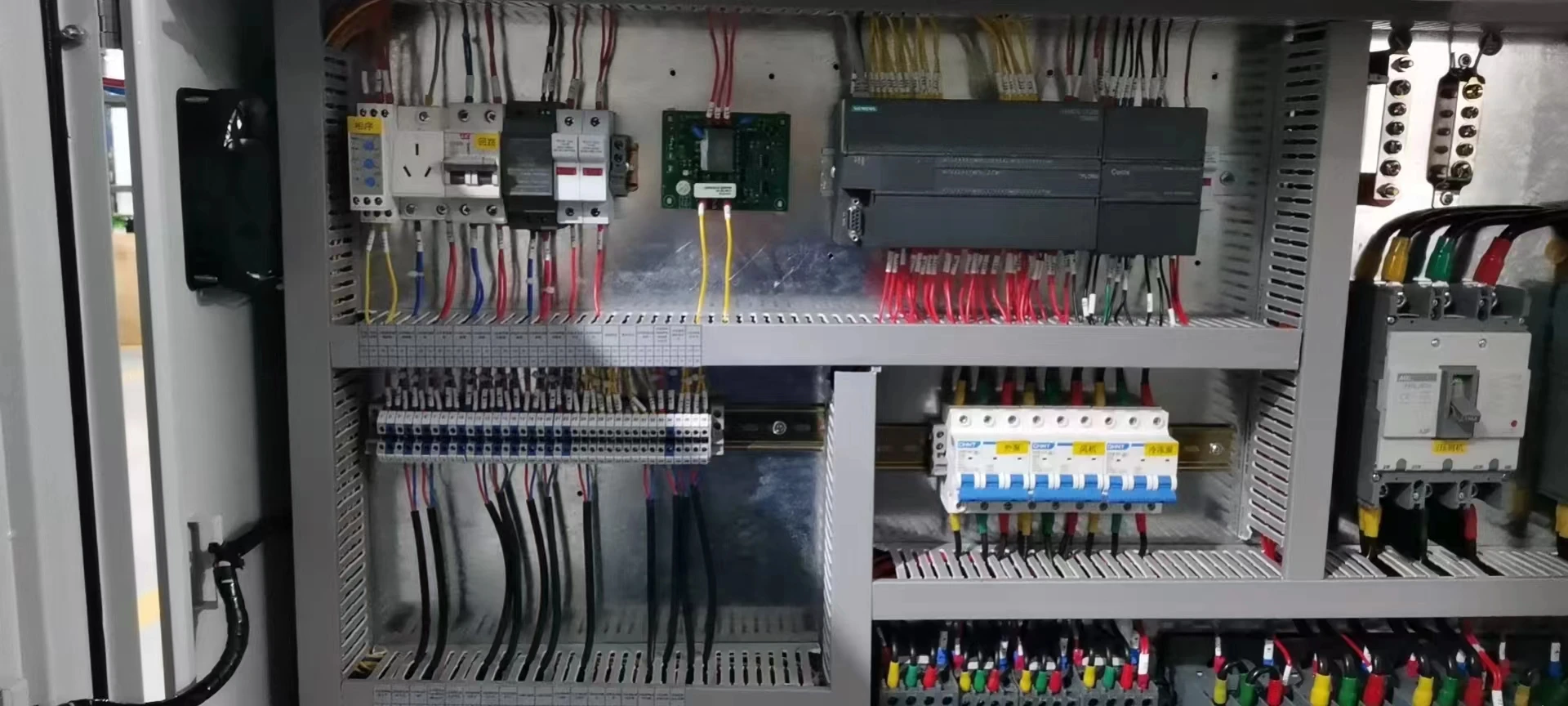

| Controller | PLC | |
| Protector Device | Compressor overheating protection, over current protection, high and low pressure protection traffic protection, phase sequence/phase loss protection, low level protection, frost protection over temperature protection | |
| Size | L3800 x W1900 x H2200 mm | |
| Weight | 3180kg | |
- Chilled Water: Inlet Temp.=12°C, OutletTemp.=7°C
- Cooling Water: Inlet Temp.=30°C, Outlet Temp.=35°C
- The outlet chilled water temperature range could be controlled between 5°C to 35°C.
- The inlet water temperature is no more than 35°C.
Coating Systems – Chemical & Pharmaceutical Processes – Plastics Processing – Thermoform Machines –
Plasma Coating – Medical Imaging Systems – Food & Beverage Industry – Electroplating Baths – Biogas &
Natural Gas Treatment – Compressed Air Treatment – Extruders – Surface Processing – Flexographic Printing
Systems .
(1) Use standard export plywood case with forklift truck feet, easy to load and unload .
(2) 5-7 days to finish the production after receiving the deposit .
(3) Shipping by LCL or FCL .
It's easy to cooperate with our company, you do not need to worry about anything.
1. CE approved, meet ISO 9001 standard.
2. Assembled package and only need to connect the pipes on jobsite.
3. Complete commissioning before delivery.
4. Low failure and low maintenance cost.
5. Custom-made is available.
6.12 months quality warranty since the date of delivery.
7. Free of charge to replace new chillers if quality problems.
8. Cost price to buy extra parts with Chillers from Ruihai if needed.
9. 7/24 online service by e-mail, WhatsApp, Skype or Telephone Calling.
10. Installation Video to help installation even send engineer to customer's jobsite .
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $27000 / piece
- 10+ piece: US $26000 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air cooled screw chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air cooled screw chiller be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Ruihai Refrigeration Equipment Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Ruihai Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
