This injection mold machine chiller is published with the manufacturer’s full specification — 380V/3P/50Hz,460V/3P/60HZ, 10KW. Made by Dongguan Baishiteng Machinery Co., Ltd. (2 years on the platform, typical reply ≤14h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Injection Mold Machine Chiller
- Power: 10KW
- Power Input: 380V/3P/50Hz,415V/3P/60HZ
- Compressor Power: 15KW
- Voltage: 380V/3P/50Hz,460V/3P/60HZ
- Rated CoolingCapacity: 242394Btu/h~71KW~61060Kcal/h~20.2USRT
- Refrigerant: R22/R407C
Technical Specifications
| Voltage | 380V/3P/50Hz,460V/3P/60HZ |
|---|---|
| Power | 10KW |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Long service life |
| Core Components | PLC, Engine, Motor, Pump |
| Place Of Origin | China |
| Brand Name | BESTEN |
| Dimension(L*W*H) | 1950*750*1760MM |
| Working Temperature Range | 0-30℃ |
| Product Name | injection mold machine chiller industrial |
| Refrigerant | R22/R407C |
| Power Input | 380V/3P/50Hz,415V/3P/60HZ |
| Compressor Power | 15KW |
| Evaporator Water Tank | 278L |
| Standard Freezing Water Flow | 12.21m3/h |
| Diameter Of Standard Nipple | 50DN |
| Built-In Pump | 2HP |
| Machine Weight | 830KG |
| Rated CoolingCapacity | 242394Btu/h~71KW~61060Kcal/h~20.2USRT |
| Selling Units | Single item |
| Single Package Size | 155X75X145 cm |
| Single Gross Weight | 380.0 kg |
Product Details

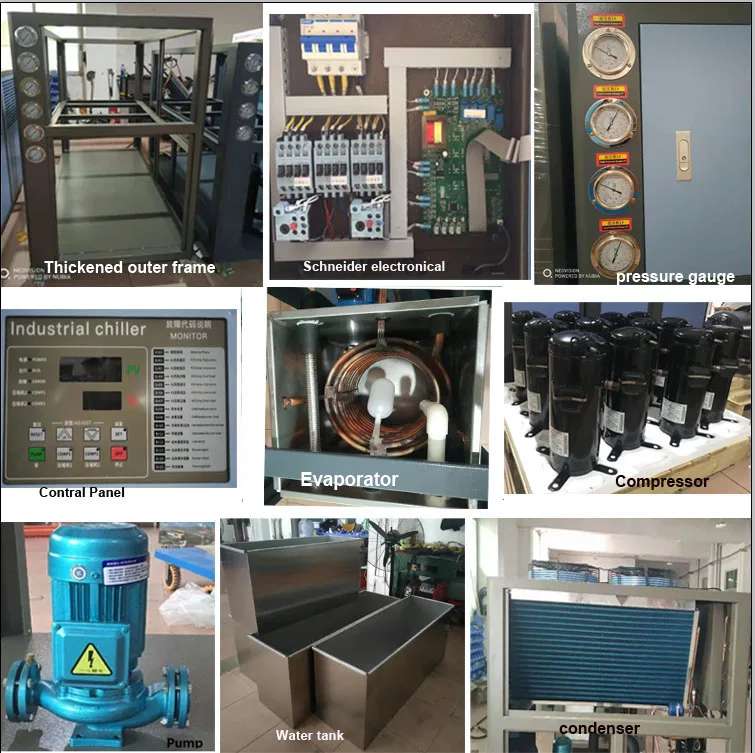

The industrial chiller has the following features:
1. The industrial chiller is divided into two categories: Water-cooled chiller and air-cooled chiller. Water-cooles chiller cooled by water, using with cooling tower and water pump, the other cooled by fan, can be used independently.
2. Our compressor is imported from Italy, France and so on, being of high-quality built-in safe protection, with low noise, the electricity of province is durable.
3. Cooling capacity range: 9.8kw~189kw
4. Normal conditions: Chilled water inlet temperature is 20 degrees, outlet temperature is 15 degrees. Cooling water inlet temperature is 30 degrees, outlet temperature is 35 degrees. But the temperature can be set in 5-30 degress range according to customers' request, and the lowest temperature can arrive -25 degress.
5. Stardard Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%, Can also be customized according to customers'request
6. The quantity of compressor can be one or two, each compressor is independent refrigeration system. Each other run independently. When the one is working, the other can be working or not.
7. The quantity of compressor can be 1 to 4, each compressor is independent refrigeration system. Each other run independently. When the one is working, the other can be working or not.
8. Use PLC microcomputer control from France Schneider, both English and Chinese human-machine interface.
9. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.
10. Our standard refrigerant is R22, but you can choose to use environmental refrigerant such as R407C, R134A or R507.

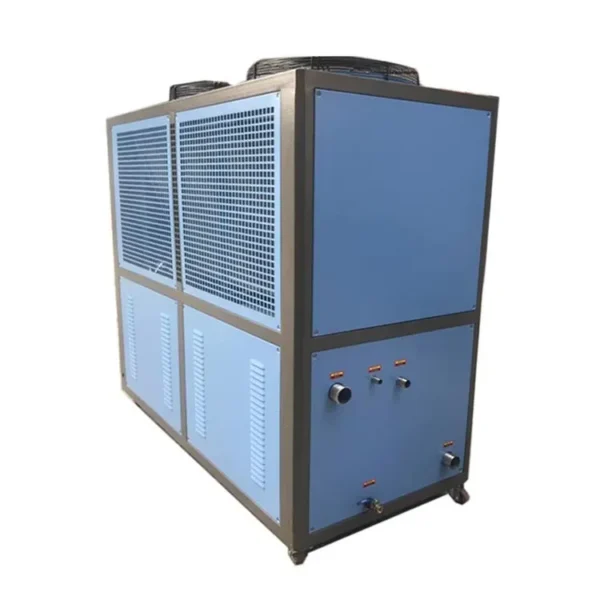

Air-cooled chiller BST-20AC technical parameters:
| Model | BST-20AC |
| Rated cooling capacity | (208937 Btu/h) (61.2 KW) 52632 Kcal/h) (17.4 USRT) |
| Input power | 380V/3P/50Hz,220V/3P/60HZ,415V/3P/60HZ |
| Number of compressor horses | 20HP |
| Throttle | Capillary/thermal expansion valve |
| Refrigerant | R22/R407C |
| Evaporator form | Water tank/shell type |
| Evaporator Water tank capacity | 348L |
| Chilled water flow | 10.52m3/h |
| Standard caliber | 50DN |
| Built-in water pump | 2HP |
| Machine weight | 830kg |
| Mechanical size (length * width * height) | 1950*860*1760mm |
Product details
In 2002, Dongguan BESTEN Machinery Co., Ltd. invested in Dongguan City Hengli Town,which is a sub
company under HongKong BESTEN group, which is a modern high-tech Corporation with research and
development, production, sales and service.The company inherits the enterprise spirit of BESTEN group.
"human oriented, quality first, service first, excellence pursue" is the tenet and goal that company is founded
on. The company takes "continuous improve and advance with the times" as its main principle to stimulate
itself, and join in the competition domestically and abroad with excellent products in good faith. Through
continuous improvement and improve product quality, BEST Machinery accumulated many years of design and
production of experience, and finally laid a solid foundation of quality products.
Our clients

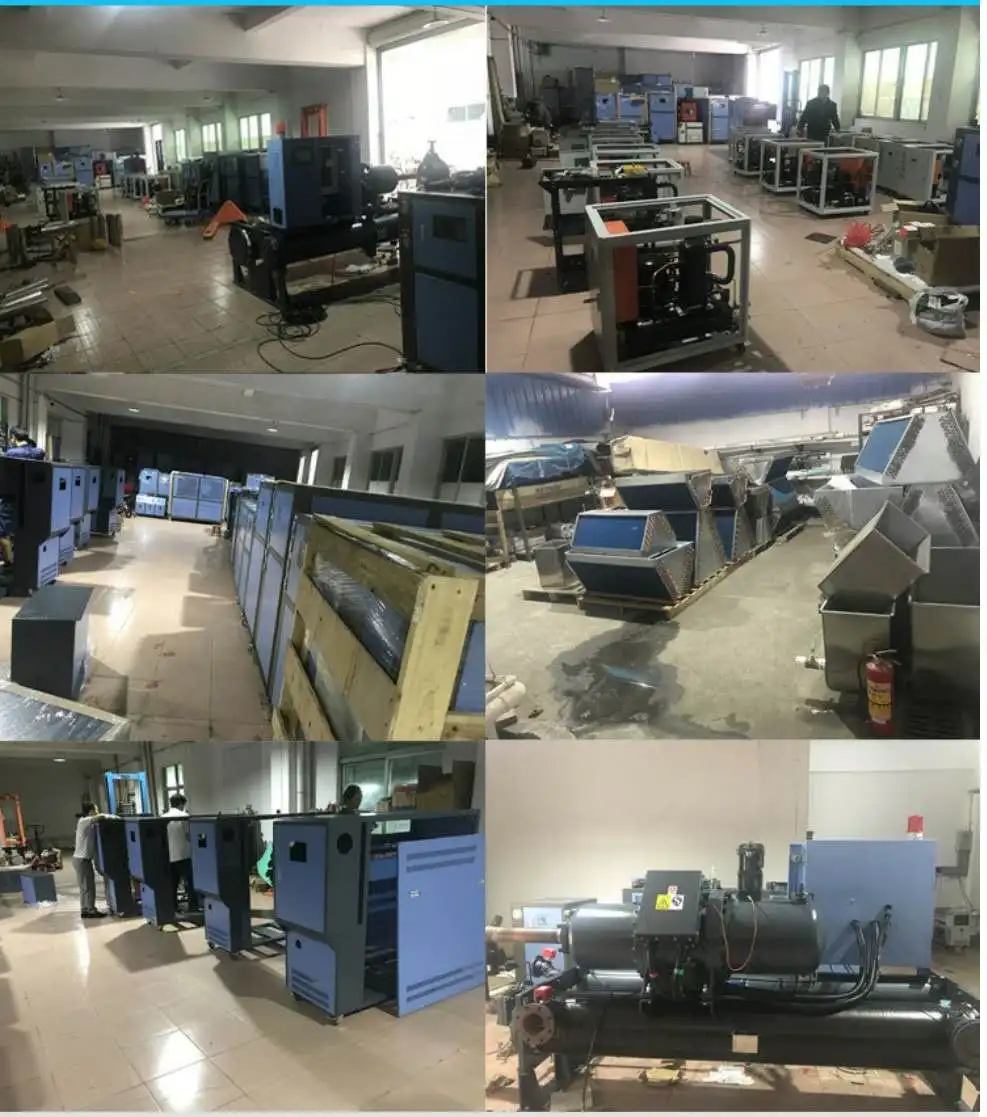

Our workshop:
1.Free repair within 2 year of guarantee on the condition of operate the machine in the right way.
2. Our factory provide machine testing when customer come to our factory to see this machine.
3.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings
4.We can provide engineers to customer's factory to help installation and training workers if customer required.
5.We offer OEM.
6. Customized model.
How about the quality of your product?
— Our products manufactured strictly according to national and international standard.
— We have CE ,ISO certification
— We take a test on every product before delivery.
How about price of this product?
— We can give the lowest price than market one.
— We do quotation as soon as possible for any customer.
— Discount can be given according to quantity.
What is the MOQ?
— 1 set.
If you can be custom-made?
— We can make products according to customer's requirements.
What is the voltage?
— 380V 50hz 3 phase or any other voltage according to client's requirement.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $5280 / set
- 2+ set: US $5000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this injection mold machine chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the injection mold machine chiller be supplied for my local voltage?
The standard configuration is 380V/3P/50Hz,460V/3P/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
