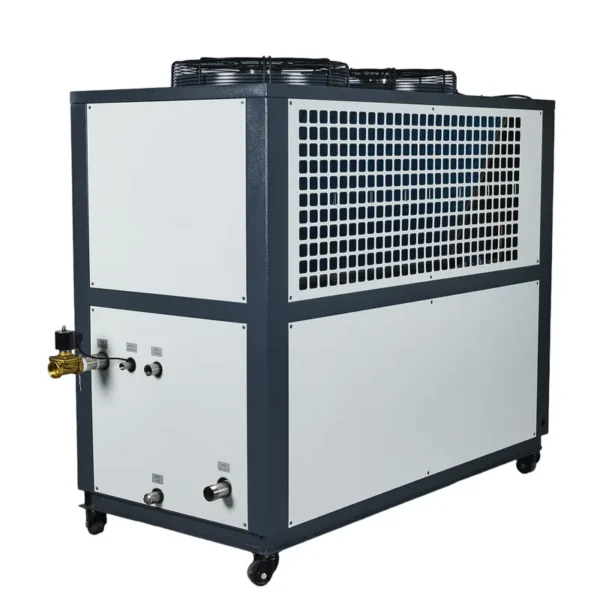

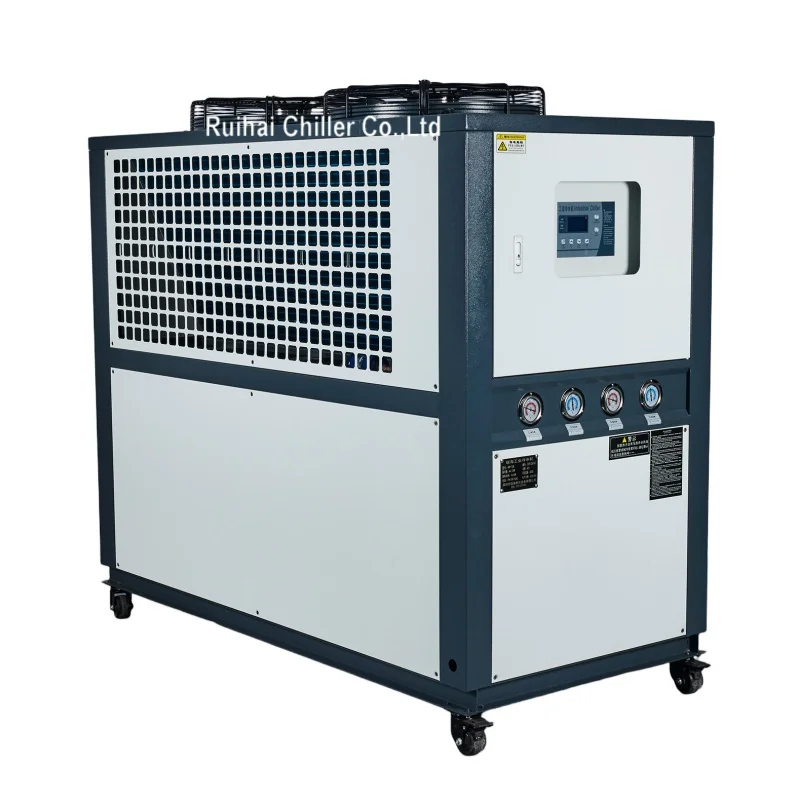

This air cooled scroll chiller is published with the manufacturer’s full specification — 380V/50HZ/3PH or 380V/60HZ/3PH, refrigerant R407c/R134A. Made by Shenzhen Ruihai Refrigeration Equipment Co., Ltd. (1 year on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Cooled Scroll Chiller
- Power Supply: 380V/50HZ/3PH or 380V/60HZ/3PH
- Total Power Consumption: 13.7kw
- Refrigeration Capacity: 44.15kw
- Refrigerant: R407c/R134A
- Warranty: 1 Year
- Place Of Origin: China
Technical Specifications
| Type | Air cooled |
|---|---|
| Temperature Control | 0℃-35 |
| Warranty | 1 Year |
| Place Of Origin | China |
| Weight (Kg) | 600 |
| Refrigerant | R407c/R134A |
| Refrigeration Capacity | 44.15kw |
| Power Supply | 380V/50HZ/3PH or 380V/60HZ/3PH |
| Compressor Quantity | 2 |
| Total Power Consumption | 13.7kw |
| Controller | Punp |
| Evaporator | Coiling stainless steel tube + Water tank |
| Size | L1870 x W860 x H1960 mm |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
| Model No. | RHP-15A | |
| Refrigeration Capacity | 44.15kw | |
| Temp. Control Range | 5ºC~35ºC | |
| Power Supply | 380V-3Phase-50Hz | |
| Total Power Consumption | 13.7kw | |
| Refrigerant | Type | R407C |
| Control | Thermal Expansion Valve | |
| Compressor | Brand | Panasonic |
| Type | Hermetic Scroll | |
| Power | 3.75kw x 3 | |
| Condenser | Type | Efficient copper aluminum Fin & Low Noise Fan |
| Cooling Air Flow | 15000m3/h | |
| Fan Power | 0.6kw x 2 | |
| Evaporator | Type | Tank Coils |
| Chilled Water | 7.6m3/h | |
| Tank Volume | 210L | |

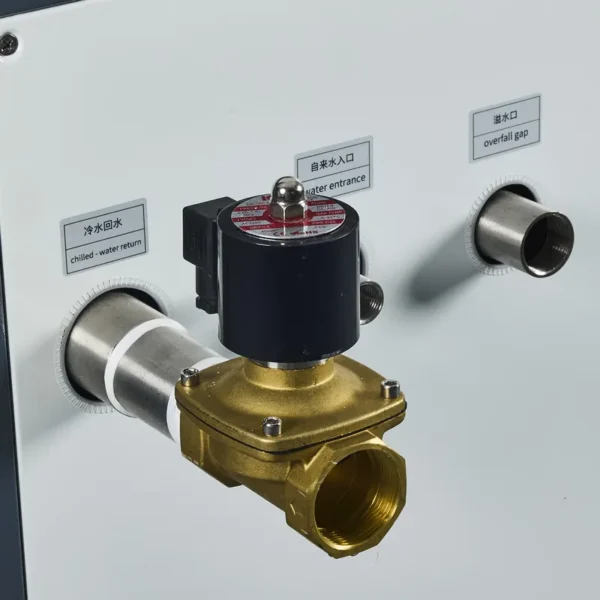

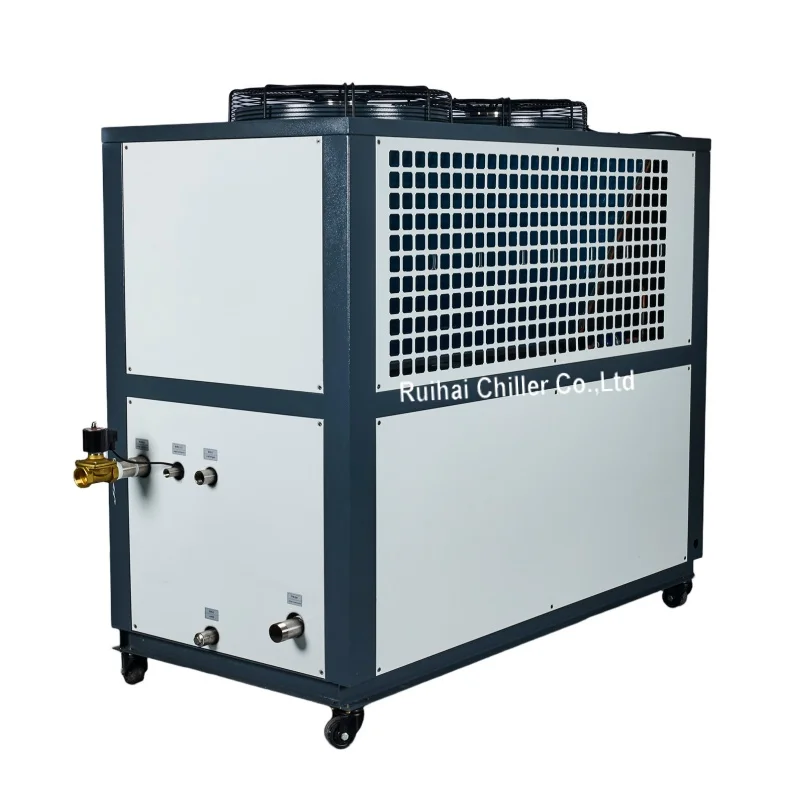

| Inlet/Outlet Pipe | Dia.2" | |
| Water Pump | Power | 1.5kw |
| Max Flow Rate | 25.2m3/h | |
| Lift | 21.5m | |

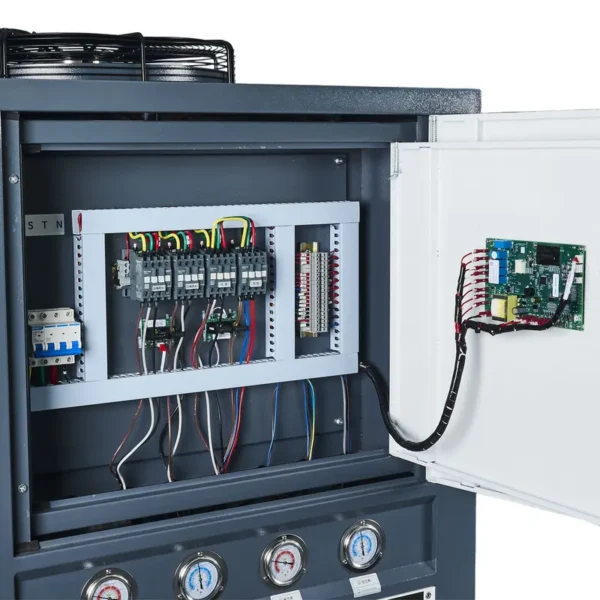

| Controller | PLC | |
| Protector Device | Compressor overheating protection, over current protection, high and low pressure protection traffic protection, phase sequence/phase loss protection, low level protection, frost protection over temperature protection | |
| Size | L1870 x W860 x H1955 mm | |
| Weight | 600kg | |
- Above cooling capacity is based on Chilled Water Inlet=12°C & Outlet=7°C, Ambient Temp.=35°C
- Power Supplier Options: 220V-3Phase-50Hz/60Hz, 380V-3Phase-50Hz/60Hz, 415V-3Phase-50Hz/60Hz
- Refrigerant Options: R407C, R134a, R404a
Coating Systems – Chemical & Pharmaceutical Processes – Plastics Processing – Thermoform Machines –
Plasma Coating – Medical Imaging Systems – Food & Beverage Industry – Electroplating Baths – Biogas &
Natural Gas Treatment – Compressed Air Treatment – Extruders – Surface Processing – Flexographic Printing
Systems .

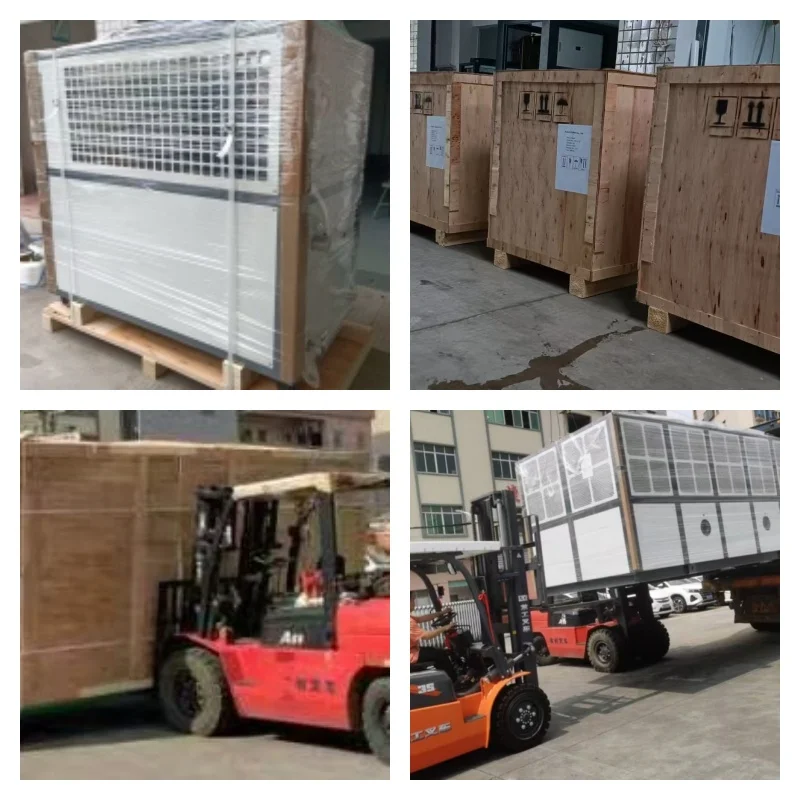

(1) Use standard export plywood case with forklift truck feet, easy to load and unload .
(2) 5-7 days to finish the production after receiving the deposit .
(3) Shipping by LCL or FCL .
It's easy to cooperate with our company, you do not need to worry about anything.
1. CE approved, meet ISO 9001 standard.
2. Assembled package and only need to connect the pipes on jobsite.
3. Complete commissioning before delivery.
4. Low failure and low maintenance cost.
5. Custom-made is available.
6.12 months quality warranty since the date of delivery.
7. Free of charge to replace new chillers if quality problems.
8. Cost price to buy extra parts with Chillers from Ruihai if needed.
9. 7/24 online service by e-mail, WhatsApp, Skype or Telephone Calling.
10. Installation Video to help installation even send engineer to customer's jobsite .
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $4100 / piece
- 10+ piece: US $998 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air cooled scroll chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air cooled scroll chiller be supplied for my local voltage?
The standard configuration is 380V/50HZ/3PH or 380V/60HZ/3PH. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Ruihai Refrigeration Equipment Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Ruihai Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
