Industrial Water Chiller, 50-2500, 10ton, 30ton, 50ton

This industrial water chiller is published with the manufacturer’s full specification — 380v/3phase/50hz, 18KW~4000KW. Made by Qingzhou Huanli Refrigeration Equipment Co., Ltd. (8 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Industrial Water Chiller

• Power: 9.5kw
• Voltage: 380v/3phase/50hz
• Cooling Capacity: 18KW~4000KW
• Refrigerant: R134a/R407c/R410a
• Warranty: 1 Year
• After Warranty Service: 1 Year Service

Technical Specifications

Product Details

Product Overview

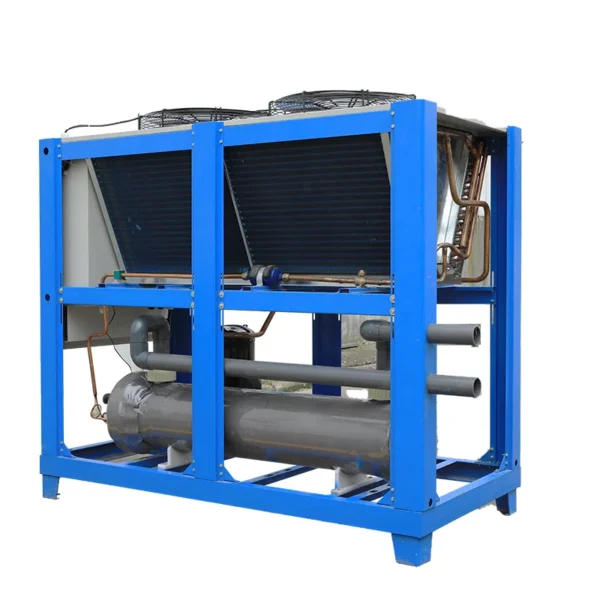

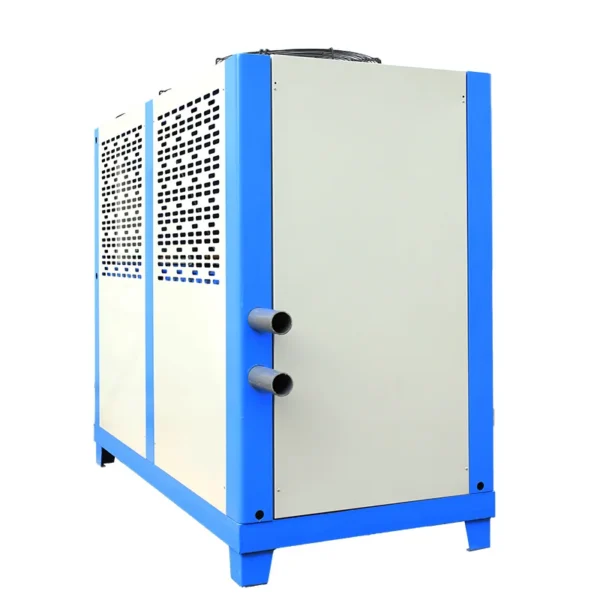

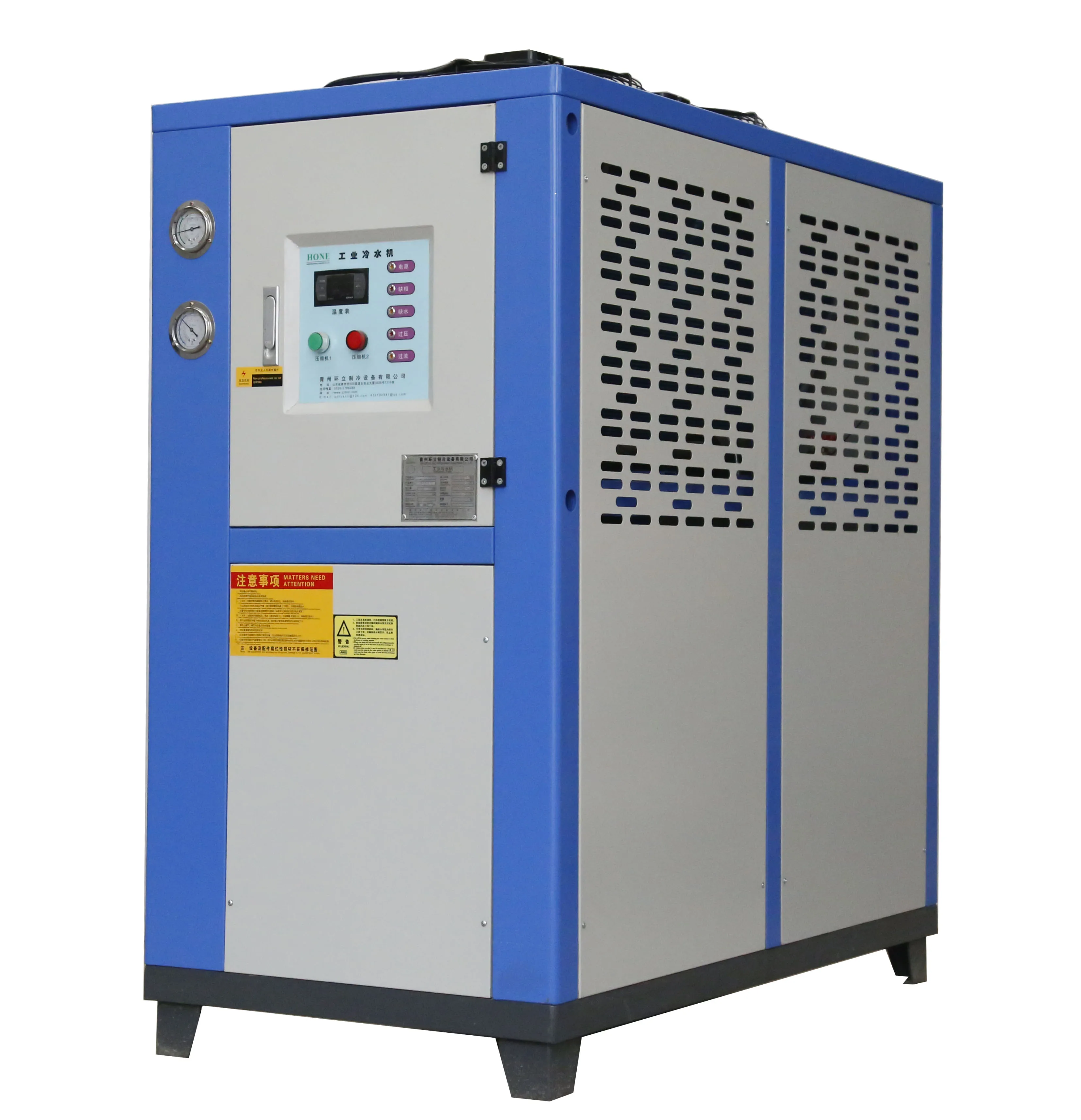

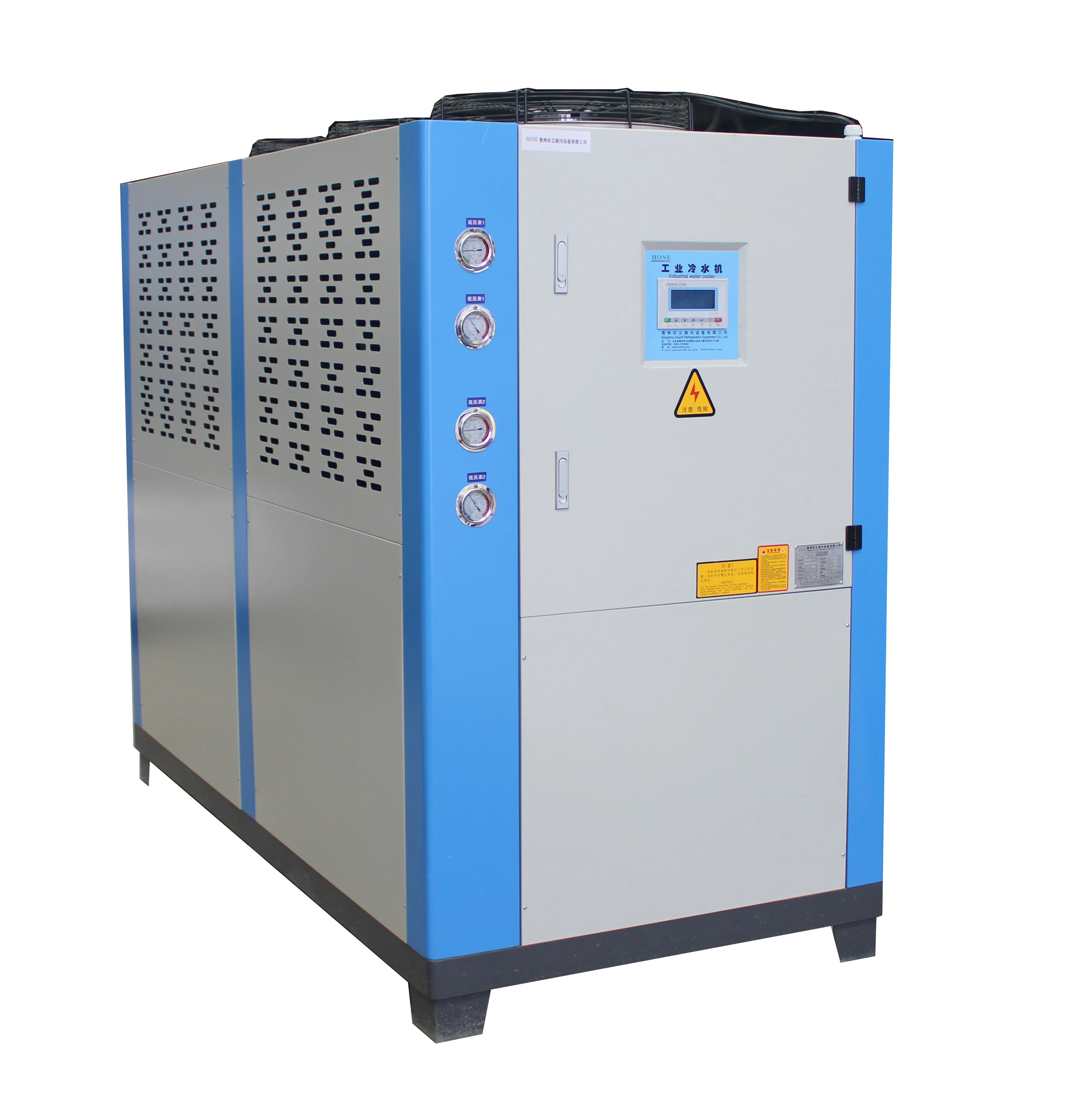

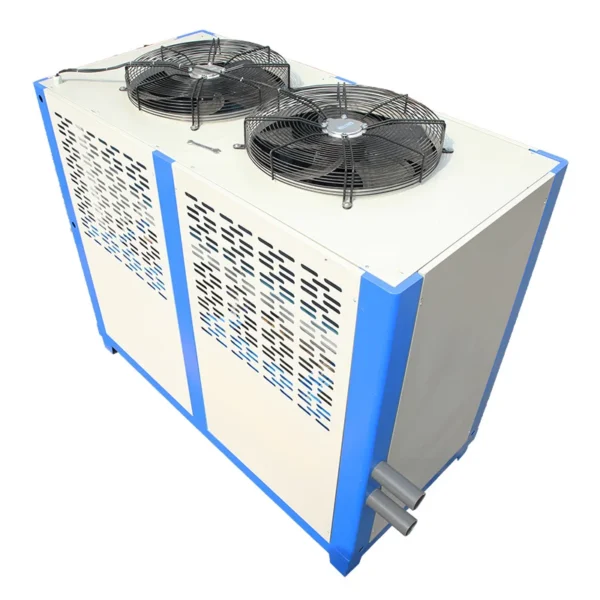

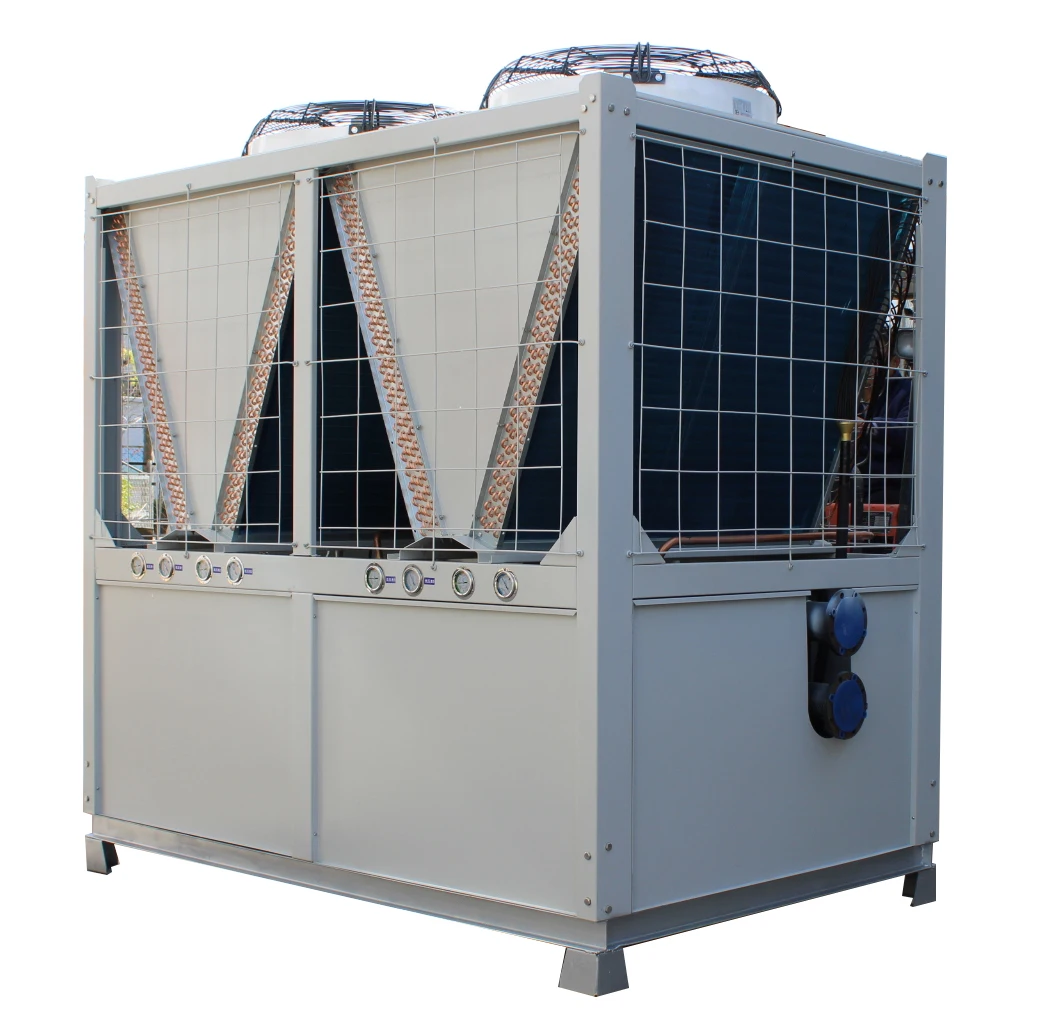

Air Cooled Water Chiller

The air cooled chiller, also known as an air-cooled box-type industrial chiller unit, utilizes a air-cooled heat dissipation design. It draws surrounding air into the equipment using built-in fans and dissipates heat through a condenser, thereby reducing the system temperature. It does not require an additional water cooling system and is relatively easy to install and maintain.

Air cooled chiller is suitable for places with limited space or where sufficient cooling water cannot be provided. However, the cooling efficiency is affected by ambient temperature and humidity, so it is typically used in applications with lower heat loads. Each model is equipped with a range of safety features, including motor overload protection, phase loss and phase reversal alarms, anti-freeze thermostats, pressure gauges, and more. These chiller units demonstrate excellent performance and have a longer lifespan. Throughout the entire operating cycle, a series of steps based on the fundamental principles of heat exchange are followed. They are particularly suitable for industries that require precise control and regulation of chilled water temperature, allowing for precise control within the range of 3°C to 50°C, making them an important player in the modern industrial sector.

FEATURES AT A GLANCE

Air-cooled scroll compressor chiller

1.LONG SERVICE LIFE

2.LOW NOISE LEVEL

3.ENERGY SAVING

4.LOW MAINTENANCE

5.ACCURATE TEMPERATURE CONTROL

6.R410a

7.REMOTE CONTROL Remote Control 8.PATENTED PRODUCT Patented Product 9.FAMOUS BRAND MOTOR 10.MULTIFUNCTIONAL 11.FAMOUS BRAND PLC 12.LOW MAIN

Right elevation

Left elevation

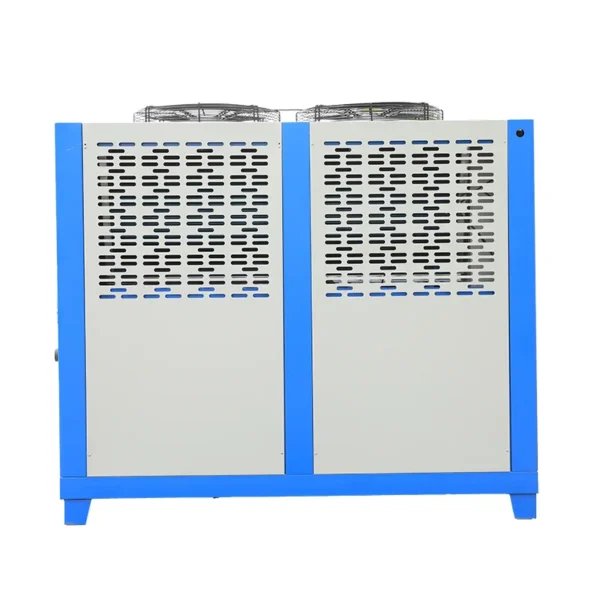

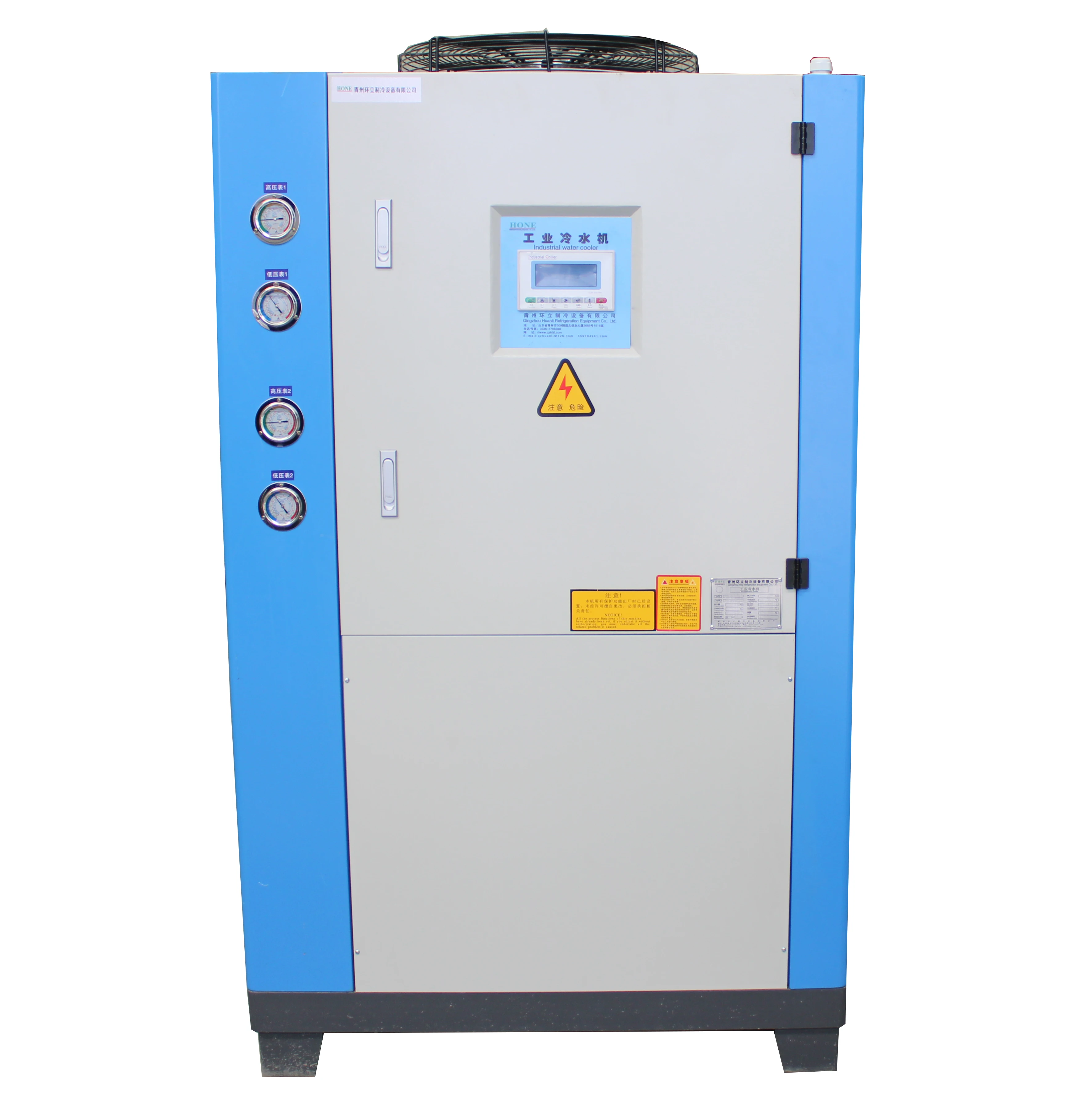

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data	Item	Data
1	Model	HL30SBX	Compressor Rated load current	11.9A
2	Cooling capacity	29.4KW	Compressor form	Semi-hermetic screw compressor
3	Input power	3PH-380V/50HZ	Condenser form	Shell and tube
4	Freezing medium	R134a	Condenser Water Temperature	30-35℃
5	Compressor input power	6.8KW	Evaporator form	Shell and tube
6	Condenser Cooling water flow	8.1m³/h	Evaporator Water Temperature	20-22℃
7	Evaporator Tank liquid flow	10.1m³/h	Pipe connection Cooling water inlet and outlet	DN40
8	Dimensions (L*W*H)	1500*710*1325mm	Weight	288KG

PRODUCT CONFIGURATION

compressor

Evaporator

condenser

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in India

Project in Russia

SIMILAR PRODUCTS

FAQ

Q1：Are you manufacturer or Trade Company?

A1：We are professional factory, founded in 1998. OEM available!

Q1：What's the order process?

A1：Inquiry—provide us all clear requirements. Quotation—official quotation form with all detail specifications. Contract confirmation—provide correct contract details. Terms of payment— By T/T 30% downpayment, balance before shipment. Production—mass production Testing—8hours, to ensure the quality of the machine Shipping— by sea, train. Detailed picture of package will be provided.

Q1：What terms of payment you use?

A1：T/T, L/C, etc. Installation—install video/install manual

Q1：How to get a prompt quotation?

A1：When you send the inquiry to us, please kindly send it with below technical information. 1). Application: 2). Cooling capacity: _____KW or _____ Kcal/hr or _____RT. 3). Outlet temperature: 4). Power supply: 3PH 380V/50HZ or 3PH 230V/60HZ or 3PH 440V/60HZ. 5). Location of your factory, we have to know the weather condition. 6). Any other special requirements: 5. Any technical support need or purchase need please contact to us!

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this industrial water chiller?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the industrial water chiller be supplied for my local voltage?

The standard configuration is 380v/3phase/50hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
