The air-cooled scroll liquid chiller listed here carries 20655Btu/h~6.05KW~5203Kcal/h~1.7USRT, 1.5KW, documented exactly as the manufacturer publishes it. Made by Dongguan Baishiteng Machinery Co., Ltd. (2 years on the platform, typical reply ≤14h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air-Cooled Scroll Liquid Chiller
- Power: 1.5KW
- Voltage: Customized
- RateCooling Capacity: 20655Btu/h~6.05KW~5203Kcal/h~1.7USRT
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Compressor Type: En-closed Scroll
Technical Specifications
| Voltage | Customized |
|---|---|
| Power | 1.5KW |
| Compressor Brand | Sonyo |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Long Service Life |
| Core Components | PLC, Engine, Motor, Pump |
| Place Of Origin | Guangdong, China |
| Brand Name | Besten |
| Dimension(L*W*H) | L580*W580*H925MM |
| Working Temperature Range | 0-30℃ |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Product Name | automatic electric industrial air cooled chiller |
| RateCooling Capacity | 20655Btu/h~6.05KW~5203Kcal/h~1.7USRT |
| Built In Pump | 0.5HP |
| Retrigreant | R22/R407C/R134A |
| Diameter Of Standard Nipple | 25MM |
| Evaporator Style | stainless steel plate heat exchanger |
| Shell Tube Heat Exchanger | stainless steel exchanger |
| Compressor Type | En-closed Scroll |
| Standard Freezing Water Flow: | 1.04m3/h |
| Selling Units | Single item |
| Single Package Size | 58X58X92.5 cm |
| Single Gross Weight | 102.0 kg |
Product Details
Industrial air cooled 2HP chiller
The Air cooled Chiller is to provide a cooling process for better industrial production. In plastic molding industry,it improves quality of molded products and shorten period of injection molding cycles.Hence maximizes productivity of plastic molding manufacturing.
And water could be used in various of different industries, just depends on the needs.
Besten Industrial Air Chiller features :
1. The Air cooled chiller is to provide cooling process to plastic molds to improve molded products quality and cut down injection cycle time. Hence maximizes plastic molding machines productivity.
2. Installed with import compressors, highly efficient shell condenser and evaporator, excellent cooling, quiet and low electricity consumption.
3. Microprocessor control, easy to operate;
4. Unique open reservoir tank made of stainless steel, easy cleaning and maintenance;
5. Pipeline well-arranged to save energy;
6. Installed will precise electronic thermostat accurately maintains temperature within 0-60 degree;
7. Installed with current overload protector, high and low pressure switch, electronic timer delay, fault display system;
8. Screen liquid crystal display of chill water out let and inlet with temperatures setting;
9. Single, double or four compressors combination unit available;
10. Industrially designed, elegant and ergonomic.
Air-cooled chiller BST-2AC Technical Data Sheet:
| Model | BST-2AC |
| Rated cooling capacity (50HZ) | (20655 Btu/h) (6.05KW) (5203 Kcal/h) (1.7USRT) |
| Input power | 220V/1P/50HZ |
| Number of compressor horses | 2HP(1.5kw) |
| Throttle | Capillary/thermal expansion valve |
| Refrigerant | R22/R407C |
| Evaporator Style | Water tank/shell type |
| Evaporator water | 36 |
| Chilled water flow | 1.05m3/h |
| Standard caliber | 15N |
| Built-in water pump | 0.5HP |
| Machine weight | 102KG |
| Mechanical size (L*W*H) | 900*520*850mm |
Product details
Othe Model of Specification
Our company is a modern high-tech Corporation with research and development,production, sales and service, built in Dongguan City Hengli Town, making BESTEN products serve a wide range of plastics,electronics,electroplating,laser,food,texitiles,chemicals,packaging,pharmaceutical and other industries. Key products of BESTEN Machinery include: Indusrial cooling chiller series, Screw cooling chiller series, industrial cooling tower series,mold temperature machine series,plastic mixer series,plastic cruser machine series, Injection machine and its accessory equipment etc.
Our clients

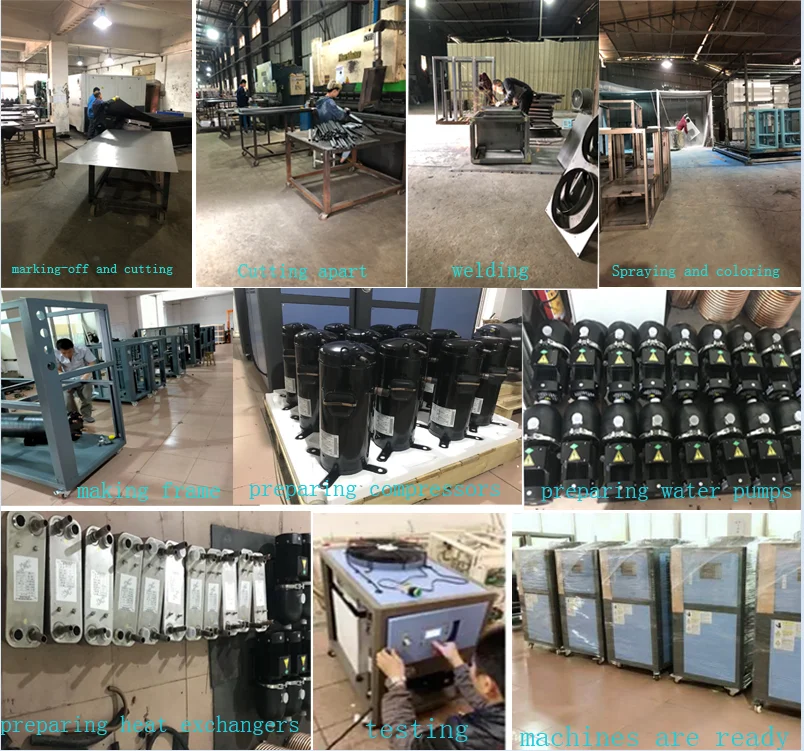

Workflow
How about the quality of your product?
— Our products manufactured strictly according to national and international standard.
— We have CE ,ISO certification
— We take a test on every product before delivery.
How about price of this product?
— We can give the lowest price than market one.
— We do quotation as soon as possible for any customer.
— Discount can be given according to quantity.
What is the MOQ?
— 1 set.
If you can be custom-made?
— We can make products according to customer's requirements.
What is the voltage?
— 380V 50hz 3 phase or any other voltage according to client's requirement.
1.Free maintenance within 1 year, operating the machine in the right way,
Does not include daily maintenance, also does not undertake pearl river delta travel expense.
2.Our factory provides machine testing when customers come to our factory to see this machine.
3.We provide detailed machine specifications, electrical drawings, installation books, operation manuals, drawings.
4.If the customer needs, we can provide engineers to help install and train the workers.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $1080 / set
- 2+ set: US $960 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air-cooled scroll liquid chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air-cooled scroll liquid chiller be supplied for my local voltage?
The standard configuration is Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Baishiteng Machinery Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Baishiteng Machinery Co., Ltd. range on HVACR Nexus.
