Air cooled water chiller — 220 V, cooling capacity 2ton-500ton. The complete factory specification follows. Made by Anhui Meluck Refrigeration Air-Condition Equipment Co., Ltd. (8 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Cooled Water Chiller
- Power: 500 W
- Voltage: 220 V
- Cooling Capacity: 2ton-500ton
- Warranty: 2 Years
- Place Of Origin: Anhui, China
- Application: Industrial Cooling Solutions
Technical Specifications
| Voltage | 220 V |
|---|---|
| Power | 500 W |
| Warranty | 2 Years |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Not Available |
| Key Selling Points | Automatic |
| Core Components | Motor |
| Place Of Origin | Anhui, China |
| Weight (Kg) | 100 |
| Brand Name | Meluck |
| Dimension(L*W*H) | – |
| Application | Industrial Cooling Solutions |
| Product Name | water chiller |
| Compressor Brand | Bitzer,Hanbell |
| Cooling | air cooled |
| Type | screw type |
| Compressor | scroll/hermetic reciprocating/screw |
| Function | Chilled Water |
| Cooling Capacity | 2ton-500ton |
| Selling Units | Single item |
| Single Package Size | 50X50X50 cm |
| Single Gross Weight | 60.0 kg |
Product Details

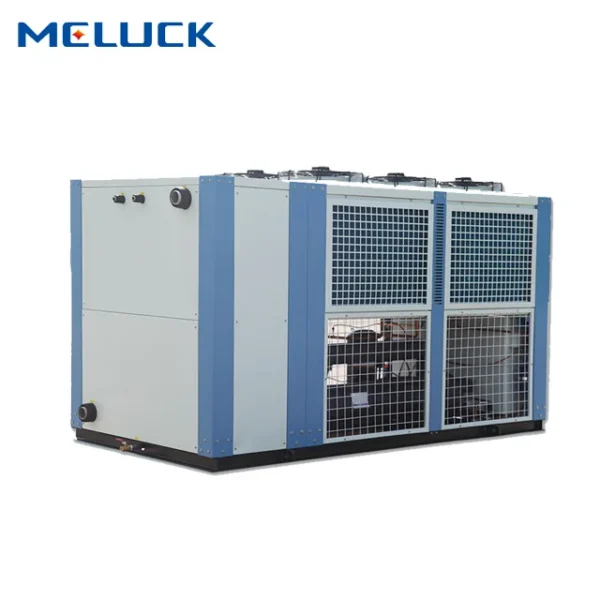

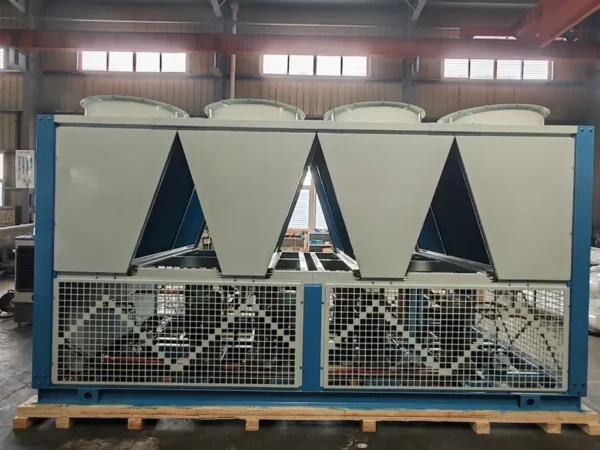

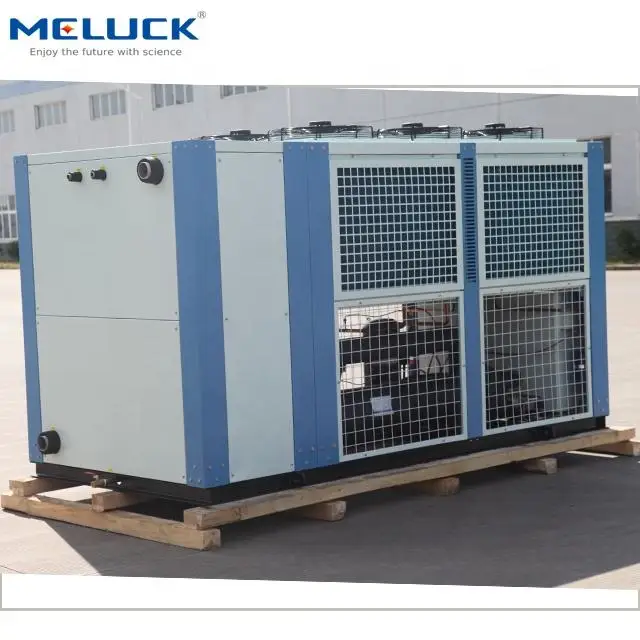

Air Cooled Screw Type Water Chiller
MELUCK | Anhui Meluck Refrigeration Air-Condition Equipment Co., Ltd.
Bitzer / Hanbell Compressors · Chilled Water -40°C ~ +35°C · Industrial Cooling Solutions
1. Product Overview
The MELUCK air cooled screw type water chiller produces chilled water from -40°C to +35°C for a wide range of industrial and commercial applications. World-famous brand components deliver higher COP, energy savings and long service life — in both air-cooled and water-cooled configurations.
- Type: Air-cooled (water-cooled shell & tube type optional)
- Cooling capacity: 2 – 500 ton (30 ton typical)
- Compressors: Bitzer / Hanbell — scroll, reciprocating or screw
- Refrigerant: R407C / R134a (R410A optional)
- Chilled water: -40°C ~ +35°C (standard in 12°C / out 7°C)
- Power supply: 220V – 460V, 50/60Hz, 1PH/3PH (7 options)
- Applications: plastic, beverage, oil cooling, pharmaceutical, construction, milk cooling, brewing
- Warranty: 2 years · OEM/ODM customization
2. Key Specifications
| Product Name | Air Cooled Screw Type Water Chiller (Industrial Chiller Unit) |
| Type | Air-cooled (water-cooled shell & tube type optional) |
| Cooling Capacity | 2 – 500 ton (30 ton selectable) |
| Compressor Brand | Bitzer, Hanbell (scroll / hermetic reciprocating / screw) |
| Refrigerant | R407C, R134a (R410A optional) |
| Chilled Water Temp. | -40°C ~ +35°C (standard: water in 12°C / out 7°C) |
| Power Supply | 220V / 380V / 415V / 460V · 50Hz / 60Hz · 1PH / 3PH (7 options) |
| Weight | 100 kg (this model) |
| Warranty | 2 Years |
| MOQ | 1 set |
| Place of Origin | Anhui, China |
| Customization | Minor / Drawing-based / Sample-based / Full customization |
| Application | Plastic extruder, beverage, oil cooling, pharmaceutical, construction, milk cooling, brewing |
3. Core Selling Points
- World-Famous Brand Compressors — Bitzer, Hanbell and Emerson (Copeland) — scroll, semi-hermetic reciprocating and screw options. Higher COP, stable performance and long running life.
- Dual Condenser Options — air-cooled aluminum fins + copper tubes condenser, or water-cooled shell & tube type with separate cooling tower — match your site and water source.
- 6-Fold Safety Protection — compressor protection, phase-loss / overload protection, high & low pressure protection, water flow protection, anti-freeze protection and discharge protection.
- 7 Power & 3 Refrigerant Options — 220V–460V, 50/60Hz, 1PH/3PH combinations; R407C, R134a or R410A — built to your local grid and market.
- Premium Components Throughout — Schneider Electric / SIEMENS / Elitech electrical parts, CNP stainless steel pump, SS304 water tank — reliable in continuous duty.
- Factory Direct & Customized — direct factory pricing with OEM/ODM capability — drawing-based, sample-based or full customization to your application.

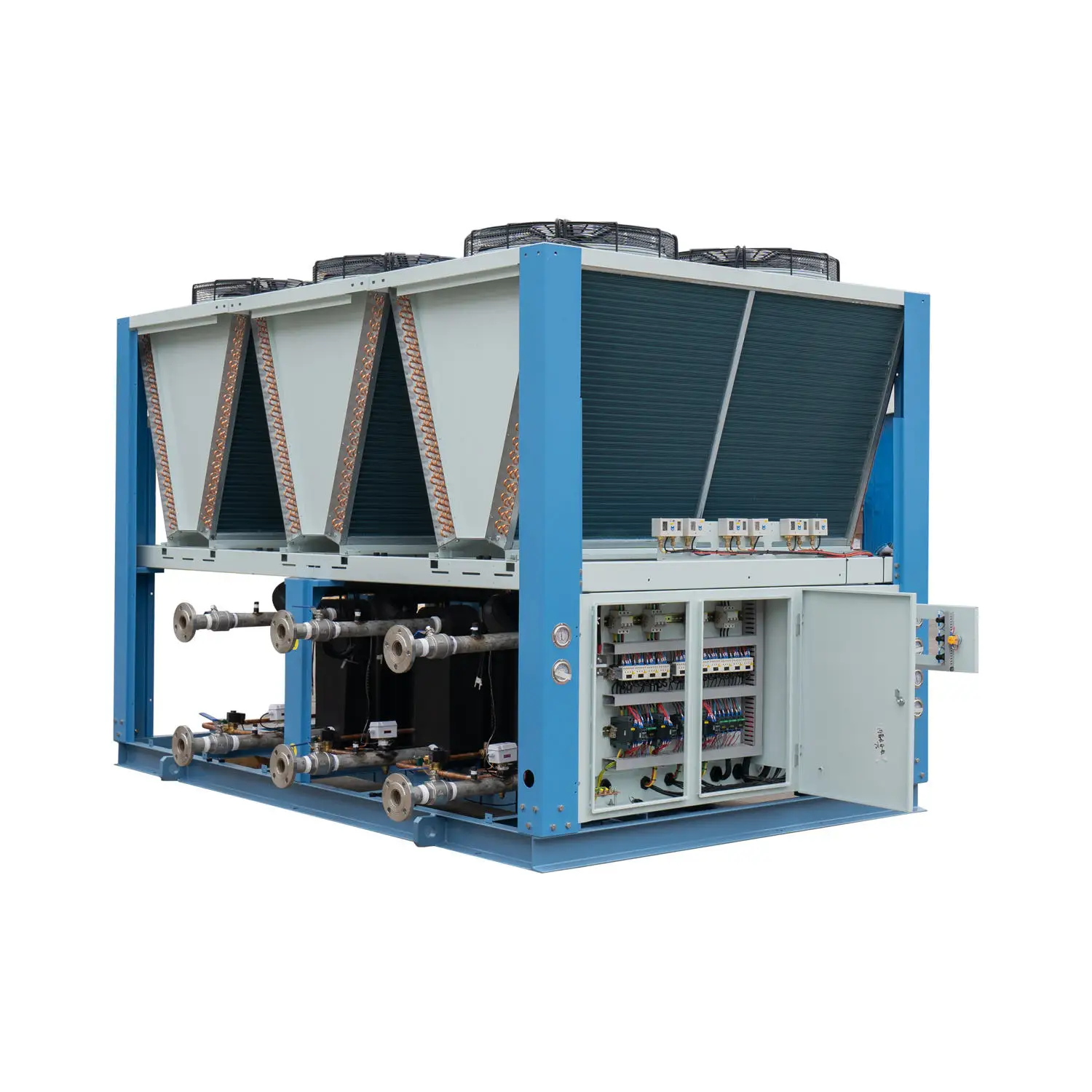

4. System Components — How the System Works
Two independent circulations — process water and refrigerant gas. Heat is picked up from your process, transferred to the refrigerant, then removed to the air (air-cooled) or cooling water (water-cooled).
- Compressor — Bitzer / Hanbell, scroll or screw
- Condenser — air-cooled AL fins + copper tubes (or shell & tube)
- Filter drier — keeps the circuit clean
- Expansion valve — precise refrigerant control
- Evaporator — shell & tube heat exchange
- Chilled water pump — CNP stainless steel
- Water tank — SS304 stainless steel
- Condenser fan — axial, low noise

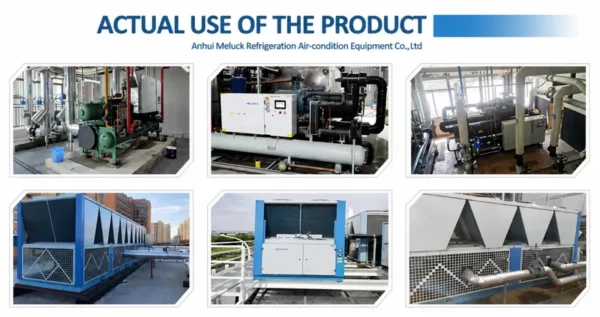

5. Applications
Suitable for: Plastic Extrusion · Beverage · Oil Cooling · Pharmaceutical · Construction · Milk Cooling · Brewing
6. Model Selection — LSQ & LSLG Series
20 standard models from 3 HP to 130 HP. Conditions: refrigerant R407C / R134a, chilled water in 12°C / out 7°C. Custom configurations available on request.
LSQ Series — Scroll / Semi-Hermetic Reciprocating (3 – 40 HP)
| No. | Model | Comp. HP | Cooling (kW) | Comp. Input (kW) |
|---|---|---|---|---|
| 1 | LSQ03ASE | 3 | 8.3 | 3.1 |
| 2 | LSQ05ASE | 5 | 13.7 | 4.8 |
| 3 | LSQ08ASE | 8 | 22.1 | 7.2 |
| 4 | LSQ10ASE | 10 | 29.5 | 9.5 |
| 5 | LSQ12ASE | 12 | 34.0 | 11.7 |
| 6 | LSQ15ASE | 15 | 44.1 | 14.9 |
| 7 | LSQ20ADE | 20 | 59.0 | 18.9 |
| 8 | LSQ25ADE | 25 | 68.0 | 22.7 |
| 9 | LSQ30ADE | 30 | 88.2 | 29.7 |
| 10 | LSQ40ADE | 40 | 120.0 | 39.9 |
LSLG Series — Semi-Hermetic Screw (30 – 130 HP)
| No. | Model | Comp. HP | Cooling (kW) | Comp. Input (kW) |
|---|---|---|---|---|
| 1 | LSLG30AS | 30 | 82.2 | 29.0 |
| 2 | LSLG40AS | 40 | 113.7 | 38.3 |
| 3 | LSLG50AS | 50 | 148.4 | 48.0 |
| 4 | LSLG60AS | 60 | 199.4 | 63.4 |
| 5 | LSLG70AS | 70 | 214.7 | 69.1 |
| 6 | LSLG80AS | 80 | 267.4 | 83.4 |
| 7 | LSLG90AS | 90 | 297.7 | 91.0 |
| 8 | LSLG100AS | 100 | 320.8 | 98.7 |
| 9 | LSLG120AS | 120 | 423.6 | 130.3 |
| 10 | LSLG130AS | 130 | 442.9 | 133.3 |
7. Factory Strength
- Founded 2011 · custom manufacturer of industrial refrigeration equipment
- 55,165 m² modern production facility
- 418 skilled employees, including dedicated QC inspectors
- 5.0 store rating (82 reviews) · ≤5h response time
- CNC punching, automatic welding and helium leak detection production lines
- ISO9001 quality management system
- Pressure test + vacuum test + 48-hour run-in before shipment
- Video outgoing inspection available on request
- Export wooden crate packing, ocean freight via Maersk
8. Packaging & Delivery

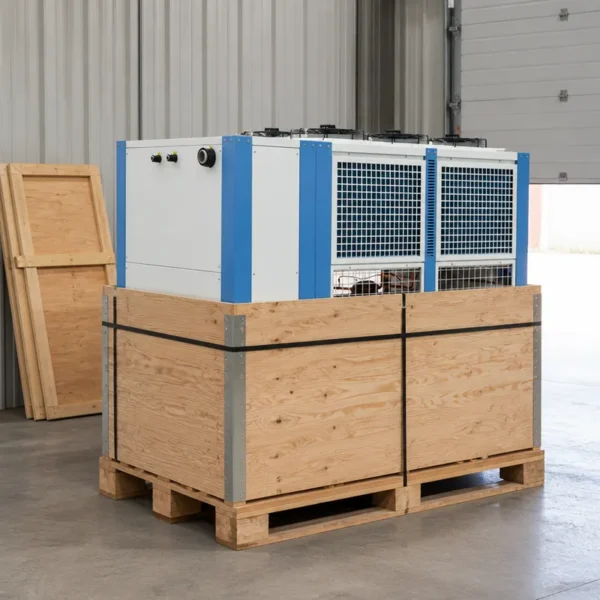

- Packing: export wooden crate with foam cushioning
- MOQ: 1 set
- Lead time: 15 – 30 days (some standard models in stock)
- Shipping: ocean freight via Maersk, est. transit 17 – 24 days
- Inspection: video outgoing inspection available before shipment
- Customization: minor / drawing-based / sample-based / full
9. FAQ (Frequently Asked Questions)
Q: How does a chiller system work?
A: A chiller runs two circulations — process water and refrigerant gas. Heat picked up from your process is transferred to the refrigerant, then removed to the air (air-cooled) or to cooling water (water-cooled).
Q: Air-cooled or water-cooled — which should I choose?
A: Water-cooled chillers need a separate cooling tower but offer higher efficiency; air-cooled chillers are more convenient to install. If water is scarce and ambient temperature is low, air-cooled is recommended.
Q: How do I select the right model?
A: Tell us your cooling capacity, outlet temperature, power supply, environment temperature, application field and anti-rust / anti-corrosion requirements — our engineers will recommend the right model, or build a customized chiller for you.
Q: How do I convert cooling capacity units?
A: 1 USRT = 3.517 kW = 3024 kcal/h; 1 kcal/h = 1.163 W; 1 Btu/h = 0.2931 W; 10,000 kcal/h = 3.3069 USRT.
Q: What is the production period?
A: Generally 15 – 30 days depending on configuration; some standard models are available from stock.
Q: Can the chiller be used for heating?
A: Yes — via electrical heating wire. Tell us your required hot water temperature or heating capacity when inquiring.
10. Get Your Custom Quote Today
Send us an inquiry and receive within 24 hours:
- Free model selection based on your cooling capacity, outlet temperature and power supply
- Detailed quotation with technical parameters

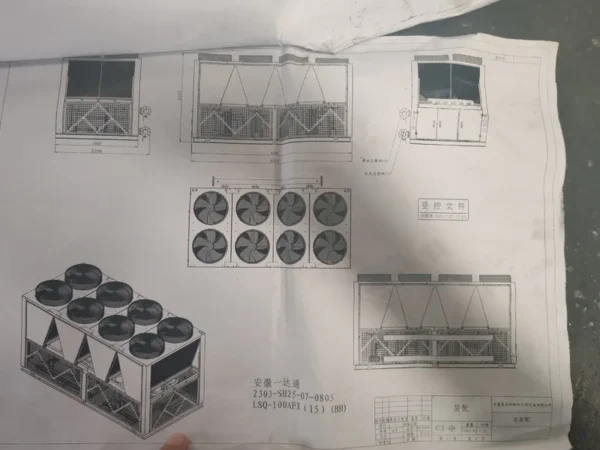

- System principle diagram & dimensional drawing
- Reference project list in your region
Click "Send Inquiry" or "Chat Now" — our team responds within 5 hours.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air cooled water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the air cooled water chiller be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
