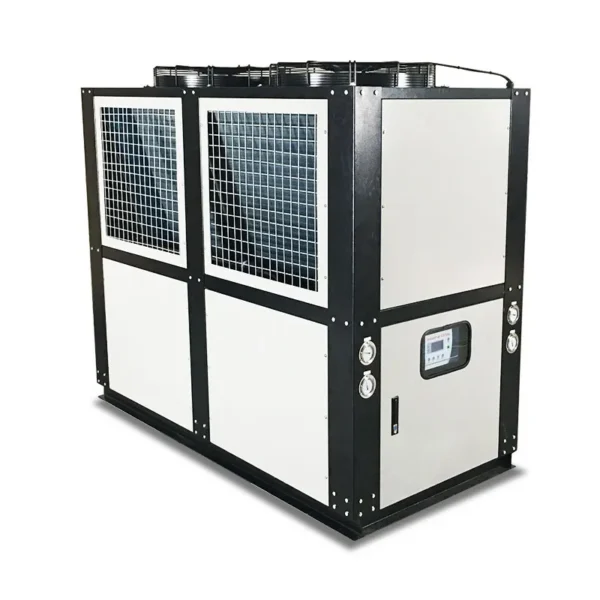

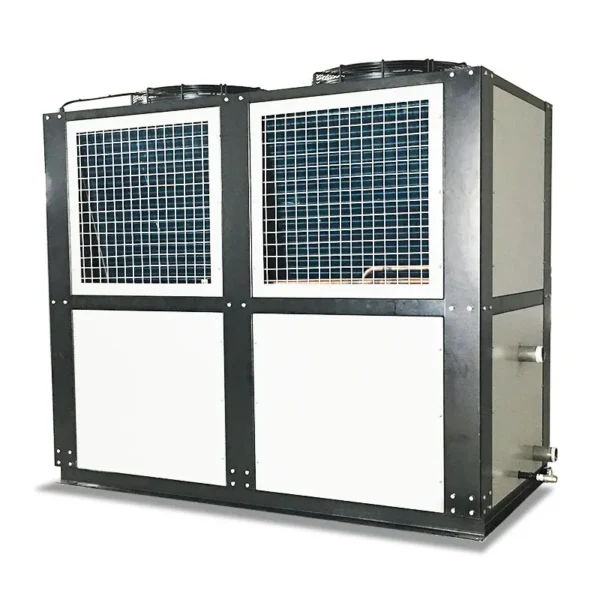

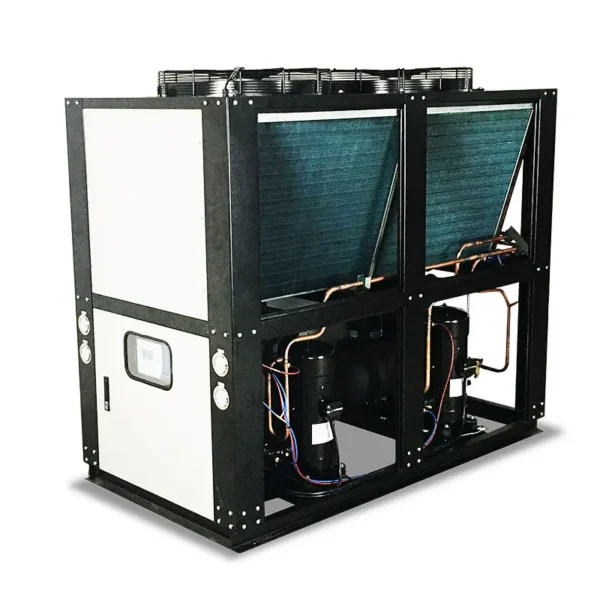

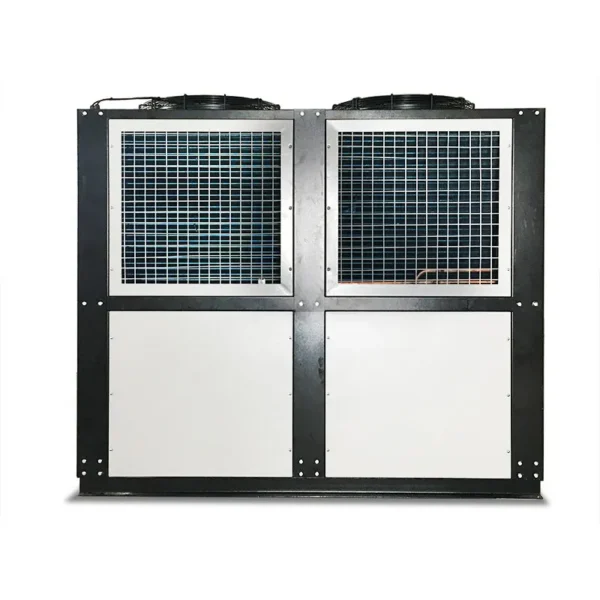

Key specification for this temperature scroll industrial chiller: voltage 13PH-50/60H2-208-230V.380-420V.440-480V, 135.6kw. Everything below is reproduced from the factory data sheet. Made by ShenChuangYi Refrigeration Co., Ltd. (6 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Temperature Scroll Industrial Chiller
- Model Number: SCY-50A
- Power: 135.6kw
- Power Cinsumption: 45.5kw
- Compressor Input Power: 37.5kw
- Pump Power: 4kw
- Fan Power: 4.4kw
Technical Specifications
| Voltage | 13PH-50/60H2-208-230V.380-420V.440-480V |
|---|---|
| Power | 135.6kw |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Productivity |
| Core Components | Compressor, Condenser, Evaporator, Expansion valve |
| Model Number | SCY-50A |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1320 |
| Brand Name | SCY |
| Dimension(L*W*H) | 2500*1210*2260 mm |
| Working Temperature Range | 5-35 |
| Refrigerant Type | R134a, R407c, R410a |
| Power Cinsumption | 45.5kw |
| Running Current | 87.8A |
| Freeze Water Flow | 25.5m3/h |
| Compressor Type | Scroll |
| Compressor Input Power | 37.5kw |
| Pump Power | 4kw |
| Evaporator Type | Shell and Tube, Plate, Copper Tube |
| Fan Power | 4.4kw |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Model | SCY-50A | |||
Power supply | 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase | |||
Cooling capacity | kw | 135.6 | ||
TONS | 38.56 | |||
Kcal/h | 116620 | |||
Power consumption | kw | 45.5 | ||
Running current | A | 87.8 | ||
Freeze water flow | m³/h | 25.5 | ||
Compressor | Type | Scroll | ||
Input power(kw) | 37.5 | |||
Pump | Power(kw) | 4 | ||
Refrigerant | Type | R22, R134a, R407c, R410a | ||
Control method | External balanced thermostatic expansion valve | |||
Filling volume(kg) | 28 | |||
Evaporator | Type | Shell and tube, Plate, Coil in Tank | ||
Pipe diameter(in) | 3'' | |||
Condenser | Type | High efficient Finned Copper Tube | ||
Fan | Type | Axial-flow Fan | ||
Air volume(m³/h) | 50000 | |||
Power(kw) | 4.4 | |||
Safty protector | Dual pressure switch, frost-proof protection, soluble pin/safety valve, overload protective device, coil over-heating protection system, temperature automatic protection switch. | |||
Dimension | Length(mm) | 2500 | ||
Width(mm) | 1210 | |||
Height(mm) | 2260 | |||
Weight(kg) | 1350 | |||
1. Testing results under above conditions: Inlet/outlet chilled water temperature 12℃/7℃, condensing temperature 45℃. | ||||
2. The above parameters will be updated continuously. If you need a custom service, please send your technical requirements before placing an order. | ||||
Shipping by sea
Shipping by express
Shipping by air
A: Please make sure the details first:
1. What’s the flow rate need?
2. Inlet(T1) and outlet(T2) temperature need?
Then we will calculate what’s the cooling capacity you need.
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86
Q2: Cooling capacity unit conversion?
1 kcal/h = 1.163W, 1 W = 0.8598 kcal/h;
1 Btu/h = 0.2931W, 1 W = 3.412 Btu/h;
1 USRT = 3.517 kW, 1 kW = 0.28434 USRT;
Q3: How to choose the right chiller in all your models?
A: After making sure the cooling capacity, please inform us.
2. What's the refrigerant needed? R22/R407C/R410A/R134A and etc.
3. All our chiller models can be customized to your demand.
Q4: What's the difference between water and air cooled chiller?
A: Water cooled chiller needs a SEPERATE cooling tower and has a higher heat exchange efficiency. Air-cooled chiller has no need for an extra cooling tower, but with lower heat exchange efficiency.
If you still have some questions, please feel free to contact us for further assistance.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $9900 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this temperature scroll industrial chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the temperature scroll industrial chiller be supplied for my local voltage?
The standard configuration is 13PH-50/60H2-208-230V.380-420V.440-480V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
