Air Cooling Chiller, 50ton-100ton, Plastic

This air cooling chiller is published with the manufacturer’s full specification — 380v/3phase/50hz, 62.4kw. Made by DONGGUAN MITEX MACHINERY TECHNOLOGY CO.,LTD (14 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Air Cooling Chiller

• Power(W): 62.4kw
• Voltage: 380v/3phase/50hz
• Freezing Capacity: 62.4KW/53664Kcal/hr/212938Btu/hr
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Type: Air-cooled

Technical Specifications

Product Details

Product Description

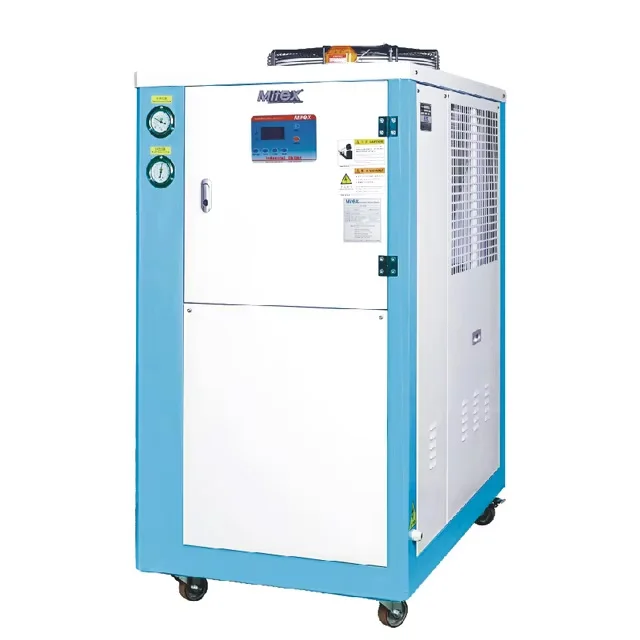

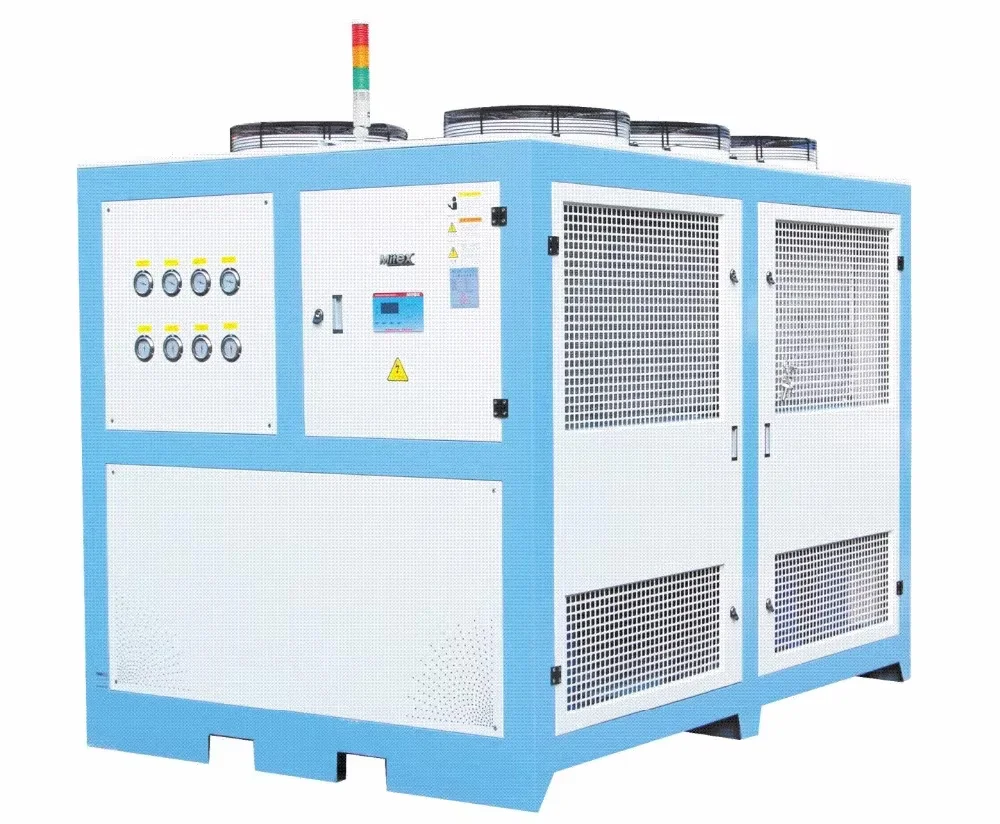

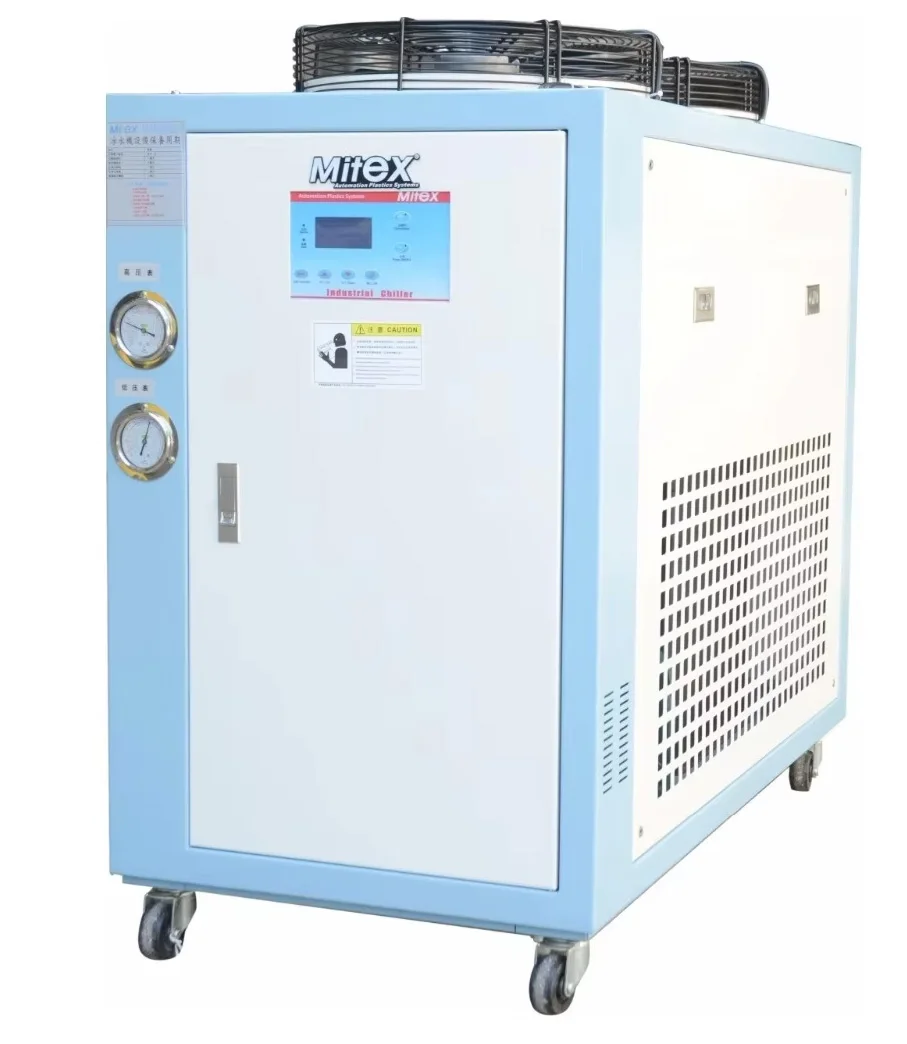

Mitex MIC-A-Series Air Cooled Chiller

Mitex MIC-Series Air cooled chillers include compressor, condenser, thermostatic expansion valve, and evaporator four main components. The system adopts a single closed-loop design for refrigeration system. Refrigerant is alternatively changed from gaseous to liquid state to absorb or release heat thus a cooling effect is achieved.
Air-cooled chillers are suitable for places where space is limited or insufficient cooling water can be provided.

5HP

10HP~15HP

30HP~40HP

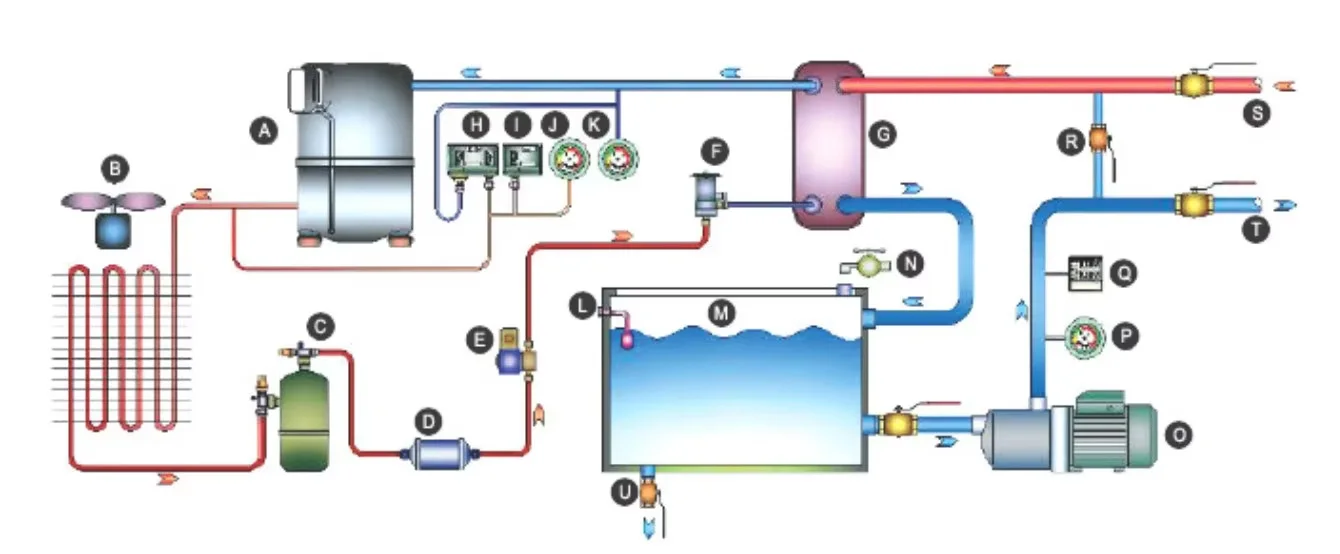

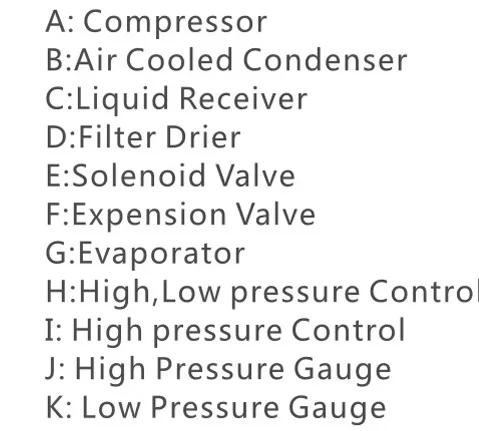

Working Principle of Air Cooled Chiller

When an air-cooled chiller starts, the refrigerant absorbs heat from the cooled object in the evaporator and vaporizes. The compressor continuously extracts the gas produced in the evaporator and compresses it into a high-temperature, high-pressure evapor. The refrigerant vapor is then fed into the condenser where it exchanges heat with air. After releasing heat, it condenses into a liquid. The liquid refrigerant is depressurized by an expansion valve and enters the evaporator, where it is vaporized again and absorbs heat from the object being cooled. This heat exchange process is repeated until the industrial water is cooled to the desired temperature.

Product Details

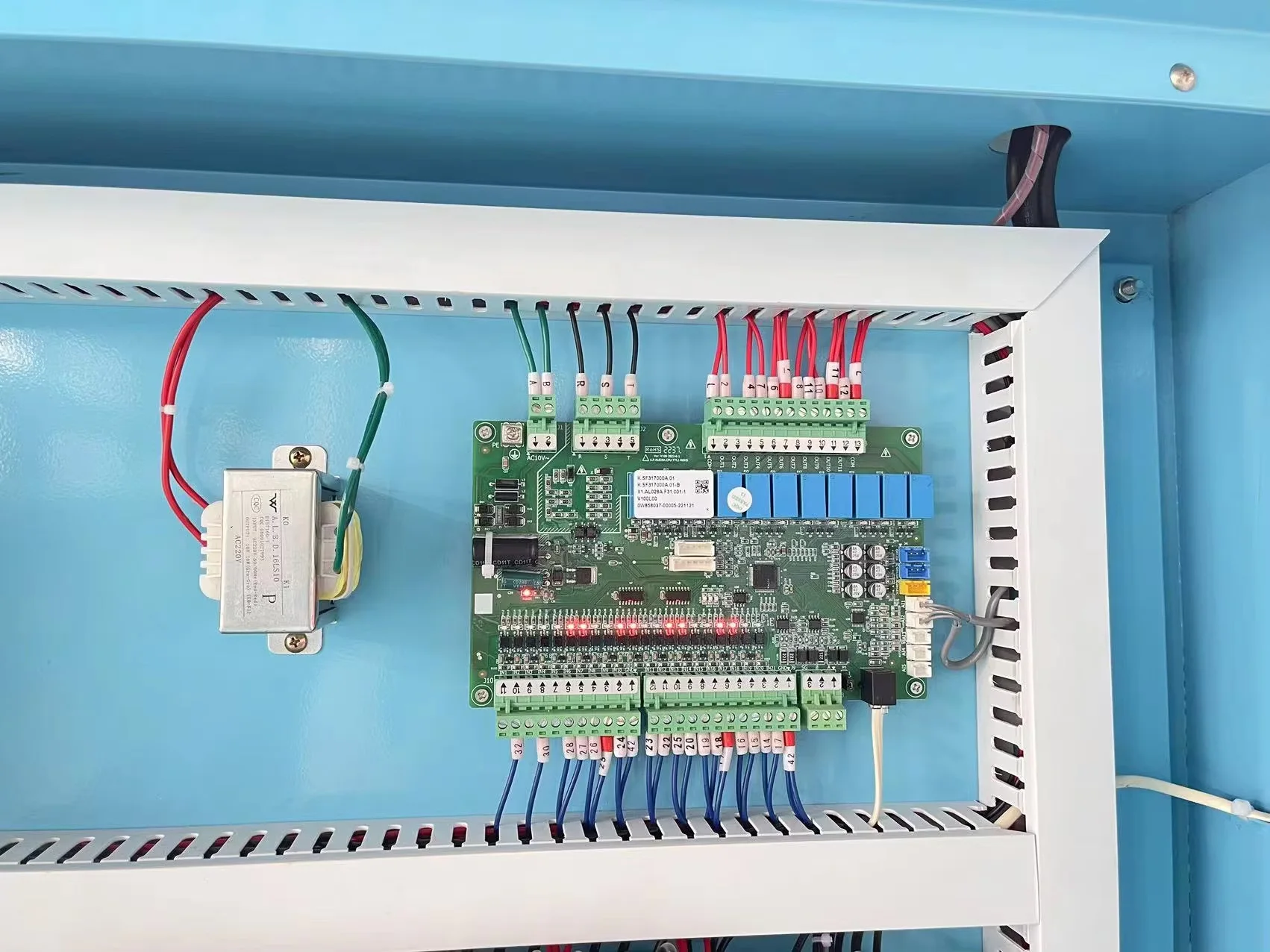

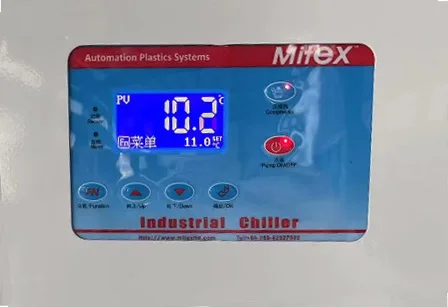

P.I.D Display

The chiller is deployed with P.I.D microcomputer controller, it can control the temperature between +3℃ and +50℃ exactly.

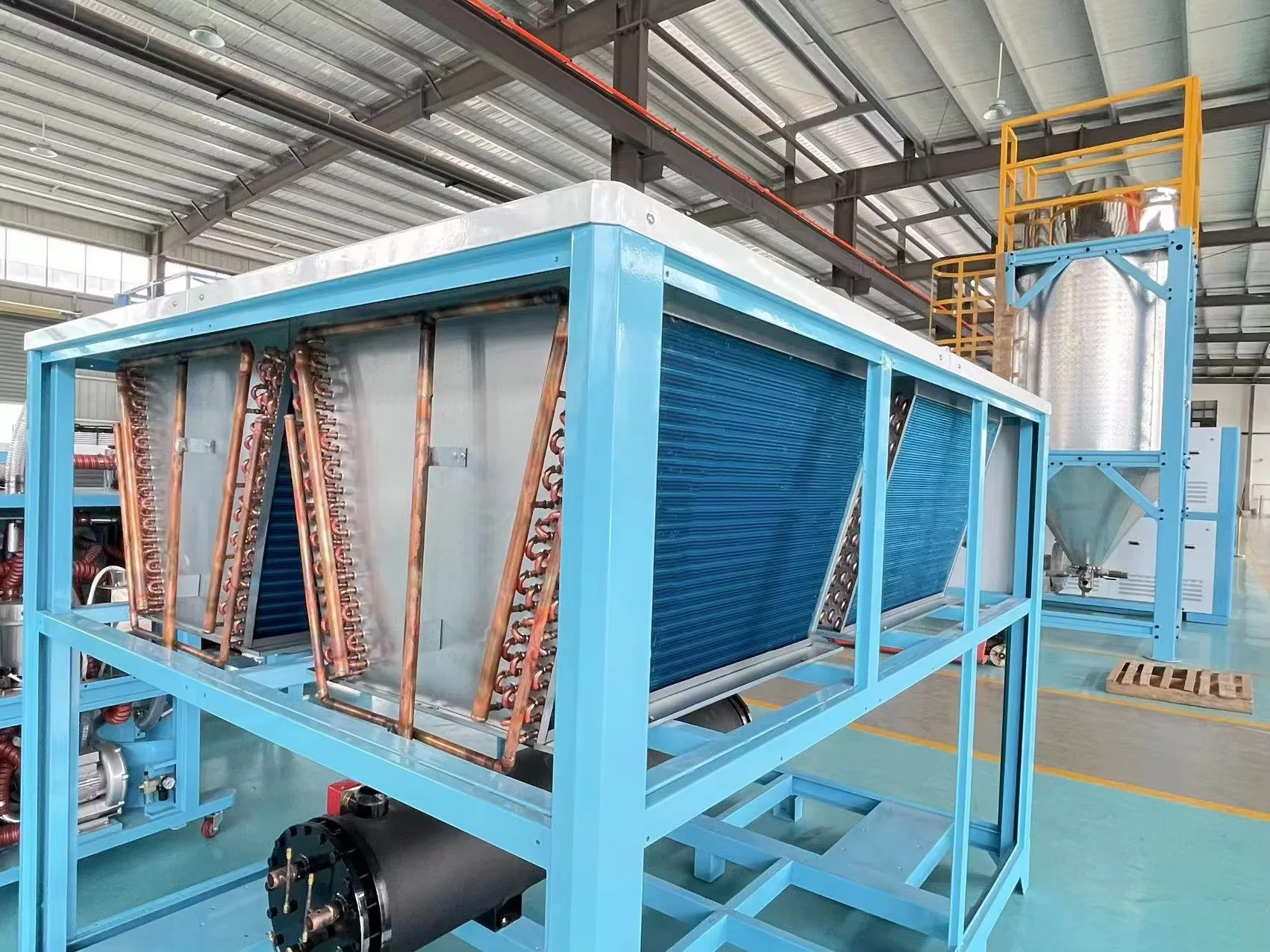

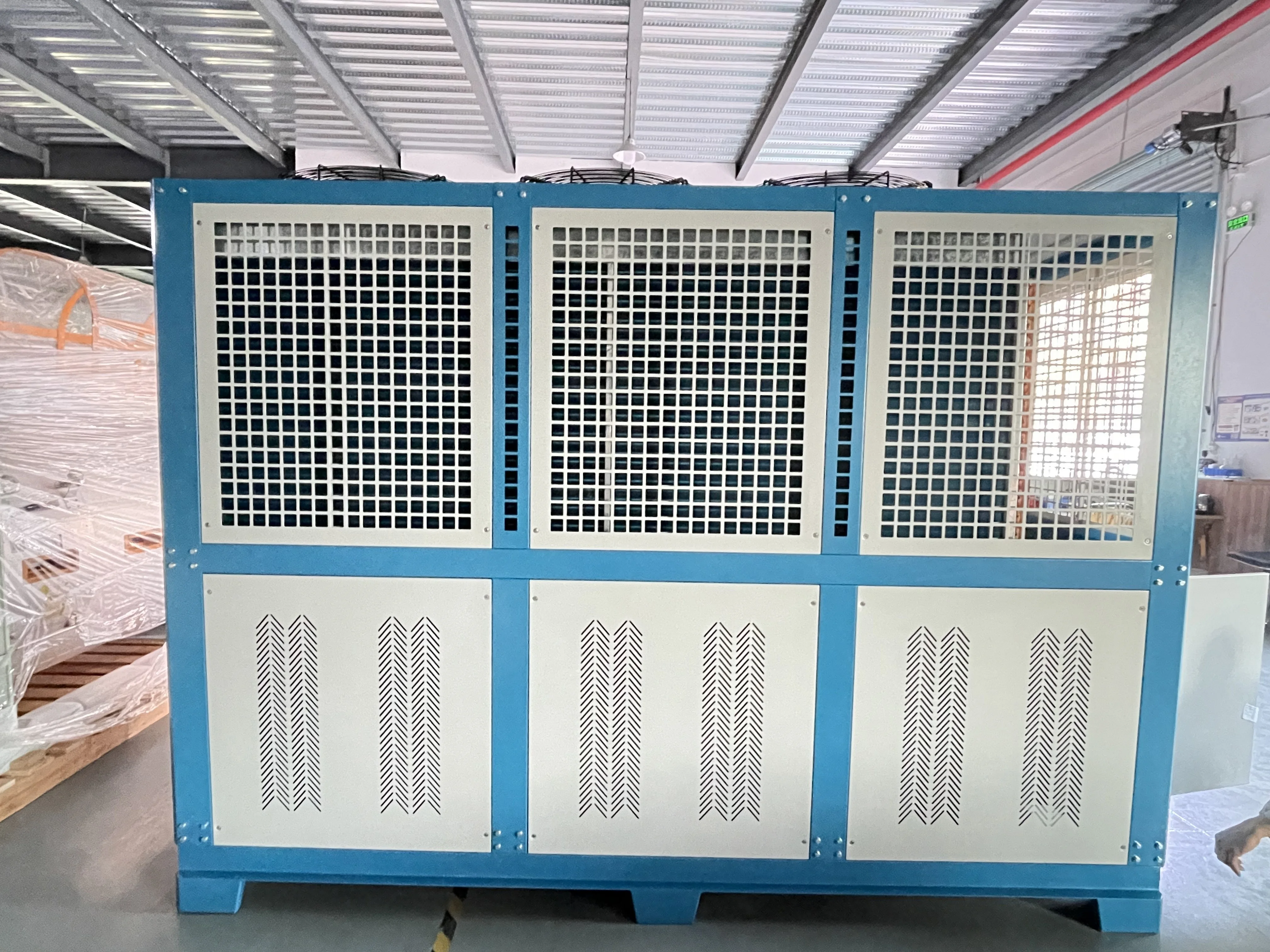

Finned Type Condenser

Adopts high efficiency copper tube and aluminum finned condenser for effective heat dissipation. The fin structure increases the
heat exchange surface area between the condenser and the surrounding environment, and improves the heat dissipation efficiency.
The excellent thermal conductivity of the copper tube, combined with the efficient heat dissipation characteristics of the
aluminum fins, ensures high efficiency in the cooling process.

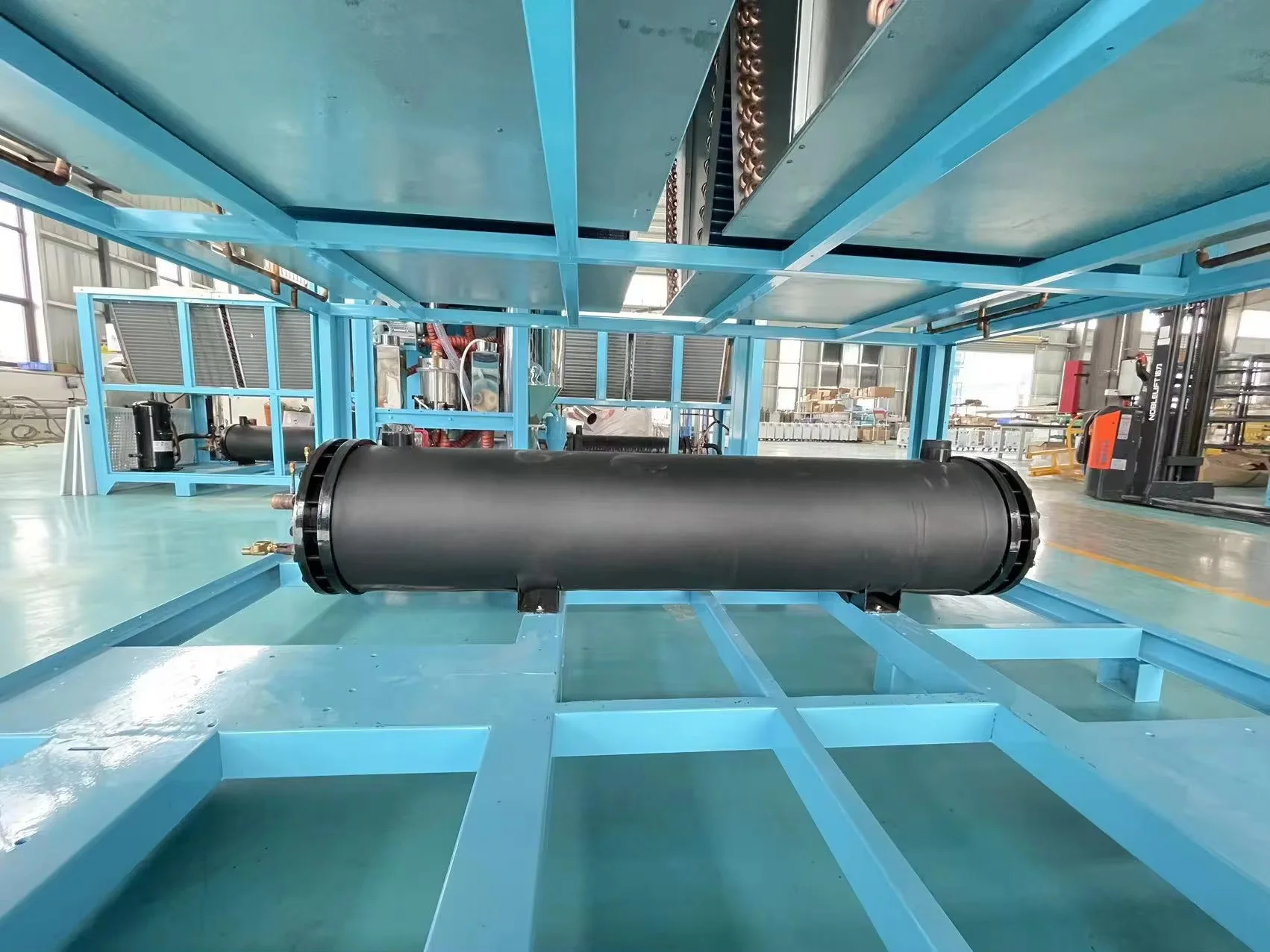

Shell and Tube Evaporator

The air-cooled chiller adopts shell and tube evaporator. In this system, the refrigerant evaporates in the heat exchange tube
while the water flows on the shell side. The heat exchange tube adopts efficient seamless copper tube. These tubes undergo a
slotting process to form internal threaded fins, thereby increasing the surface area for heat exchange with the refrigerant

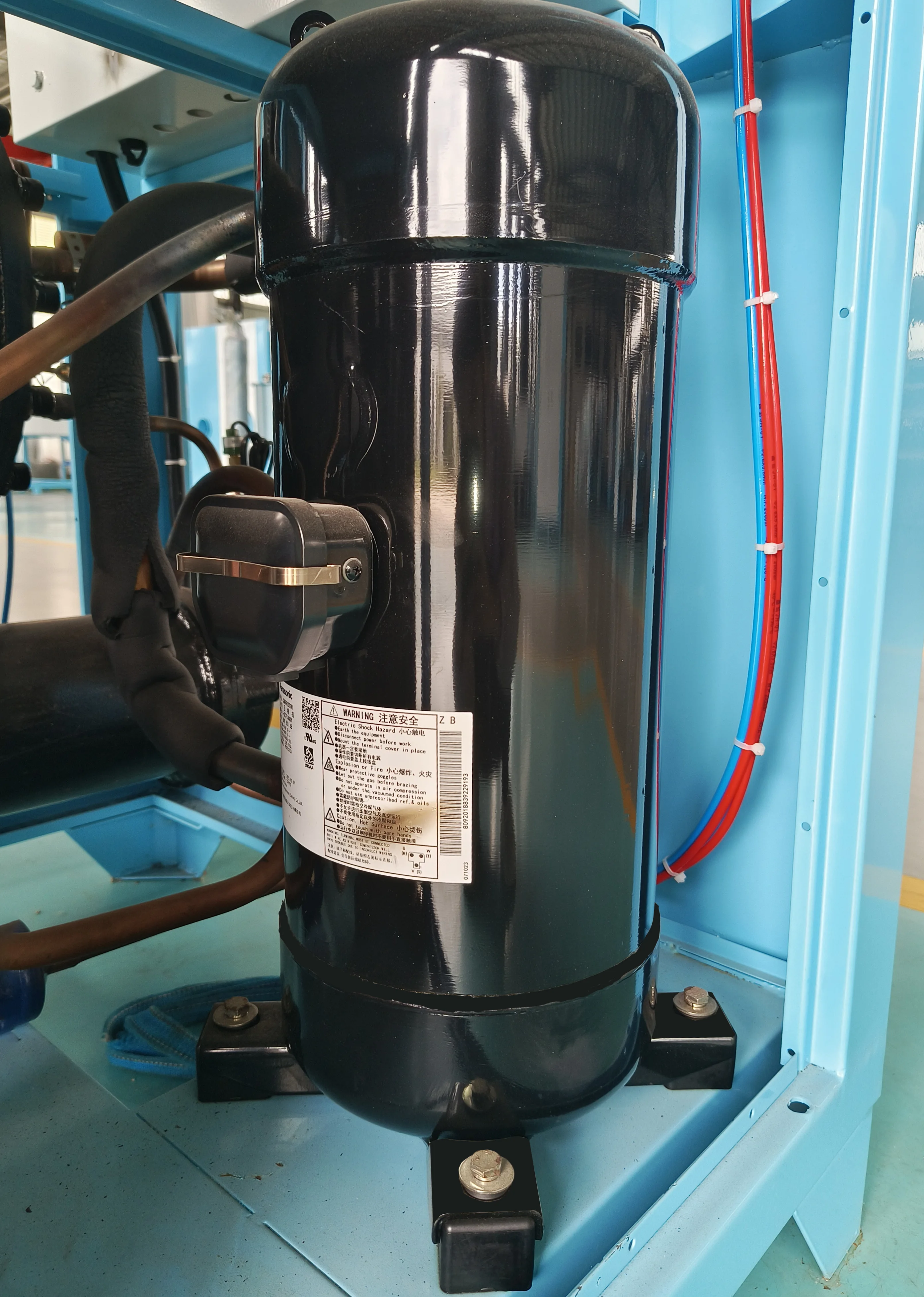

Panasonic brand compressor

The scroll compressor uses a double bending design to ensure a tight seal between the scroll discs. This design allows for radial
and axial separation of the scroll discs, allowing debris or liquid to pass through without damaging the compressor. Long service life, strong reliability, excellent liquid resistance, resistance to impurities.

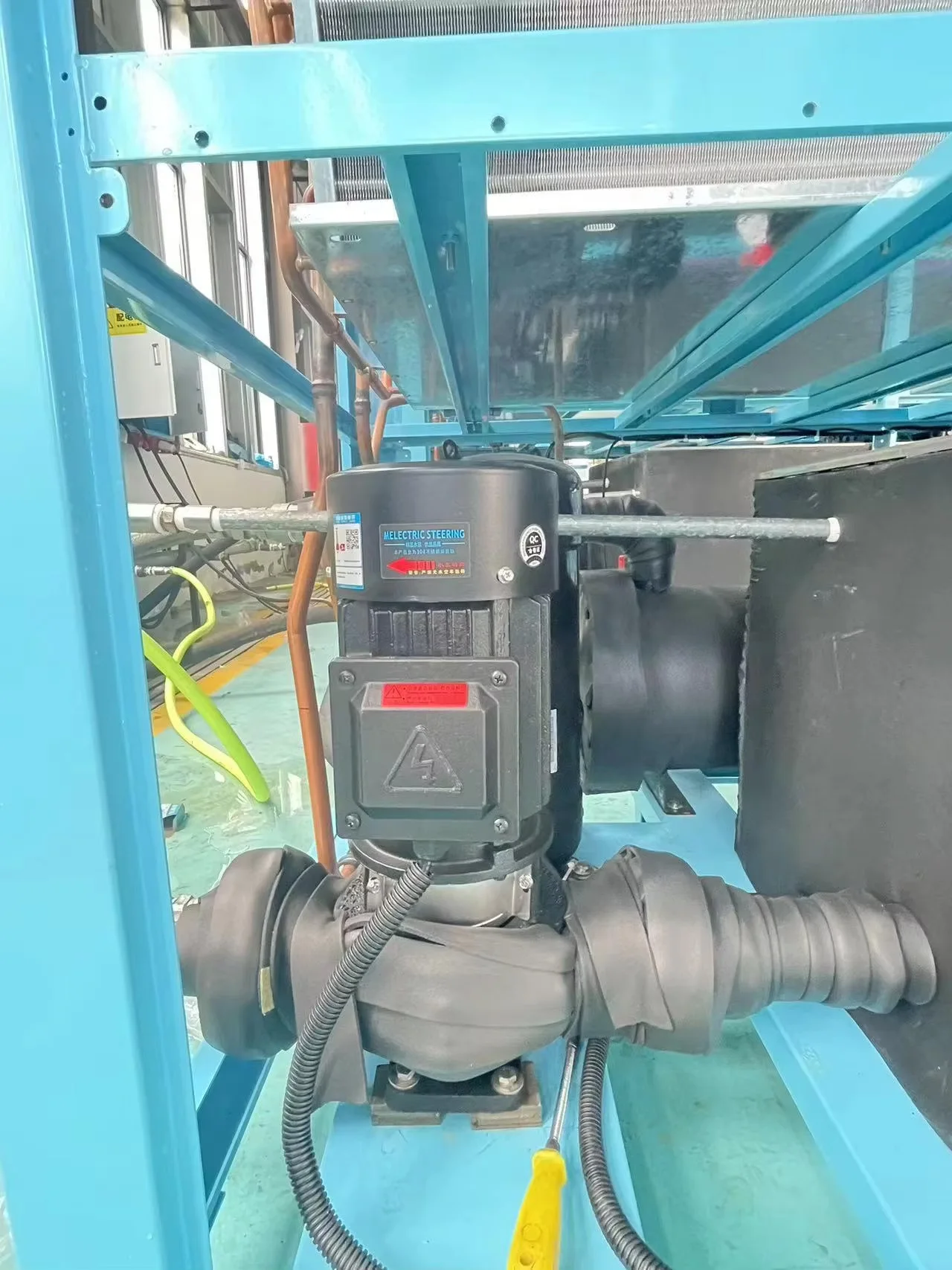

Minamoto brand water pump

The pumps are known for their low noise operation, leak-free performance and maintenance-free characteristics. They ensure
reliable and efficient water circulation within the chiller system.

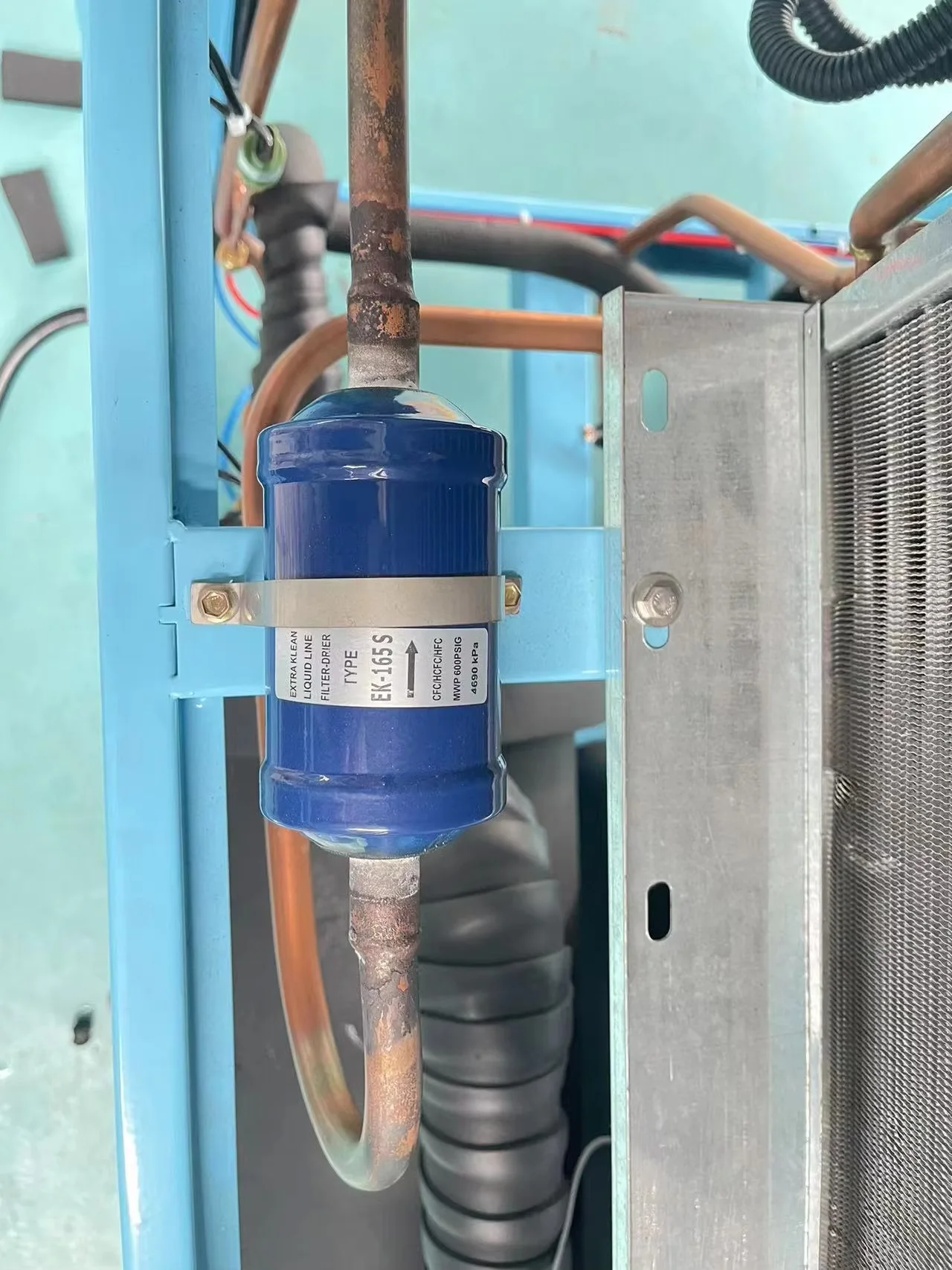

Drying Filter System

Air-cooled chillers are equipped with Emerson filters that effectively remove impurities from the refrigerant and absorb free water from fluorocarbons.

Siemens Electric

Obtained CCC certification,fully meet the requirements of national industry standards and relevant norms and local standards.

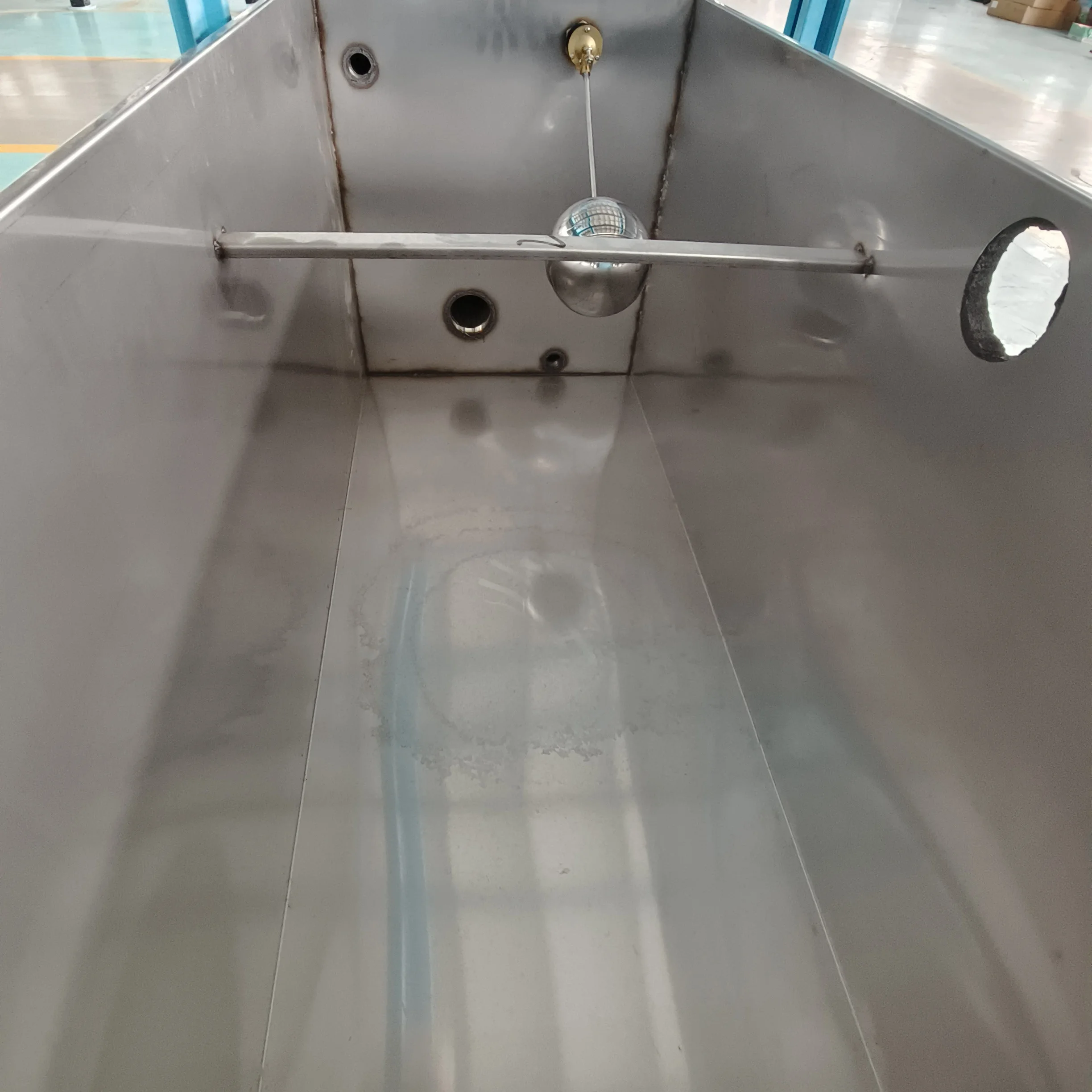

304 Stainless steel water tank

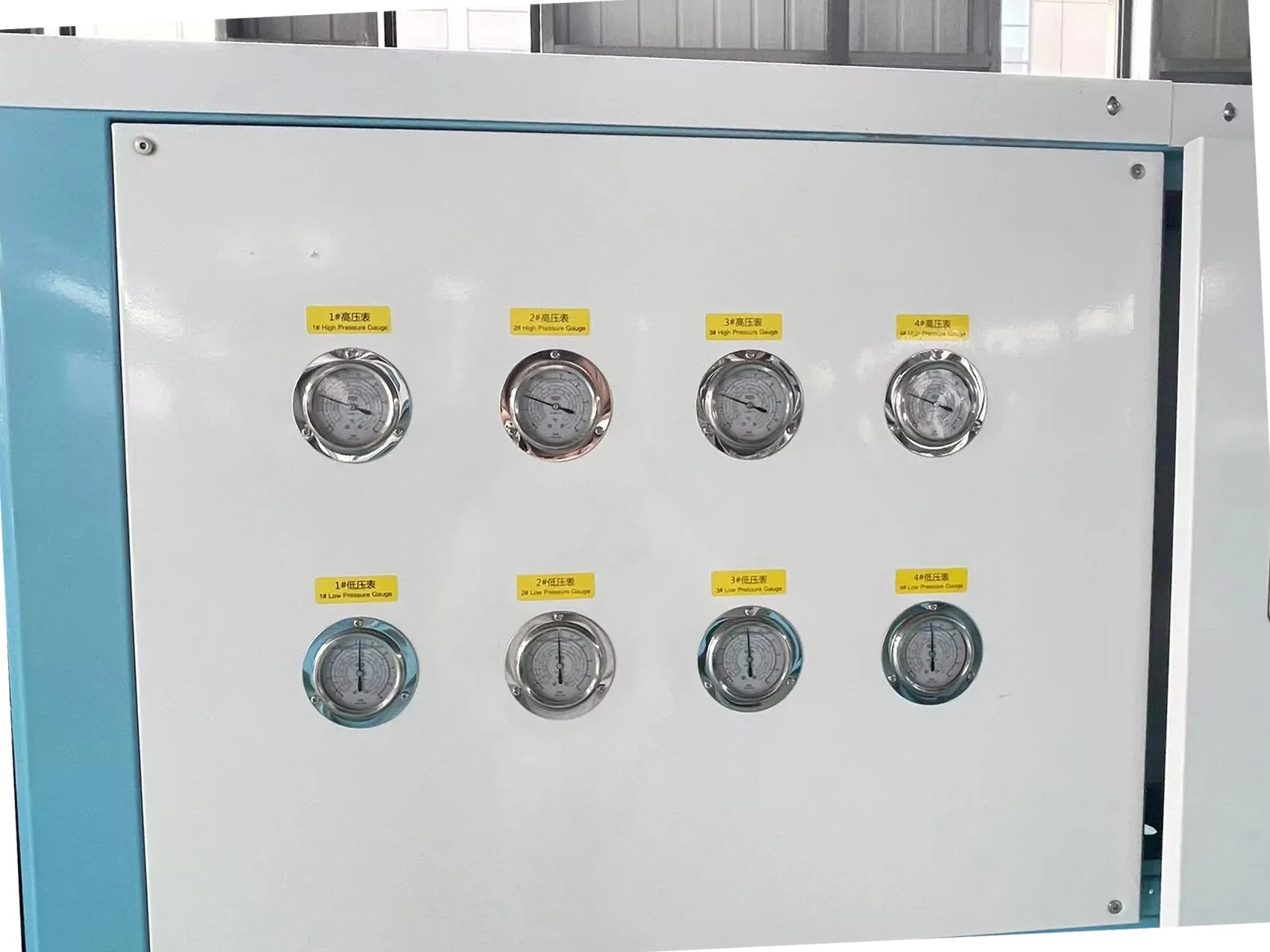

High and Low Pressure Protection

The high and low voltage protection systems are designed to improve the safety and efficiency of pump operation.

Product Specification

Model		5A	10A	15A	20A	25A	30A
Freezing capacity	KW	15.6	31.2	46.8	7862.4	93.6	93.6
		Kcal/hr	13416	26832	40248	53664	67080	80496
		Btu/hr	532354	106469	159704	212938	266173	319408
Compressor	power (KW)	3.95	2 x 3.95	2 x 6.3	2 x 7.95	2 x 9.1	3 x 7.95
Refrigerant	Weight KW	2.5	2 x 2.5	2 x 5.5	2 x 6.0	2 x 7.5	3 x 6.0
		Control mode	Thermostatic expansion valve
		type	R22/ R407C (Customized)
Evaporator	Type	Tube in shell
Condenser	Type	Fin style
		Fan (KW)	0.38	2 x 0.38	2 x 0.78	2 x 0.78	2 x 0.78	3 x 0.78
Water Tank	L	62	79	150	175	175	220
Pump	Power (KW)	0.75	1.5	1.5	2.2	3	4
		Flow rate (L/min)	75	120	208	330	330	550
		Pressure (kg/cm2)	2	2	2	2	2	2
Pipe Coupling	Chillerd water outlet (inch)	1	1.5	2	2	2	2.5
		Chilled water inlet (inch)	1	1.5	2	2	2	2.5
		Water supply port (inch)	0.5	0.5	1	1	1	1
		Over flow port of water tank (inch)	0.5	0.5	0.5	0.5	0.5	0.5
		Drainage port of water tank (inch)	0.5	0.5	1	1	1	1
Protective device	Compressor	Overload relay
		Pump	Overload relay
		Refrigerant circuit	HIgh and low pressure switches
		Cooling water circuit	Water level switch / water flow switch (for option)/ by-pass valve (for option)
Power specification			380v, 3 phase , 50hz (can be customized )
Measures exchange			1KW=860kcal/hr 1RT=3024 kcal/hr 10000 btu/hr= 2520 Kcal/hr
Dimension	LXWXH MM	1450x765x1500	1750x765x1500	2150x1005x1700	2150x1005x1700	2550x1005x1700	3150x1005x1800

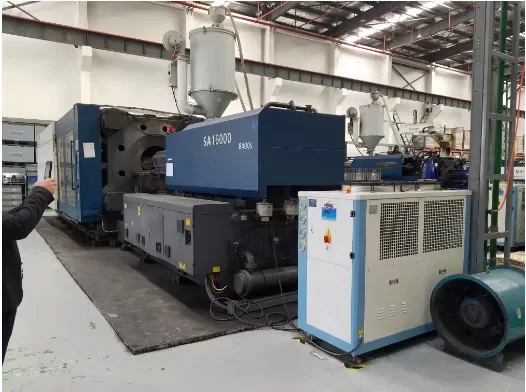

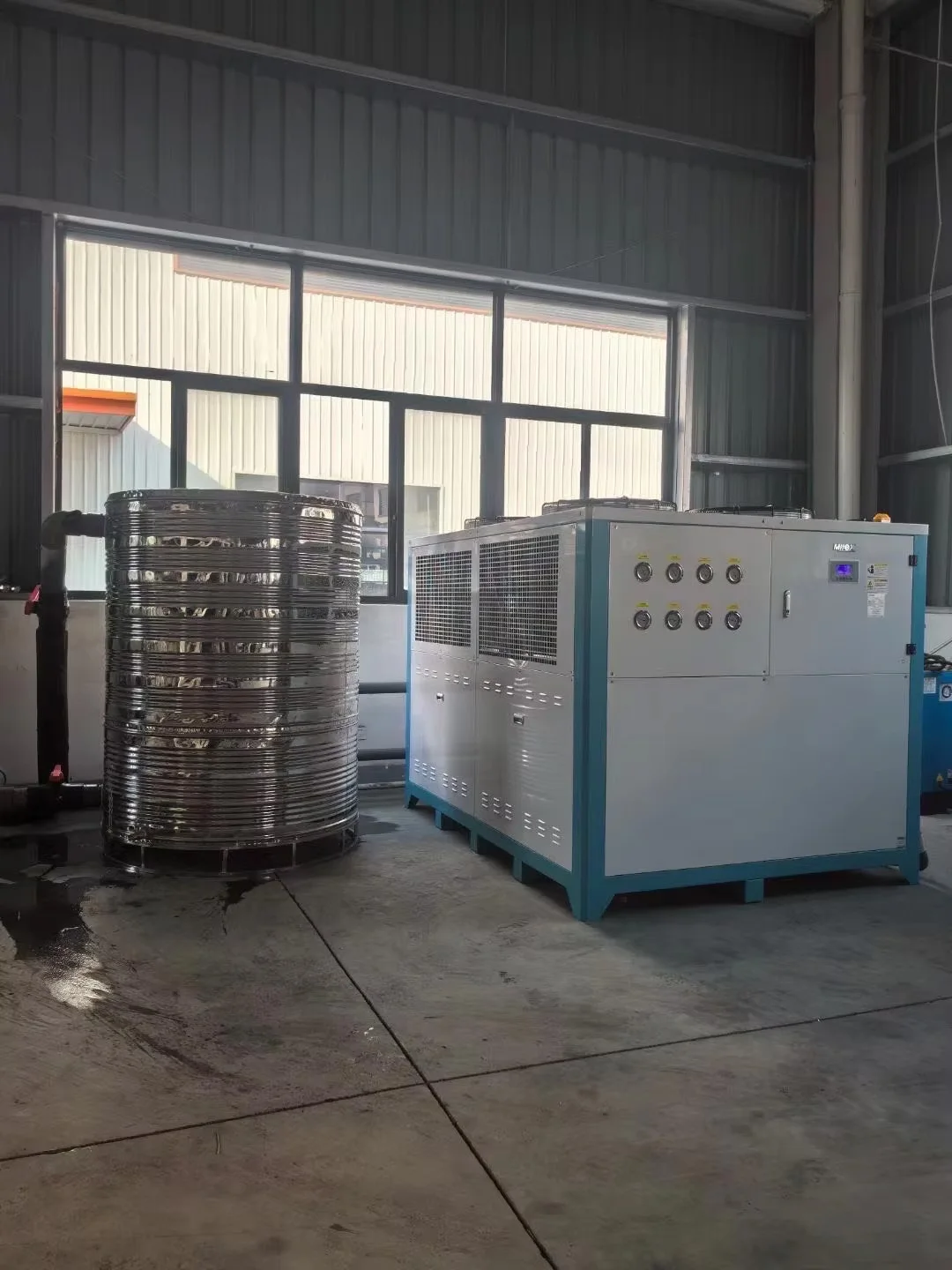

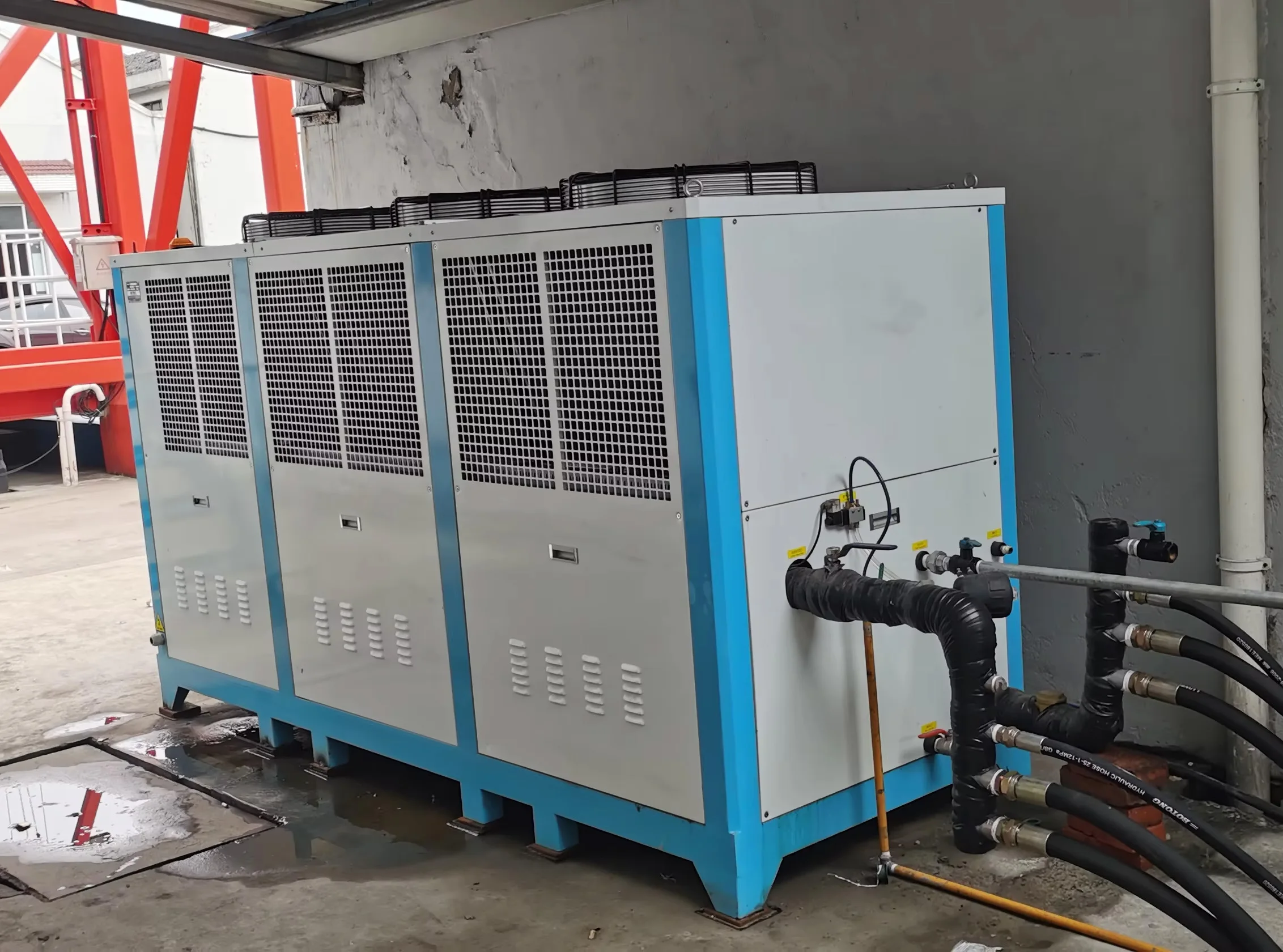

Customer cases

Contact Information

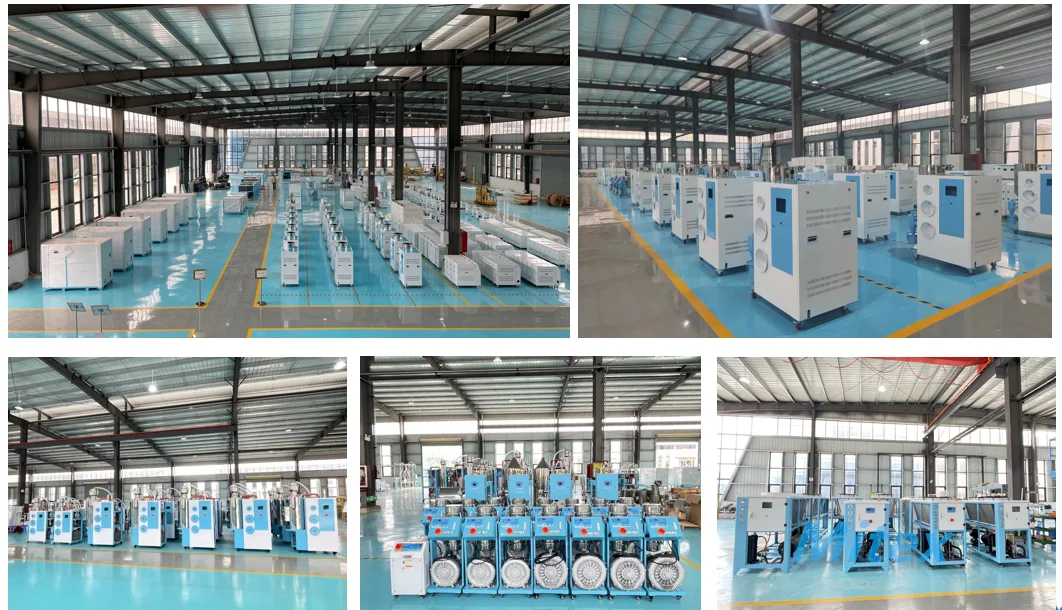

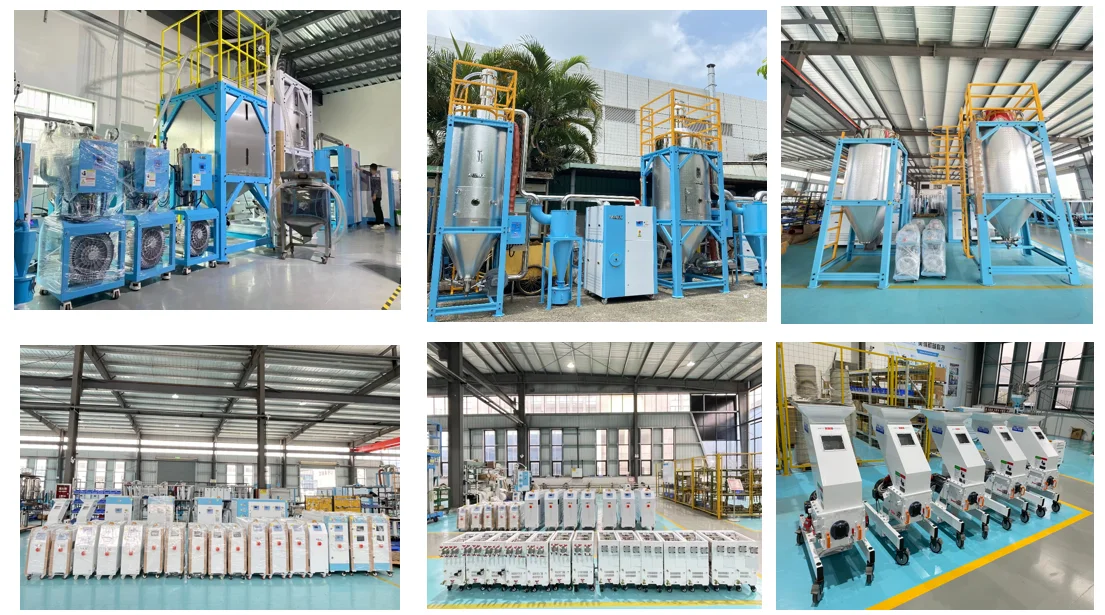

Company Introduction

Mitex Automation Machinery Co., Ltd is a national-level High-tech enterprise that established in July, 2007. Also a plastic machinery manufacturer specialized in R&D, production and sales to the customer for plant project, design and modern industry 4.0 resolution. The Main products include: Centralized feeding system, dehumidifying and drying system, Automatic metering and mixing system, crushing and recovery system. Mold temperature control system and automatic solution etc. Those have been broadly applied in the field of electronic parts, plastic molding, automobile medical treatment. computer connector, optical lenses, hardware die-casting and home appliance etc. Mitex has been consistently pursuing independent innovation for different devices and adhere to the best service & high quality, it has established a steady cooperative fellowship with our clients. We will focus more on satisfying client's needs with supplying most advanced molding system&service, Reducing cost and creating more value for our customers, sharing collective win between clients and ourselves.

Exhibition

Certification & Patent

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $6500 / set
  • 10+ set: US $4500 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air cooling chiller?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the air cooling chiller be supplied for my local voltage?

The standard configuration is 380v/3phase/50hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by DONGGUAN MITEX MACHINERY TECHNOLOGY CO.,LTD, based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full DONGGUAN MITEX MACHINERY TECHNOLOGY CO.,LTD range on HVACR Nexus.
