Air Curtain, 230V, 50mm, Tangential, HVAC, 52.97 CFM, 50 Hz

Key specification for this air curtain: voltage 230 VAC, 52.97 CFM / 90 m3/H. Everything below is reproduced from the factory data sheet. Made by Pbm Motor And Fan(suzhou) Co., Ltd. (4 years on the platform, typical reply ≤8h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Air Curtain

• Model Number: PC50B2A160A
• Voltage: 230 VAC
• Air Flow: 52.97 CFM / 90 m3/H

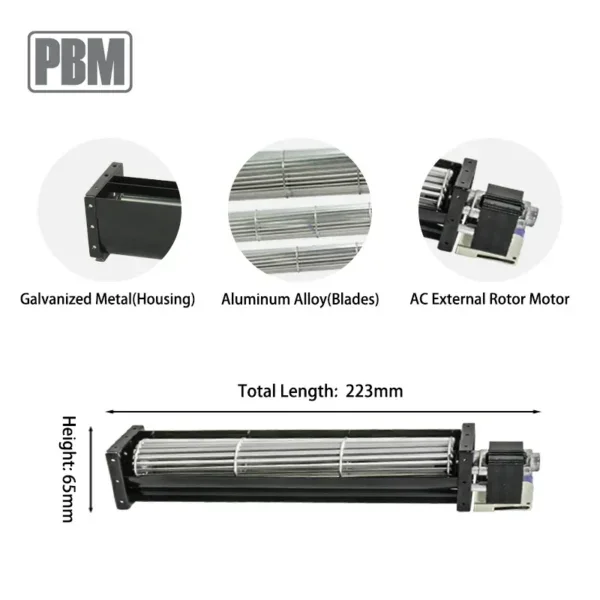

• Blade Material: Aluminium alloy
• Warranty: 5 year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

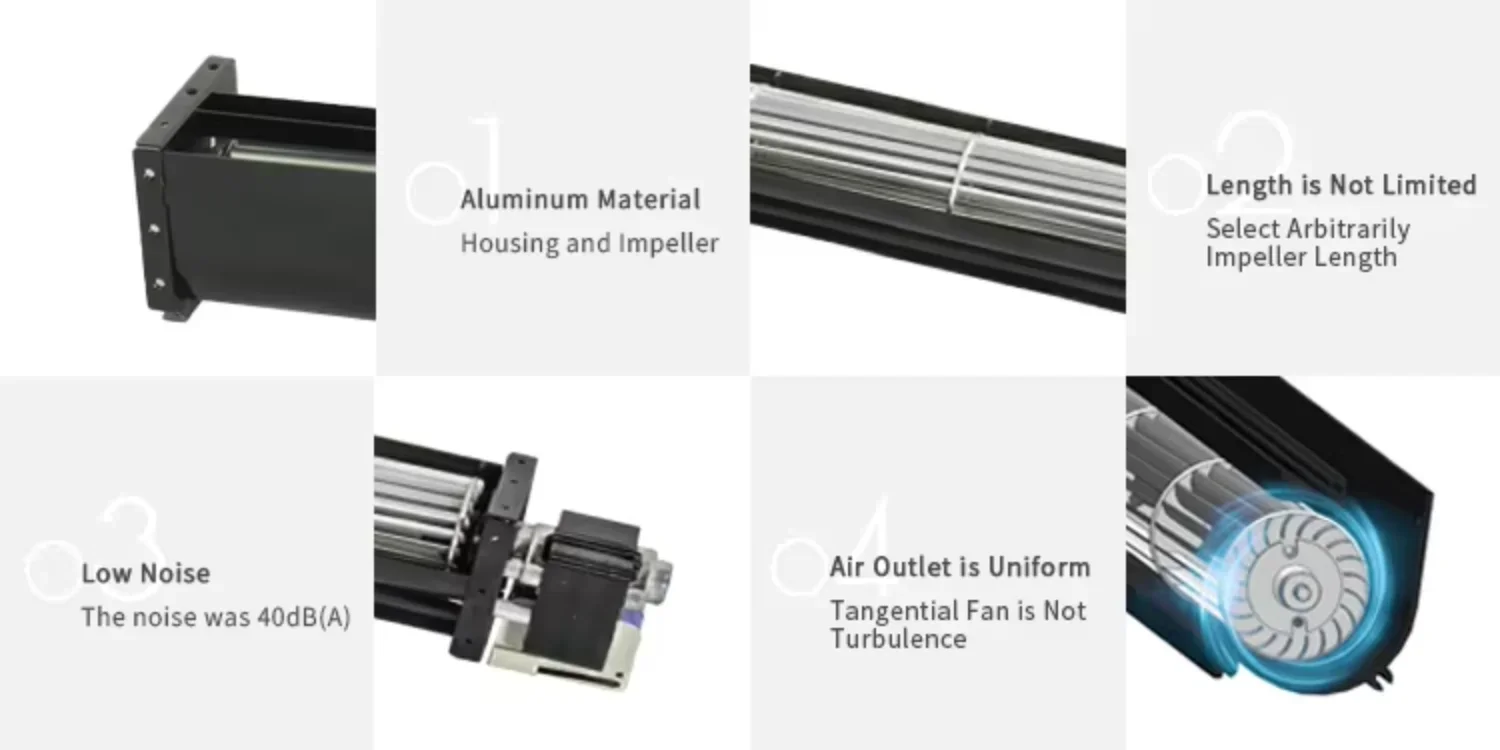

PRODUCT HIGHLIGHTS

• PBM: Your Reliable Cross Flow Fan Manfacturer
• Customizable AC,DC,and EC cross-flow fans are ideal choices for HVACR,air curtains,and precision electronics coolings.
• Impeller Sizes: From 30mm to 80mm diameter;
• Sound Level:From 32dBA to maximum 48dBA according different rotation speed;
• Airflow: Maximum to 600CMH, Cubic Meter per Hour, equal to approx. 353CFM , Cubic Feet per Minute;
• Air Pressure:Maxim to 80Pa, equal to 8.16mm H2O and to 0.32 inches H2O;
• Power: Maximum motor input power goes to 100W motor diameter 80mm.

ABOUT THE SUPPLIERPBM is a China mainland EC(Electronically Commutated) brushless motor manufacturing and technology consulting company offering an extensive range of EC motors, fans and intelligent ventilation solutions for air-moving precisely and constantly with maintenance-free throughout the life cycle of products in last decades.

FACTORY PROFILE

CERTIFICATIONS

PRODUCT SPECIFICATIONS

Rated Voltage	230 VAC	Life Expectance	30,000 Hours
Frequency	50 Hz	Direction of Rotation	Clockwise seen on rotor
Rated Speed	2500 RPM	Dimension	See dimension drawing
Input Current	0.15 A	Material of Impeller	Aluminum alloy
Input Power	17.3 W	Air Flow	52.97 CFM / 90 m³/H
Acoustical Noise	40 dB(A)	Static Pressure	3.78 mmH₂O / 37 Pa
Operating Temperature	-20℃ to 70℃	Storage Temperature	-40℃ to 80℃

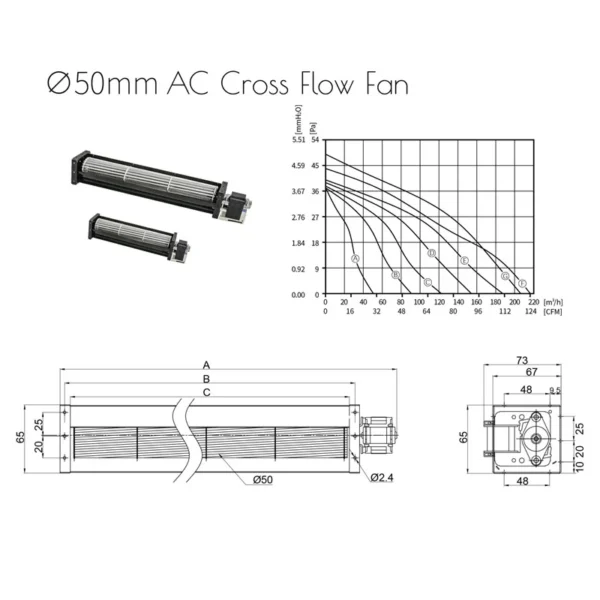

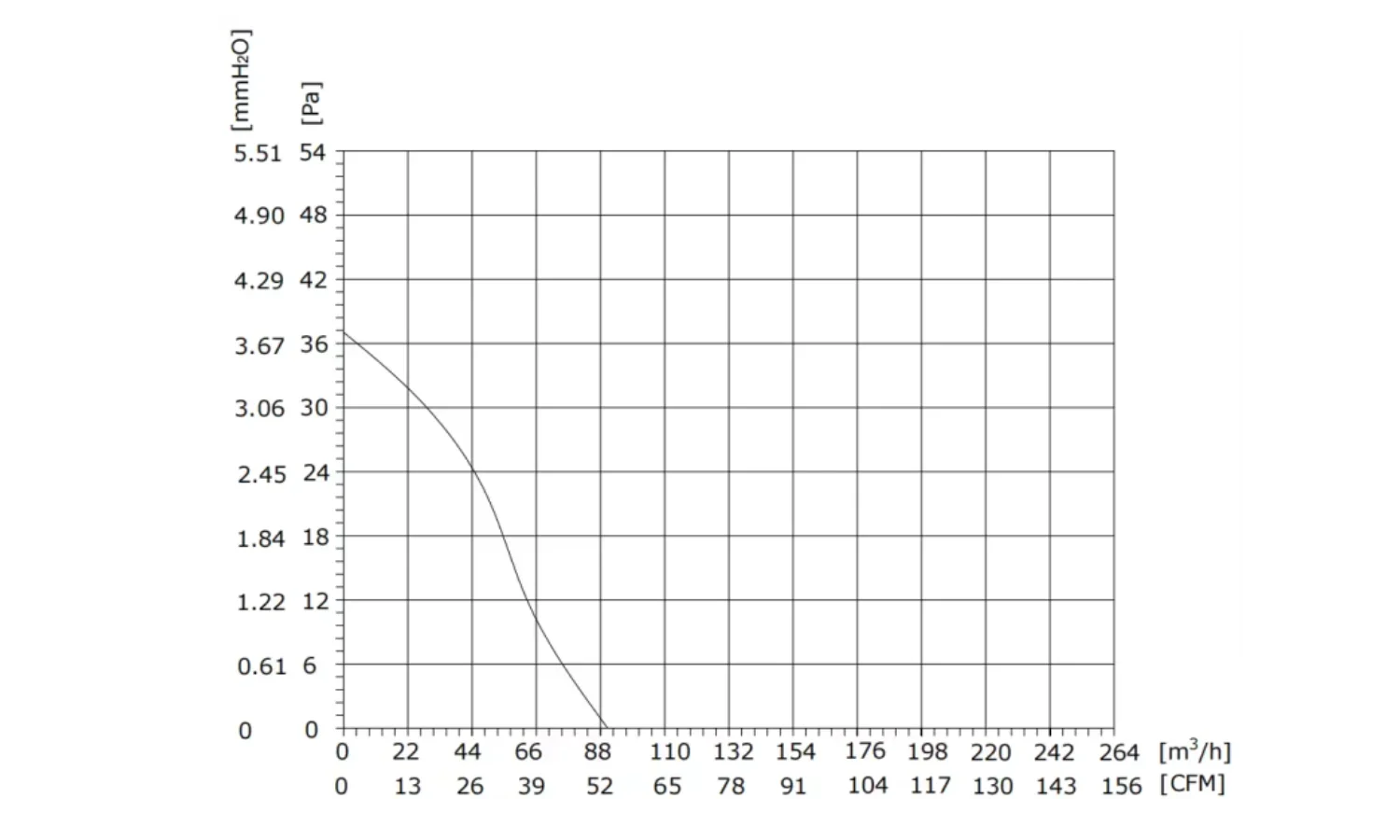

Airflow Curve

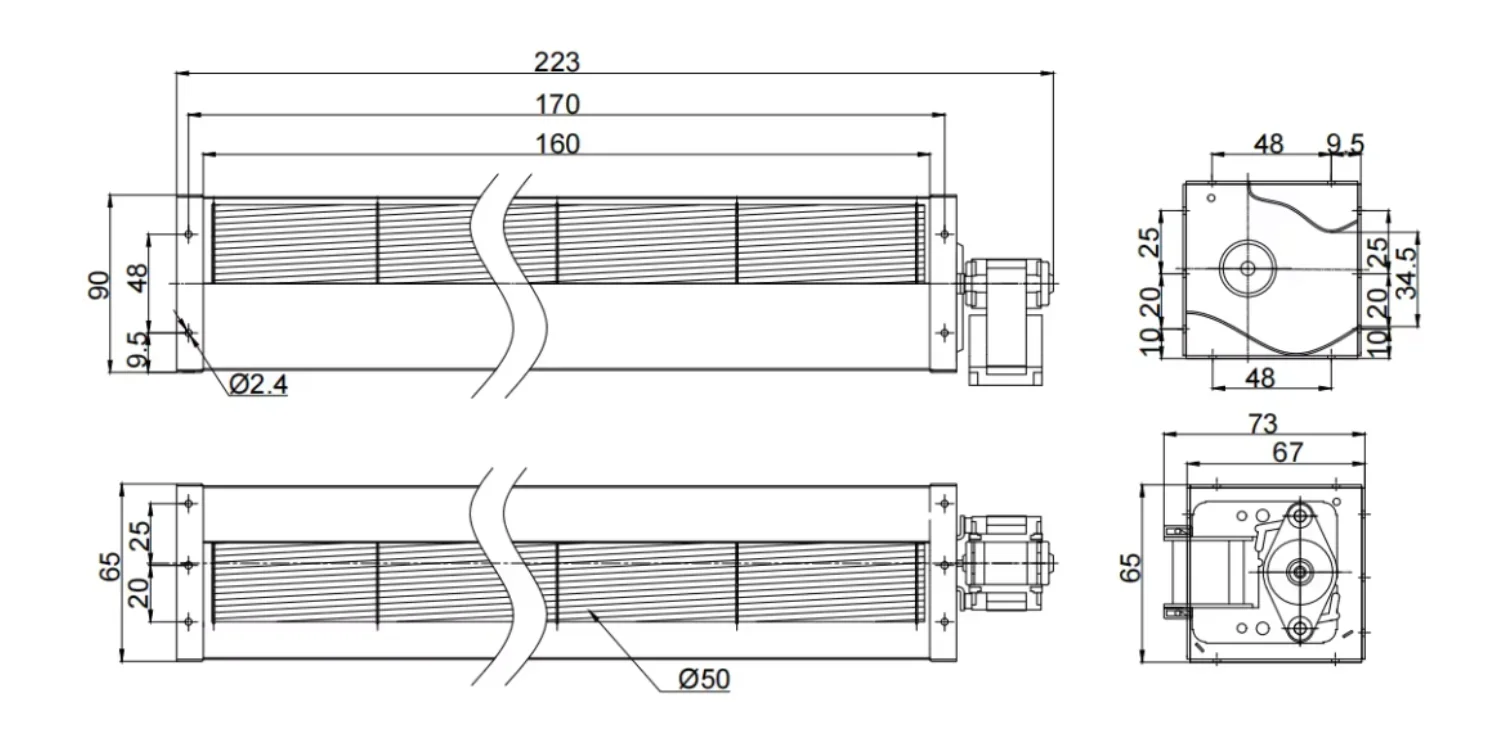

Outline Drawing

Model	Rated Voltage	Air  Flow	Air  Pressure	Rated  Speed	Sound  Level	Total  Length
Part No.	VAC	m3/H	Pa	RPM	dB(A)	mm
PC50B1A100A	115	60	44	3200	40	163
PC50B2A100A	230	50	37	2700	40	163
PC50B1A160A	115	106	41	3100	40	223
PC50B2A160A	230	90	37	2500	40	223
PC50B1A200A	115	150	40	3000	42	263
PC50B2A200A	230	125	38	2500	42	263
PC50B1A250A	115	190	42	3000	44	318
PC50B2A250A	230	153	39	2600	42	318
PC50B1A300A	115	199	45	2800	45	368
PC50B2A300A	230	187	40	2500	43	368
PC50B1A360A	115	225	49	2700	48	428
PC50B2A360A	230	216	44	2500	48	428
PC50B1A420A	115	252	54	2500	52	488
PC50B2A420A	230	206	49	2300	49	488

SCENE IMAGE

TRADE SHOW PARTICIPATION

PACKAGING & SHIPPING SPECIFICATIONS

FAQs

Q: What are the typical applications for these cross-flow blowers?

A: They are ideal for home appliances including indoor stoves,fireplaces, ovens, wood burners, underfloor convectors, air doors,
air curtains, air conditioners, and heaters.

Q:How about the delivery time ?
A:Within 25 days after we receive the order.

Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.

Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.

Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–499 piece: US $10.22 / piece
  • 500–999 piece: US $9.65 / piece
  • 1000+ piece: US $9.39 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air curtain?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Can the air curtain be supplied for my local voltage?

The standard configuration is 230 VAC. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
