Air curtain — airflow 3500m³/h, type Air Curtain. The complete factory specification follows. Made by Dongying Qinghua Trading Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Curtain
- Model Number: FM150-1800
- Operating Voltage: 380/400VAC
- Air Flow: 4000
- Airflow: 3500m³/h
- Warranty: 1 Year
- After Warranty Service: Video Technical Support
Technical Specifications
| Type | Air Curtain |
|---|---|
| Airflow | 3500m³/h |
| Mounting Type | Wall / Window Mount |
| Key Selling Points | High-Accuracy |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump |
| Place Of Origin | Shandong, China |
| Brand Name | QH or use our brand |
| After-Sales Service Provided | No overseas service provided, Online support |
| Product Name | Air Curtain |
| Operating Voltage | 380/400VAC |
| Mounting | Door/Wall/Window Mount, Door/Wall/Window Mount |
| Remote | with or not |
| Noise | 65dB |
| Model Number | FM150-1800 |
| Air Flow | 4000 |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Restaurant, Retail, Food Shop, Printing Shops |
| After Warranty Service | Video Technical Support |
| Local Service Location | None |
| Showroom Location | None |
| Condition | New |
| Certification | CE |
| Warranty Of Core Components | 3 years |
| Marketing Type | New Product 2021 |
| Packaging Details | Metal Commercial Strong wind Indoor Air curtain with remote for cold storage, Refrigeration Door Air Curtains Packaging & Shipping Packagin rank 1, Air curtain. 2, Poly bag wrap up air curtain. 3, Put air curtain inside a carton. 4, Seal with sticky tape. 5, Sealing with strip. |
| Port Of Dispatch | Qingdao |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 1000 sets per Month Air Curtain |

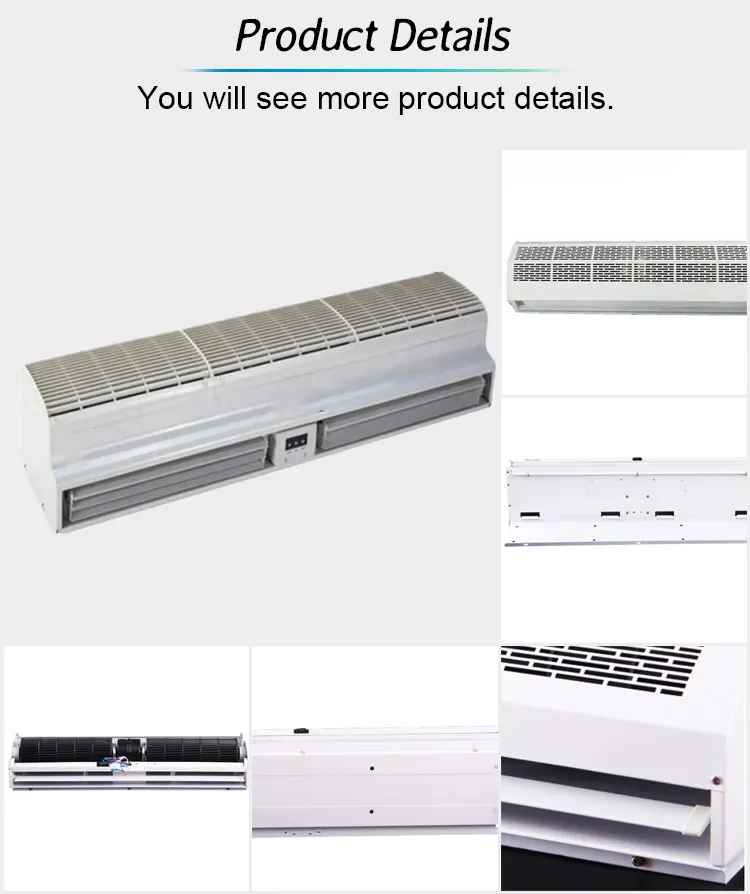

Product Details

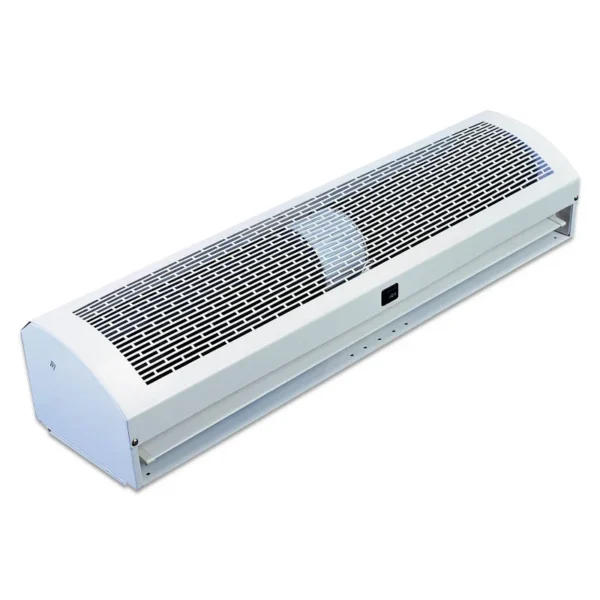

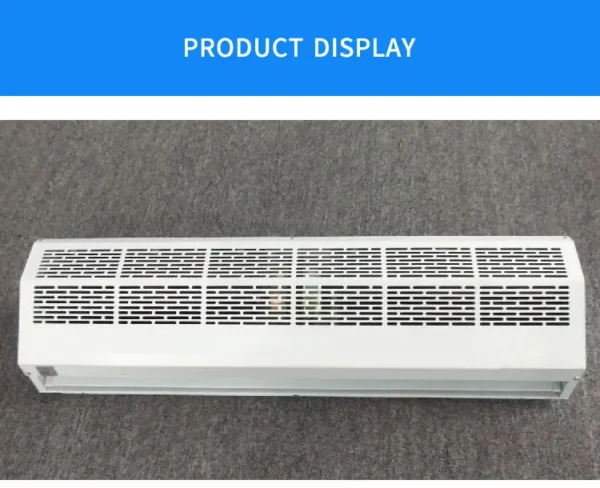

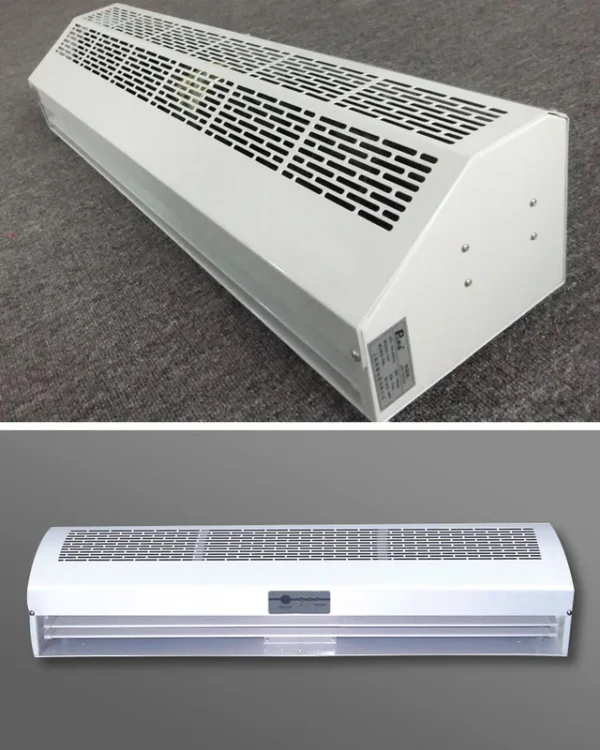

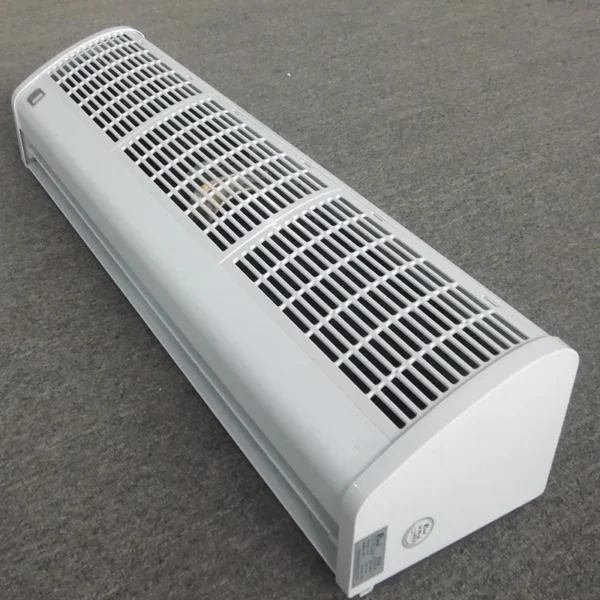

Cross Flow Industrial Fan Door Air Curtain

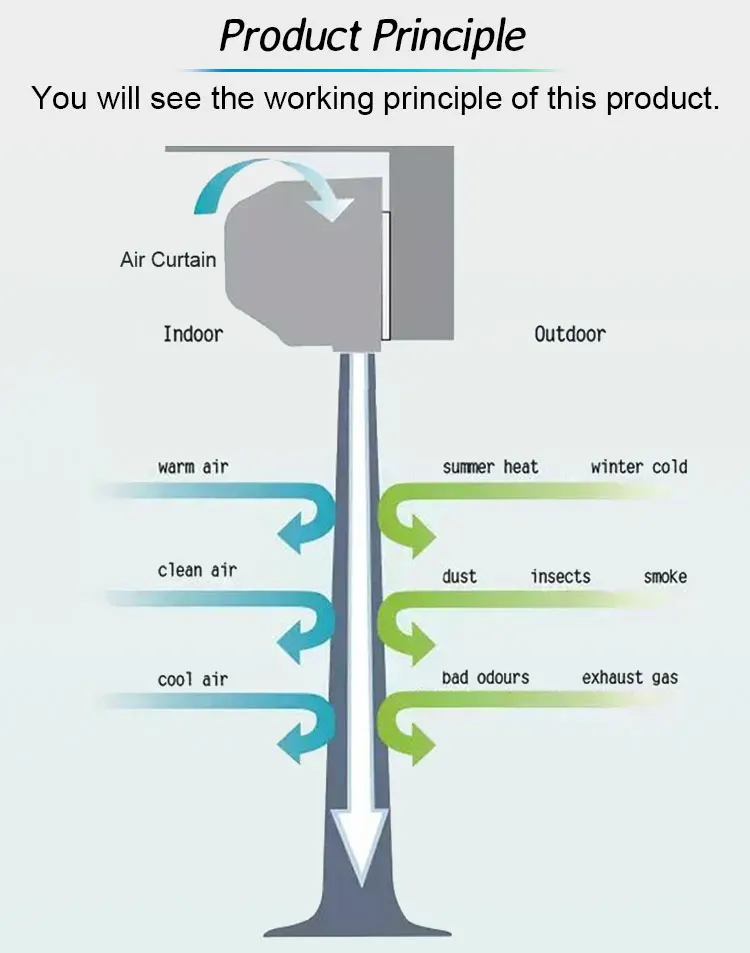

The main function of the air curtain machine is to isolate the air inside and outside the building, to ensure the internal temperature of the building and prevent external bacteria from entering the interior of the building.

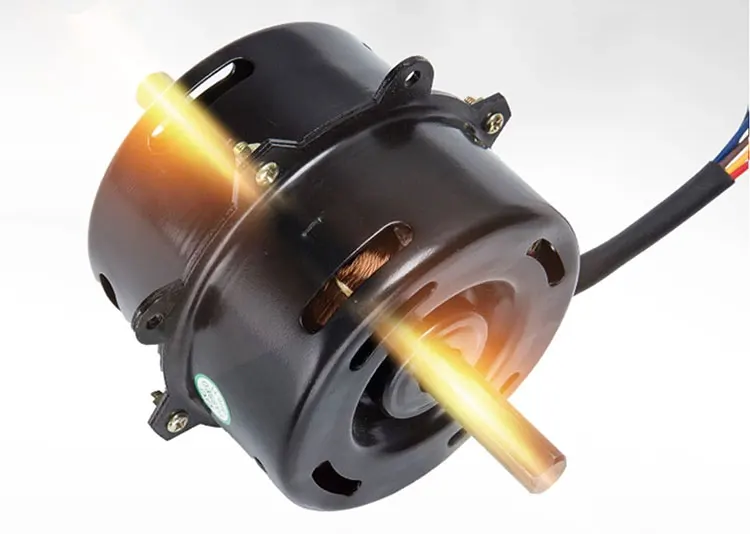

Optimize energy saving motor
Optimize energy saving motors,upgrade strong power, the motor is runing smoothly, Built in thermal protector, safe and reliable performance, safe and reliable continuous transport line 5000hours, is the leader in the motor.
Ultra low noise air evenly

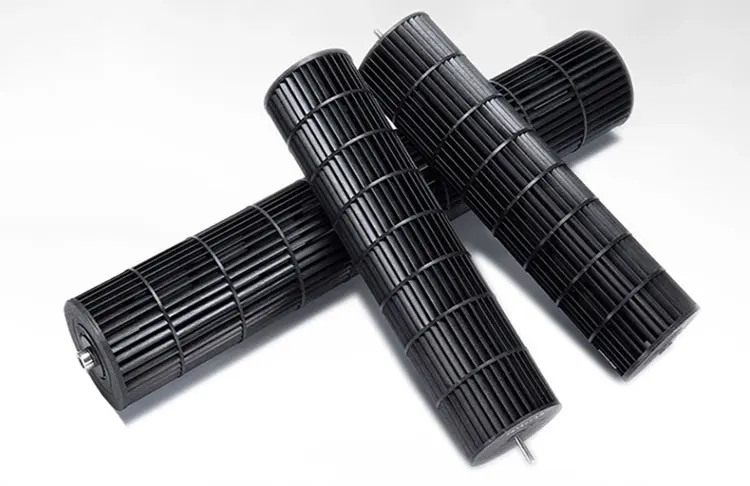

The overall design of high quality glass fiber plastic impeller, the smooth flow speed, unequal spacing mute design.

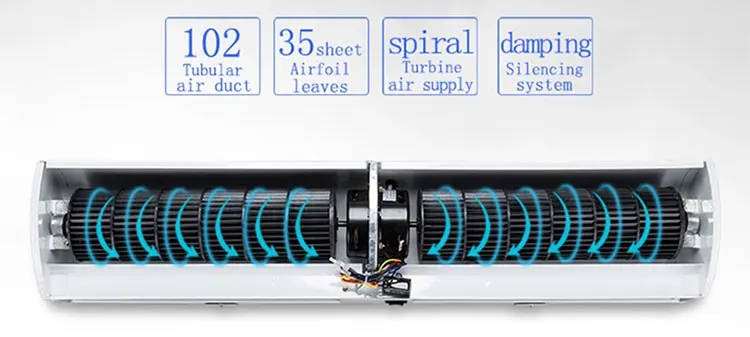

Twin turbine air supply more powerful
Inside the fan spiral vortex duct design, can effectivrly reduce the air flow loss, while reducing the internal resistance noise.
| Model | Voltage V | Motor Power w | Wind speed m/s | Air volume m3/min | noise dB(A) | Heater power kw | Air outlet temperature rise ℃ | wire(mm2) | Dimensions L * W * H mm | |||
| Simplex | Three phase | |||||||||||
| RFM/P 125-600 | 220/380 50Hz | 60 | 4.5 | 700/600 | 59 | 3 | 6 | 40-80 | 2.5-4 | 1.5-2.5 | 600 ×180×220 | |
| RFM/P 125-900 | 80 | 4.5 | 1100/980 | 59 | 5 | 8 | 40-80 | 2.5-4 | 1.5-2.5 | 900 ×180x 220 | ||
| RFM/P 125-1200 | 120 | 4.5 | 1400/1260 | 59 | 6 | 9 | 40-80 | 4-6 | 2.5-4 | 1200×180×220 | ||
| RFM/P 125-1500 | 180 | 4.5 | 1800/1600 | 59 | 9 | 12 | 40-80 | 6-10 | 4-6 | 1500 ×180x 220 | ||
| RFM/P 125-1800 | 250 | 4.5 | 2200/2000 | 59 | 12 | 18 | 40-80 | 10-16 | 6-10 | 1800×80×220 | ||
| RFM/P 150-600 | 80 | 6 | 1000/900 | 65 | 3 | 6 | 40-80 | 2.5-4 | 1.5-2.5 | 600 x 230x 260 | ||
| RFM/P 150-900 | 120 | 6 | 1500/1200 | 65 | 5 | 8 | 10 | 38-70 | 2.5-4 | 1.5-2.5 | 900 ×230×260 | |
| RFM/P 150-1200 | 180 | 6 | 2200/2000 | 65 | 6 | 9 | 12 | 38-70 | 4-6 | 2.5-4 | 1200x 230×260 | |
| RFM/P 150-1500 | 250 | 4.5 | 3000/2600 | 65 | 9 | 12 | 16 | 38-70 | 6-10 | 4-6 | 1500 x 230x 260 | |
| RFM/P 150-1800 | 370 | 9 | 3500/3200 | 65 | 12 | 18 | 24 | 38-70 | 10-16 | 6-10 | 1800x 230x 260 | |
| RFM/P 180-900 | 250 | 9 | 2000/800 | 71 | 8 | 10 | 35-65 | 4-6 | 2.5-4 | 900 ×260x 290 | ||
| RFM/P 180-1200 | 370 | 9 | 3000/2700 | 71 | 9 | 12 | 35-65 | 6-10 | 4-6 | 1200×260 ×290 | ||
| RFM/P 180-1500 | 550 | 9.0 | 4000/3600 | 71 | 12 | 18 | 35-65 | 10-16 | 6-10 | 1500 x 260 x 290 | ||
| RFM/P 180-1800 | 650 | 9 | 4500/4100 | 71 | 18 | 24 | 35-65 | 16-25 | 10-16 | 1800x 260 x 290 | ||
Delivery
TIME OF DELIVERY:Within 35 days after receiving deposit .
Payment
Support T/T , L/C,Aalibaba
Warranty
The whole machine for 3 years.
After-sale
During the warranty period, machines which cannot run due to quality problems,Choose the following options.
1) During the one-year warranty period, non-human factors cause product quality problems, and provide parts replacement and repair and maintenance services.
2) In addition to the one-year warranty period, parts replacement and repair and maintenance services are provided at the user's expense.
Promotion Method
1) Pay the full amount in one lump sum, 1% discount.
2) Recommend other customers to buy and return a part of the commission.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $55 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air curtain?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this air curtain carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the air curtain be supplied for my local voltage?
The standard configuration is 380/400VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongying Qinghua Trading Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Dongying Qinghua Trading Co., Ltd. range on HVACR Nexus.
