This air duct circulation heater is published with the manufacturer’s full specification — 380 V, heating capacity verygood. Made by Foshan Luomei Electric Technik Co.,ltd (10 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Duct Circulation Heater
- Power Source: Electric
- Heat Power: 5000W
- Fan Power: 370W
- Voltage: 380 V
- Heating Capacity: verygood
- Max Airflow: 18m3/min valve control
Technical Specifications
| Type | circulation heater |
|---|---|
| Power Source | Electric |
| Voltage | 380 V |
| Material | Stainless Steel |
| Core Components | PLC |
| Key Selling Points | Energy Saving |
| Warranty | 1 Year |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | verygood |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 48 |
| Brand Name | LUOMEI |
| Dimension(L*W*H) | 77*46*56CM |
| Working Temperature Range | 1 – 40 ℃ |
| Product Name | Hot Air Blower |
| Heat Power | 5000W |
| Fan Power | 370W |
| Max Airflow | 18m3/min valve control |
| Max Temperature | 350 degree C adjustable |
| Frequency | 50HZ( if need 60Hz contact us) |
| Feature | Surface insulation and heat insulation |
| Customize | outlet diameter |
| Usage | drying |
| Selling Units | Single item |
| Single Package Size | 77X46X56 cm |
| Single Gross Weight | 50.0 kg |
Product Details
High capacity adjustable temperature industrial hot air blower for drying equipment
1. Technical Paramater
| Model: 0537 / 0737 / 1037 | |||
| Voltage | 220V 1ph (or 380V 3ph) | Max outlet temperature | 350℃ (reducing air volume) |
| Heater power | 5KW/7.5KW/10KW | Max inlet temperature | 200℃ |
| Fan power | 0.37KW | Max Airflow | 18m3/min |
| Heater material | 2080 Nickel chromium wire | Maximum pressure | 754Pa |
| Environment temperature | 0~40 ℃ | Dimension | below attached picture |
| Environment humidity | 60% R.H. | Net Weight | 35KG |
| Note: | If you want to change outlet diameter,please contact us,conventional 89mm | ||
| Model: 1075 / 1575 | |||
| Voltage | 380V three phase | Max outlet temperature | 350℃ (reducing air volume) |
| Heater power | 10KW/15KW | Max inlet temperature | 200℃ |
| Fan power | 0.75KW | Max Airflow | 36m3/min |
| Heater material | 2080 Nickel chromium wire | Maximum pressure | 937Pa |
| Environment temperature | 0~40 ℃ | Dimension | below attached picture |
| Environment humidity | 60% R.H. | Net Weight | 50KG |
| Note: | If you want to change outlet diameter,please contact us,conventional 89mm | ||
| Model: 2075 / 2575 / 3075 | |||
| Voltage | 380V three phase | Max outlet temperature | 350℃ (reducing air volume) |
| Heater power | 20KW/25KW/30KW/ | Max inlet temperature | 200℃ |
| Fan power | 0.75KW | Max Airflow | 36m3/min |
| Heater material | 2080 Nickel chromium wire | Maximum pressure | 937Pa |
| Environment temperature | 0~40 ℃ | Dimension | below attached picture |
| Environment humidity | 60% R.H. | Net Weight | 50KG |
| Note: | If you want to change outlet diameter,please contact us,conventional 89mm | ||
2. Product Introduce
Hot air blower are generally composed of four parts: a heater, a fan, a temperature control system, and a cabinet.
The heater part is made of pure 2080 nickel-chromium high-efficiency heating wire, high-quality high-temperature stainless steel casing, lightweight crystal insulation fiber blanket, 95 porcelain wiring board and other components. It has the characteristics of fast heating, small thermal inertia, precise temperature control and long service life. (Our heater core components use imported pure 2080 nickel-chromium alloy materials, some industrial enterprises have selected iron-chromium-aluminum heating materials, nickel-chromium materials, reclaimed silk, or inferior nickel-chromium wire to impersonate 2080 pure nickel-chromium wire, thereby reducing production. Cost. In application, generally used in three months or six months, the durability, stability, heat generation, accuracy and other aspects of the two products will have essential differences, which may lead to the loss of maintenance value of the product. Causes a production safety incident.)
The fan part is uniquely designed with low noise, can recycle hot air, and is energy efficient. Different wind pressure fans can be configured according to the actual needs of the user, which is flexible and practical. The fan air volume can be adjusted according to production needs.
The hot air blower is suitable for heating and drying of the plant, heat source equipment in the drying room and heating in a small air flow area. Various industrial plants, workshops, steelmaking, coal mine heating and heating, preheating heating and drying of various construction sites, drying of pipeline anti-corrosion inner walls, speeding up the drying of paints, heating and warming in winter construction sites, preheating of machines Warm up. Chemicals, plastics and other products are dry, food is dried after cleaning, and heat shrinkable packaging has examples of use.

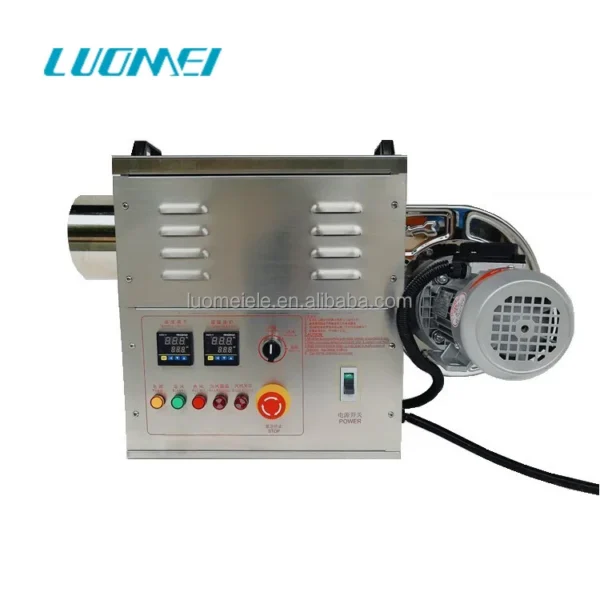

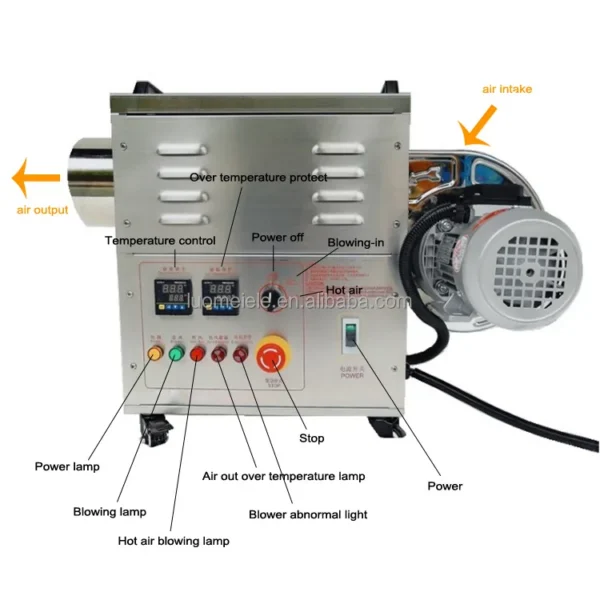

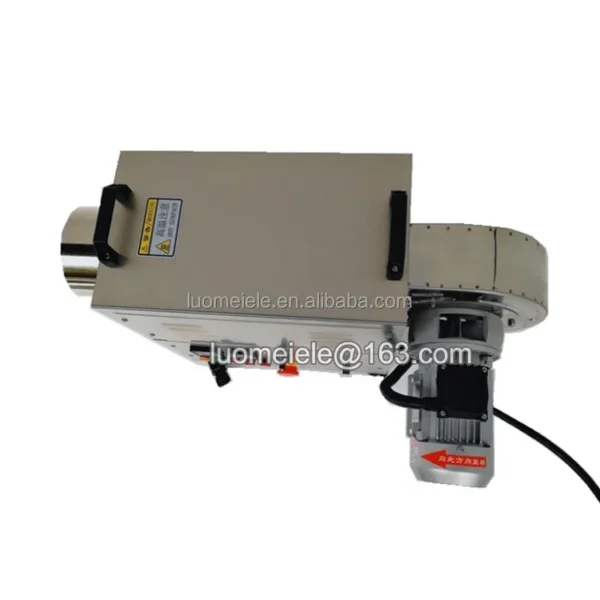

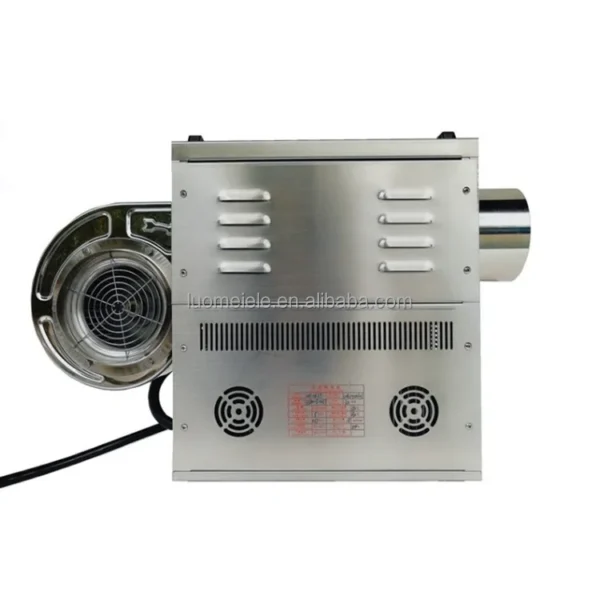

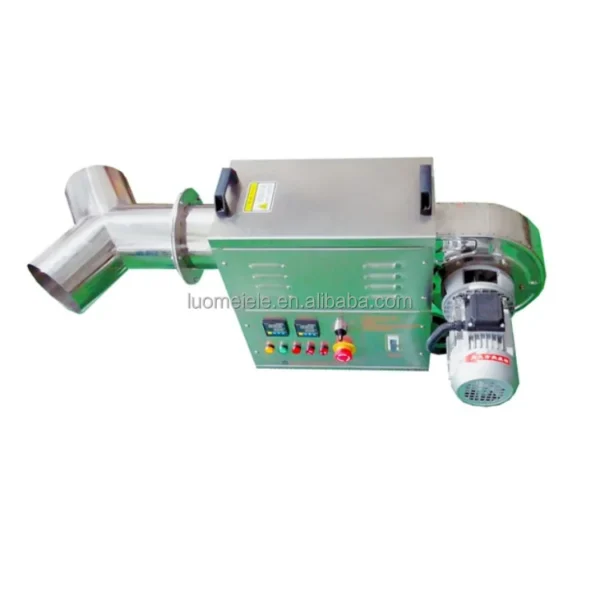

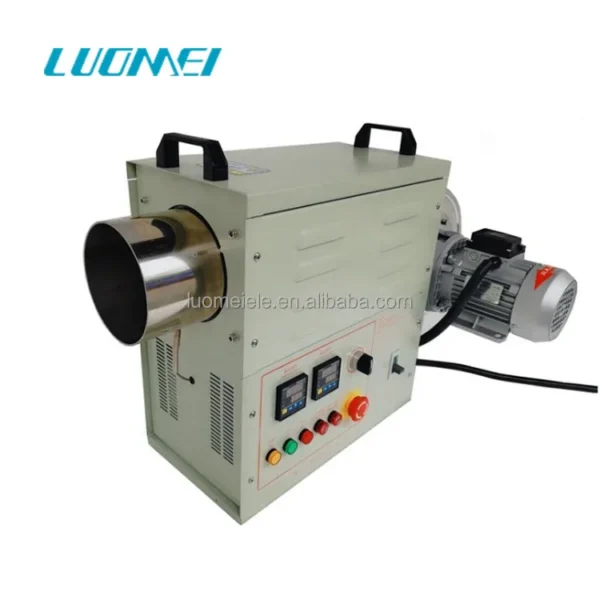

3. Product display
4. Dimension
5. Applications
1. Assembly to cleaning equipment
2. Drying and heat sterilization of glass containers
3. Defrost before freezing food labeling
4. The inner wall of the tank and gas tank is dry
5. Drying of the centrifuge
6. Heating and drying of electronic components
7. Drying after cleaning such as copper wire
8. Drying in the hopper
9. Drying of the transformer box before painting
10.FRP resin drying
11. Heat drying of gas cylinders
12. Internal drying heating of vinyl resin
13. Copper ball heating
14. Drying of the sorbent
15. Drying of food
16. Shrinking and packaging drying in the tunnel furnace
17. Solidification and drying of plasticizer
18. Drying of small objects
19. Transformer dipped in insulating paint and dried
20. Drying after carton printing
1. Are you manufacturer or trading company?
Re: We are manufacturer,professional for produce ring blower,centrifugal fan, aerator, air pump,hot air blower etc.
2. What is the highest temperature it can reach?
Re: Maximum temperature is 350℃
3. The airflow and temperature can be adjusted?
Re: Yes of course.
4. What transport you use? can send to my door?
Re: Our transportation is ship by air to airport, ship by sea to seaport, and ship by express to door, please note that, by air to airport and by sea to seaport, need you are company not private, by express can be company or private.
5. This is the first time to use Alibaba, how i can make purchase?
Re: Don't worry, you just only need contact us, confirm with us the product you need and your request, then we will choose model for you, and we will help you make alibaba order, then you can pay.
6. What is the payment method?
Re: We accept T/T(bank wire transfer), Visa(include credit card),mastercard,e-checking,western union,CNY,cash etc.talk with us will let you know.
Any other question welcome to communicate with us.
Mr.William Wei
Email address: luomeiele(at)163.com / luomeiele(at)gmail.com
Mob/Wechat/Whatsapp: 008618823126158
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $2198 / piece
- 10–99 piece: US $1998 / piece
- 100+ piece: US $1850 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air duct circulation heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air duct circulation heater be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
