Air Duct Heater, ATEX, Explosion-proof

Air duct heater — voltage 110-600V, power source Electric. The complete factory specification follows. Made by Yancheng Honleader Electric Co., Ltd. (6 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air Duct Heater

• Power Source: Electric
• Voltage: 110-600V
• Material: Stainless Steel
• Tube Material: SS304/316/321/310S/Titanium/Incoloy/Silicon carbide Available
• Warranty: 1 Year
• Certification: ISO ROHS CE CCC ATEX

Technical Specifications

Product Details

Products Description

● The Air Duct Heater is mainly used for air heating process in the air duct. The specifications are divided into three forms: Low temperature, Medium temperature and High temperature.

● The common feature of the air duct electric heater in structure is that the steel plate is used to support the electric heating pipe to reduce the electric heating pipe. vibration, the junction box is equipped with an over-temperature control device.

● Through the blower air supply system, the gas entering the air duct heater becomes high temperature, and the high pressure gas is discharged. The generated hot air has the characteristics of dry, moisture-free, static-free, non-conductive, non-flammable, non-explosive, non-electrochemical corrosive, non-polluting, safe and reliable.

● In terms of control, in addition to over-temperature protection, an intermodal device is also installed between the fan and the duct-type electric heater to ensure that the electric heater must be started after the fan is started, and a differential pressure device is added before and after the heater. to prevent fan failure.

● The gas pressure heated by the air duct electric heater should generally not exceed 0.3Kg/cm2. If it needs to exceed the above pressure, a circulating electric heater can be used; 260℃; high temperature type does not exceed 500℃.

Product Paramenters

Model	Power（kw）	Heating room inside size  (Length * Width * Height, mm)	Connection caliber outlet	Room temperature to — ℃
RH-AD-5	5	200*300*300	ø100	300℃
RH-AD-10	10	300*300*300	ø100	300℃
RH-AD-15	15	400*300*300	ø150	300℃
RH-AD-20	20	400*300*400	ø150	300℃
RH-AD-25	25	400*400*400	ø200	300℃
RH-AD-30	30	400*400*400	ø200	300℃
RH-AD-40	40	500*400*400	ø250	300℃
RH-AD-50	50	600*400*400	ø250	300℃
RH-AD-60	60	700*400*400	ø250	300℃
RH-AD-70	70	700*400*500	ø300	300℃
RH-AD-80	80	800*400*500	ø300	300℃
RH-AD-90	90	900*400*500	ø350	300℃
RH-AD-100	100	1000*400*500	ø350	300℃
RH-AD-120	120	1000*500*500	ø400	300℃
RH-AD-140	140	1000*500*500	ø400	300℃
RH-AD-160	160	1000*700*500	ø400	300℃
RH-AD-180	180	1000*700*500	ø450	300℃
RH-AD-200	200	1000*700*500	ø450	300℃
RH-AD-250	250	1000*800*800	ø500	300℃
RH-AD-300	300	1200*1000*1000	ø500	300℃
RH-AD-350	350	1200*1000*1000	ø600	300℃
RH-AD-400	400	1400*1000*1000	ø600	300℃
RH-AD-450	450	1400*1000*1000	ø700	300℃
RH-AD-500	500	1400*1000*1000	ø700	300℃
RH-AD-600	600	1600*1000*1000	ø800	300℃
RH-AD-700	700	1800*1000*1000	ø800	300℃
RH-AD-800	800	1800*1000*1000	ø800	300℃
RH-AD-900	900	2000*1000*1000	ø800	300℃
RH-AD-1000	1000	2400*1000*1000	ø800	300℃

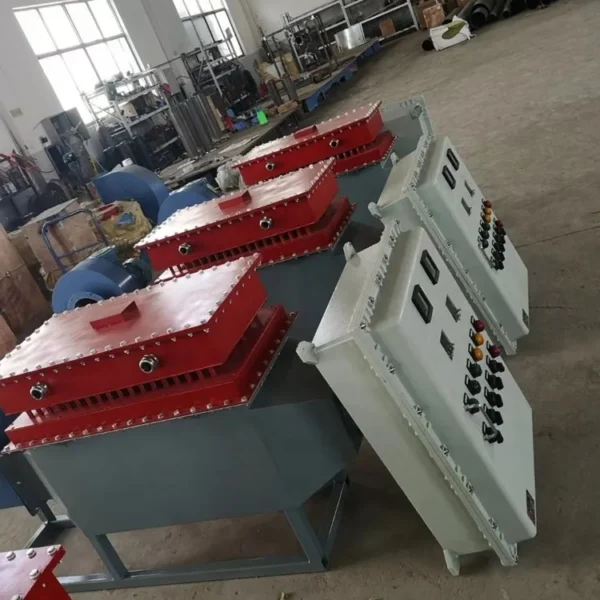

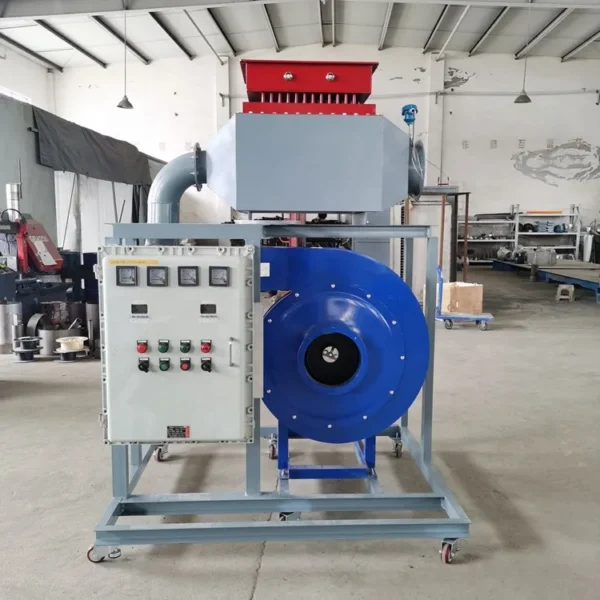

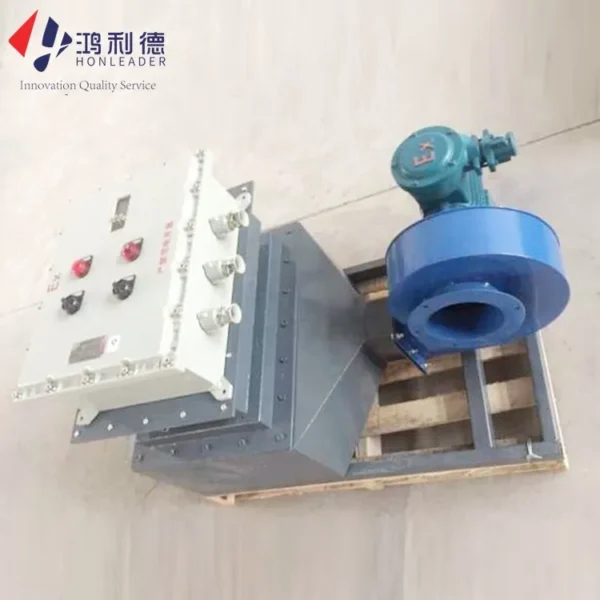

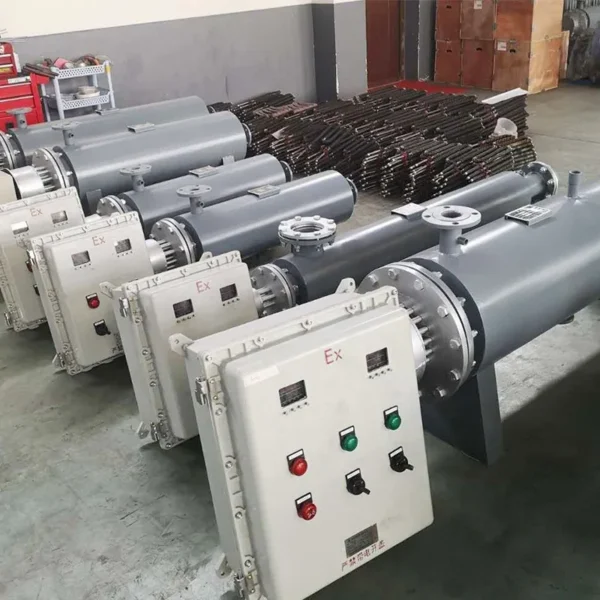

Details Images

Technical features:

1. The maximum effective heating temperature is 1400℃, and the shell temperature is only about 40℃. 2. High efficiency: up to 0.95 or more. 3. The heating and cooling rate block can reach 10℃/sec. The adjustment is accurate and stable, which is very suitable for automatic control. 4. Good mechanical properties: The heating element is made of special alloy material. Under the impact of high-pressure air flow, it has better mechanical properties and strength than any heating element. This is a test for systems and accessories that need to continuously heat the air for a long time. It is more advantageous. 5. Durable, with a service life of up to ten years. 6. The air is clean and the volume is small. 7. Various types of electric air heaters can be designed according to the needs of users. The power of a single unit ranges from 2KW to 1000KW (can be customized according to customer requirements, and provide drawings, voltage, power, size)

Application

When order, would you please share us with the following datas?( Standard Voltage 380V) 1) Voltage. 2) Temperature range. 3) Heating time. 4) Usage environment.

5) The space dimension that needs to be heated (Length*Width*Height, in meters) Package: Plywood or export wooden case packaging Delivery: By sea or air

Recommend Products

Company Profile

● Company values: Innovation Quality Service. ● Honleader is one of the leading companies in China on the design and manufacture of various industrial heater and heating element. ● Honleader adheres to the concept of "quality first" in production, and puts the customer's design needs in the first place.From the establishment of the project, design and development, production and manufacturing, quality inspection to finished product delivery, each link has always maintained good information feedback and provided excellent after-sales support services. ● Through more than 20 years of development, Honleader not only masters the leading and mature electric heating product design, research and development, manufacturing technology, but also integrates the industry's high-quality supplier and customer resources. ● Compared to its competitors, Honleader have rich product experience, Senior professional technical engineer team, Complete production and testing equipment, Active customer communication service. Honleader Electric Co., Ltd. has the ability to provide for various industries customer with exclusive,efficient, stable and excellent "One-stop" electric heating products solutions.

Product packaging

Contact us

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $1258 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air duct heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this air duct heater carry?

It is supplied with ISO ROHS CE CCC ATEX documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the air duct heater be supplied for my local voltage?

The standard configuration is 110-600V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
