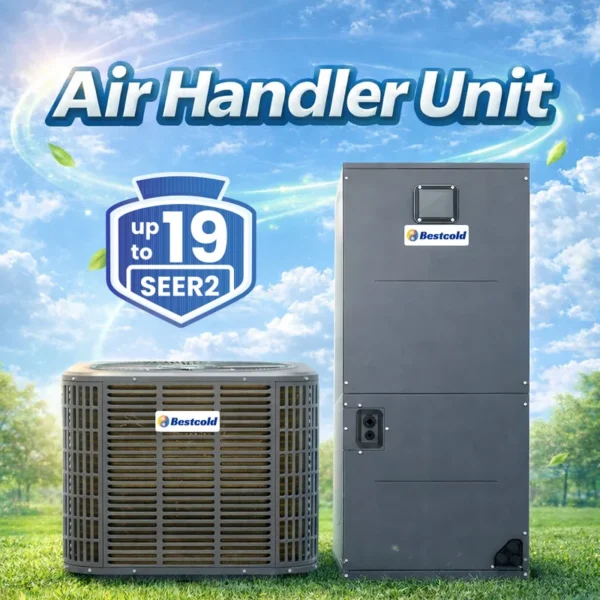

Air Handler Unit, SEER2, R454B, 208-230V, HVAC

Q: What capacity options are available and which one fits my home?

A: Bestcold AHU comes in 24,000 BTU, 36,000 BTU, 48,000 BTU, and 60,000 BTU capacities. As a general guide: 24K suits 600-1,000 sq.ft, 36K for 1,000-1,500 sq.ft, 48K for 1,500-2,000 sq.ft, and 60K for 2,000-2,500 sq.ft. Actual sizing depends on insulation, climate zone, and window area – consult a licensed HVAC contractor for a Manual J load calculation.

Q: What SEER2 rating does it have and does it qualify for tax credits?

A: All Bestcold AHU models achieve 17-18 SEER2, exceeding the 2023 DOE minimum efficiency standard. This qualifies for Energy Star certification and most utility rebate programs. Check your local utility provider's HVAC rebate list for exact incentive amounts.

Q: Why does Bestcold use R454B refrigerant?

A: R454B has an ultra-low GWP of 467 – 78% lower than R410A (2,085 GWP) and 31% lower than R32 (675 GWP). It complies with the 2025 DOE HFC phasedown mandate under the AIM Act, making it the future-proof choice as R410A is being phased out across North America. Lower refrigerant charge per system also reduces environmental impact and service costs.

Q: Is this unit compatible with my existing thermostat and wiring?

A: Yes. Bestcold AHU uses standard 24V non-communication control, fully compatible with most existing 24V thermostats, including Nest, Ecobee, and Honeywell. No proprietary wiring or special controllers needed. This makes it ideal for retrofit replacement projects where you want to keep existing controls and wiring infrastructure.

Q: Can it handle long duct runs and multiple rooms?

A: Yes. The ECM constant torque motor delivers up to 200Pa (0.8 in. wg) external static pressure, maintaining rated airflow through long duct runs and multiple branch takeoffs. This makes it suitable for whole-house ducted systems, multi-zone damper setups, and light commercial applications with complex duct layouts.

Q: What is the warranty coverage?

A: Standard warranty includes 10-year compressor coverage and 5-year parts coverage. The all-aluminum indoor coil resists formicary corrosion, significantly extending the evaporator lifespan compared to copper-aluminum coils. Register your unit within 60 days of installation to activate full warranty protection.

Q: Does it work in extreme cold or hot climates?

A: Yes. Cooling mode operates from 5°F to 125°F, and heating mode from -4°F to 80°F. The unit's wide voltage tolerance of 198V to 264V ensures stable operation during grid fluctuations and brownouts. Auto defrost prevents outdoor coil icing in cold conditions, while the refrigerant-cooled control board maintains reliability during extreme rooftop heat.

Q: Can I install it vertically or horizontally?

A: Bestcold AHU supports multi-position installation – vertical upflow, vertical downflow, horizontal left, or horizontal right. The top-discharge outdoor unit has a compact footprint for tight spaces. Dip switch fan speed adjustment allows on-site airflow tuning without special tools, making installation faster for contractors.
