This air handling unit is published with the manufacturer’s full specification — cooling capacity of heat pump system 17-98kw, power 380-415/3/50V/Ph/Hz. Made by Beijing Midea Overseas Engineering&technology Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Handling Unit
- Power: 380-415/3/50V/Ph/Hz
- Cooling Capacity Of Heat Pump System: 17-98kw
- Heating Capacity Of Heat Pump System: 26-111.5kw
- Warranty: 3 Years
- Place Of Origin: Guangdong, China
- Type: Rooftop Packaged Unit
Technical Specifications
| Type | Rooftop Packaged Unit |
|---|---|
| Mounting Type | Rooftop |
| Key Selling Points | Design flexibility/Durable construction |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | PLC, Pump, Engine, Compressor, Condenser |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1000 KG |
| Brand Name | Midea |
| Dimension(L*W*H) | 1495*870*1150mm |
| Product Name | Midea Rooftop Packaged Air Conditioner Unit |
| Power | 380-415/3/50V/Ph/Hz |
| Cooling Capacity Of Heat Pump System | 17-98kw |
| Heating Capacity Of Heat Pump System | 26-111.5kw |
| Net Weight | 229kg-970kg |
| Gross Weight | 234kg-1000kg |
| Ambient Temp.Operation Range(Cooling) | 10~46℃ |
| Ambient Temp.Operation Range(Heating) | -9~24℃ |
| Function | Cooling Heating |
| Brand | Midea |
| Selling Units | Single item |
| Single Package Size | 60X60X60 cm |
| Single Gross Weight | 60.0 kg |
Product Details
Product Presentation

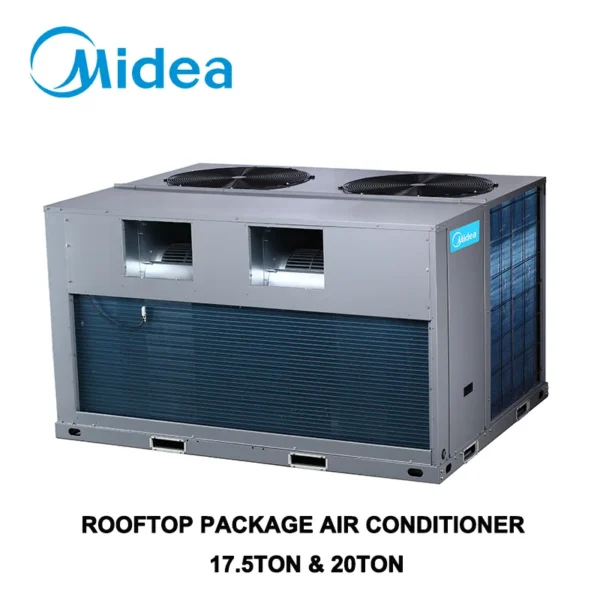

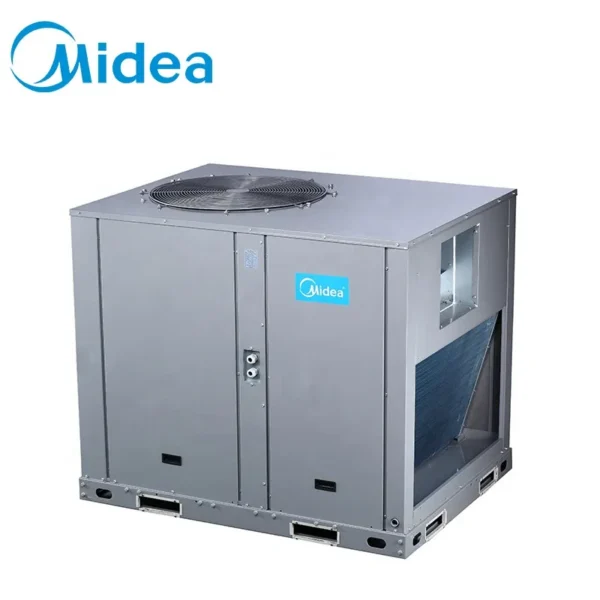

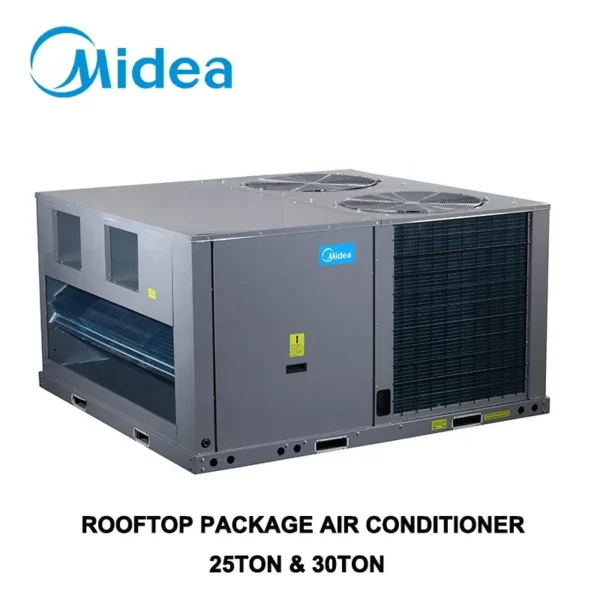

Midea HVAC Building Technologies Heat Pump for small to large buildings
Rooftop Pachage Creator 5-30 Ton
Why Choose Us
1.Experience
Over 50-years Experience in Air
Conditioning/HVAC System. With more than 50 years of experience, we have successfully completed dozens of large-scale HVAC projects and have a deep understanding of global HVAC projects.
2.Professional design
We have a professional design team, can provide you with a suitable AC plane design according to your architectural plan, we will provide you with the most suitable design
scheme.
3.Professional selectoion
According to the different design scheme, we will choose the most suitable design scheme for you from a more professional perspective.
4.Providing One-Stop Solution of HVAC System
We can provide one-stop service, which will save you a lot of money and time. Indoor units and outdoor units, control system, installing accessories, tools and Supply HVAC all materials, including air conditioners, ventilation, installation accessories, etc.
5.Technical Support
We can provide HVAC commissioning service. Air conditioner project engineers can guide and supervise product installation on site.
6.After-sales service
We have Global After-Sales System with expertise installation service. Ensure your after-sales worry-free.
Product Line
Product name | Midea Only Cooling/Heat Pump 220v/350-415v 3N 50(60)Hz Rooftop Package Creator 5-30Ton | ||||||
Power Supply | 220v/380v-415v/3N/50(60)HZ | ||||||
Cooling1 | Capacity | 22KW-98KW | 75-335KBtu/h | ||||
Power input | 6.6-32.8KW | ||||||
EER | 11.4-10.2KW/KW | ||||||
Heating2 | Capacity | 26KW-111.5KW | 89-380KBtu/h | ||||
Power input | 7.5-36.5KW | ||||||
COP | 11.9-10.4KW/KW | ||||||
Compressors | Type | Scroll | |||||
Fan motors | Indoor fan | Centrifugal/Direct/Belt | |||||
Outdoor fan | Axial/Direct | ||||||
Refrigerant | Type | R410A | |||||
Airflow rate | 2800-11200CFM | ||||||
71-77.9dB(A) | |||||||
Only cooling | Cooling | 10℃to52℃ | |||||
Heat pump | Heating | 10℃to 46℃ | |||||
Cooling | -9℃ to 24℃ | ||||||
Design flexibility
Compact design. Flanges of air flow inlet and outlet as standard. It is suitable for installation in rooftop and ground.
Durable construction
Pre-painted exterior cabinet panels pass 1000 hours Salt Spray Test for durability. Weather-resistant construction with capped
steams and sloped top panels. G90 galvanized heavy gauge plate conforming to ASTM-A-653.
steams and sloped top panels. G90 galvanized heavy gauge plate conforming to ASTM-A-653.
Multi-protection design
Multi-measurement to ensure units operate normally and reliably: System current protection, High/low pressure switch protection,
Temperature sensor on/off protection, etc. Three-phase protector can be customized.
Temperature sensor on/off protection, etc. Three-phase protector can be customized.
1.Wide Capacity Range
Wide cooling capacity range from 5 to 30 tons.
Heat pump and cooling only products are available.
Heat pump and cooling only products are available.
2.Wide Operation
—Creater series rooftop package units can operate stably in a wide ambient temperature range.
–Cooling only type from 10°C to 52°C in cooling mode.
—Heat pump type from 10°C to 46°C in cooling mode and from -9°C to 24°C in heating mode
3.Easy installation
Convenient for wires connection
–Removable access door on the electric box. It is easy to
move the cover of the electric box.
–Only connect the wires of power supply, and no need
to connect any signal wires.
move the cover of the electric box.
–Only connect the wires of power supply, and no need
to connect any signal wires.
Easily connect the drainage pipe
–Reserved external drainage port, quickly and accurately
connect the rubber drainage pipe.4.Reliable scroll compressor
–Famous brand compressor: Copeland, Hitachi, Danfoss, etc.. More reliable.
–No complex internal suction and discharge valves for quieter operation and higher reliability.
–Compact, light-weight, and fewer moving parts design.
–No complex internal suction and discharge valves for quieter operation and higher reliability.
–Compact, light-weight, and fewer moving parts design.
5.Flexible choise of accessories
1.Wired controller as standard.
2.Besides standard wired controller, others can be chosen too.
1.Other brand thermostat can be matched as optional solution.
2.Centralized control function can be achieved through the centralized controller as optional. MD-NIM01 should be connectedbetween rooftop package units and centralized controller.
6.Certifications and Authorization
IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification
How to get a quick quotation?
Information needed Midea Group's management system before prepare quotation details for you.
1.Project name :building name or building type, such as ××× office project, residential house project etc.
2.Project accurate address;
3.Your company contact information ＆ address；
4.Please provide product list or engineer drawing with product type marked.
5.When you expect to process purchase ＆ logistics for this project?
6.Is it tender project or not? Because tender project you may need our authorization letter.

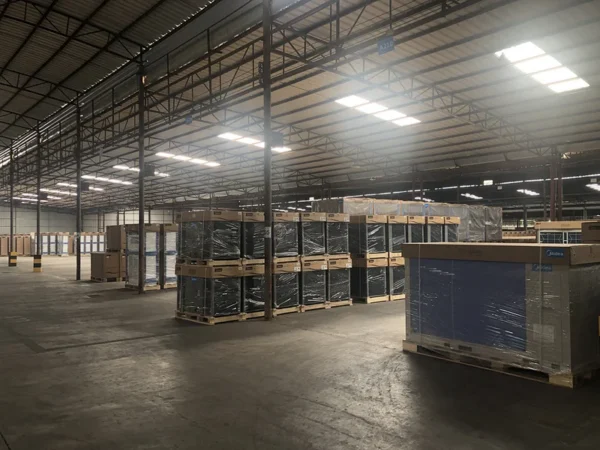

Product packaging
We will use cartons and wooden cases to protect your goods from shock and try our best to ensure that your goods will not be damaged during transportation.
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container

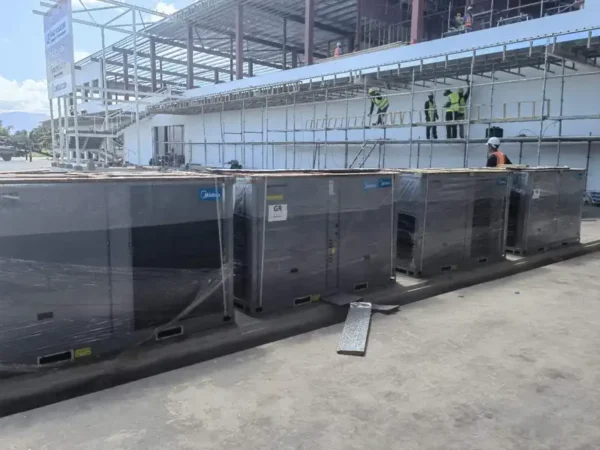

Midea Product Show
We have a lot of successful project experience, you can trust to give the project to us.
Company Profile
Contact US
Ordering and Pricing
- Minimum order quantity: 10 set
- Volume pricing:
- 10–29 set: US $18000 / set
- 30–49 set: US $15000 / set
- 50+ set: US $12000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Midea Overseas Engineering&technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Beijing Midea Overseas Engineering&technology Co., Ltd. range on HVACR Nexus.
