Key specification for this midea unit: power supply 380-415/3/50(60), capacity 12001-15000. Everything below is reproduced from the factory data sheet. Made by Beijing Midea Overseas Engineering&technology Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Midea Unit
- Model Number: Rooftop, cooling only, 380V
- Power Type: DC
- Power Source: Electric, Manual
- Power (W): 22-105 kw
- Power Supply: 380-415/3/50(60)
- Capacity (Btu): 12001-15000
Technical Specifications
| Application | Hotel, Outdoor, Garage, Commercial, Household, Churches, Airports, Food Industry, Textile Factory, Food Stores, Motor Factory, supermarket, school, hospital, dormitory, warehouse |
|---|---|
| Capacity (Btu) | 12001-15000 |
| Cooling/Heating | Cooling Only |
| Energy Efficiency Rating | Class A |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Recommended Room Size（Square Feet） | Vrf Air Conditioners |
| Eer | 8.6-12 |
| Feature | 10 to 52 |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts, Field Maintenance and Repair Service, Onsite Installation, Return and Replacement, Overseas Call Centers |
| Power Type | DC |
| App-Controlled | Yes |
| Remote Control | Yes |
| Timer | Yes |
| Private Mold | Yes |
| Power Source | Electric, Manual |
| Place Of Origin | Guangdong, China |
| Brand Name | Midea |
| Cop | Vrf Air Conditioners |
| Maximum Airflow Rate | 2800-12000m³/h |
| Power (W) | 22-105 kw |
| Model Number | Rooftop, cooling only, 380V |
| Product Name | Midea cooling only air conditioning |
| Power Supply | 380-415/3/50(60) |
| Cooling Capacity(Btu) | 344600Btu |
| Cooling Capacity | 22.4-255KW |
| Airflow Rate | 11000-13000 |
| Sound Pressure Level | 56-66dB(A) |
| Fan Motors Type | DC |
| Compressor Type | DC inverter |
| Refrigerant Type | R410A |
| Selling Units | Single item |
| Single Package Size | 101X195X89 cm |
| Single Gross Weight | 213.0 kg |
Product Details
Why Choose Us
Product Line
Wide application range
Wide capacity range

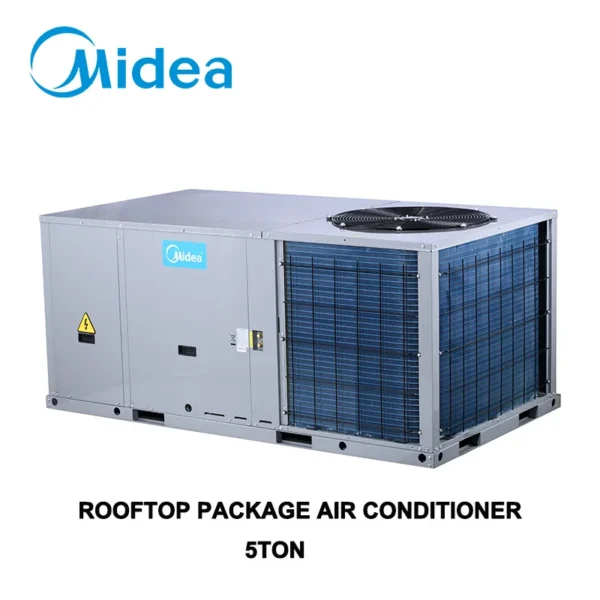

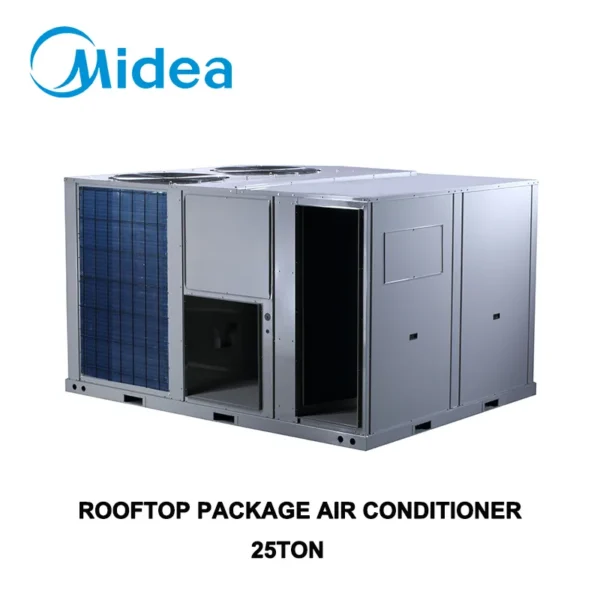

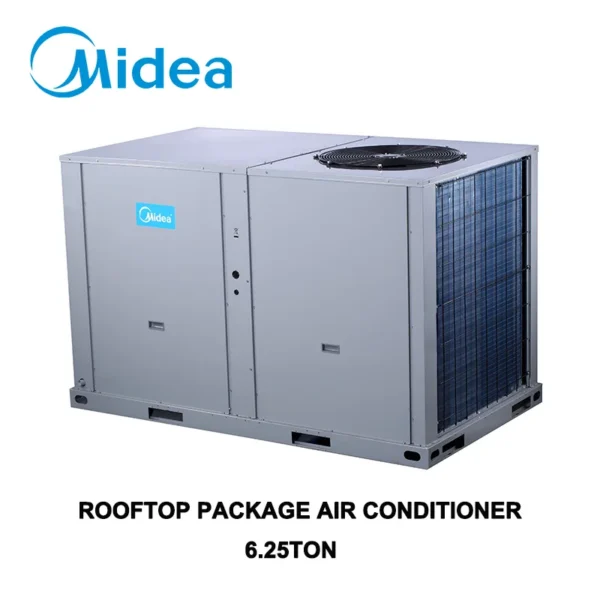

Wide cooling capacity range from 5 to 30 tons.
Heat pump and cooling only products are available.
Wide Operation Range
Creater series rooftop package units can operate stably in a wide ambient temperature range.
Cooling only type from 10°C to 52°C in cooling mode.
Heat pump type from 10°C to 46°C in cooling mode and from -9°C to 24°C in heating mode.
Cooling only type from 10°C to 52°C in cooling mode.
Heat pump type from 10°C to 46°C in cooling mode and from -9°C to 24°C in heating mode.
Design flexibility
Vertical side-discharge structure design.
Flanges of air flow inlet and outlet as standard.
It is suitable for installation on rooftop and ground.
Flanges of air flow inlet and outlet as standard.
It is suitable for installation on rooftop and ground.
Easy installationConvenient for wires connection
Removable access door on the electric box. It is easy to
move the cover of the electric box.
Only connect the wires of power supply, and no need
to connect any signal wires.
move the cover of the electric box.
Only connect the wires of power supply, and no need
to connect any signal wires.
Easily connect the drainage pipe
connect the rubber drainage pipe.
Easy maintenance
External pressure gauge portsThe unit provides external pressure gauge ports for convenient and fast checking system pressure without removing the panel. (Only for 7.5Ton-15Ton)
Easy access doors design
Removable the access doors on the filter, fan motor, and electric box sections.
Provide convenient access to system components for mainenance and service.
Provide convenient access to system components for mainenance and service.
System self-diagnostic
Press the ‘Check’ button, the LED display in PCB board of the unit will dislay the normal checking code.
Washable filter
If the unit is in running with abnormal operation, the LED display will show the error code.
Outstanding reliability
Durable construction Pre-painted exterior cabinet panels pass 500 hours Salt Spray Test for durability.
Weather-resistant construction with capped steams and sloped top panels.
G90 galvanized heavy gauge plate conforming to ASTM-A-653.
Weather-resistant construction with capped steams and sloped top panels.
G90 galvanized heavy gauge plate conforming to ASTM-A-653.
Customized anti-corrosion treatment
The rooftop package air conditioners with special anti-corrosion treatment are suitable for seaside areas or the areas
exposed to acidic substances.
exposed to acidic substances.
All PCB parts in the unit are coated with double-side moisture proof paint. The outer side of electric box metal cover is spray painted.
Special anti-corrosion treatment of heat exchanger provides 5 to 6 times greater resistance against acid rain and salt corrosion.
All screws are anti-dust.
Casting of the unit and motors are anti-rust.
Reliable scroll compressor
Famous brand compressor: Copeland, Hitachi, Danfoss,
etc.. More reliable.
No complex internal suction and discharge valves for
quieter operation and higher reliability.
Compact, light-weight, and fewer moving parts design.
etc.. More reliable.
No complex internal suction and discharge valves for
quieter operation and higher reliability.
Compact, light-weight, and fewer moving parts design.
Multi-protection design
Multiply measures to ensure units operate normally
and reliably:
System current protection, High/low pressure protection, Temperature sensor protection, etc.
Three-phase protector can be customized.
and reliably:
System current protection, High/low pressure protection, Temperature sensor protection, etc.
Three-phase protector can be customized.
Flexible choise of accessories
Controllers Wired controller as standard.
Besides standard wired controller, others can be chosen too.
Besides standard wired controller, others can be chosen too.
Other brand thermostat can be matched as optional solution.
Centralized control function can be achieved through the centralized controller as optional. MD-NIM01 should be
connected between rooftop package units and centralized controller.
connected between rooftop package units and centralized controller.
Specifications | Cooling only, 318-415V 3N~50HZ | Nominal Ton | 6.2RT~30RT | ||
Cooling | Capacity(1) | Btu/h | 75000-360000 | ||
kW | 22-105 | ||||
input(1) | kW | 6.6-34.3 | |||
EER(1) | Btu/h.W | 11.4-10.5 | |||
Capacity(2) | Btu/h | 61400-336300 | |||
kW | 18-98.6 | ||||
input(2) | kW | 7.8-41.8 | |||
EER(2) | Btu/h.W | 7.9-8 | |||
Air flow | indoor side | CFM | 2800-12000 | ||
External pressure level | Pa | default:80;0-250;default:270;0-400 | |||
Max.power input | kW | 9-49.5 | |||
Max. current | A | 19.3-94.1 | |||
compressor | Type/Quantity | scroll/1/2 | |||
Brand | copeland/Danfoss | ||||
indoor fan | Type/Drive type | centrifugal/direct/belt | |||
outdoor fan | Type/Drive type | Axial/Direct | |||
Wired controller | KJR-25B; KJR-12B/dp(T)-E | ||||
Centralized controller(Optional) | Yes | ||||
Refrigerant | Type | / | R410A | ||
Control | / | Thrpttle valve/Capilary | |||
Charged | kg | 4;7.6+7.6 | |||
lbs | 8.8/16.72+16.72 | ||||
sound pressure level | dB(A) | 71-77.9 | |||
Ambient temperature | 10~52C | ||||
Dimension | Net(W*H*D) | mm | 1475*840*1130-2320*1245*2220 | ||
Packing(W*H*D) | mm | 1495*870*1150-2330*1275*2230 | |||
Weight | Net/Gross | kg | 223/228-910/940 | ||
Certifications and Authorization
IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification
How to get a quick quotation?
Information needed by Midea Group’s management system before prepare quotation details for you.
1.Project Drawing, building layout, equipment BOQ. solar powered air conditioner
2.Project name: building name or building type, such as xxx office project, residential house project etc. 3.Expected shipping date of this project. metal air conditioner cover 4.Project type: tender or self-owned. air conditioner parts
Company Profile
Midea Project Show
Office Complex
Enjoy comfort while working High-rise office building Small and medium-sized office buildings
Residential Apartments
One for Every home Apartments Villas
Be it small or large sized, Midea VRF provides solution for all office buildings and its smart control solutions makes the manage- ment of VRF simple and easy whereas the wide variety of indoor units are suitable for all designs.
Hotels & Shopping Malls
Increase your business, not your bills
Shopping Malls Retails Hotel
The compact size and high efficiency make Midea VRF suitable for all residential homes.
Other Applications
Meeting all expectations
Hospitals Schools Airports
The high efficiency and reliability of Midea VRF makes it suitable to be used for all commercial applications. The intelligent control solutions like hotel key cards and touch screen controller makes the management easy
The innovative design and a variety of indoor unit choices makes Midea VRF suitable for all kinds of applications. The newly designed puro-air kit is a must have product for modern hospitals.
Product Package
Packing Details:
1.VRF Air Conditioning Outdoor Unit: Midea standard pallet package with film covered. 2.Fan Coil Unit / VRF Indoor Unit:Midea standard carton package. 3.For Big Air Conditioning Equpiment such as Air Cooled Chiller,Water Cooled Chiller : pallet. Leading time: Generally 25-60 days( peak-time and off-time).
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $9900 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this midea unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the midea unit be supplied for my local voltage?
The standard configuration is 380-415/3/50(60). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
