The chiller listed here carries 65kW, refrigerant R-410A, documented exactly as the manufacturer publishes it. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (13 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Chiller
- Nominal Cooling Capacity (KW): 65kW
- Nominal Heating Capacity (KW): 71
- Air Side Heat Exchanger Airflow: 14000*2 cmh
- Refrigerant: R-410A
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Type | Air Cooler |
|---|---|
| Refrigerant | R-410A |
| Mounting Type | Floor Standing |
| Fan Motors Type | DC |
| Key Selling Points | Energy Saving, Eco-Friendly, Easy to Operate |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump, Engine |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 580 |
| Brand Name | AIRWOODS |
| Dimension(L*W*H) | 1810*960*2350mm |
| Nominal Cooling Capacity (KW) | 65kW |
| Nominal Heating Capacity (KW) | 71 |
| Weight | 580kg |
| Heat Exchanger | High-efficient finned heat exchange |
| Compressor Type | Hermetic scroll compressor |
| Fan Type | Axial low noise fan |
| Throttle Parts | Electronic expansion valve |
| Product Type | industrial air cooler |
| Air Side Heat Exchanger Airflow | 14000*2 cmh |
| Selling Units | Single item |
| Single Package Size | 200X120X250 cm |
| Single Gross Weight | 1000.000 kg |
Product Details
PRODUCT HIGHLIGHTS
- High-Efficiency Modular Air Cooled Chiller: Combines the flexibility of a modular combination design with a scalable industrial cooling system to deliver a customized cooling capacity from 65KW to 2080KW for diverse thermal loads.
- Energy-Efficient Chiller Unit: Features an advanced scroll compressor chiller core and eco-friendly R410A refrigerant, ensuring a high COP/EER that significantly reduces the total power consumption of commercial central air conditioning systems.

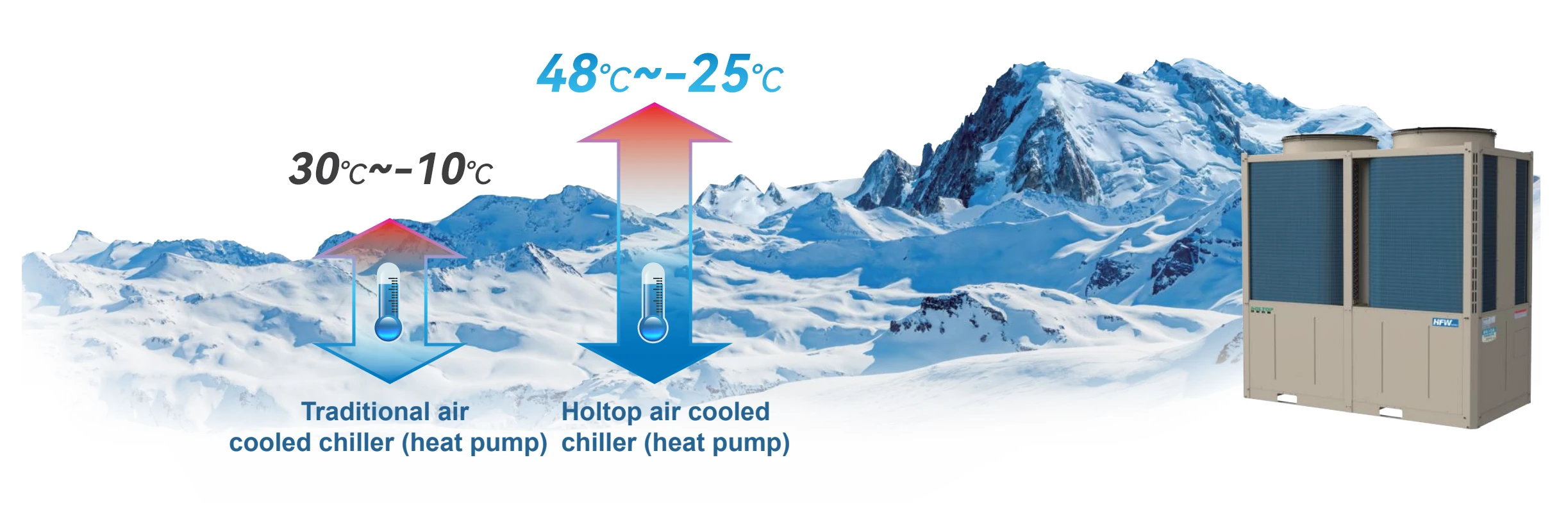

- All-Weather Air Source Heat Pump Chiller: Functions as a versatile heating and cooling modular unit that maintains stable operation as a low ambient temperature chiller, reliably performing in a wide outdoor range from -20°C to 48°C.
- Intelligent PLC Control Chiller: Equipped with a smart central cooling system controller and standard ModBus protocol, enabling seamless building automation system (BAS) integration for centralized, energy-conscious remote monitoring.

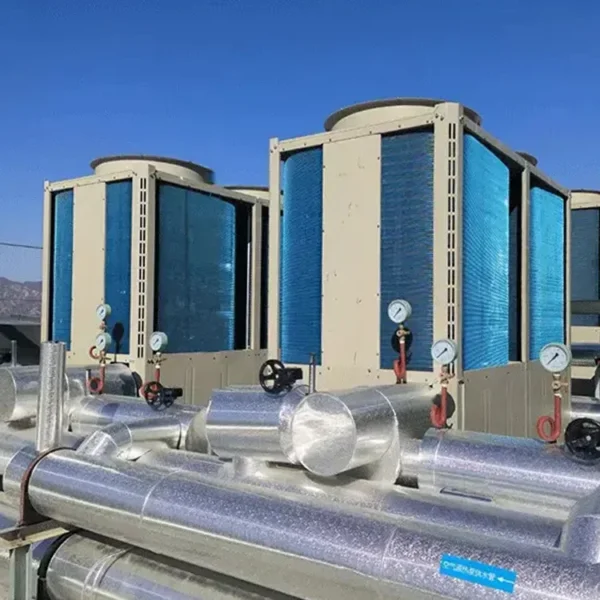

- Space-Saving Outdoor Modular Chiller: Effectively eliminates the need for a cooling tower, serving as a compact air-cooled modular water chiller for rooftop or ground-level installation in modern commercial HVAC projects.

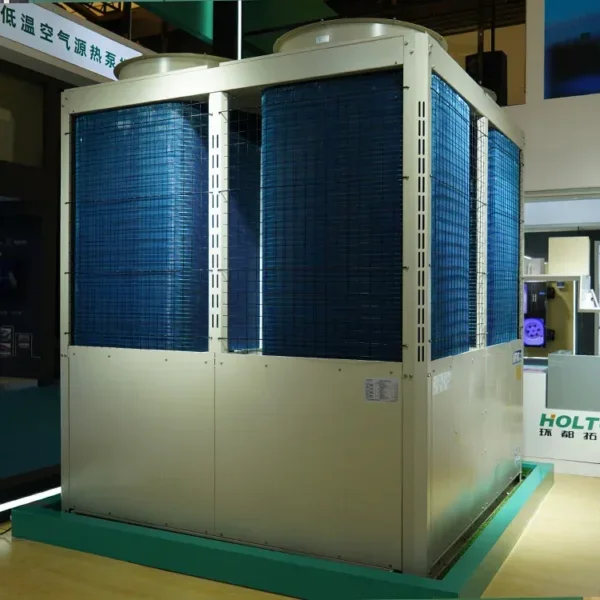

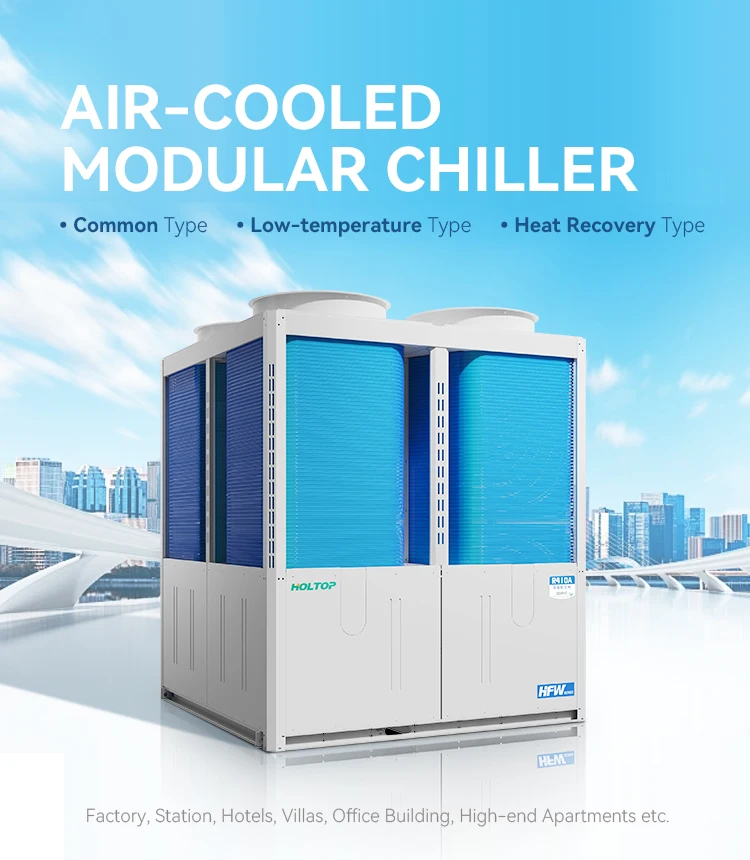

HFW series modular air cooled chiller (heat pump) is sophisticated design with fine and elegant configuration, flexible modularized structure. It can be adopted to all kinds of FCU, AHU indifferent specification. HFW series chiller (heat pump) own its feature of high efficiency, low noise, friendly HMI operation, stable and safe running, easy installation and maintenance. The unit canbe widely used for large or small-sized industrial and civil air conditioning project, like facto ries, station.
Model/Specification | HFW-65HA1 | HFW-130HA1 | ||
Nominal cooling capacity KW | 65 | 130 | ||
Nominal heating capacity KW | 71 | 142 | ||
Nominal cooling total input power KW | 19.2 | 38.5 | ||
Nominal heating total input power KW | 20.2 | 40.4 | ||
Power | 380V/3N~/50Hz | |||
Throttle parts | Electrical expansion valve | |||
Compressor | Type | Hermetic scroll compressor | ||
QTY | 2 | |||
Fan | Type | Axial low noise fan | ||
Power kW | 0.9×2 | 1.5×2 | ||
Air volume m³/h | 14000×2 | 19500×2 | ||
Air side heat exchanger | Type | High-efficient finned heat exchanger | ||
Air side heat exchanger | Type | High-efficient shell&tube heat exchanger(Designed pressure 1.0Mpa) | ||
Nominal water flow m³/h | 11.2 | 22.5 | ||
Water pressure drop kPa | 30 | 40 | ||
Water inlet/outlet connection pipe | R2 ” male adapter | R2-1/2 ” male adapter | ||
Refrigerant | Type | R410A | ||
Charge volume kg | 5.0×2 | 12.0×2 | ||
Dimensions(L x W x H) mm | 1810x960x2280 | 2180x1100x2250 | ||
Net weight kg | 580 | 1000 | ||

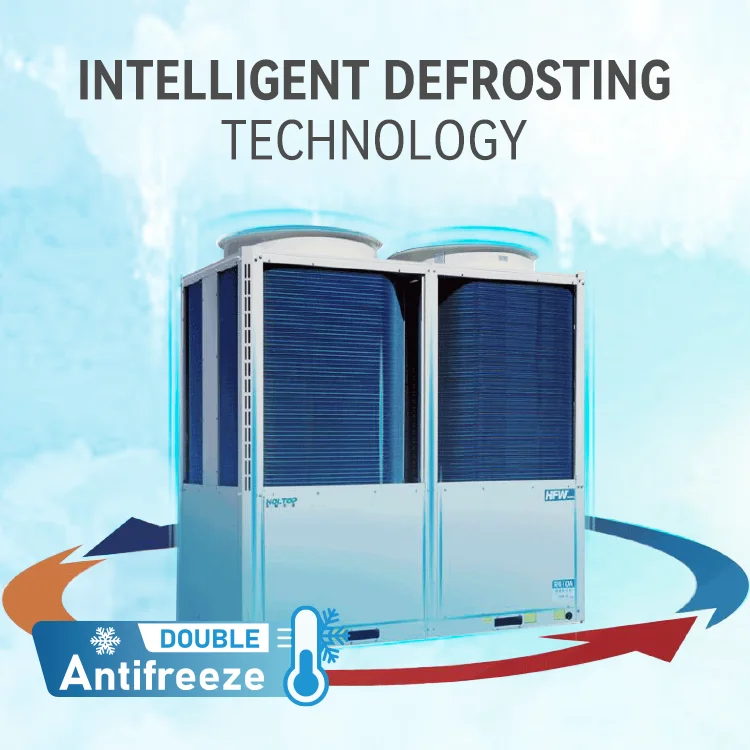

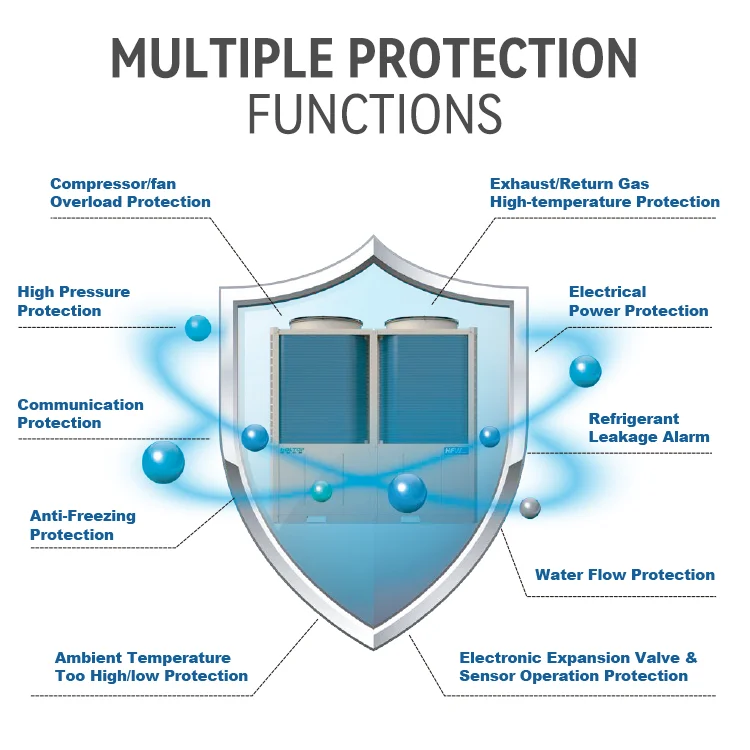

Double Anti-freezing protection Integrated protection by more than 10 protection measures. and via multi-variable monitoring of intelligent controller, to guarantee the stable and high efficiency operation
Water pump running anti-freezing: In standby mode, if the system water temperature is too low, the unit will start the water pump for anti-freezing cycle; Unit heating and anti-freezing: When the water temperature exceeds the safety parameter, the unit starts the heating and anti-freezing cycle until the water temperature rises to the preset safe value.

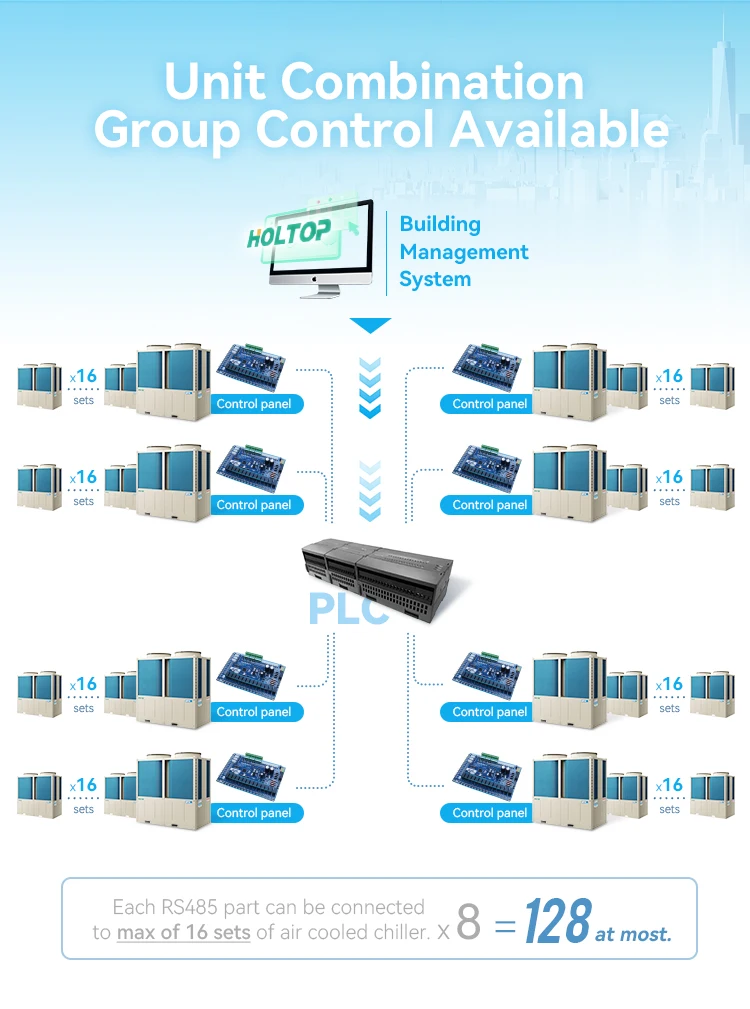

Optional PLC control system The PLC control system combines the simplicity and convenience of the wired control system and the advantages of centralized group control system to achieve chiller group centralized control. One PLC control system can manage 1 to 8 groups of air cooled chiller, each group can control 1 to 16 pieces of modular chillers, that is, 128 modular chillers at most. The control system can deliver group mode switching, temperature adjustment, on/off control, etc.

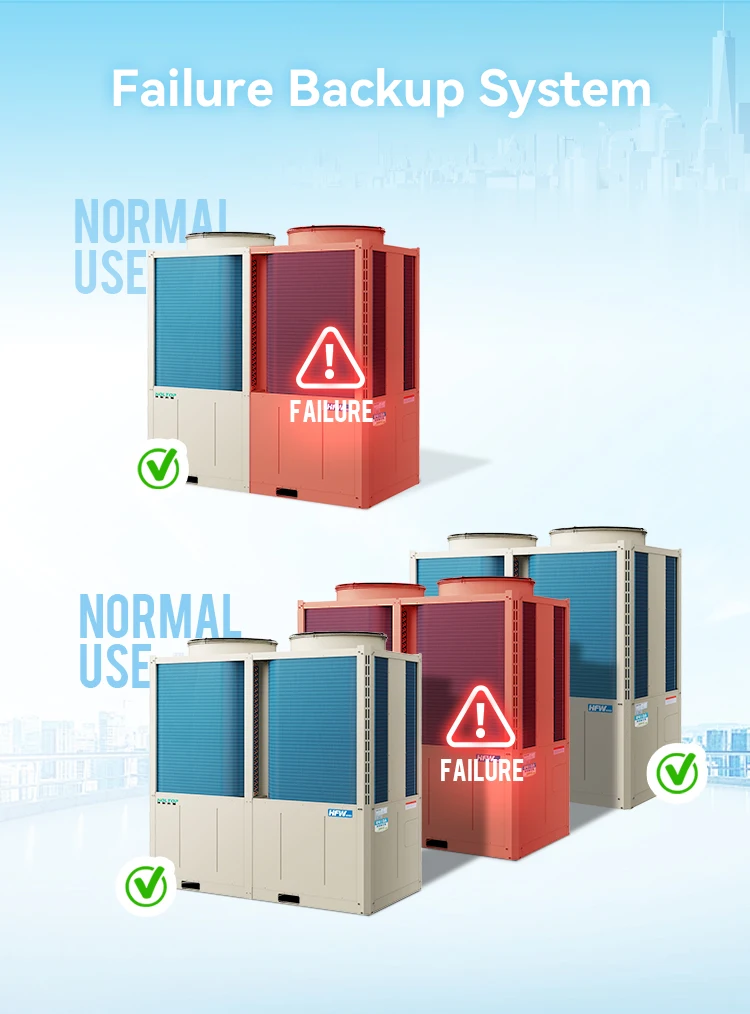

Failure backup One unit adopts a multi-compressor design. When one of the compressors fails, the rest of the compressors in the system can still operate normally without affecting the normal use of the entire system.

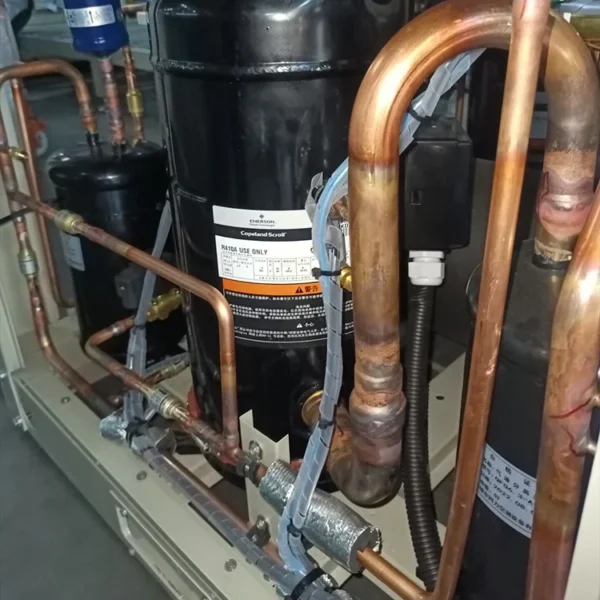

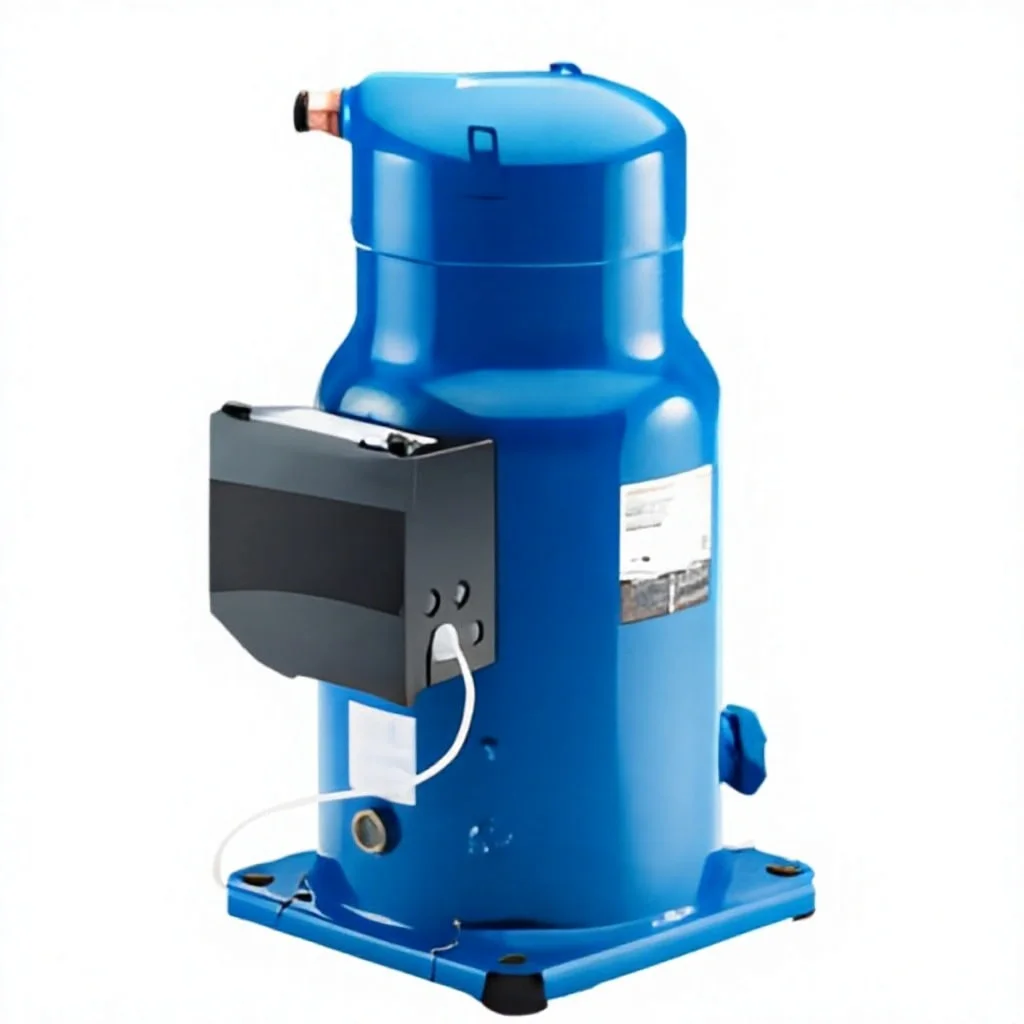

Compressor Adopt international advanced intermediate exhaust valve lDV technology to improve part-load energy efficiency.

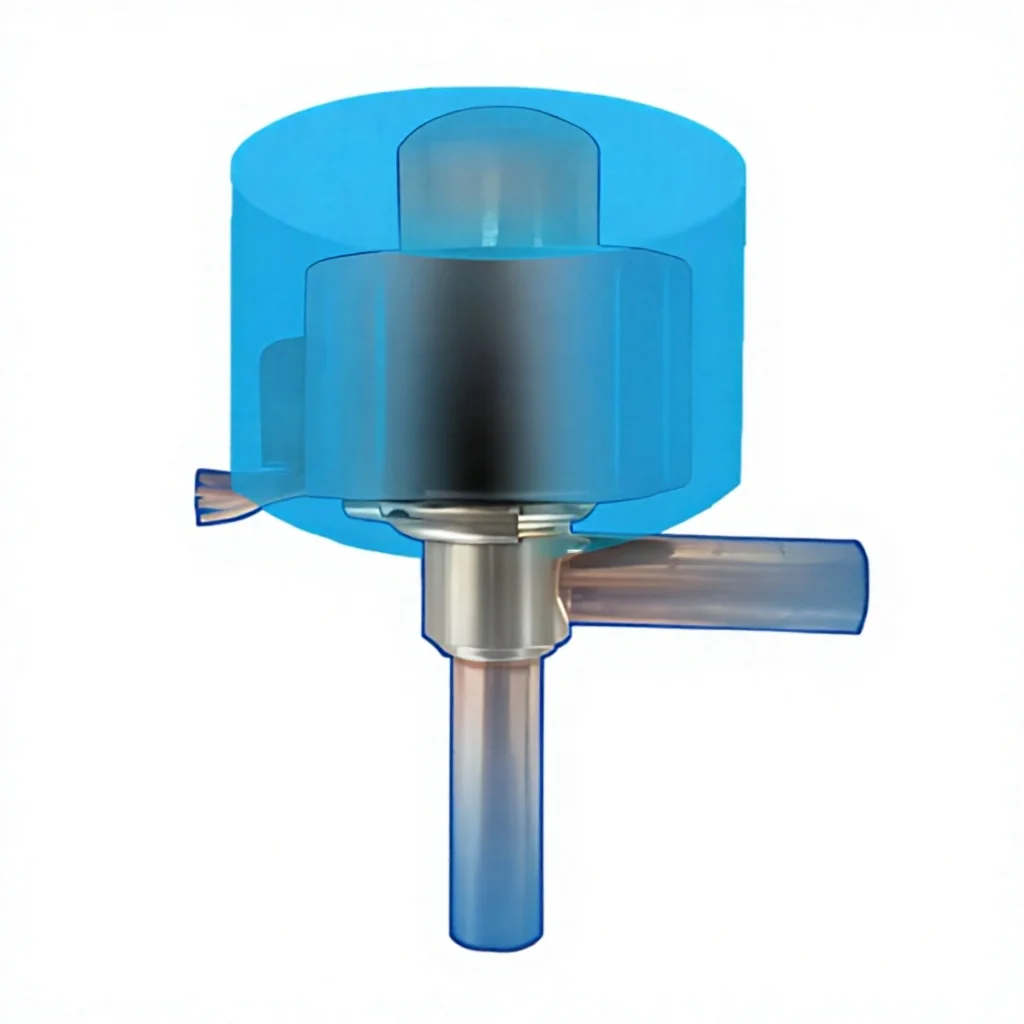

High precision Precise throttling control with a 480-step electronic expansion valve keeps the unit running at optimal efficiency levels at all times.

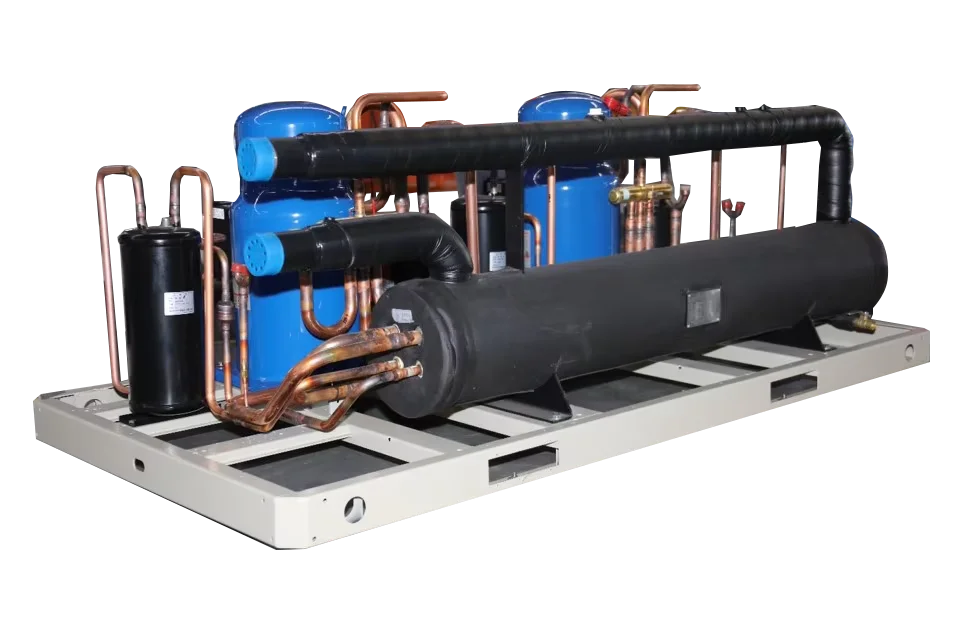

Water-side heat exchanger High-efficiency shell-and-tube heat exchanger with new spiral folding plate technology, with an efficiency increase of about 10%.

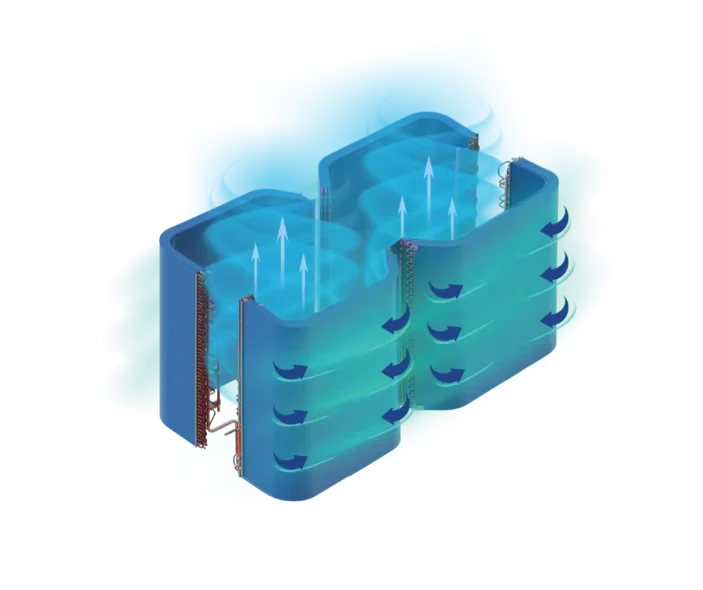

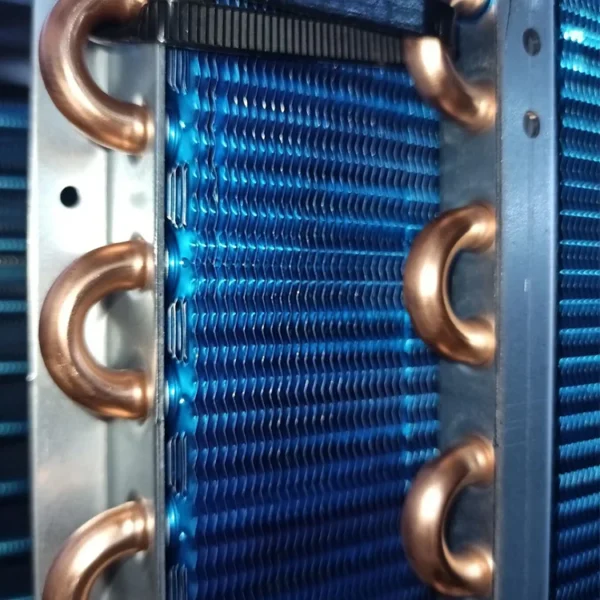

Air side heat exchanger The airside heat exchanger features new corrugated fins with 7.9 mm internal threaded copper tubes. The fins are made of hydrophilic aluminum foil to provide excellent hydrophilicity and corrosion resistance.

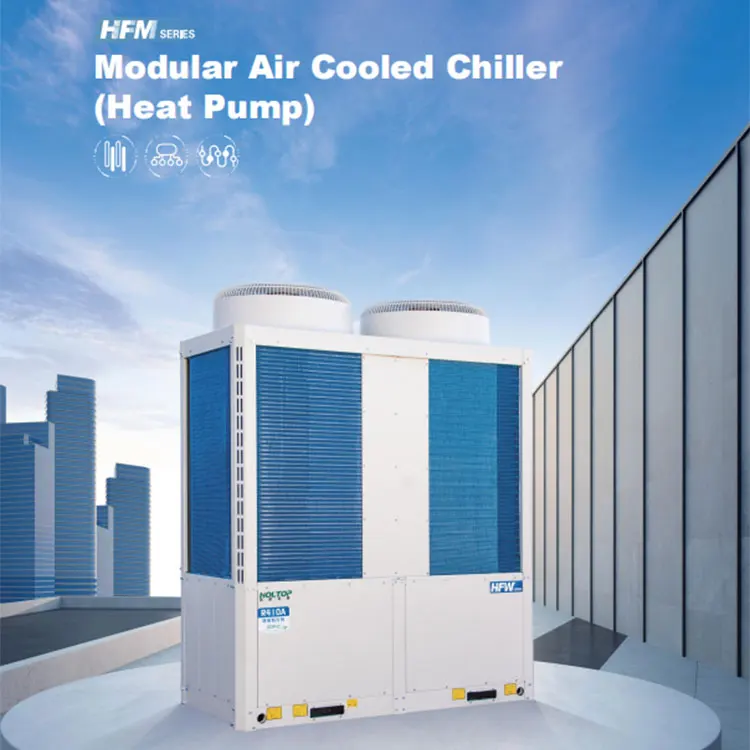

HFW Series: Modular air-cooled chiller (heat pump) Suitable for various industrial and civil air conditioning projects.

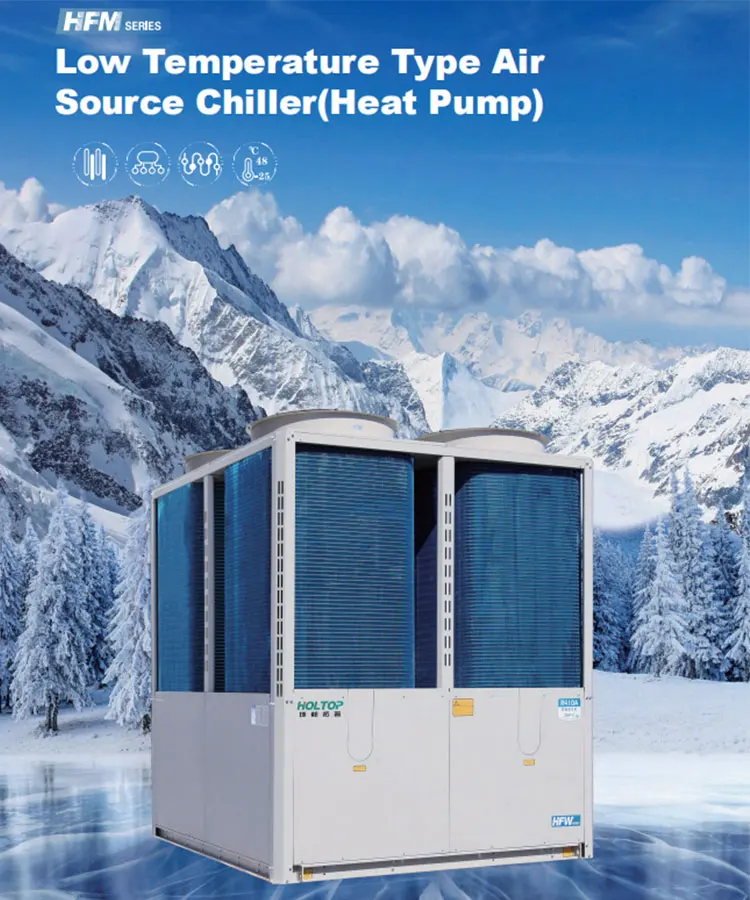

HFW-L Series Low-temperature air source chiller (heat pump) Designed for cold regions, featuring enhanced efficiency and performance. EVI Technology: Enhances heating performance at low temperatures by 10-20%. Wide Operating Range: Efficient operation in temperatures as low as -25 degrees.

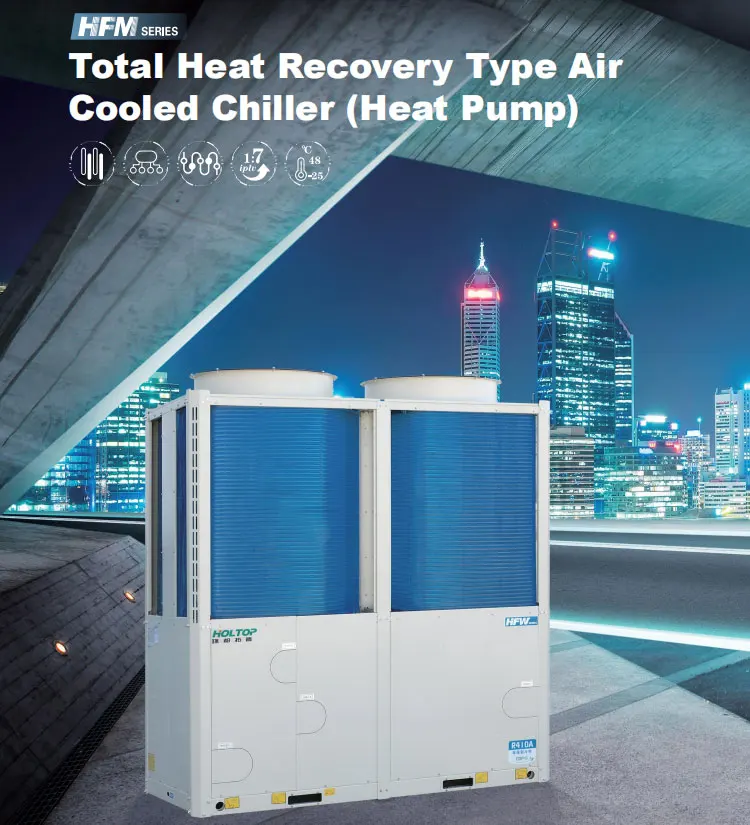

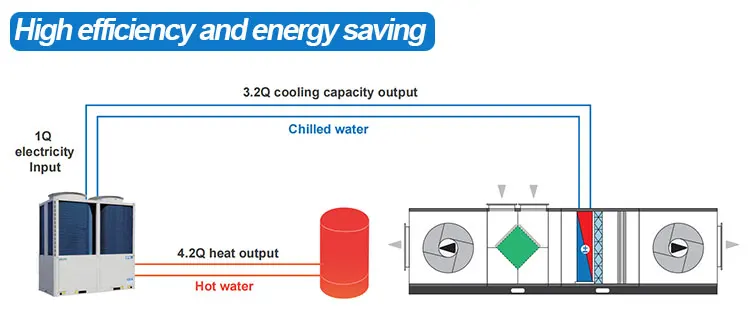

HFW-R Series Total heat recovery air-cooled chiller (heat pump) Providing both cooling and hot water supply, reducing energy consumption and environmental impact . Total Heat Recovery: Utilizes 100% of heat during condensation for hot water preparation, reducing energy consumption.
FAQs
What we can do for you?
1) We produce high quality AHU based on clients' need and help clients doing project design. 2) We offer a package(turn-key) service including engineering, design, installation, aftersale service,etc. 3) We are especially professionl and strong in cleanroom HVAC engineering.
What kind of HVAC job that we can do?
Medical, Pharmaceutical, Hygienic, Food, Eectronic, Textile, Tobacco Industry, Hotels, Office, Sports Center, Exhibition center, etc.
Ordering and Pricing
- Minimum order quantity: 2 unit
- Volume pricing:
- 2–4 unit: US $8600 / unit
- 5–9 unit: US $7740 / unit
- 10+ unit: US $6739 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this chiller?
The standard minimum order quantity is 2 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Airwoods Environment Technology Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Airwoods Environment Technology Co., Ltd. range on HVACR Nexus.
