Air Handling Unit, 220V 50Hz, 1300CMH

The air handling unit listed here carries 220V 50Hz, airflow 1300CMH, documented exactly as the manufacturer publishes it. Made by Beijing Holtop Les Air Conditioning Co., Ltd. (4 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Air Handling Unit

• Model Number: XHBQ-D13DCTHC
• Power Supply: 220V 50Hz
• Airflow: 1300CMH
• Warranty: 1 Year
• Place Of Origin: Beijing, China
• Application: Villa, Hotel, Apartment, School, Mall, Supermarket, Workshop, Hall

Technical Specifications

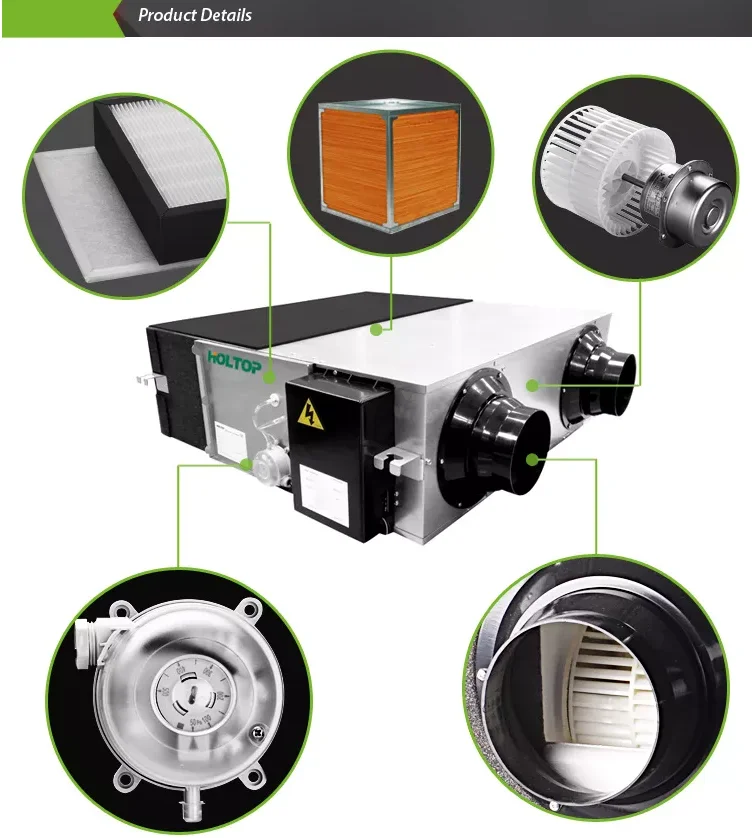

Product Details

Product Description

Fresh Fresh air + Energy recovery, reducing running cost of cooling or heating system

Energy recovery ventilation (ERV) is the energy recovery process of exchanging the energy contained in normally exhausted building or space air and using it to treat (precondition) the incoming outdoor ventilation air in residential and commercial HVAC systems.

During the warmer seasons, the system pre-cools and dehumidifies while humidifying and pre-heating in the cooler seasons. The benefit of using energy recovery is the ability to meet the ASHRAE ventilation & energy standards, while improving indoor air quality and reducing total HVAC equipment capacity.

Main Features of DMTH series energy recovery ventilator:

1)Energy saving BLDC motor, 10 speeds control

2)High eficiency enthalpy heat recovery, more comfortable indoor climate

3) G3+F9 filter, eficiency over 96% to filter the particulate from 2.5µm to 10µm

4) Intelligent control system, optional CO 2 and humidity control function, external control and BMS control available

5)Double filter alarm, timer alarm or diferent pressure gauge alarm available

6) Auto bypass, intelligent controlled by outdoor temperature

Specification

Model			XHBQ-D2DCPMTHC	XHBQ-D3DCPMTHC	XHBQ-D4DCPMTHC	XHBQ-D6DCPMTHC	XHBQ-D8DCPMTHC
Performance
Airflow(m3/h)			200	300	400	600	800
Airflow (l/s)			56	83	111	167	222
External pressure(Pa)			65	75	78	87	90
Enth. Eff (%)	Cooling	55-66	57-70	57-70	59-74	55-66
		Heating	59-70	61-72	60-74	61-78	57-76
Temp. Eff (%)			70-82	68-82	69-83	70-83	68-83
Noise Db(A)			31.5	34.5	37.5	39	41
Power Supply			220~240V/1Ph/50Hz
Input Power (W)			43	80	116	162	290
Power Cable			3×1.5mm2
Control Cable			2×0.5mm2
Control	Standard	Yes (7-Day Time-clock)
		(BMS)Modbus	Yes
Fan Type			BLDC Fan Motors
Fan Speeds (Supply)			10 Speed Fan Control
Fan Speeds (Exhaust)			10 Speed Fan Control
Summer Bypass			Yes (Automatic with adjustable range)
Defrost			Yes (Automatic with adjustable range)
CO2 Control			Optional sensor (On / Off control with adjustable range)
Fan Boost Contacts			Yes (1x available connections to Volt-Free contacts: Close= boost to High Speed)
Fire Shutdown			Yes (1x available connection to Volt-Free contacts: Closed = Shutdown)
Weight (Kg)			24.5	34.5	37.5	35	54
Size (WxHxD) (mm)			736*580*264	814*599*270	814*804*270	867*902*280	1134*884*388
Duct Size (mm)			150	150	150	200	250

Packing & Delivery

Company Profile

Holtop Factory
Holtop is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 2002, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to Beijing Olympic and Shanghai Expo 2010, works together with domestic and international brands like Midea, Haier, Hitachi, etc.

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–19 unit: US $640 / unit
  • 20+ unit: US $500 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this air handling unit carry?

It is supplied with CE/ ISO9001/ISO14001/OHSAS18001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the air handling unit be supplied for my local voltage?

The standard configuration is 220V 50Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Beijing Holtop Les Air Conditioning Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Beijing Holtop Les Air Conditioning Co., Ltd. range on HVACR Nexus.
