Air Handling Unit, 250-350CMH, Ventilation

Air handling unit — airflow 250-350CMH, type Ventilation. The complete factory specification follows. Made by Sichuan Guigu Renju Technology Co., Ltd. (4 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Air Handling Unit

• Airflow: 250-350CMH
• Warranty: 1 Year
• Place Of Origin: Sichuan, China
• Application: residential and commercial
• Type: Ventilation
• Single Package Size: 2000X2000X2000 cm

Technical Specifications

Product Details

About us

1.Have 2 plants meet the capacity demands 2.Possess 80 patents certificates

3. 10+ years experience HVAC industry 4. Have strong R&D and HVAC design team

5. Free installation plan design service 6.A full set of ventilation system installation pipe fitting supply

7.Have 2 laboratories(national approved enthanlpy and 30m³ laboratory

8. Duilt a sound certificate system of ISO9001, ISO 14001， ISO45001， CE certificate and other product certification system.

Specification & Dimensions

Item	TFKC-025(A6-1D2) Ceiling Mounted ERV Pre-cooling and pre-heating ventilation system
Warranty	1 year
After-sale Service	Online technical support, Free spare parts
Project Solution Capability	Provide overall solution
Application	Hotel/School/Commercial building/Real estate project
Design Style	Modern
Place of Origin	China
Model Number	TFKC-025(A6-1D2)
Size	990*710*255mm
Air Flow(m³/h)	250 m³/h
Install type	Celling

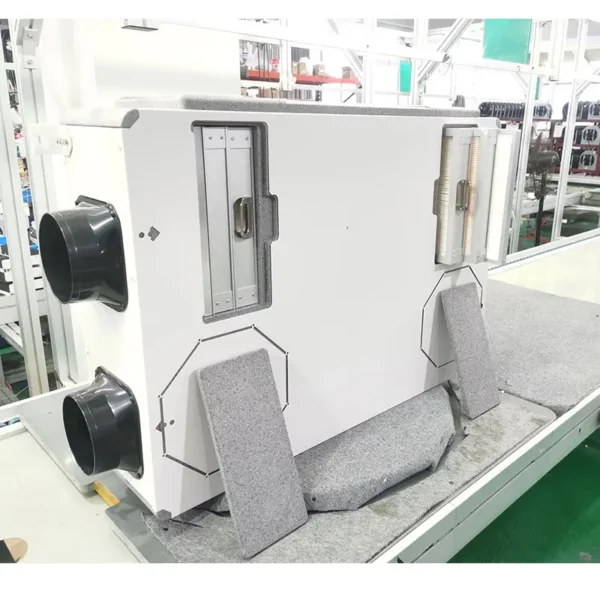

Maintenance	Bottom /Side door
Heat Recovery Type	Enthalpy exchanger
Heat Recovery Efficiency(%)	75%-80%
Power Voltage(V)/Frequency(HZ)	210-240/50HZ
Noise	31dB(A)
OEM/ODM	Accept

Functional Details Description

Bypass function

When the outdoor temperature is suitable, avoid the enthalpy heat exchange core, the outdoor air is directly input into the room through the bypass channel, the wind resistance is small, and the outdoor air can quickly enter the room. When the outdoor temperature is too high or too low, the bypass is auto closed, the fresh air and exhaust air exchange heat to achieve energy recovery.

Products Features

The energy/heat recovery core (enthalpy exchanger) is made of ER paper, featuring high moisture permeability, good air tightness, good tear resistance and aging resistance. The gaps between the fibers are so small that only water molecules with small diameters can pass through, not odor molecules with large diameters. In this way, temperature and humidity can be recovered smoothly, preventing pollutants from seeping into the fresh air.

Main Feature:

The heat recovery efficiency is up to 85% Enthalpy efficiency is up to 76% Effective air exchange rate above 98% Selective molecular osmosis Flame retardant, antibacterial and mildew resistance.

Working principle: The flat plates and the corrugated plates form channels for suction or exhaust air stream. the energy is recovered when the two air steams passing through the exchanger crossly with temperature difference.

Higher Energy Efficiency and Ecology by Powerful Motors

The high-efficiency brushless DC motor is built into the Smart energy recovery ventilator, which can reduce the power consumption by 70% and save energy significantly. VSD control is suitable for most engineering air volume and ESP requirements.

Energy/heat recovery ventilation technology

Fresh air + energy recovery = Reduce operating costs for cooling or heating systems Energy recovery ventilation (ERV) is the process of energy recovery in residential and commercial HVAC systems, by exchanging energy from the exhausted air of a building or space, to process ventilated air entering the room.  In the hot season, the system precools and dehumidifies the fresh air, humidify and preheat in the cold season.  The benefits of using energy recovery are the ability to meet ASHRAE ventilation and energy standards while improving indoor air quality and reducing the total capacity of HVAC units.

Controller

The functions of intelligent controller are suitable for various project requirements.

– Various fan speed control to offer different supply air volume and ESP

– Temperature display to monitor indoor and outdoor temperature constantly

– Power to auto restart allow ventilator recover automatically from power cut down

– CO2 concentration control

– Humidity sensor to control indoor humidity

– RS485 connectors available for BMS central control

– External control and on/error signal output to allow administrator monitor and control the ventilator easily

– Filter alarm to remind user cleaning the filter in time

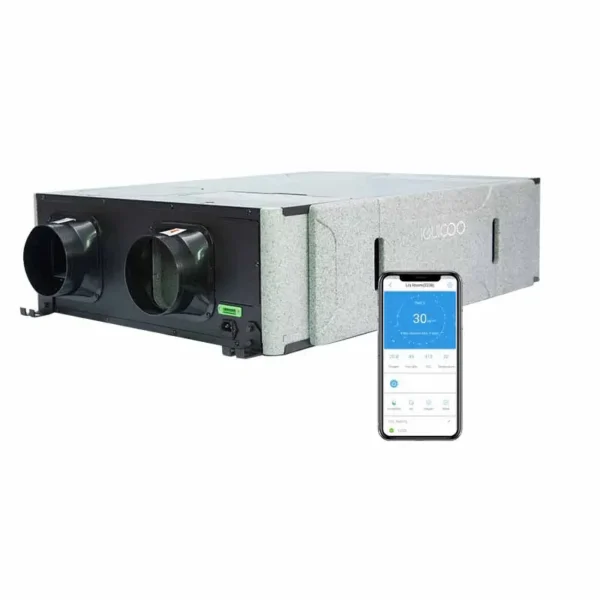

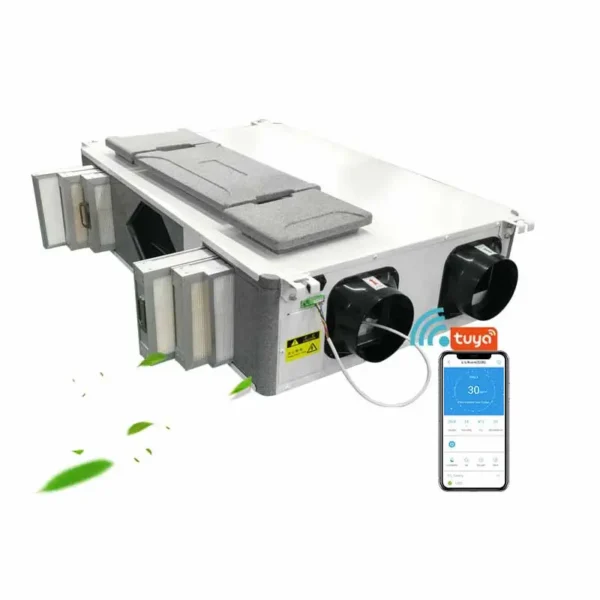

– Working status and fault display-Tuya APP control

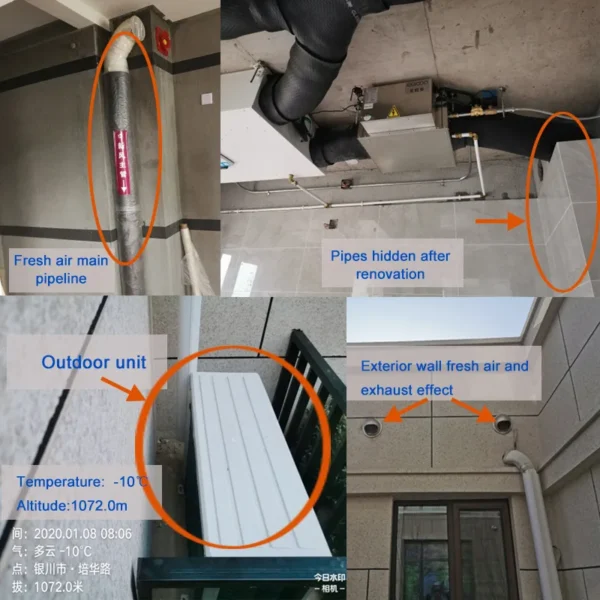

Installation and pipe layout diagram

We can provide free pipe layout design according to the customer‘s house type.

Company Profile

Packing & Shipping

Q1: How could I get a sample?

A:We do not provide free sample, if you are interested in our products please contact our customer
service, she can tell you the details of the sample.
Q2: Sample time?
A: Existing products: Within 15 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.

FAQ

Q1: How could I get a sample?

A:We do not provide free sample, if you are interested in our products please contact our customer
service, she can tell you the details of the sample.
Q2: Sample time?
A: Existing products: Within 15~35 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.

Ordering and Pricing

• Minimum order quantity: 1 carton
• Volume pricing:
  • 1–1 carton: US $529 / carton
  • 2–10 carton: US $449 / carton
  • 11–99 carton: US $429 / carton
  • 100+ carton: US $419 / carton
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 1 carton. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this air handling unit carry?

It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
