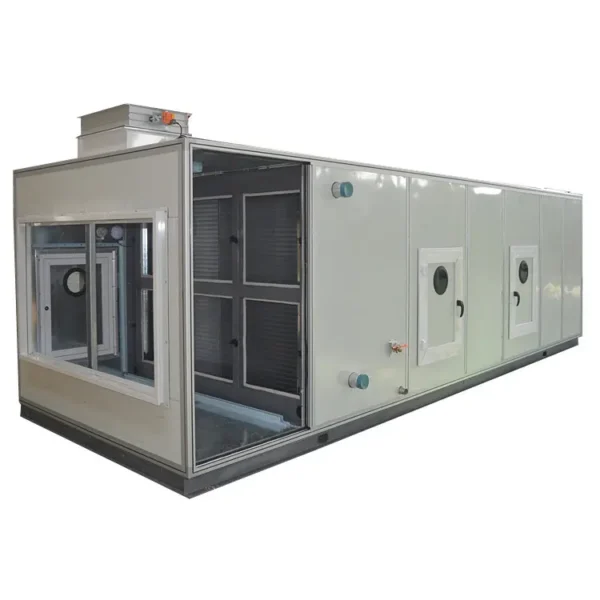

The air handling unit listed here carries airflow 5000m³/h, type Air Handling Unit, documented exactly as the manufacturer publishes it. Made by Guangdong Head-Power Air-Conditioning Co., Ltd. (18 years on the platform, typical reply ≤13h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Handling Unit
- Motor Power: 1.5-22*4
- Operating Voltage: 380/400 VAC
- Cooling Capacity: 4-8 rows,18.9-1812.8kw
- Rate Air Flow: 3000-200000m3/h
- Airflow: 5000m³/h
- Warranty: 1 Year
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Airflow | 5000m³/h |
| Operating Voltage | 380/400 VAC |
| Mounting Type | Floor Standing |
| Key Selling Points | Automatic |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1000 KG |
| Brand Name | Head-Power |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| PU Insulation | 30mm/50mm |
| Color | red/white |
| Structure | stainless/galvanized steel panels |
| Filters | G4 F7 H10 |
| Functions | cooling/heating/dehumidfying/heat recovery |
| Rate Air Flow | 3000-200000m3/h |
| Motor Power | 1.5-22*4 |
| Cooling Capacity | 4-8 rows,18.9-1812.8kw |
| Water Flow | 4-8 rows 12.1-57 |
| Packaging Details | Modular construction air handling unit for industry wooden case packing |
| Port Of Dispatch | SHENZHEN |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 200 units per Month Modular construction air handling unit for industry |
Product Details
Modular construction air handling unit for industry
Modular construction air handling unit for industry Specifications(For example):
| Model |
| ZK26 Modular construction air handling unit for industry | ||
| Cooling capacity | kW | 127 | ||
| Supply Air Flow | m3/h | 26600 | ||
| External Static Pressure | Pa | 500 | ||
| Power supply |
| 400V/3PH/50Hz | ||
| Mixing Air Section | Fresh air | m3/h | 1400, with manual damper | |
| Return air |
| 25200, with manual damper | ||
| Damper |
| Manual regulation | ||
| Filter | Prefilter |
| Sand filter, fresh air inlet | |
| First filter |
| Washable aluminium mesh filter, after mixing section | ||
| Section filter |
| Plate filter G4, afer aluminium filter | ||
| DX cooling coil | Capacity | kW | 127 | |
| Type |
| Copper tubes with aluminium fins | ||
| Frame mateial |
| Stainless steel SS304 | ||
| Fluid | R134A | |||
| Eliminator | Type |
| Aluminium alloy type | |
| Drain tray | Mateial |
| Stainless steel SS304 | |
| Supply fan | Type |
| DIDW, backward centrifugal type | |
| Air volume | m3/h | 26600 | ||
| ESP. | Pa | 500 | ||
| Motor power | kW | 15 (IP55) | ||
| Drive method |
| Belt drive | ||
| Dimensions(L*W*H) | mm | 3600*2050*2300 | ||
| Net weight | kg | 1830 | ||
Modular construction air handling unit for industry Description:

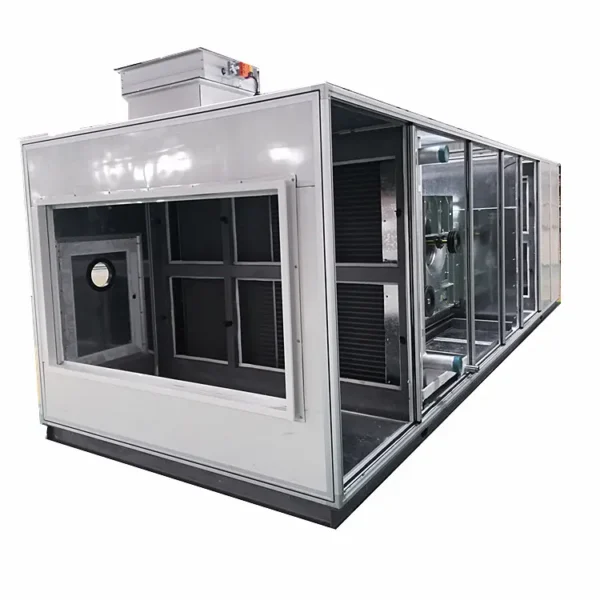

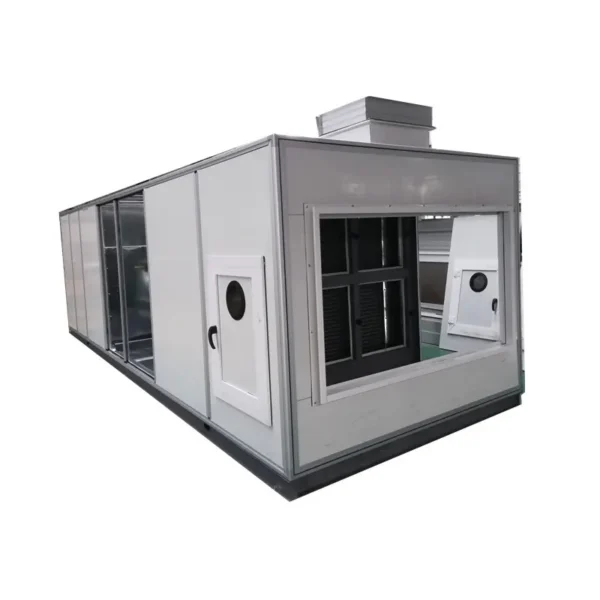

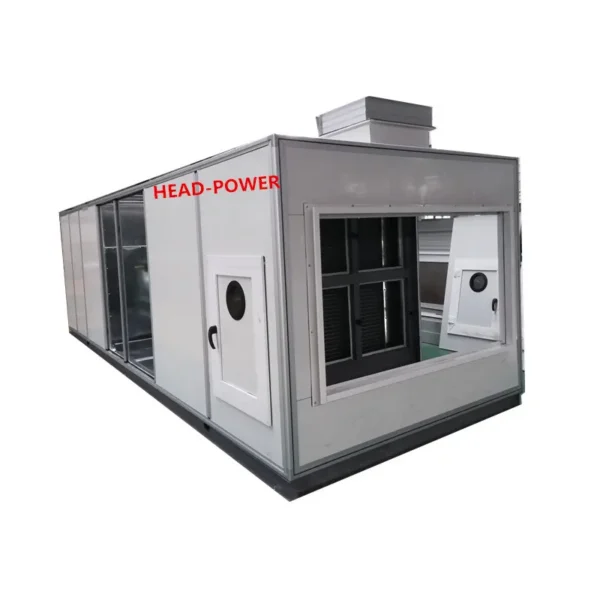

1. Modular construction air handling unit for industry Frame and panel: Aluminium alloy fram, anti cold bridge design; Double skin panel, 30mm
or 50mm thickness according to requirement and specifications, color steel panel or painted galvanized steel sheet panel, beautiful appearance.

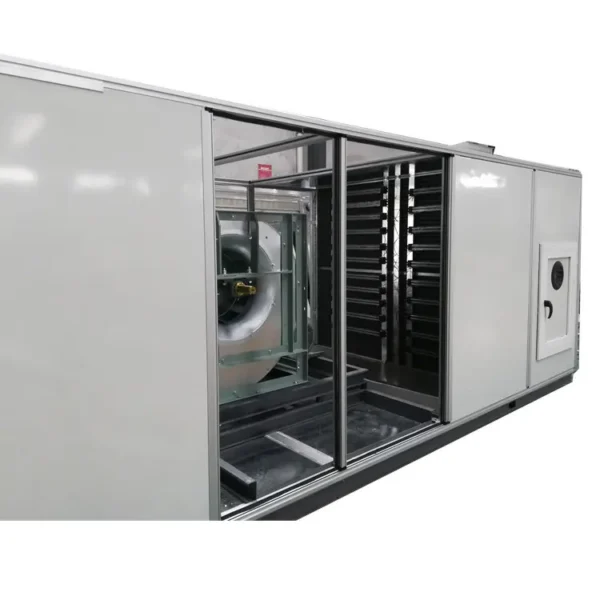

2. Fan system: DIDW backward or forward curved blade centrifugal fan; Impeller, shaft and casing have service lifespan for not less than 15years under normal condition; low running noise, high efficiency, finish dynamic balance test for delivery.

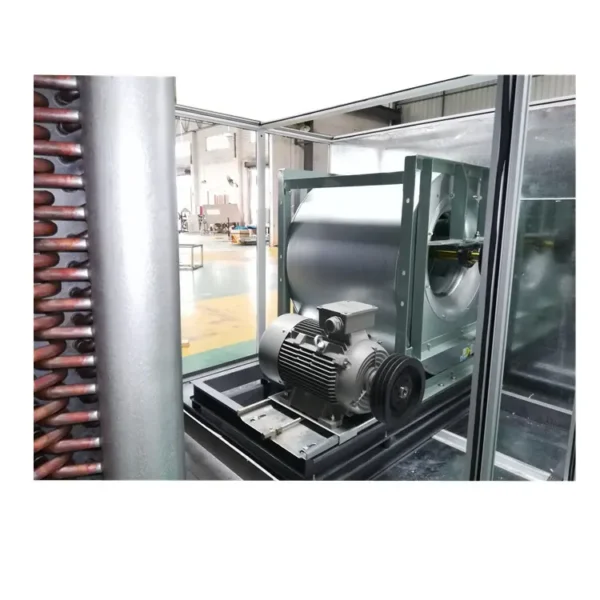

3. Motor: famous brand good quality motor, insulation class F. Belt drive, high quality V-shaped belt, anti vibration rubber or spring damper, reduce vibration transmission. Protection grade IP54 or IP55 avialble.
4. Cooling coil: chilled water cooling type or DX coil type.
5. Stainless steel or galvanized steel framework, anti-corrosion and high durability.
6. Drain pan: Suitable slope drain pan, easy for water drainage, stainless steel or painted galvanized steel material. All pans have done leakage and pressure test.
7. Filteration: Adopt nylon or metal mesh prefilter, non woven plate filter for primary filter G3~G4 (Efficiency 55%~75%), bag filter for secondary filter F7~F9(efficiency 80%~95%).
8. Air damper: galvanized steel or aluminium alloy material, manual or electronic regulation.
Modular construction air handling unit for industry Application:
Electronic factory,pharmaceutical factory, precision instrument factory,petrochemical factory, tobacco factory,chemical factory, petrochemical factory, hospitals etc.
Requirements and specifications could be adjusted flexibly according to requirement of clients, constant temperature and humidity type, or cleaning air conditioner for workshop which have strict requirement with clean class, temperature or humidity.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air handling unit be supplied for my local voltage?
The standard configuration is 380/400 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
