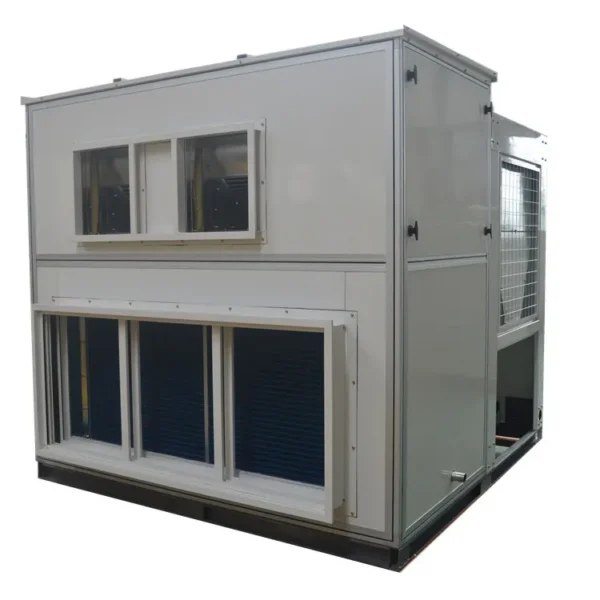

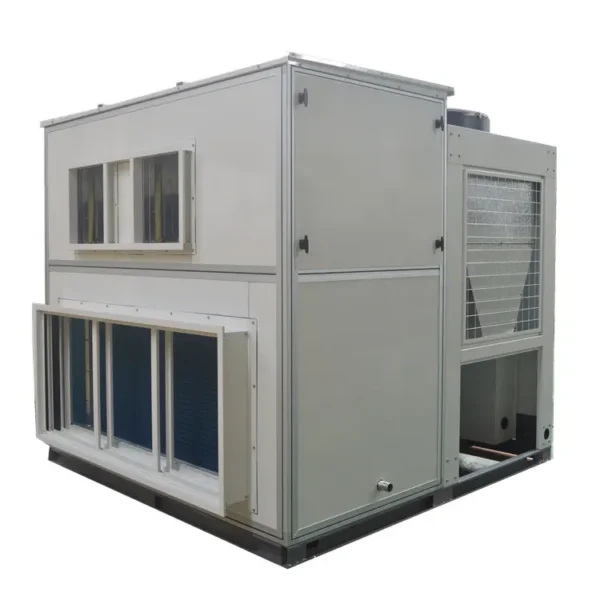

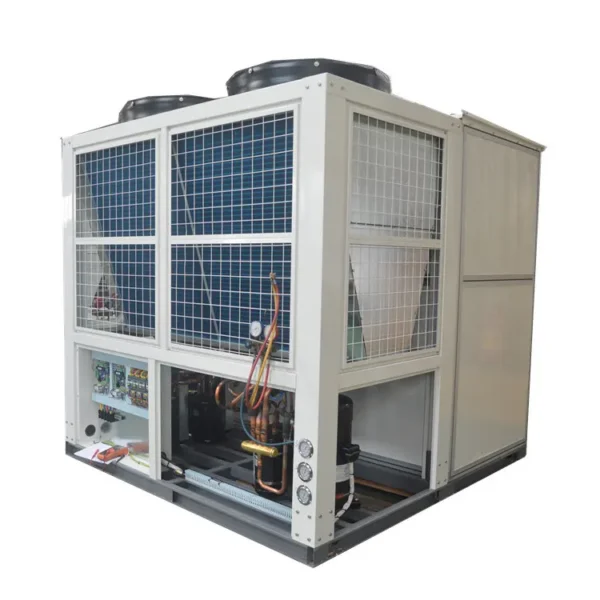

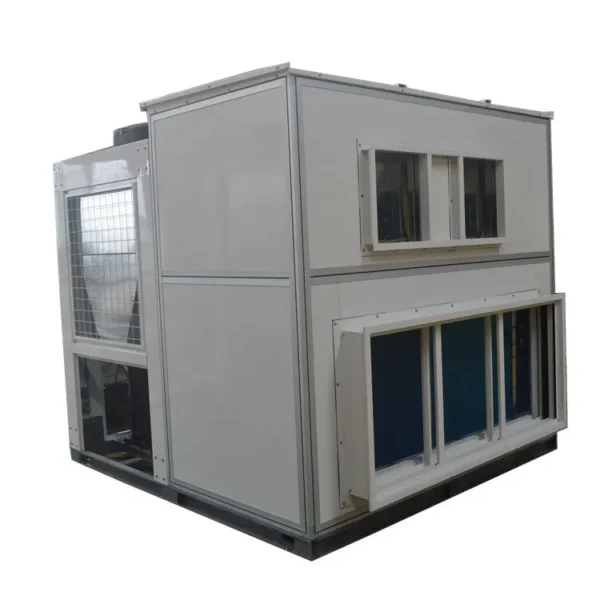

The rooftop packaged unit listed here carries airflow 10000m³/h, material Metal/GI steel/SS304, documented exactly as the manufacturer publishes it. Made by Guangdong Head-Power Air-Conditioning Co., Ltd. (18 years on the platform, typical reply ≤15h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Rooftop Packaged Unit
- Operating Voltage: 380/400 VAC
- Cooling Capacity: 7.8-256KW
- Airflow: 10000m³/h
- Material: Metal/GI steel/SS304
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Airflow | 10000m³/h |
| Operating Voltage | 380/400 VAC |
| Mounting Type | Floor Standing |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Other, Bearing, PLC, Engine, compressor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1500 KG |
| Brand Name | Head-Power |
| Dimension(L*W*H) | See final drawings |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Color | White/Customize |
| Application | Commercial/Office/Hotel/Hospital,etc |
| Function | Return air condition/Fresh air condition |
| Material | Metal/GI steel/SS304 |
| Cooling Capacity | 7.8-256KW |
| Showroom Location | None |
| Marketing Type | New Product 2020 |
| Applicable Industries | Food & Beverage Factory |
| Packaging Details | Specifications subject to changes without prior notice. |
| Port Of Dispatch | Guangzhou/Shenzhen |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 5 sets per Week |
Product Details
Rooftop air conditioner application and features :
Applicable for the regions short of water;
Can be easily installed on the roof, not take up indoor area;
Sufficient external static pressure exists, easy for air duct ventilation, greatly reducing indoor noise; exclusive vertical and horizontal air supply structures are optional;
Complete varieties and specifications are satisfactory for different demands, its cooling capacity ranges from 13~250kw;
Large cooling capacity unit is made of broken cold bridge aluminum alloy profile, prohibits the generation of cool leakage or condensed water due to higher temperature difference in and out of the unit;
Major components are all overseas introduced excellent products;
The evaporator and condenser enjoy enhanced heat transfer design, being efficient and energy saving.
The cooling capacity of this series is between 13-250KW, which is most suitable for high-end apartments, shops, offices, cinemas, office buildings, restaurants, schools, institutions and so on.
Applications:
Factory power supply, electronics factory, pharmaceutical factory greenhouse. Greenhouse cultivation. Industrial plants, etc.
| Rooftop Packaged Unit Performance Parameters | |||||||||||||
| WKL Series Air Cooled Cooling Type,WKLD Series Air Cooled Cooling and Electric Heating Rooftop Air Conditioners | |||||||||||||
| Model Type | WKL15 | WKL20 | WKL25 | WKL30 | WKL36 | ||||||||
| WKLD15 | WKLD20 | WKLD25 | WKLD30 | WKLD36 | |||||||||
| System Characters | Cooling Capacity | KW | 40 | 54 | 68 | 80 | 98 | ||||||
| Electric Heating Capacity | KW | 24 | 36 | 45 | 45 | 54 | |||||||
| Air Volume | m3/h | 8800 | 10800 | 12600 | 16800 | 19200 | |||||||
| External Static Pressure | Pa | 250 | 400 | 300 | 450 | 350 | 500 | 350 | 500 | 400 | 550 | ||
| Noise Level | dB(A) | 68 | 72 | 71 | 74 | 73 | 75 | 75 | 77 | 76 | 78 | ||
| Temperature Range and Accuracy | 18℃~30℃±1℃ | ||||||||||||
| Power Supply | 3N~50HZ 380V | ||||||||||||
| Total Power | Cooling | KW | 15.1 | 15.8 | 19.8 | 20.8 | 25.4 | 26.4 | 30 | 32 | 37.5 | 37.5 | |
| Heating | KW | 26.2 | 27 | 39 | 40 | 49 | 50.5 | 50.5 | 52.5 | 56 | 56 | ||
| Refrigerating System | Refrigerant | Type | R22 | ||||||||||
| Way of Throttling | Outside Balanced Thermal Expansion Valve | ||||||||||||
| Compressor | Type | Hermetic Scroll Compressor | |||||||||||
| Power | KW | 3.75×3 | 3.75×4 | 9×2 | 9×2+3.75 | 9×3 | |||||||
| Evaporator | Type | Tube with Fins | |||||||||||
| Fin Type | Slotted-type Two-way Aluminum Fins | ||||||||||||
| Condenser | Type | Tube with Fins | |||||||||||
| Fin Type | Corrugated Aluminum Fins | ||||||||||||
| Air Sending System | Condenser Fan | Type | Ultra-low-noise Axial Type | ||||||||||
| Drive Method | Direct-drive | ||||||||||||
| Motor Power | KW | 1.1 | 0.75×2 | 0.82×2 | 1.1×2 | 1.5×2 | |||||||
| Evaporator Fan | Type | Ultra-low-noise Double-inlet Centrifugal Type | |||||||||||
| Drive Method | Belt Transmition | ||||||||||||
| Motor Power | KW | 2.2 | 3 | 3 | 4 | 3 | 4 | 5.5 | 7.5 | 5.5 | 7.5 | ||
| Heater | Type | Electric Heating | |||||||||||
| Power | KW | 24 | 36 | 45 | 45 | 54 | |||||||
| Air Filter | Nylon Bump Net | ||||||||||||
| Dimensions | Length | mm | 2000 | 3200 | 3200 | 4000 | 4000 | ||||||
| Width | mm | 1150 | 1600 | 1600 | 1600 | 1600 | |||||||
| Height | mm | 1620 | 1800 | 1800 | 2160 | 2160 | |||||||
| Weight | kg | 860 | 900 | 920 | 2100 | 2160 | |||||||
| MOQ | units | 2 | |||||||||||
| Delivery Time | days | 35 | |||||||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this rooftop packaged unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the rooftop packaged unit be supplied for my local voltage?
The standard configuration is 380/400 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
