Key specification for this air handling unit: type Air Handling Unit. Everything below is reproduced from the factory data sheet. Made by Shanghai Shenglin M&E Technology Co., Ltd. (17 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Handling Unit
- Input Power: 3N 380V
- Operating Voltage: 380/400 VAC
- Airflow: customized
- Warranty: 1 Year
- After Warranty Service: Online support
- Place Of Origin: Shanghai, China
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Airflow | customized |
| Operating Voltage | 380/400 VAC |
| Mounting Type | Floor Standing |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | compressor |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 5 KG |
| Brand Name | Shenhlin |

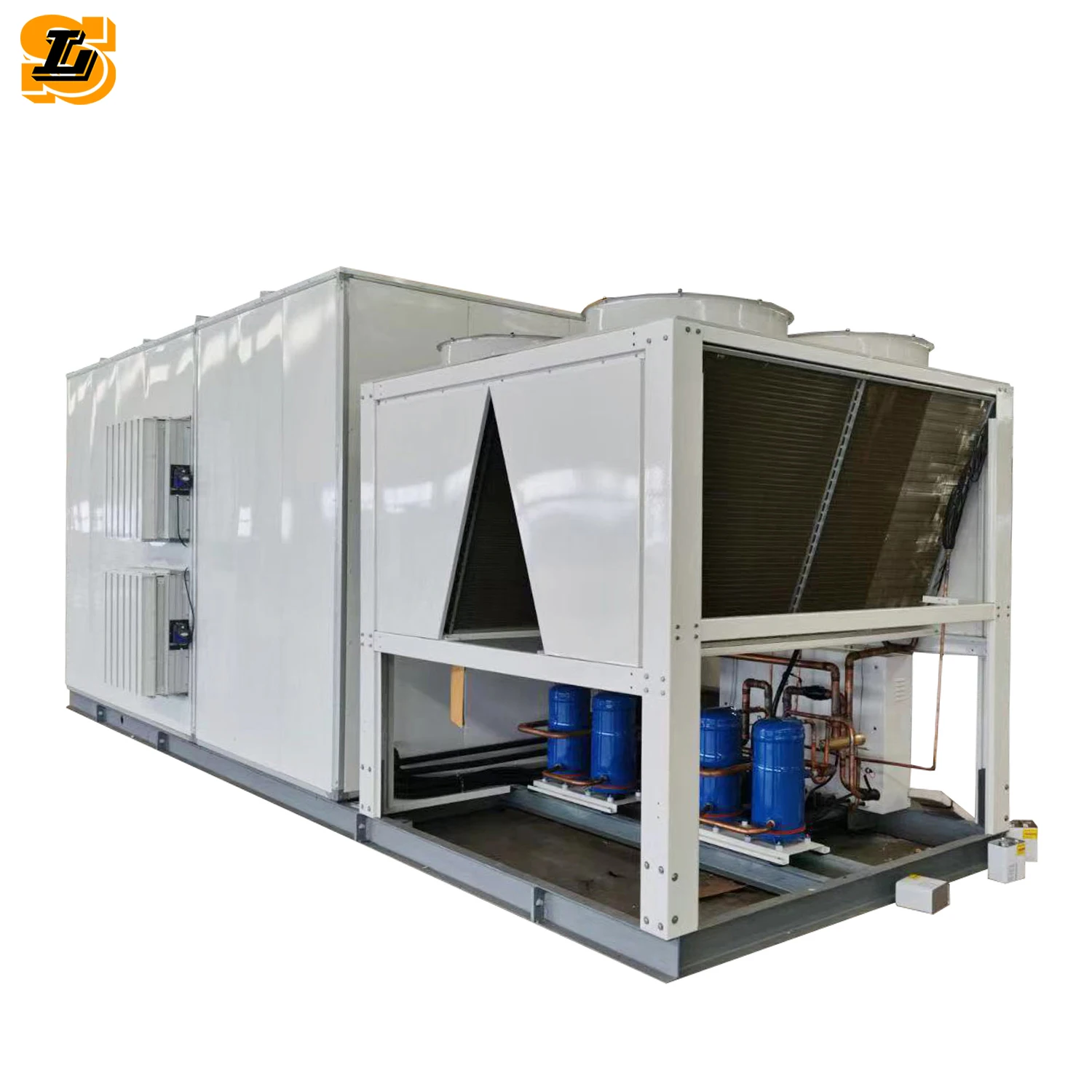

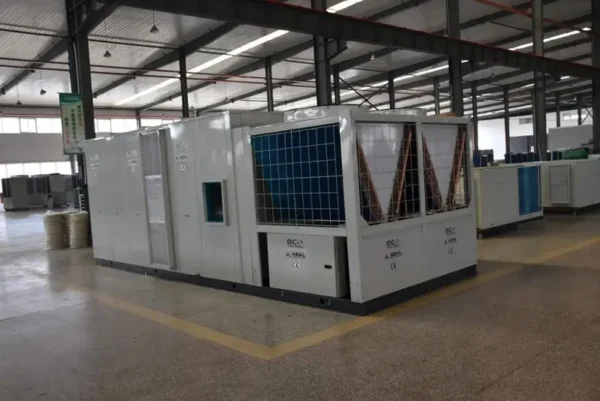

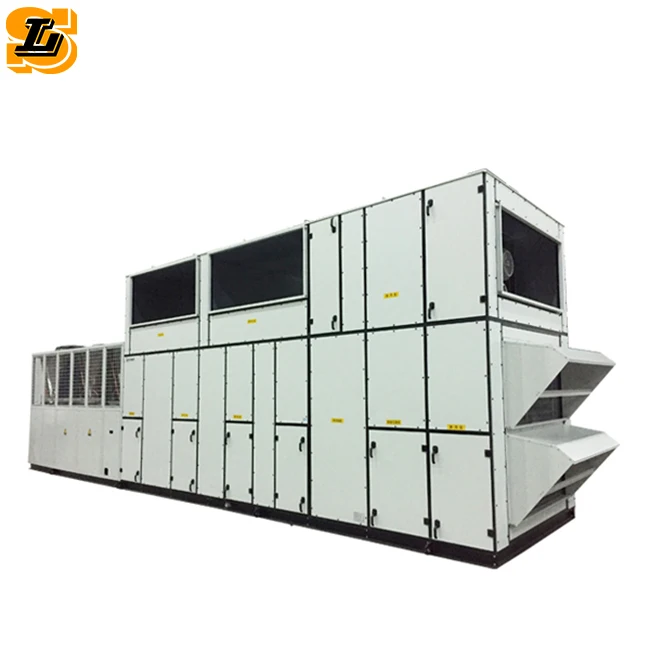

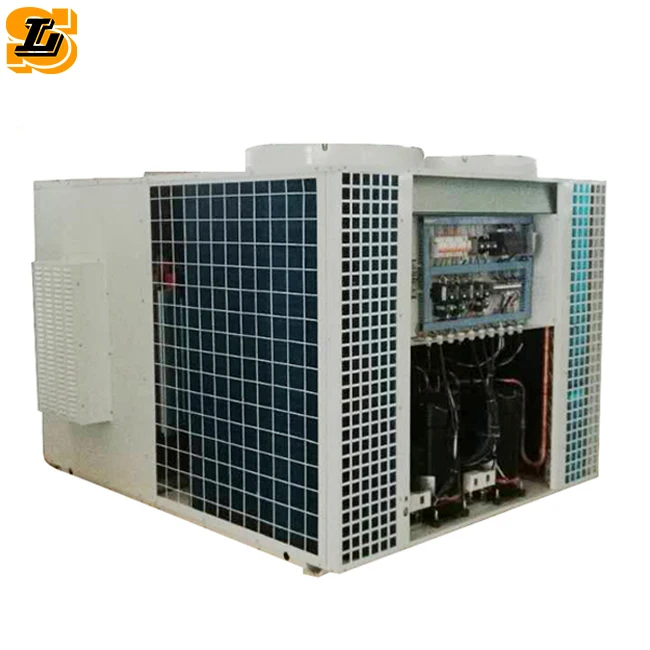

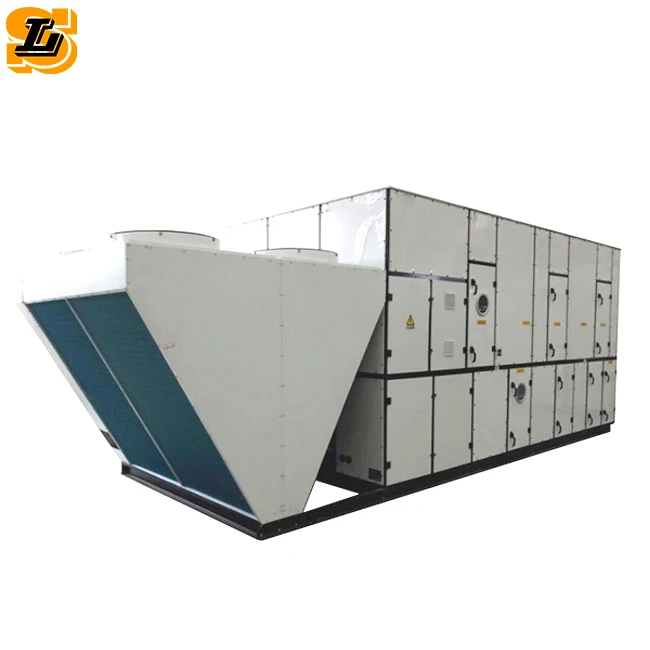

| Product Name | rooftop packaged air conditioner |
| After Sales Service Provided | Engineers available to service machinery overseas |
| Input Power | 3N 380V |
| Frequency | 60HZ,50HZ |
| Compressor | Efficient scroll closed |
| Application | Computer room,data room |
| Applicable Industries | Garment Shops |
| After Warranty Service | Online support |
| Local Service Location | Egypt |
| Selling Units | Single item |
| Single Package Size | 1X1X1 cm |
| Single Gross Weight | 1.0 kg |
Product Details
Features
2. Cooling capacity: 8kw to 90kw, a variety of choices.
3. High external pressure.
4. Applicable to residential and commercial buildings, hotels, and scientific research units, factories and enterprises and so on.
2. Fin Type 5* :Slotted fin hydrophilic aluminum fin
3. Condenser: Type Inner grooved copper tube and aluminum fin
4. Fin Type 5* :Rippled hydrophilic aluminum fin
5. Condenser Fan Type: Low noise axial type
GT-WKR Series-Roof Top AH Specification 1
Model GT-WKR- | 10 | 15 | 18 | 20 | 25 | 30 | 35 | ||||||||||
Cooling capacity 1* | kW | 10.5 | 15 | 18.5 | 21 | 26.3 | 29.8 | 35 | |||||||||
Heating capacity 2* | kW | 11.5 | 15.9 | 19.5 | 22.1 | 27.6 | 32.6 | 37.1 | |||||||||
Supply air 3* | m3/h | 1800 | 2400 | 2900 | 3500 | 4500 | 5000 | 5800 | |||||||||
Static pressure 3* | Pa | 100 | 150 | 150 | 180 | 200 | 250 | 250 | |||||||||
Noise 4* | dB(A) | 60 | 60 | 62 | 62 | 65 | 65 | 68 | |||||||||
Power | 3N-380V-60Hz | ||||||||||||||||
Total capacity | 3.9 | 5.74 | 7 | 8.27 | 9.96 | 11 | 14.15 | ||||||||||
Color | White | ||||||||||||||||
Compressor | Type | Efficient scroll closed | |||||||||||||||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | ||||||||||
Supply air fan | Type | Low noise centrifugal type | |||||||||||||||
Capacity | kW | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | |||||||||
Evaporator | Type | Inner grooved copper tube and aluminum fin | |||||||||||||||
Fin type 5* | Slotted fin hydrophilic aluminum fin | ||||||||||||||||
Condenser | Type | Inner grooved copper tube and aluminum fin | |||||||||||||||
Fin type 5* | Rippled hydrophilic aluminum fin | ||||||||||||||||
Condenser fan | Type | Low noise axial type | |||||||||||||||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | ||||||||||
Refrigerant | Refrigerant | R22/R407C | |||||||||||||||
Refrigerant control | External balance type thermal expansion valve | ||||||||||||||||
Air filter | Initially effect plate filter | ||||||||||||||||
Dimensions | L | mm | 1400 | 1400 | 1600 | 1600 | 1850 | 1850 | 2200 | ||||||||
W | mm | 1050 | 1050 | 1200 | 1200 | 1400 | 1400 | 1800 | |||||||||
H | mm | 1050 | 1050 | 1050 | 1050 | 1200 | 1200 | 1520 | |||||||||
Weight | kg | 200 | 230 | 260 | 300 | 550 | 600 | 850 | |||||||||
Notes
2. Heating condition：Indoor dry bulb/wet bulb:20/—℃, Outdoor dry bulb/wet bulb:7/6℃
3. The air volume and static pressure`s specification in the table is standard, and can be designable
4. Noise data is measured in the front of the units when cooling under the standard air volume
5. Fin type and material can be designable
GT-WKR Series-Roof Top AH Specification 2
Model GT-WKR- | 40 | 50 | 60 | 70 | 90 | 110 | 120 | ||||||||||
Cooling capacity 1* | kW | 42 | 52.8 | 61.2 | 70.2 | 87.5 | 105.1 | 122.5 | |||||||||
Heating capacity 2* | kW | 44.1 | 55.4 | 62.5 | 73.8 | 92.8 | 112 | 130 | |||||||||
Supply air 3* | m3/h | 7000 | 8600 | 10000 | 12000 | 14500 | 17000 | 20000 | |||||||||
Static pressure 3* | Pa | 300 | 300 | 300 | 350 | 350 | 400 | 400 | |||||||||
Noise 4* | dB(A) | 68 | 69 | 69 | 70 | 71 | 72 | 72 | |||||||||
Power | 3N-380V-60Hz | ||||||||||||||||
Total capacity | kW | 17.24 | 20.72 | 23 | 29.76 | 39.1 | 44.66 | 51.58 | |||||||||
Color | White | ||||||||||||||||
Compressor | Type | Efficient scroll closed | |||||||||||||||
Quantity | 2 | 2 | 2 | 2 | 2 | 4 | 4 | ||||||||||
Supply air fan | Type | Low noise centrifugal type | |||||||||||||||
Capacity | kW | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 | 7.5 | |||||||||
Evaporator | Type | Inner grooved copper tube and aluminum fin | |||||||||||||||
Fin type 5* | Slotted fin hydrophilic aluminum fin | ||||||||||||||||
Condenser | Type | Inner grooved copper tube and aluminum fin | |||||||||||||||
Fin type 5* | Rippled hydrophilic aluminum fin | ||||||||||||||||
Condenser fan | Type | Low noise axial type | |||||||||||||||
Quantity | 2 | 2 | 2 | 4 | 4 | 4 | 4 | ||||||||||
Refrigerant | Refrigerant | R22/R407C | |||||||||||||||
Refrigerant control | External balance type thermal expansion valve | ||||||||||||||||
Air filter | Initially effect plate filter | ||||||||||||||||
Dimensions | L | mm | 2200 | 2600 | 2600 | 3200 | 3200 | 6000 | 6000 | ||||||||
W | mm | 1800 | 2200 | 2200 | 2200 | 2200 | 2300 | 2300 | |||||||||
H | mm | 1520 | 1700 | 1700 | 1900 | 1900 | 2300 | 2300 | |||||||||
Weight | kg | 850 | 1100 | 1250 | 1400 | 1650 | 1850 | 2200 | |||||||||
Notes
2. Heating condition: Indoor dry bulb/wet bulb:20/—℃, outdoor dry bulb/wet bulb:7/6℃
3. The air volume and static pressure`s specification in the table is standard, and can be designable
4. Noise data is measured in the front of the units when cooling under the standard air volume
5. Fin type and material can be designable
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–4 unit: US $16700 / unit
- 5+ unit: US $15600 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air handling unit be supplied for my local voltage?
The standard configuration is 380/400 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Shenglin M&E Technology Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shanghai Shenglin M&E Technology Co., Ltd. range on HVACR Nexus.
