Utube — material Stainless Steel, heat exchanger type Tube Heat Exchanger. The complete factory specification follows. Made by Shanghai Shenglin M&E Technology Co., Ltd. (17 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Utube
- Voltage: /
- Flow Capacity: 30gpm
- Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
- Application: Cooling and heating
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Flow Capacity | 30gpm |
| Fluid Compatibility | Water |
| Material | Stainless Steel |
| Maximum Operating Temperature | 200C |
| Voltage | / |
| Core Components | tube |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Long Service Life |
| Working Temperature Range | 0-200℃ |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 109 |
| Brand Name | Shenglin |
| Liquid Flow Rate | 30 gpm |
| Maximum Pressure Rating | 4.5Mpa |
| Dimension(L*W*H) | 1420*200*260mm |
| Product Name | shell and tube heat exchanger |
| Application | Cooling and heating |
| Feature | Corrosion resistant |
| System | Single system |
| Outer Shell | PP Plastic |
| Package | Wooden Case |
| Is-Customized | yes |
| After-Sales Service Provided | Video technical support/Online support |
| Size / Weight | customized |
| Selling Units | Single item |
Product Details
Shell and tube heat exchanger
Working Condition:
1)Refrigerant side(In the tube): R22,R134a,R407c,R410a etc.
2)Water side (Between the tube and shell):fresh water, nature water, drink water, seawater, saltwater, ground water etc .
Material:
1)Heat transfer Tube: 316L / SUS304 / Copper / Titanium
2)Shell: 316L / SUS304 / Carbon steel / PP / PVC
Applicable Industries
petrochemical, coal chemical, precision chemical, nuclear power, metallurgical, pharmaceutical, new power equipment and so on.
Parameters table
Technical Data(Heat transfer tube Φ20)
| Nominal diameter(mm) | Number of tube passes | Number of tube | Center row tube number | Tube side flow area | Heat transfer area Heat transfer tube length(mm) | ||||
| 1500 | 2000 | 3000 | 4500 | 6000 | |||||
| 159 | 1 | 15 | 5 | 0.0030 | 1.4 | 1.9 | 2.8 | ||
| 219 | 1 | 33 | 7 | 0.0066 | 3.1 | 4.1 | 6.2 | ||
| 273 | 1 | 65 | 9 | 0.0131 | 6.1 | 8.2 | 12.3 | 18.4 | 24.5 |
| 2 | 56 | 8 | 0.0056 | 5.3 | 7.0 | 10.6 | 15.8 | 21.1 | |
| 325 | 1 | 99 | 11 | 0.0199 | 9.3 | 12.4 | 18.7 | 28.0 | 37.3 |
| 2 | 88 | 10 | 0.0088 | 8.3 | 11.1 | 16.6 | 24.9 | 33.2 | |
| 4 | 68 | 11 | 0.0034 | 6.4 | 8.5 | 12.8 | 19.2 | 25.6 | |
| 400 | 1 | 174 | 14 | 0.0350 | 16.4 | 21.9 | 32.8 | 49.2 | 65.6 |
| 2 | 164 | 15 | 0.0165 | 15.5 | 20.6 | 30.9 | 46.4 | 61.8 | |
| 4 | 146 | 14 | 0.0073 | 13.8 | 18.3 | 27.5 | 41.3 | 55.0 | |
| 450 | 1 | 220 | 17 | 0.0477 | 22.3 | 29.8 | 44.7 | 67.0 | 89.3 |
| 2 | 220 | 16 | 0..0221 | 20.7 | 27.6 | 41.5 | 62.2 | 82.9 | |
| 4 | 200 | 16 | 0.0101 | 18.8 | 25.1 | 37.7 | 56.5 | 75.4 | |
| 500 | 1 | 275 | 19 | 0.0553 | 34.6 | 51.8 | 77.8 | 103.7 | |
| 2 | 256 | 18 | 0.0257 | 32.2 | 48.3 | 72.4 | 96.5 | ||
| 4 | 222 | 18 | 0.0112 | 27.9 | 41.8 | 62.8 | 83.7 | ||
Technical Data(Heat transfer tube Φ25)
| Nominal diameter(mm) | Number of tube passes | Number of tube | Center row tube number | Tube side flow area | Heat transfer area Heat transfer tube length(mm) | ||||
| 1500 | 2000 | 3000 | 4500 | 6000 | |||||
| 159 | 1 | 11 | 3 | 0.0038 | 1.3 | 1.7 | 2.6 | ||
| 219 | 1 | 25 | 5 | 0.0087 | 2.9 | 3.9 | 5.9 | ||
| 273 | 1 | 38 | 6 | 0.0132 | 4.5 | 6.0 | 9.0 | 13.4 | 17.9 |
| 2 | 32 | 7 | 0.0055 | 3.8 | 5.0 | 7.5 | 11.8 | 15.1 | |
| 325 | 1 | 57 | 9 | 0.0197 | 6.7 | 9.0 | 13.4 | 20.1 | 26.9 |
| 2 | 56 | 9 | 0.0097 | 6.6 | 8.8 | 12.3 | 19.8 | 26.4 | |
| 4 | 40 | 9 | 0.0035 | 4.7 | 6.3 | 9.4 | 14.1 | 18.8 | |
| 400 | 1 | 98 | 12 | 0.0039 | 11.5 | 15.4 | 23.1 | 34.6 | 46.2 |
| 2 | 94 | 11 | 0.0163 | 11.1 | 14.8 | 22.1 | 33.2 | 44.3 | |
| 4 | 76 | 11 | 0.0066 | 9.0 | 11.9 | 17.9 | 26.9 | 35.8 | |
| 450 | 1 | 135 | 13 | 0.0468 | 15.9 | 21.2 | 31.8 | 47.7 | 63.6 |
| 2 | 126 | 12 | 0.0218 | 14.8 | 19.8 | 29.7 | 44.5 | 59.4 | |
| 4 | 106 | 12 | 0.0092 | 12.5 | 16.7 | 25.0 | 37.5 | 50.0 | |
| 500 | 1 | 174 | 14 | 0.0603 | 27.3 | 41.0 | 61.5 | 82.0 | |
| 2 | 164 | 15 | 0.0284 | 25.8 | 38.6 | 58.0 | 77.3 | ||
| 4 | 144 | 15 | 0.0125 | 22.6 | 33.9 | 50.9 | 67.9 | ||
Specifications of heat exchanger:
1. Heat exchanging quantity:___ (KW,KCAL)
2. Hot side media:
3. Hot side inlet temperature:
4. Hot side outlet temperature:
5. Hot side flow rate:
6. Cool side media:
7. Cool side inlet temperature:
8. Cool side outlet temperature:
9. Cool side flow rate:
Please fill in at least five of above specifications, so that we can design the heat exchanger accurately.

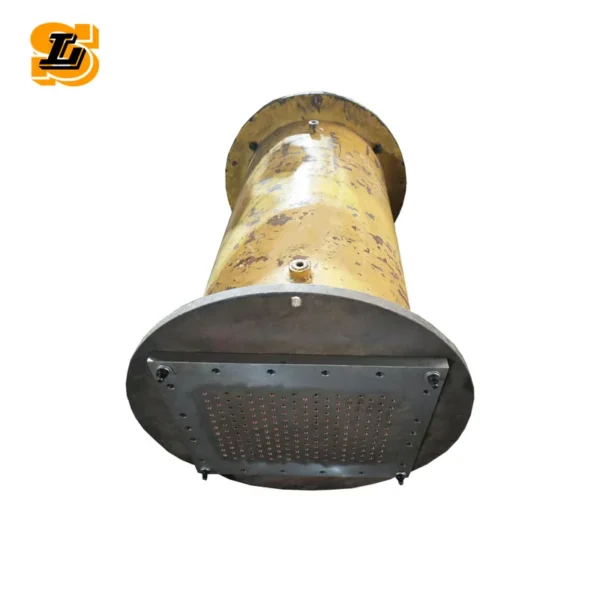

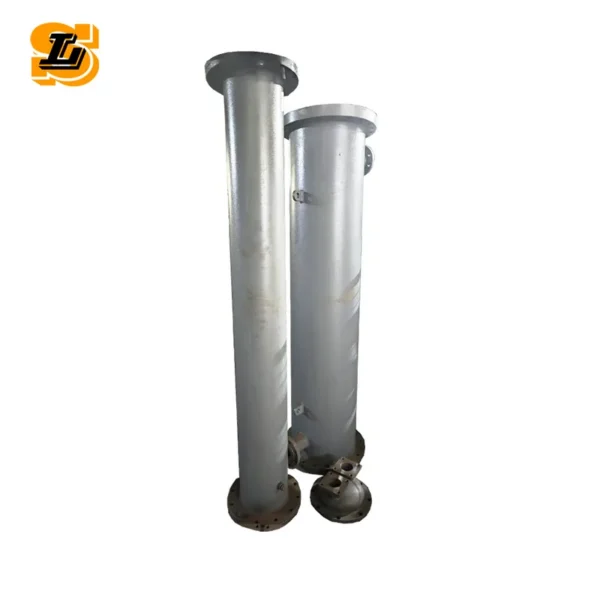

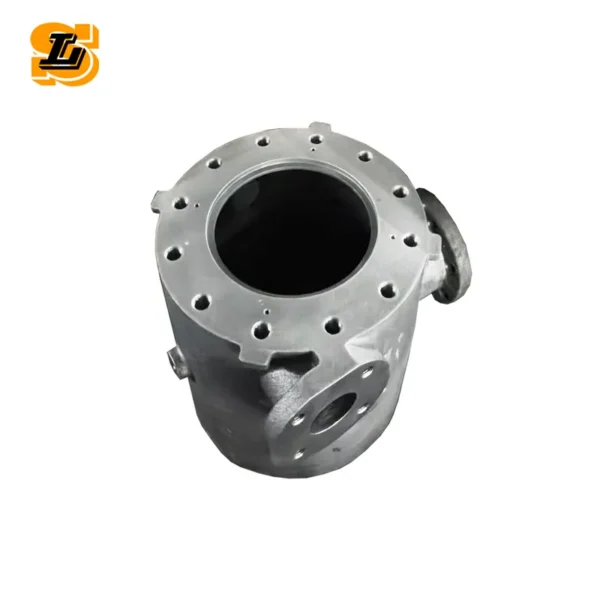

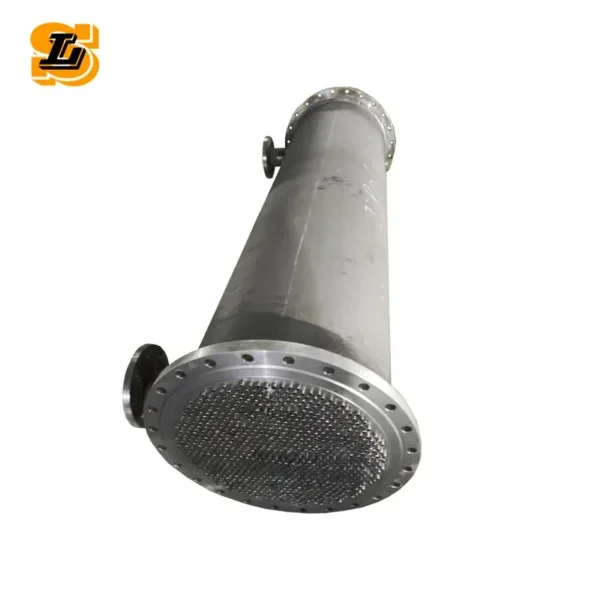

Here are some photos for reference
