The air handling unit listed here carries 300kw(402.31hp), material Galvanized Steel, documented exactly as the manufacturer publishes it. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Handling Unit
- Model Number: SQ2.0
- Cooling Capacity: 300kw(402.31hp)
- Material: Galvanized Steel
- Warranty: 2 Years
- Certification: RoHS CE
- Place Of Origin: Hunan, China
Technical Specifications
| Application | Hotel, Office Building, Hospital, School, Mall, Supermarket, Workshop, Hall, Gym |
|---|---|
| Product Dimension | 5*2.2*2.5m(16.40*7.22*8.20ft) |
| Material | Galvanized Steel |
| Control Signal | modulating |
| Actuator Type | Electric |
| Installation | Floor Mounted |
| Shape | Rectangle |
| Feature | Energy Saving |
| Design Style | Industrial |
| Warranty | 2 Years |
| After-Sale Service | Free Spare Parts, Online Technical Support, Onsite Inspection, Onsite Training, Return and Replacement, Onsite Installation |
| Project Solution Capability | total solution for projects |
| Cooling Capacity | 300kw(402.31hp) |
| Length | 5m(16.40ft) |

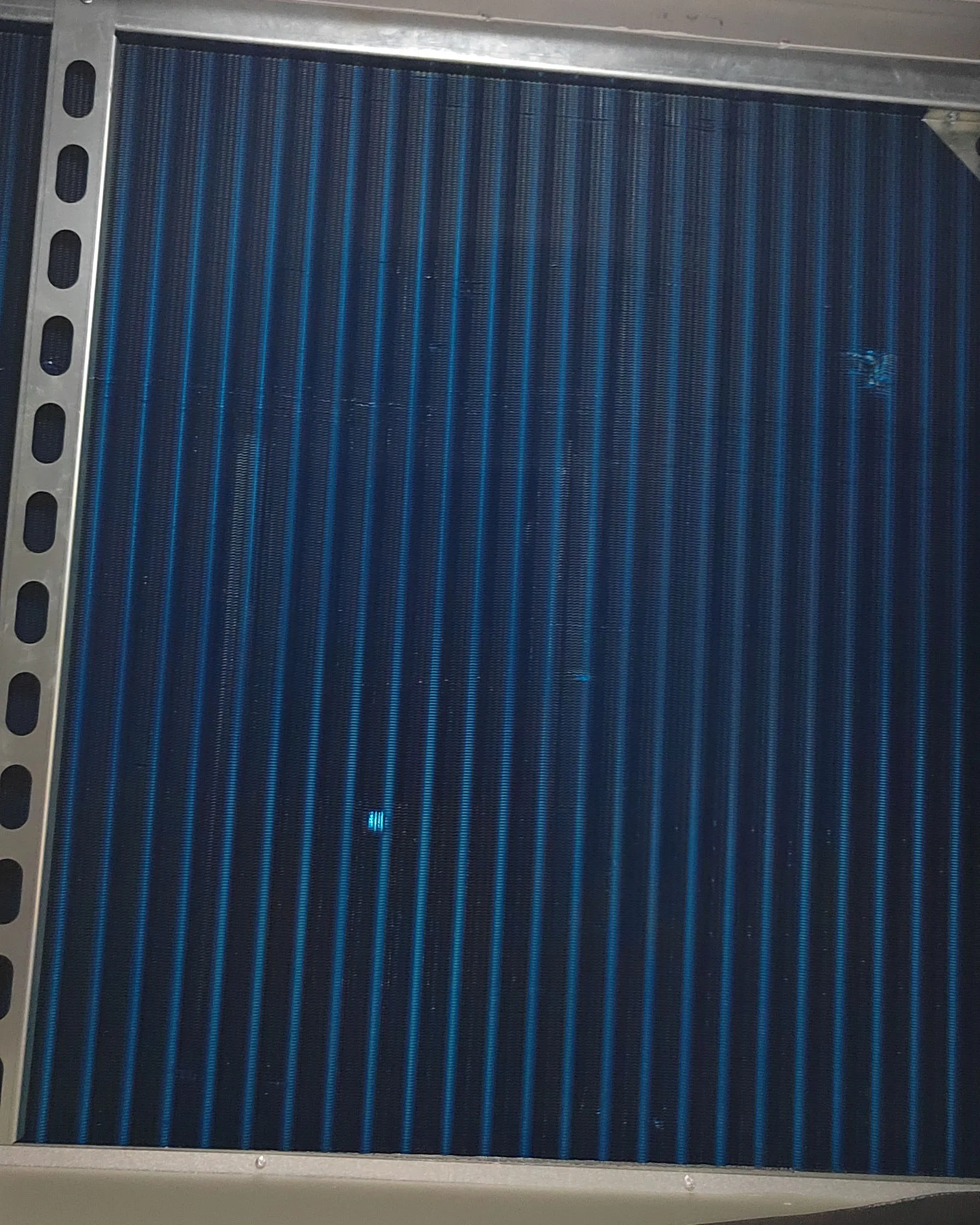

| Heating Element | AC Coil |
| Model Number | SQ2.0 |
| Place Of Origin | Hunan, China |
| Brand Name | BROAD |
| Product Name | air handling unit with HEPA filter heat recovery ventilation system |
| Color | White |
| Size | 5000*2200*2500mm |
| PM2.5 | 99.9% |
| Heat Recovery Efficiency | 60~70% |
| Filter | pre-filter, fine filter, electrostatic filter, HEPA H13 |
| Certification | RoHS CE |
| Suitable Space | 4000-8000m2 |
| Noise | 45-62dB |
| Selling Units | Single item |
| Single Package Size | 5200X2500X2600 cm |
| Single Gross Weight | 3000.0 kg |

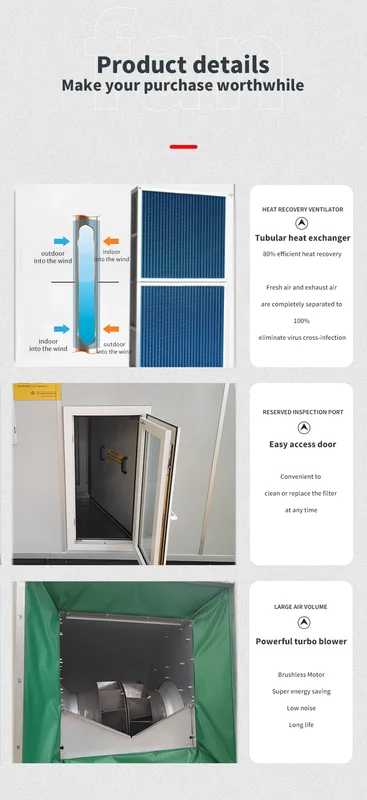

Product Details

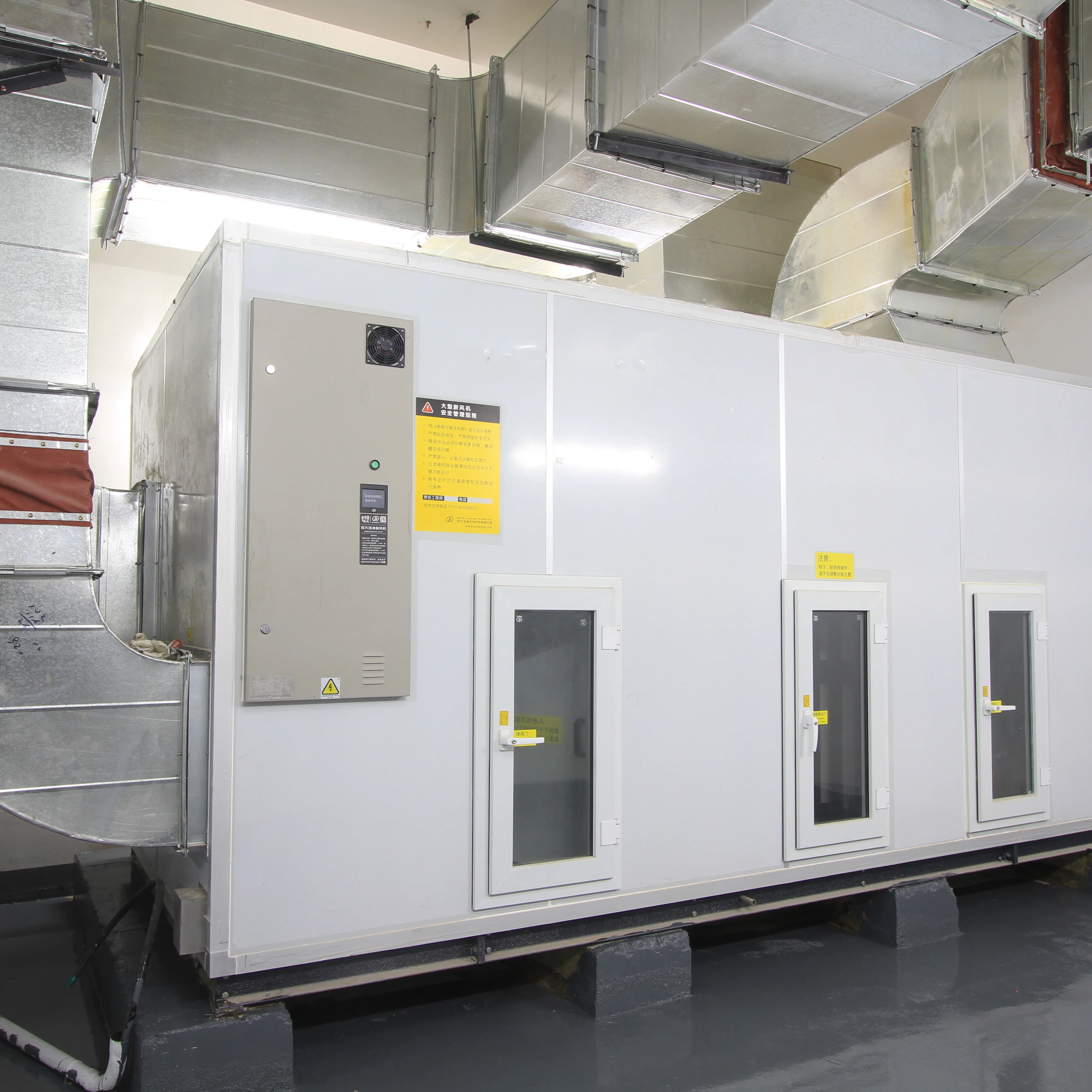

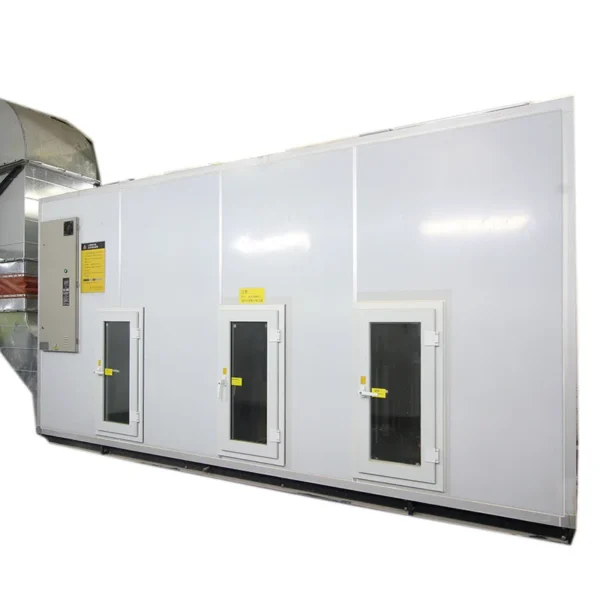

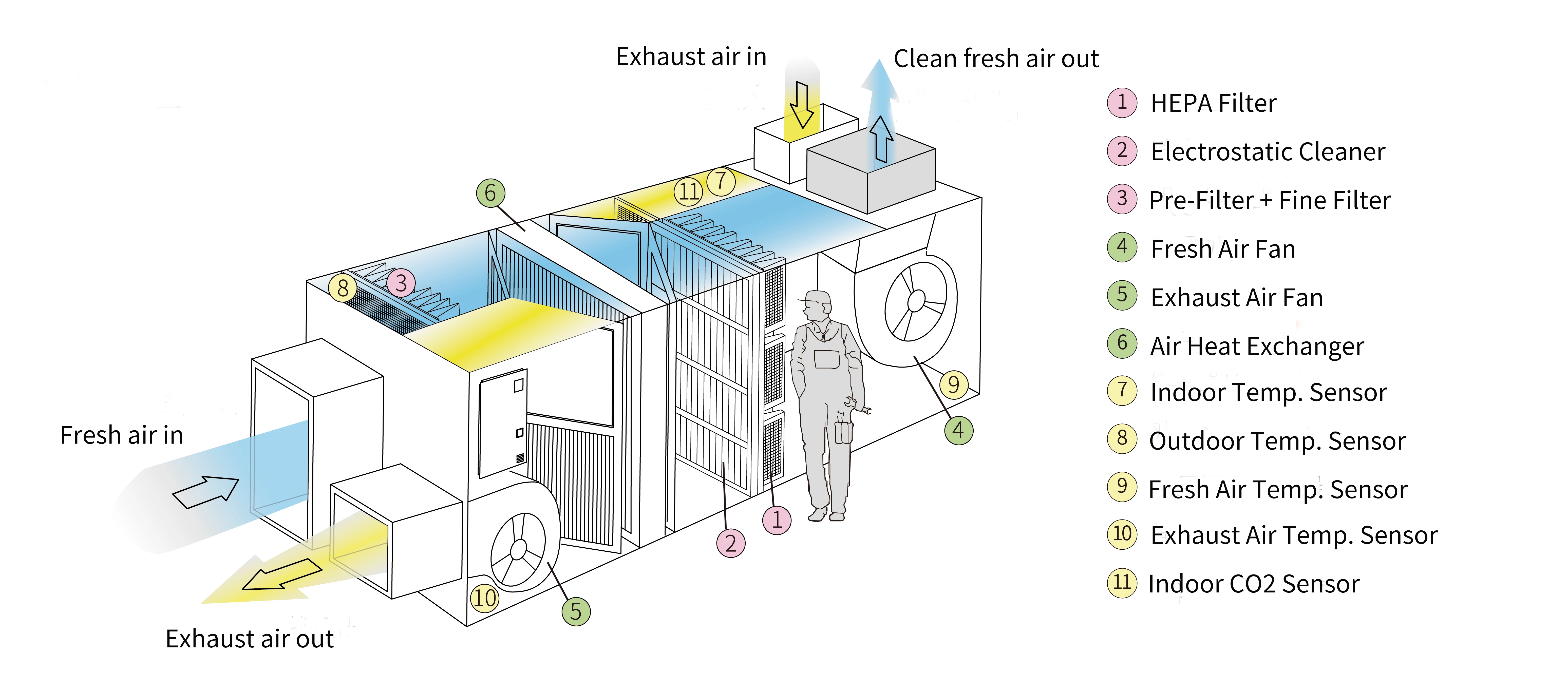

Commercial industrial AHU air handling unit with HEPA filter heat recovery ventilation system
Office supermarket industrial building fresh air heat recovery ventilator to recover energy
Model | SQ2.0 |
Air volume m3/h | 20000 |
Rated power W | 0.8-15kw |
Function | Air purification + Air sterilization + Air ventilation + Energy recovery |

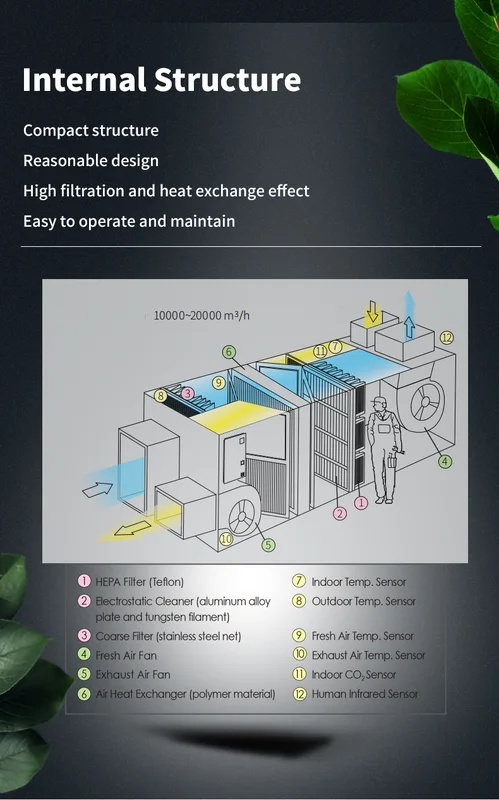

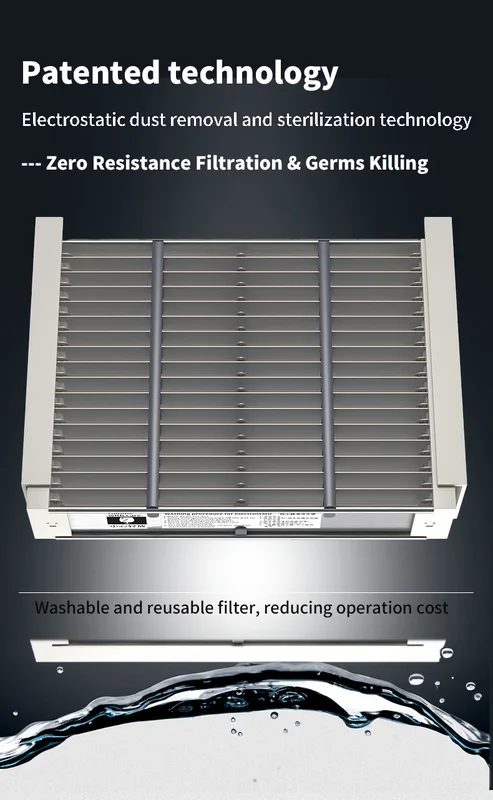

Filter type | G4 Coarse filter * 4pcs + F7 Fine filter * 2pcs + Metal Electrostatic precipitator * 12pcs + H13 hepa filter * 6pcs |
Whole machine PM2.5 Filtration efficiency | 99.9% |
Heat recovery | ERV energy recovery unit (Heat pipe) *1pc |
Heat recovery efficiency | 80% |
Flow direction | Bidirectional |
Noise Db(A) | 40-62 |
Applicable room size m2 | 4000-8000 |
Installation method | Floor standing |
Size MM | 5000*2200*2500 |
Weight KG | 2600 |
Speed | Stepless adjustment |
Shell material | Metal +Forrest insulation material |
Motor | AC |
Controller | LCD |
Control method | Touch screen + Remote controller + APP control |
Sensor | Temperature sensor + CO2 sensor + Human body sensor |
Design life | 40 years |
Warranty | 2 years |
Product Description

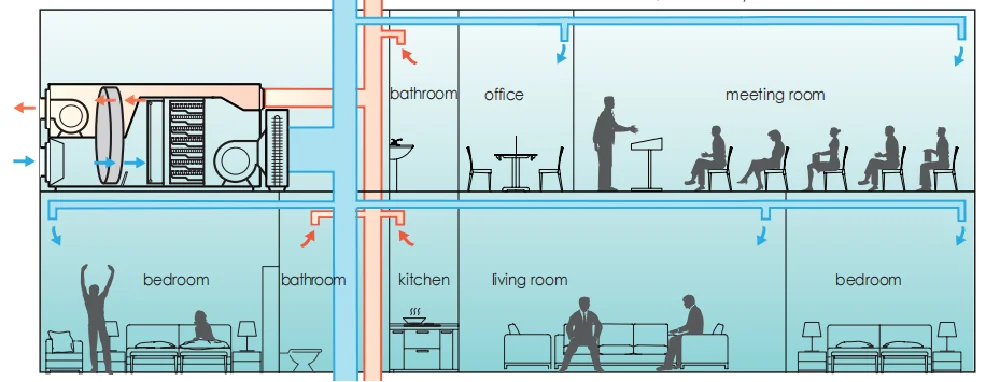

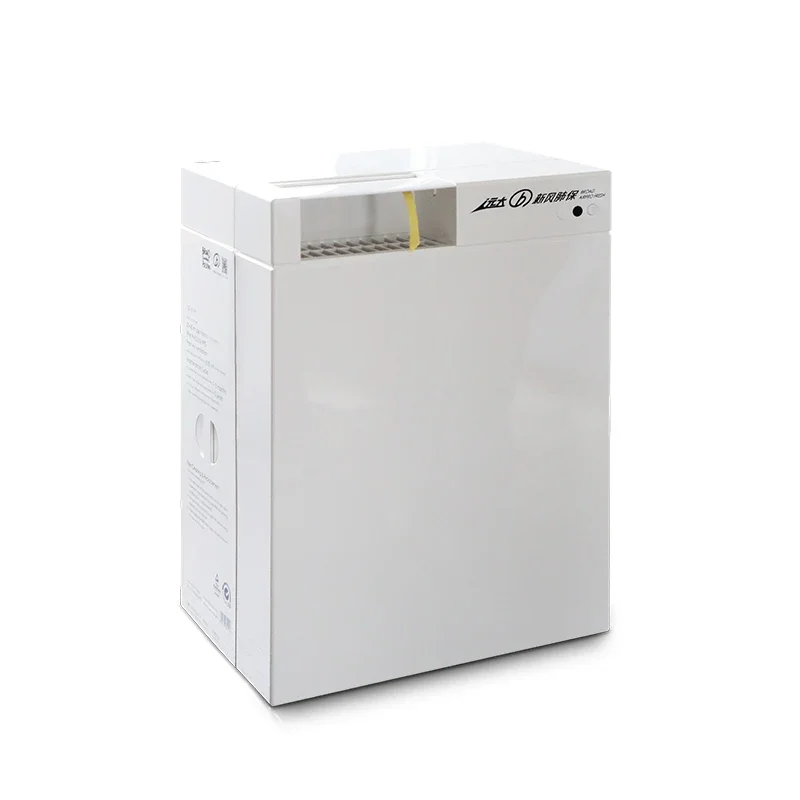

Models of HRV/ERV fresh air ventilation systems for residential and commercial use
Duct will be installed to introduce clean air to every room
Model | Rated Airflow （m³/h） | Rated E.S.P（Pa） | Noise （dB(A)) | Power input (W) | Size(mm) | N.W(Kg) |
SH260 | 260 | 40 | 39 | 112 | 580*280*1200 | 40 |
SQ260 | 260 | 40 | 39 | 112 | 530*260*1100 | 37 |
SQ500 | 500 | 53 | 41 | 243 | 540*470*1650 | 91 |
SQ1000 | 1000 | 100 | 47 | 600 | 800*620*1900 | 215 |
SQ1500 | 1500 | 200 | 47 | 940 | 1100*700*1950 | 265 |
SQ3000 | 3000 | 200 | 48 | 1900 | 1400*930*2380 | 385 |
SQ1.0 | 10000 | 300 | 60 | 6000 | 4200*2100*2200 | 2050 |
SQ2.0 | 20000 | 300 | 62 | 15000 | 5000*2200*2500 | 2600 |
EMD300 | 300 | 120 | 48 | 165 | 900*700*230 | 36 |
EMD400 | 400 | 150 | 53 | 300 | 900*700*250 | 40 |
EMD550 | 550 | 100 | 55 | 450 | 1000*750*250 | 47 |
EMD1000 | 1000 | 200 | 67 | 800 | 1540*878*392 | 84 |
Technology Introduction

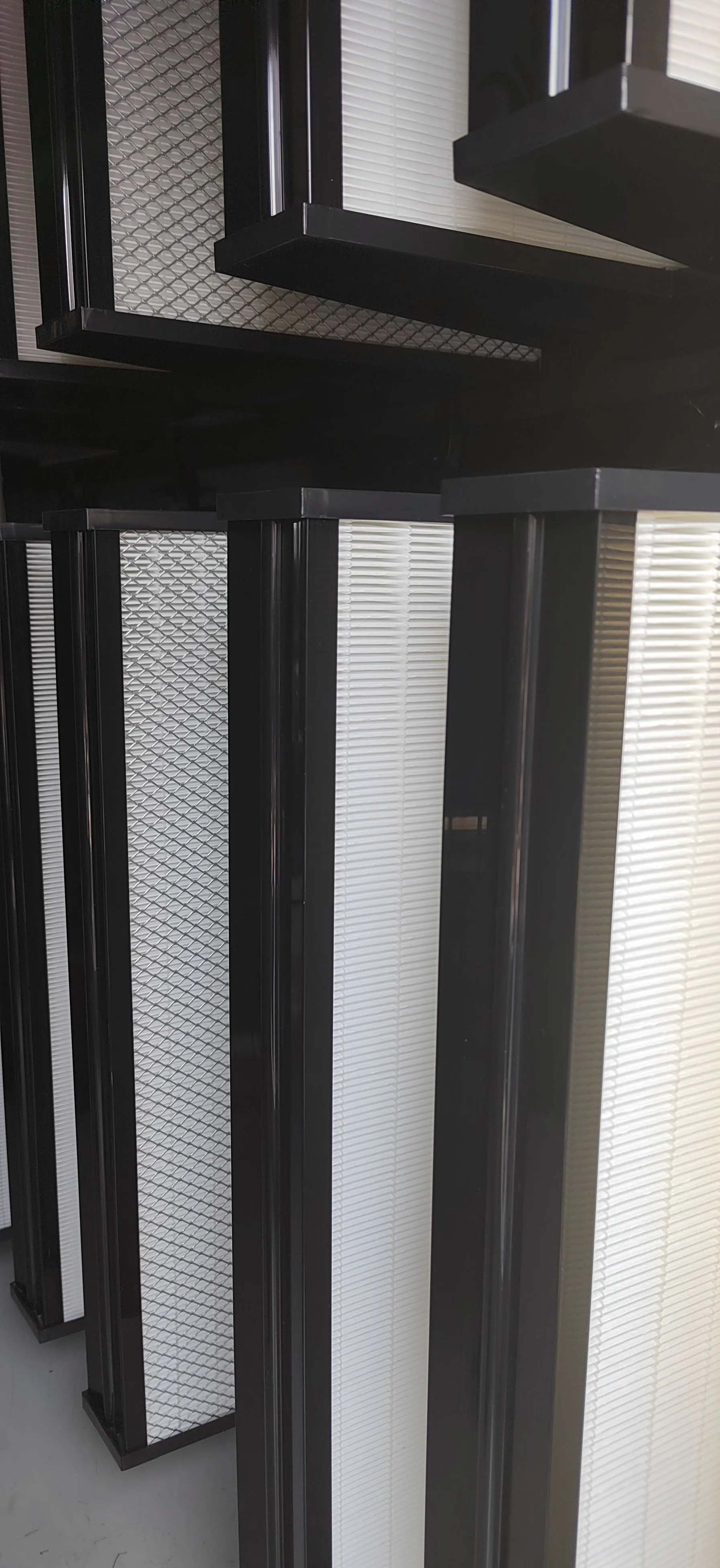

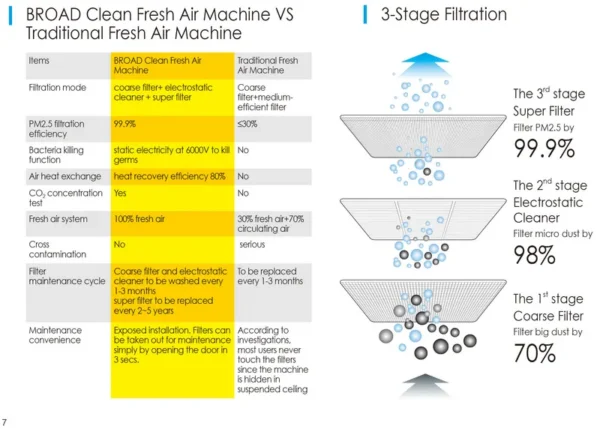

Technology1: HEPA filter can be deeply purified
H13 class HEPA powerful filter screen, filter 99% of fine particles as small as 0.30-3um, reject secondary pollution, 99% separate dust from the air. The dust holding capacity is high and the use is longer.
Technology 2:Silent and sound sleep
Brand new DC brushless motor, noise reduction technology and professional dimension installation effect, reduce noise as low as 27DB.

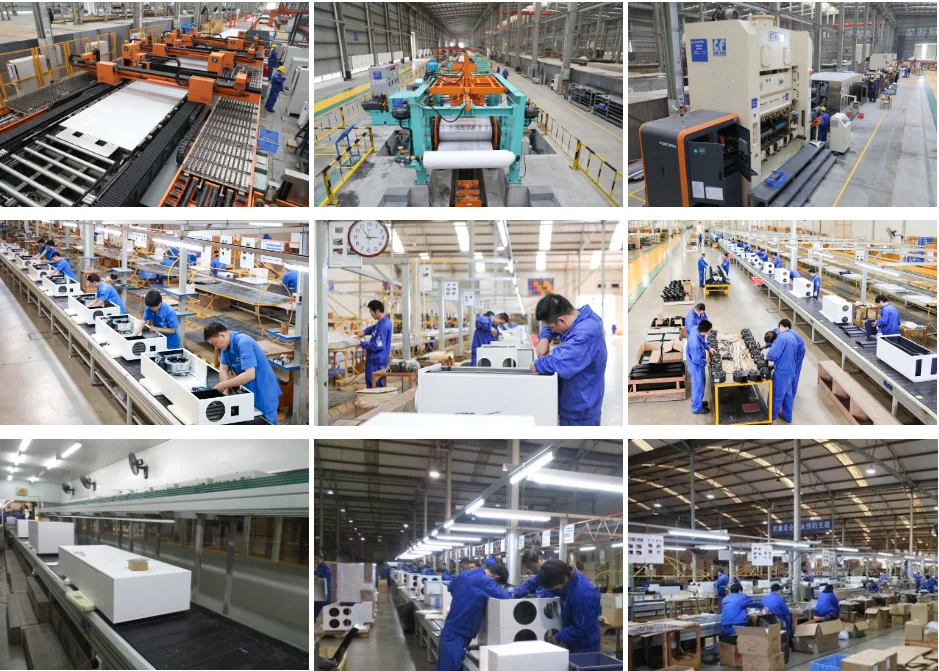

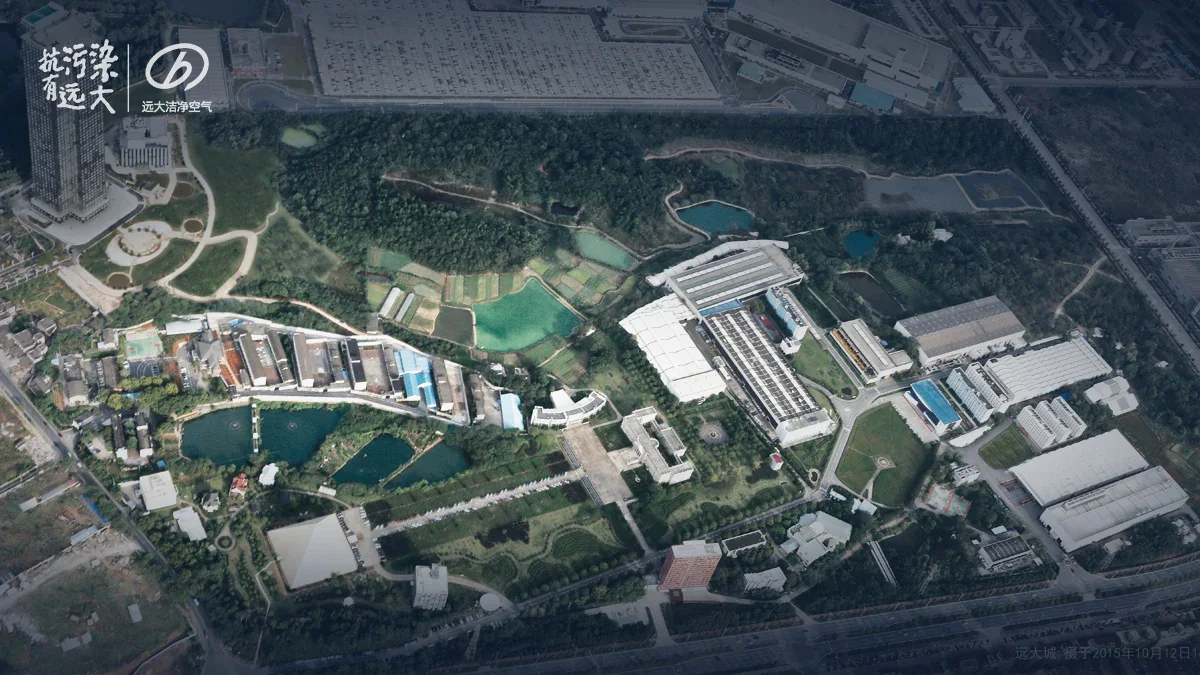

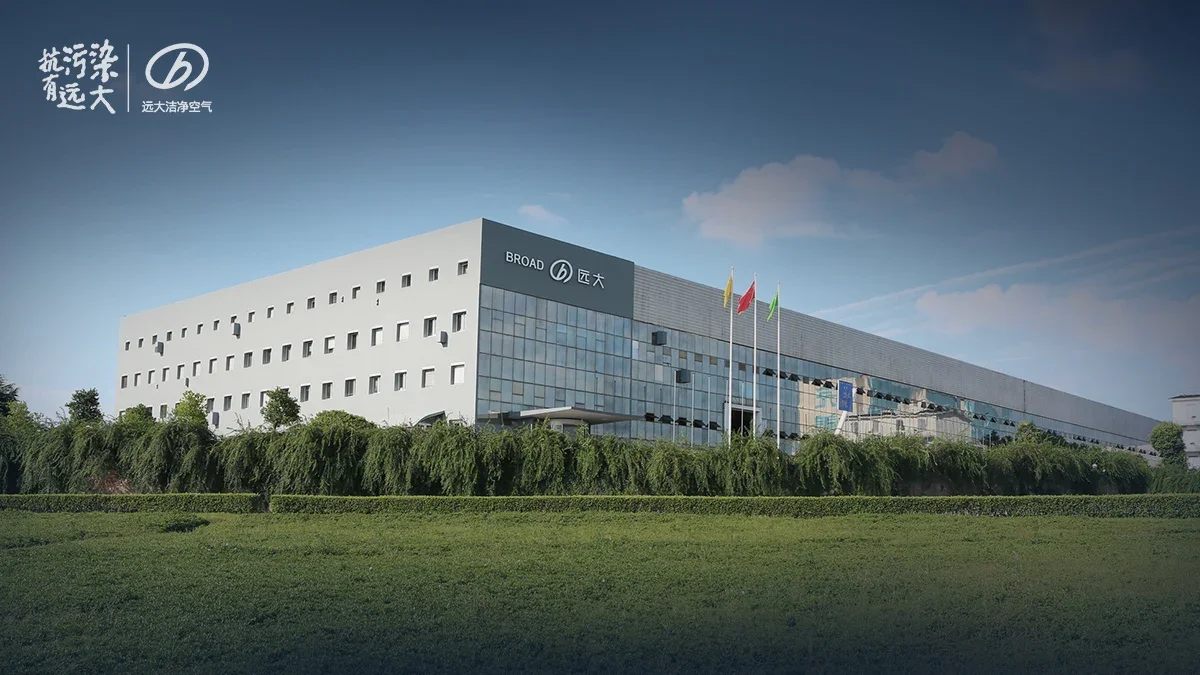

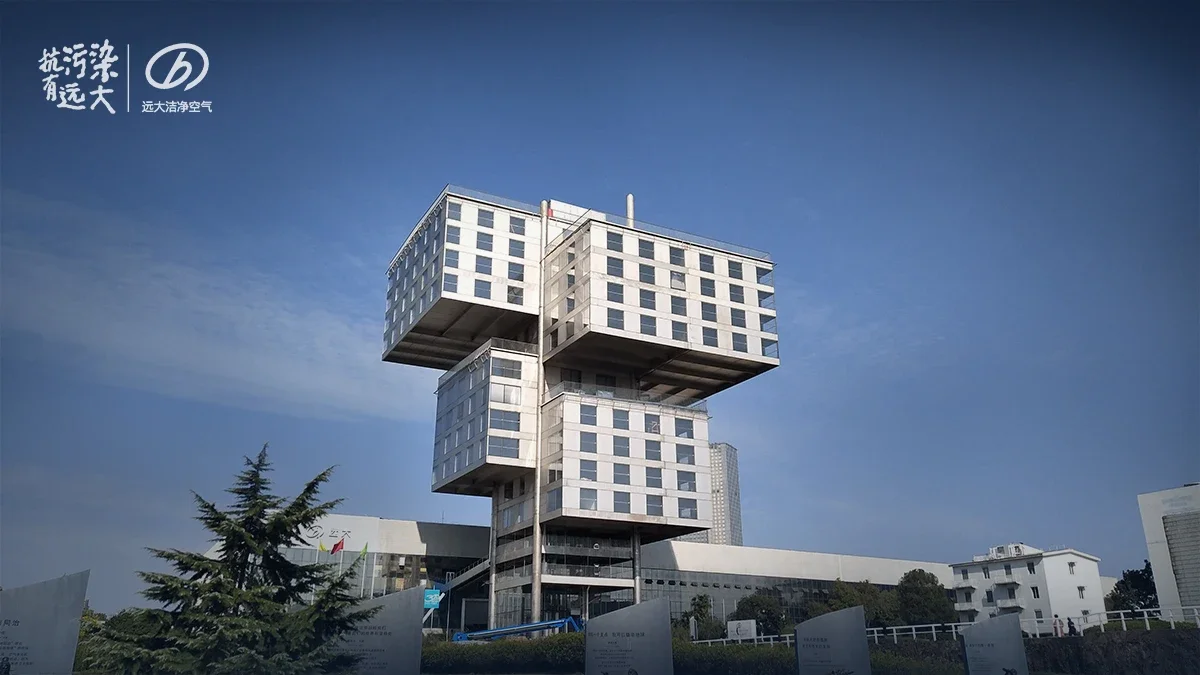

Company Profile
BROAD Clean Air Technology Co., LTD. established in 2005, a wholly-owned subsidiary of BROAD Group, provides not only fresh air machines that make indoor air 100 times cleaner than that outdoors but also a complete series of clean air products and air
monitoring devices for commercial and domestic use and wearable for personal use. BROAD Clean Air has more than 180 patents, and has set up a professional air quality R & D Center. BROAD products with certification of CE, CB & FCC have sold well in more than 80 countries. The fresh air machine filtering 99.9% PM2.5 has won the AWE Environmental Award which is the Oscar Prize in home appliances. BROAD has always rewritten human history with disruptive and original technologies.
honor

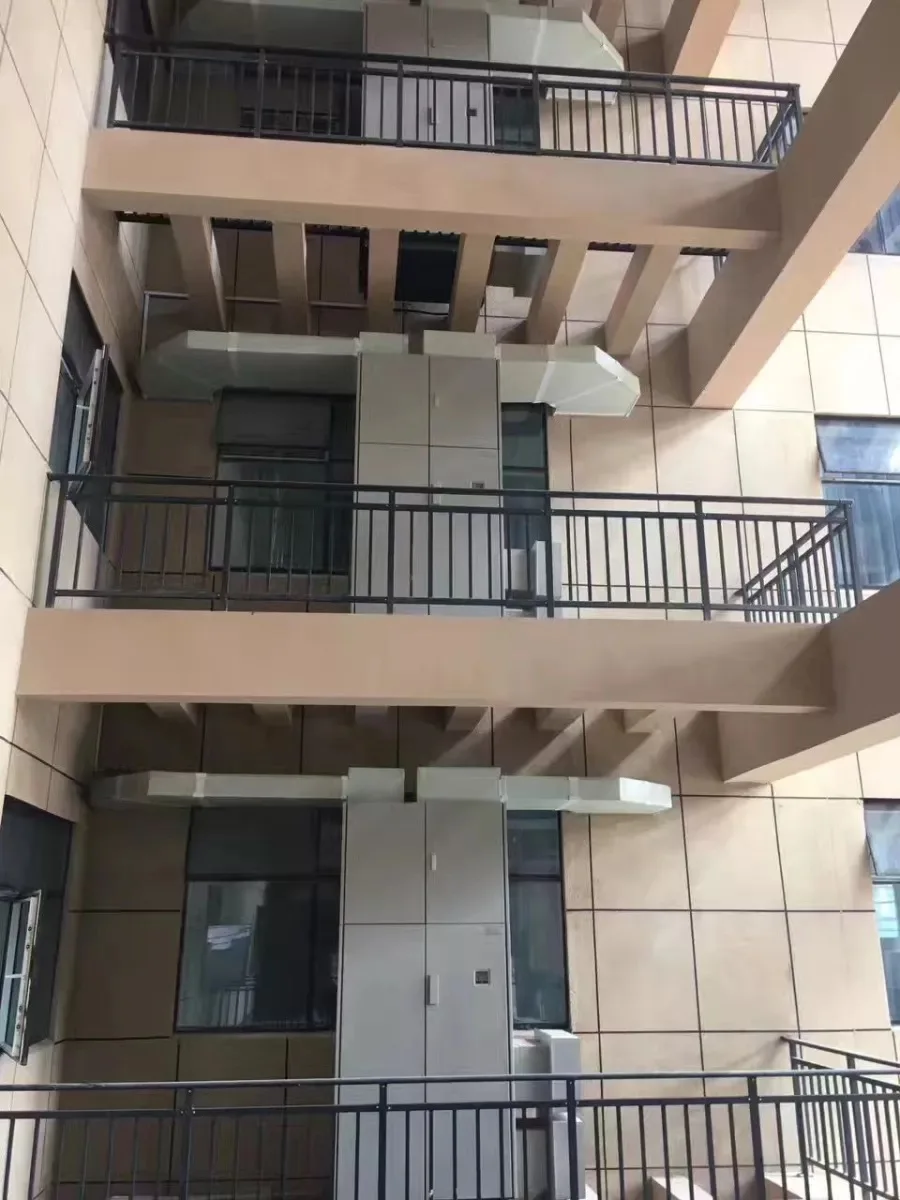

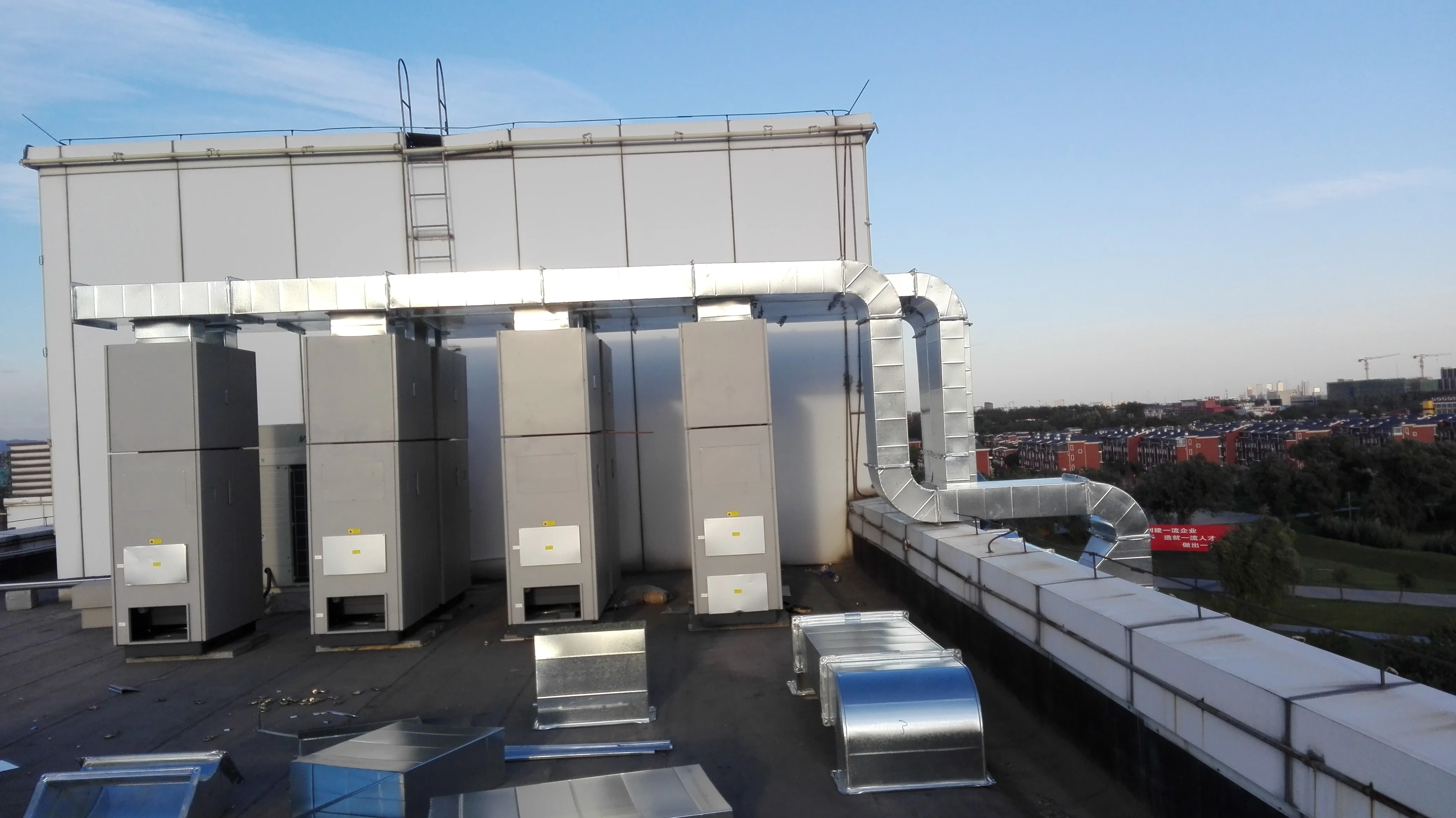

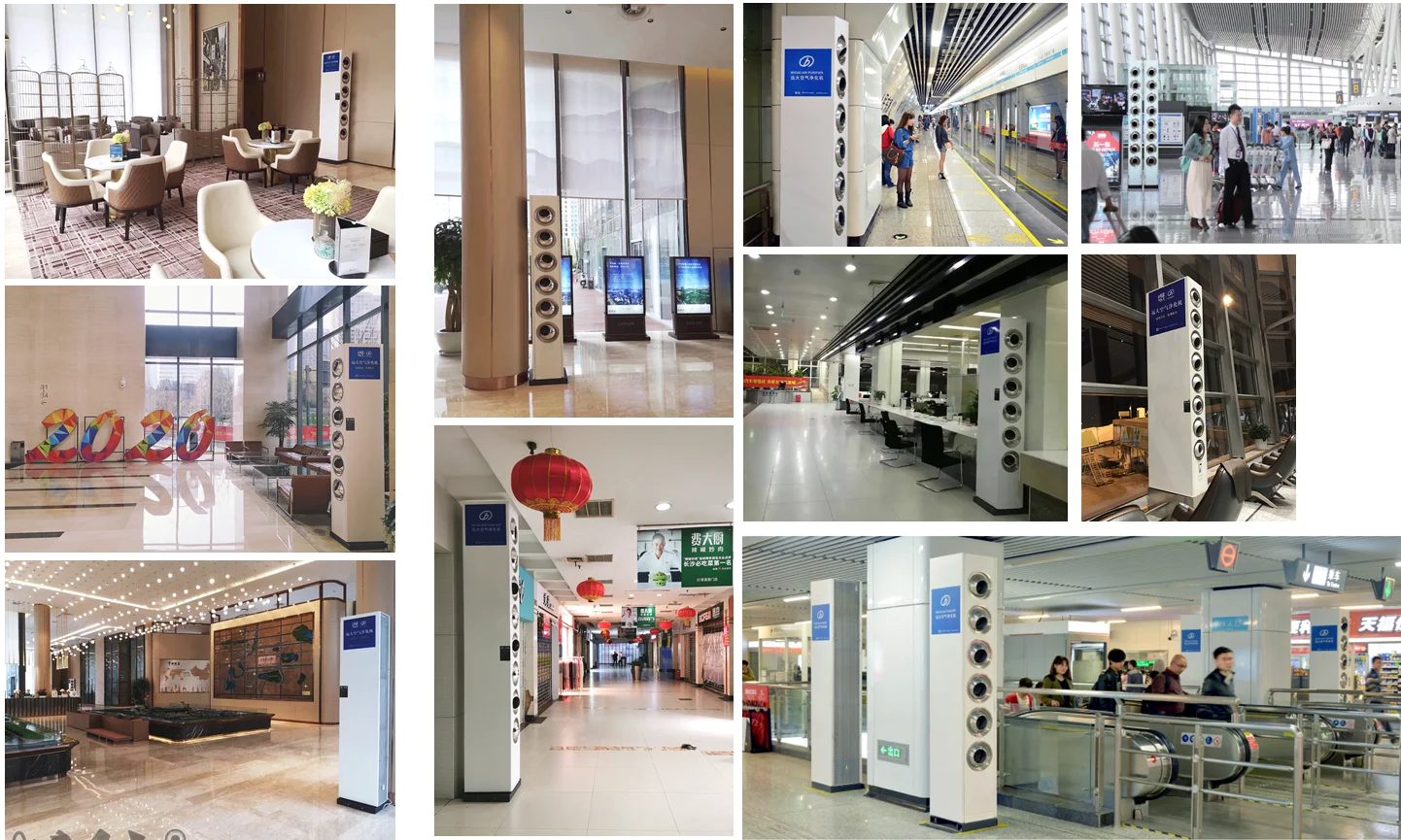

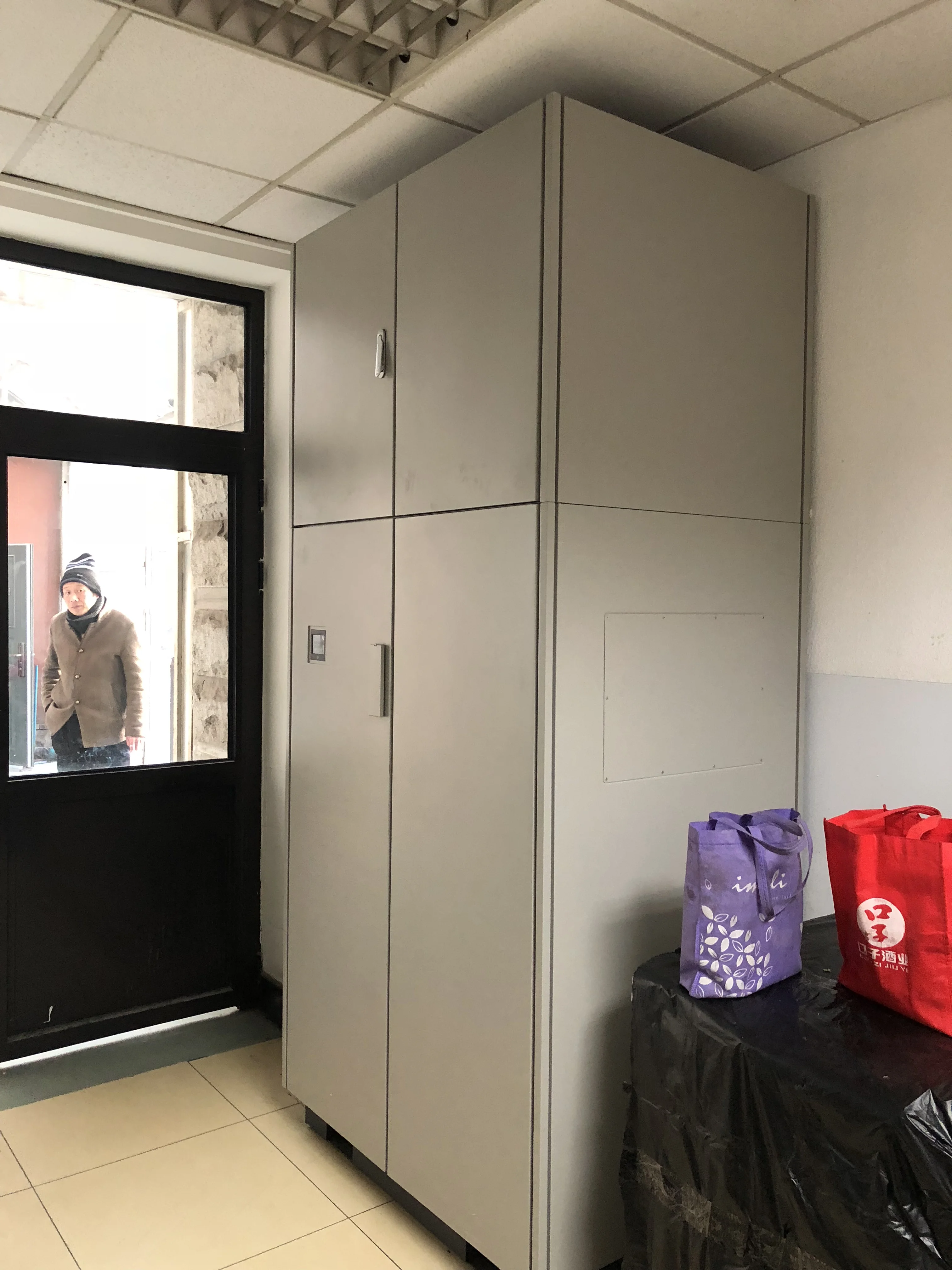

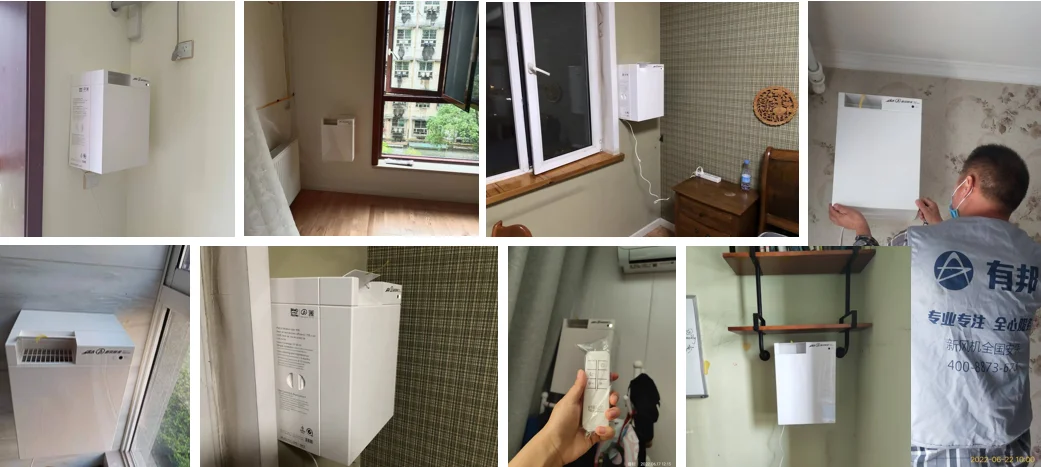

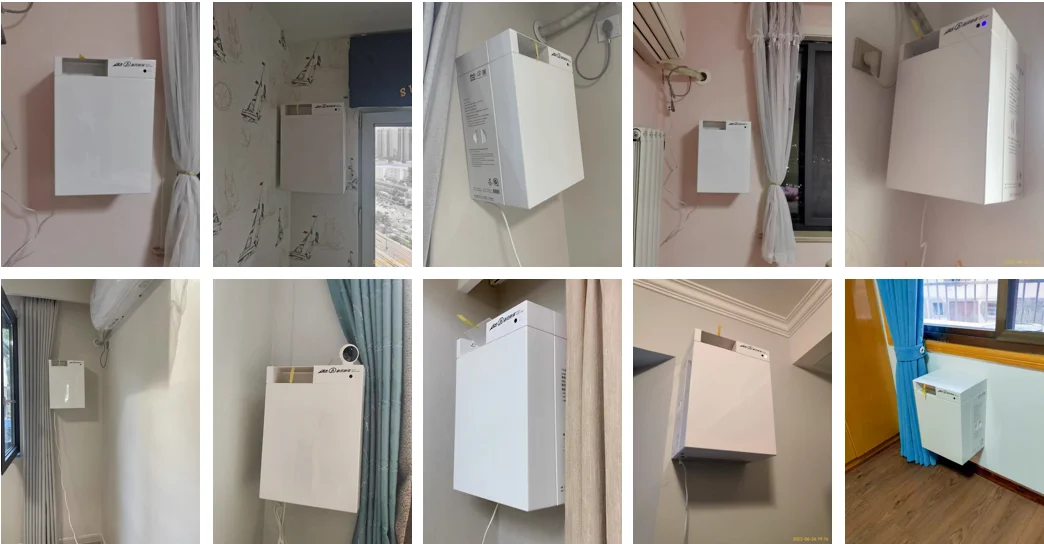

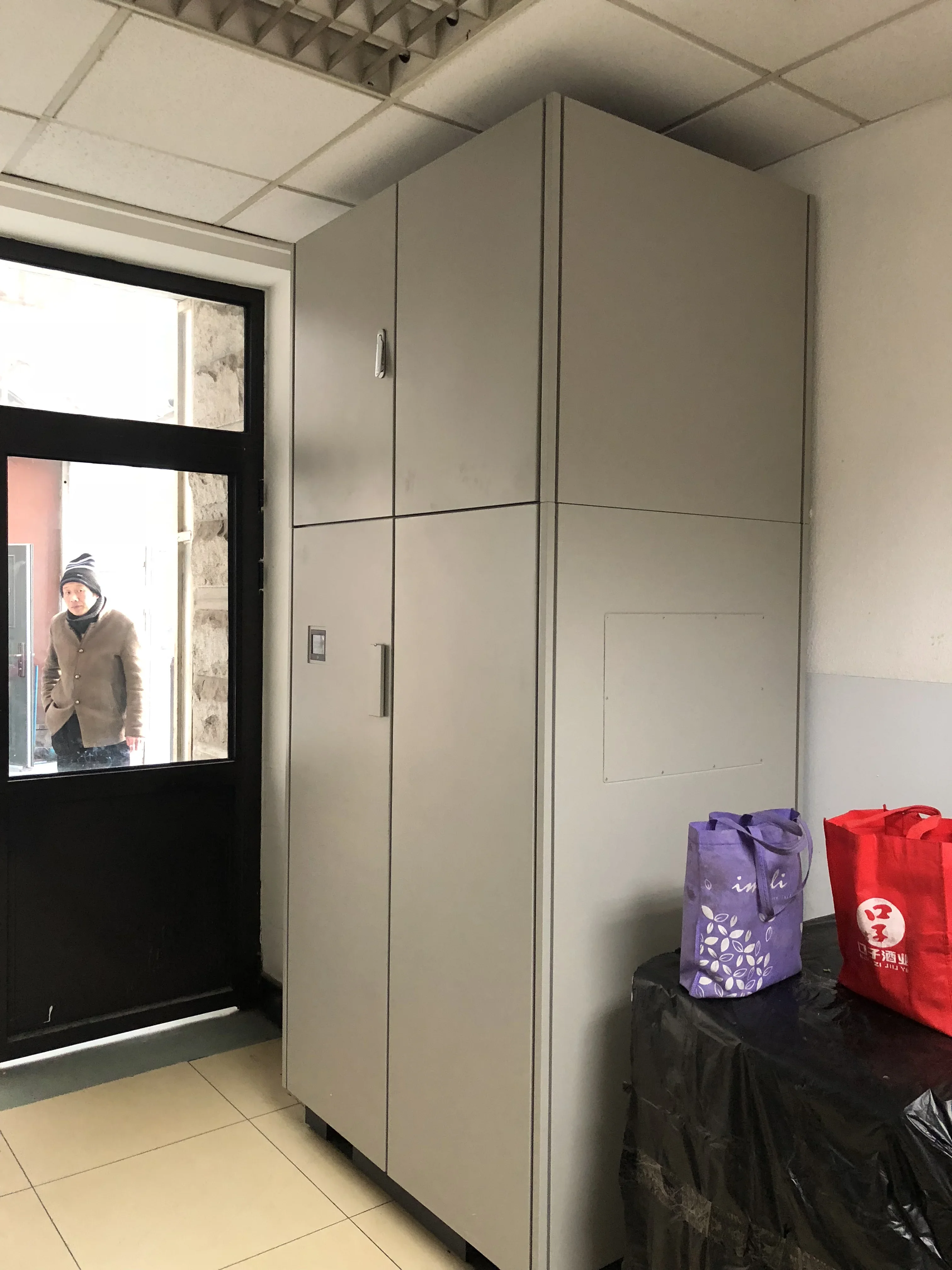

Customer Photos

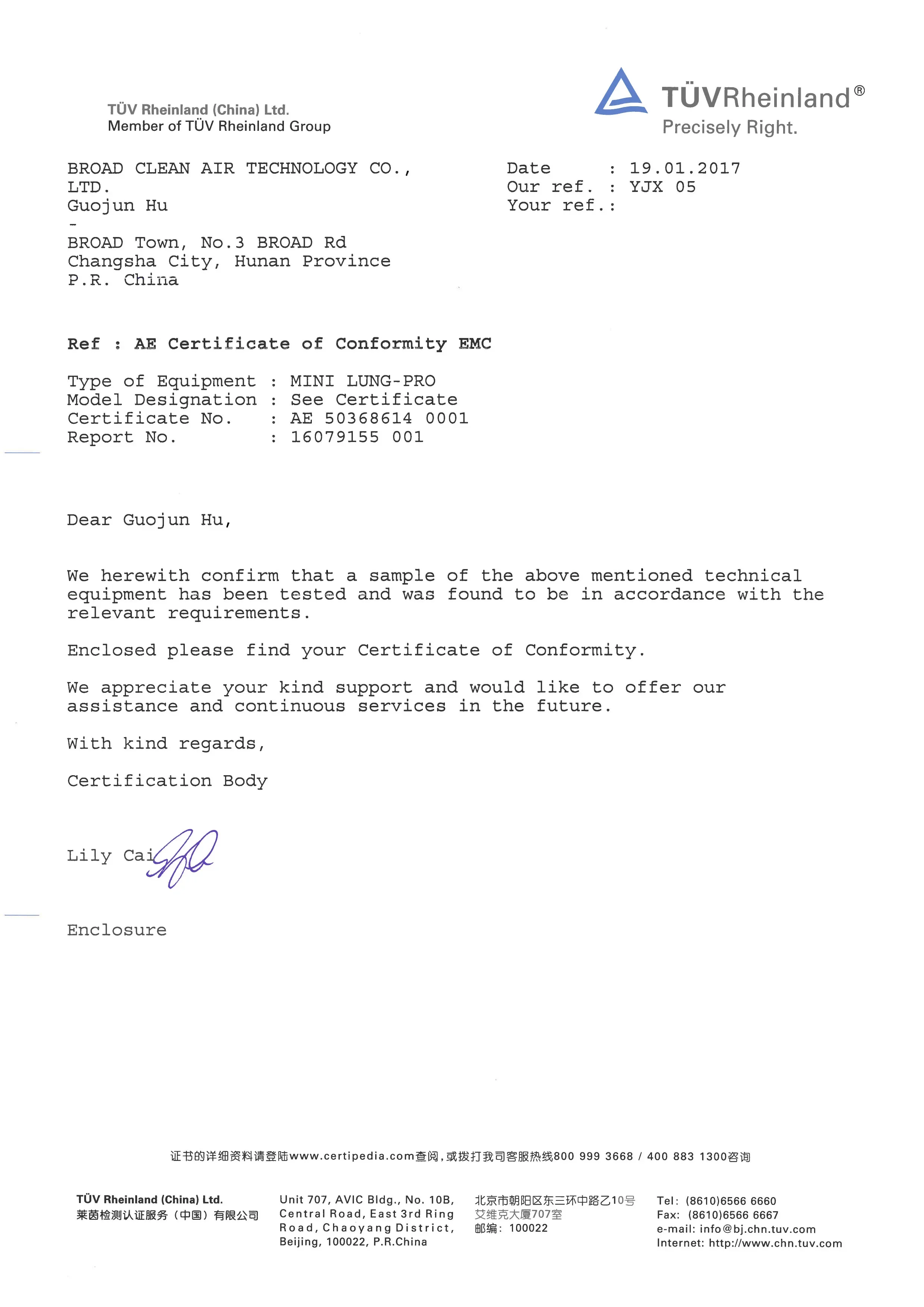

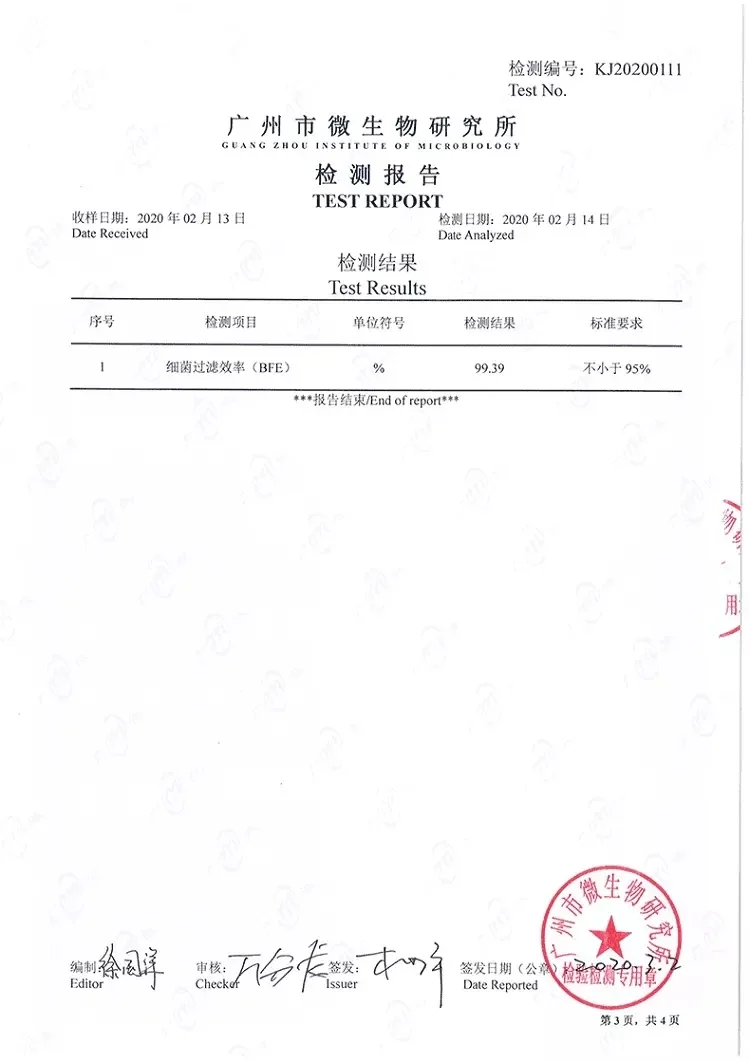

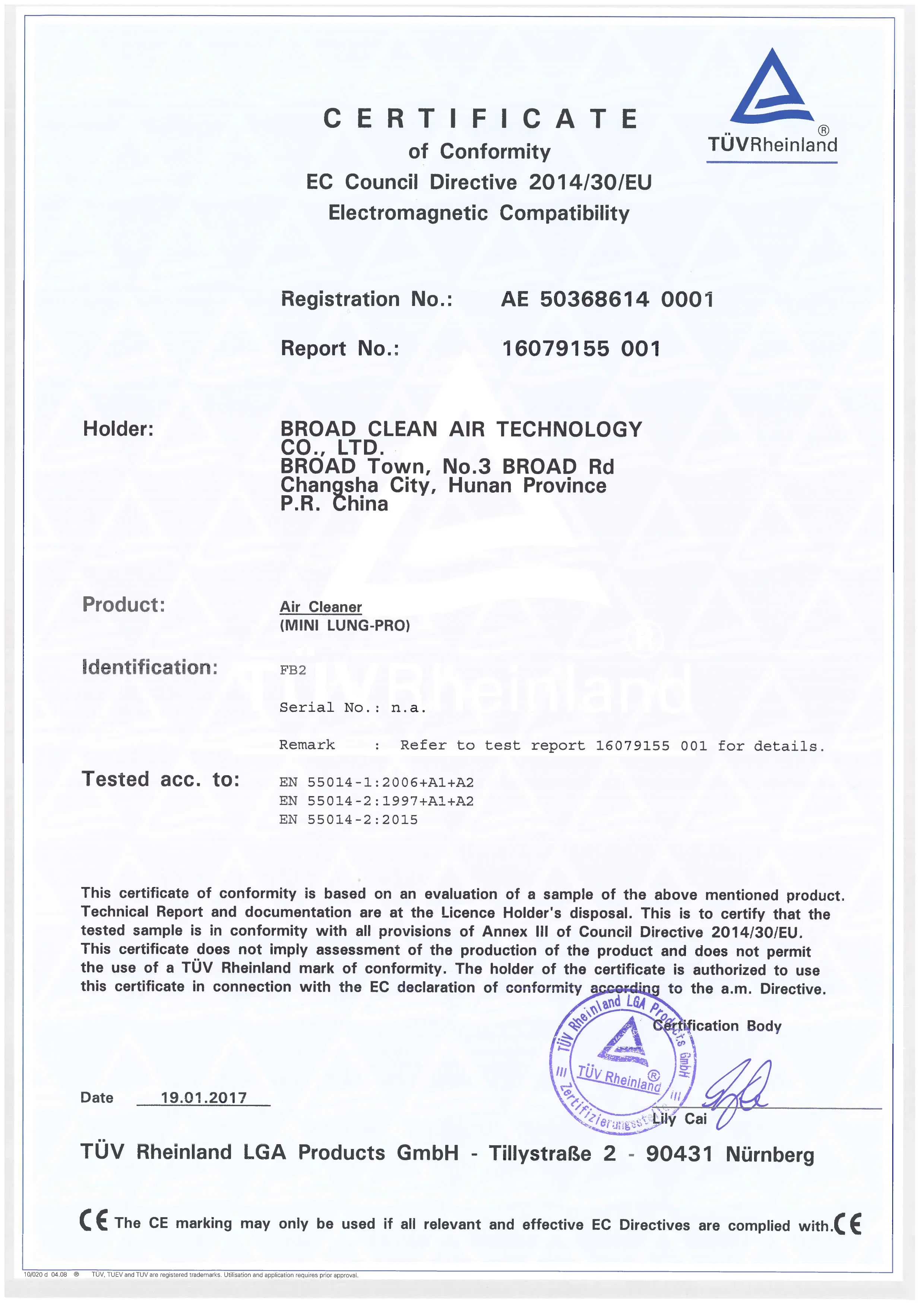

Certifications
Marketing Campaign
FAQ
Q: About HEPA filter lifetime？
A: The lifetime will vary depending on the hours of usage, air quality and location of the air purifier.
Q: Are you a factory?
A: Yes, we are a ISO9001-certified factory devoting to the developing, manufacturing and sales of air purifiers.
Q: I need your price list of all products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items, and it's impossible to mark all of their
price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products,please feel free to contact us. We will send offer to you soon!
Q: Are you a factory?
A: Yes, we are a ISO9001-certified factory devoting to the developing, manufacturing and sales of air purifiers.
Q: I need your price list of all products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items, and it's impossible to mark all of their
price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products,please feel free to contact us. We will send offer to you soon!
Q: Can you provide samples ?
A: Yes, we can provide samples for test or quality checking.
Q : How to ship my order？ Is it safe?
A: For samples, we will send it by Express.That's a Door to Door service. For bulk orders, we will send them by air or By sea. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.
Q: Do you have a guarantee of your product quality?
A: We have a guarantee of 1~2 years(depending on the product specification).
Q: Can I become an Agent / Dealer of Agcen products?
A: Welcome! But please let me know your country/area first, We will have a check and then talk about this. If you want any other kind of cooperation, do not hesitate to contact us.
A: For samples, we will send it by Express.That's a Door to Door service. For bulk orders, we will send them by air or By sea. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.
Q: Do you have a guarantee of your product quality?
A: We have a guarantee of 1~2 years(depending on the product specification).
Q: Can I become an Agent / Dealer of Agcen products?
A: Welcome! But please let me know your country/area first, We will have a check and then talk about this. If you want any other kind of cooperation, do not hesitate to contact us.
Recommend Products
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $64308 / piece
- 5+ piece: US $44615 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this air handling unit carry?
It is supplied with RoHS CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Broad Clean Air Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Broad Clean Air Technology Co., Ltd. range on HVACR Nexus.
