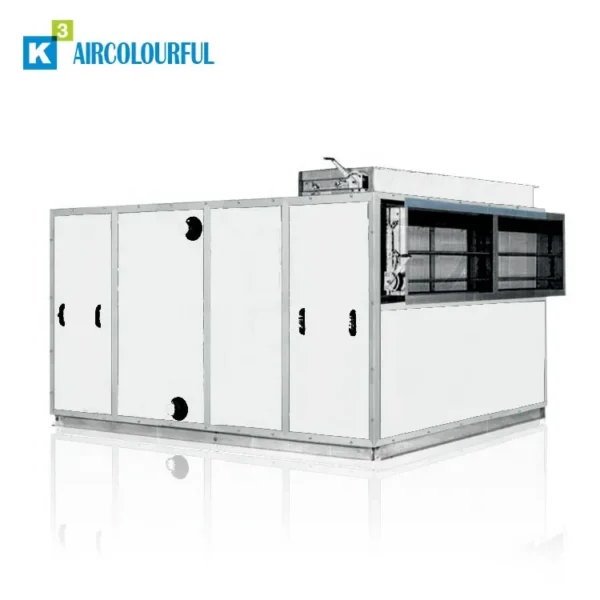

Air handling unit — air flow range 500~50000 CMH, refrigerant R410A. The complete factory specification follows. Made by Shenzhen Aircolourful Environment Technology Co., Ltd (3 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Handling Unit
- Air Flow Range: 500~50000 CMH
- Refrigerant: R410A
- Warranty: 1 Year
- After Warranty Service: Video technical support
- Place Of Origin: Guangdong, China
- Application: Hospital, Office, School, Hotel
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Refrigerant | R410A |
| Mounting Type | Other |
| Compressor Brand | TICA |
| Fan Motors Type | Brush |
| Application | Hospital, Office, School, Hotel |
| Key Selling Points | High-Accuracy |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 200 |
| Brand Name | AIRCOLOURFUL |
| Dimension(L*W*H) | custom |
| Product Name | Modular Air Handling Unit |
| Heating Coil | 300 /600 |
| Coooling Coil | 600 /700 /900 |
| Sterilization Method | Electronic purification,Activated carbon,Ultraviolet lamp |
| Air Flow Range | 500~50000 CMH |
| Functional Sections | Luxuriant |
| Feature | Labyrinth Frame Design |
| Certified | AHRI and Eurovent Certified |
| After Warranty Service | Video technical support |
| Condition | New |
| Selling Units | Single item |
| Single Package Size | 210X170X280 cm |
| Single Gross Weight | 200.0 kg |
Product Details
Product Paramenters
Our Advantages

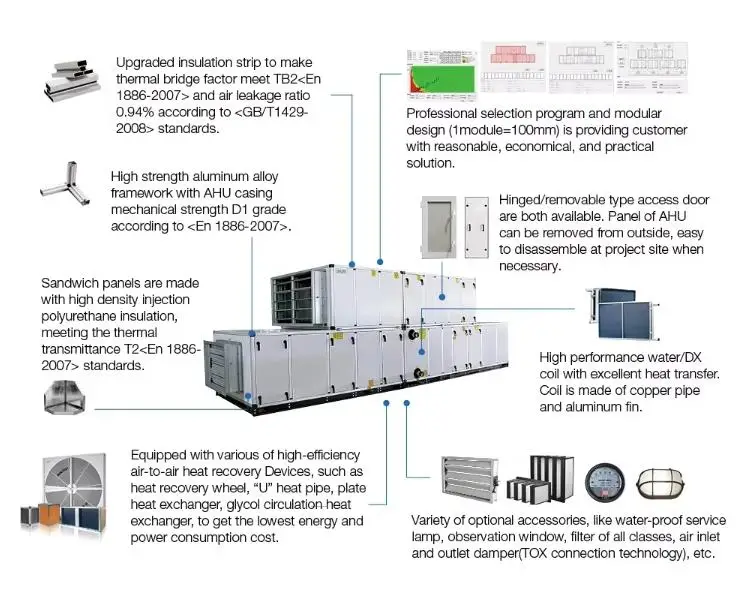

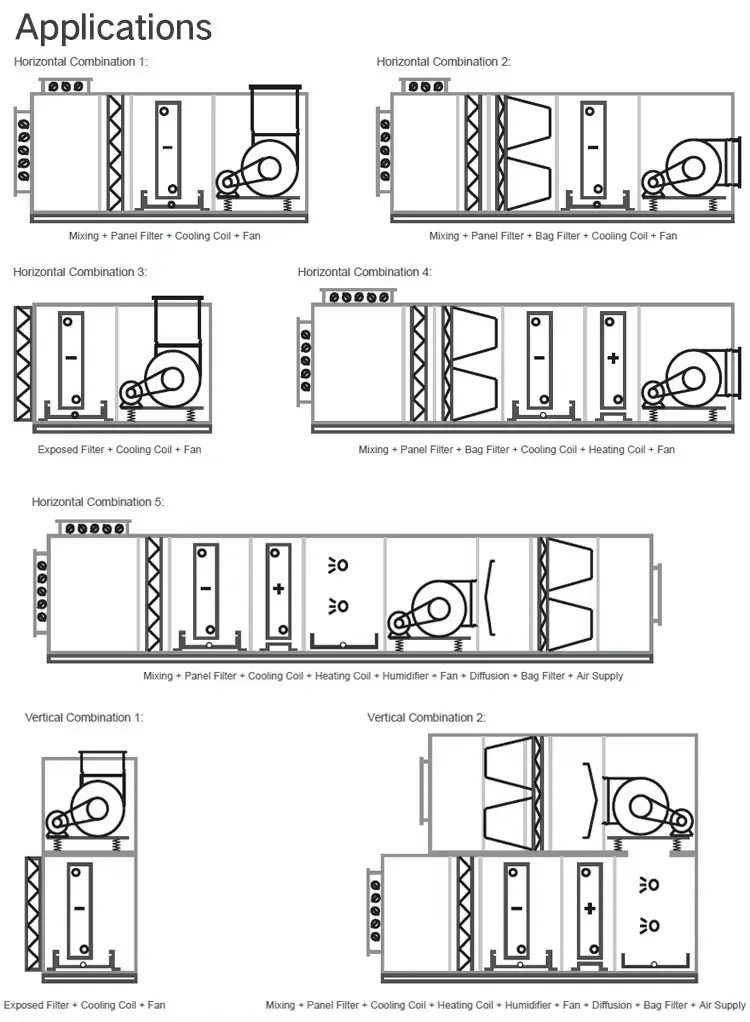

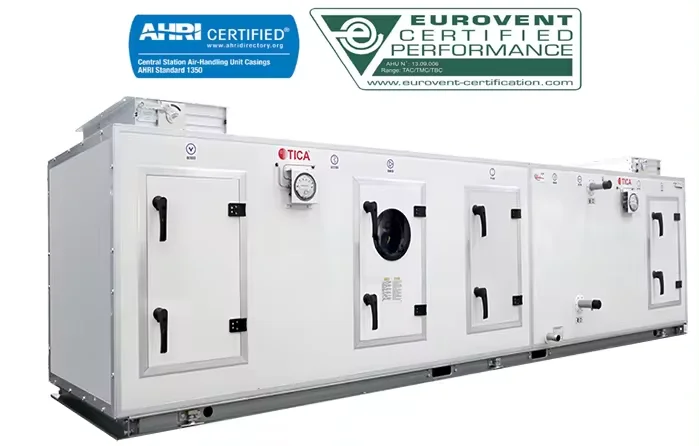

Description of modular air handling units Providing various combination patters of their functional sections based on customers requirements, and applied in many working conditions; Featured by a patented structure, low air leakage, modular design and level interior, and applicable to purification;Equipped with professional selection software and secure structure design, and free from any cold bridge or rusting;Provided with a base c/w a level regulator to ensure seamless splice with the housing.
Patented structure, low air leakage rate
Patented structure, low air leakage rate
TICA patented design of labyrinth seal structure which provides low air leakage formed by using aluminum sections with concave and
convex chamfer at joints of AHU body and tightening with bolts and nuts
TICA patented design of labyrinth seal structure which provides low air leakage formed by using aluminum sections with concave and
convex chamfer at joints of AHU body and tightening with bolts and nuts
Robust structural design
TICA labyrinth AHU has an aluminum alloy frame and a hidden metal inner frame, in which the former constitutes a rigid body with
high resistance to torsion by using a tenon structure and tightening with bolts and nuts, while the latter greatly improves the
strength of the unit.
high resistance to torsion by using a tenon structure and tightening with bolts and nuts, while the latter greatly improves the
strength of the unit.
Prevention of cold bridge and rust
All metals inside TICA labyrinth AHU are isolated from those outside by means of polyurethane foaming and specially designed
seals, eliminating insulation strips commonly used in general AHUs and therefore preventing the cold bridge. Frames of aluminum
sections are embedded around all panels, completely isolating corners of metal panel from air and moisture and thereby preventing
rust spot on panels.
seals, eliminating insulation strips commonly used in general AHUs and therefore preventing the cold bridge. Frames of aluminum
sections are embedded around all panels, completely isolating corners of metal panel from air and moisture and thereby preventing
rust spot on panels.
Flat interior, applicable for purification applications
TICA labyrinth AHU is flat interiorly and has no insulation strips, seals and small cumbersome parts, making it ideal for
purifiying air conditioning and IAQ. The inner panel can be of hot dip galvanized panel, color panel or stainless steel panel
purifiying air conditioning and IAQ. The inner panel can be of hot dip galvanized panel, color panel or stainless steel panel
Aerotechnics technology designed access doors
The access door is designed with aerotechnics technology, with high strength, small deformation, double knife seal and no leakage,
and a safety pressure relief device to ensure the safe operation of the access door.
and a safety pressure relief device to ensure the safe operation of the access door.

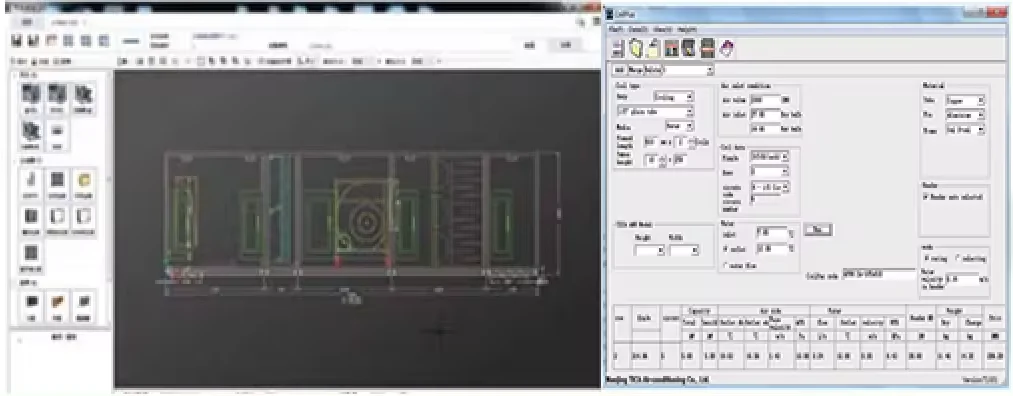

Professional selection software
TICAs AHUs are selected by professional selection software which is programmed in strict accordance with laws of engineering and
modified according to actual service to provide more reliable software.
modified according to actual service to provide more reliable software.
Leveling device
A leveling device is provided on the base, which levels individual AHU body before connecting functional sections of two AHUs,
ensuring seamless connection of AHUs
ensuring seamless connection of AHUs
Know more<<<
Company Profile
Certifications
Product packaging
FAQ
1. Who are we? Aircolourful is a leading global supplier of innovative energy-saving air conditioning, ventilation and heating products, and provides complete HVAc solutions for residential, commercial, industrial and medical buildings, and has won high praise from customers in various countries. | ||||||||
2.How's your quality? All products had strictly quality control before shipment and all products are manufacturing according to the ISO 7 of ISO14644-1 standard/ GMP standard. | ||||||||
3.What kind of products you can purchase from us? Modular cleanroom, Modular OT & Related products (such as: Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc. | ||||||||
4. Why should you buy from us not from other suppliers? More than 22 years experiences, much more 1000 projects around the world. | ||||||||

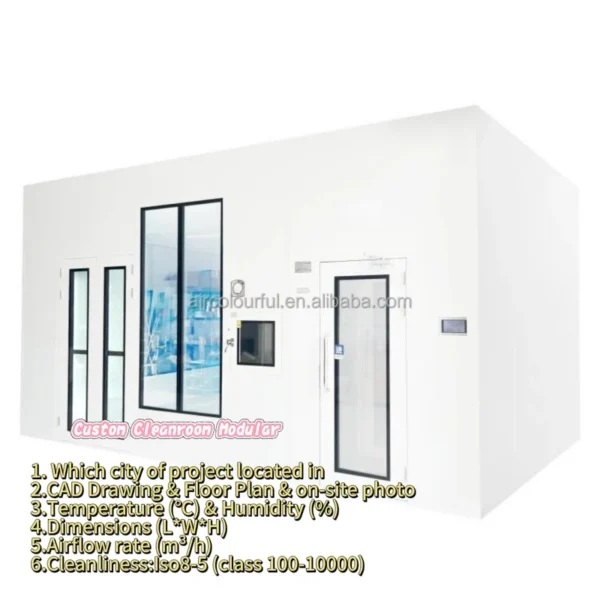

5. What information is required before customizing a cleanroom? 1. Which city is the project located in? 2. Are there any international standards and cleanliness level requirement? (for example: ISO 7 of ISO14644-1 standard) 3. What type of products is the cleanroom used to produce? What is its production process flow? 4. How big cleanroom you want build? (L*W*H), how about the height (For example: net height 2.5 meters, and how about the height from the floor to roof?) Do u have CAD Drawing? Please provide on-site photos. 5. What is the temperature (℃) & humidity RH (%) requirement of the cleanroom? 6. Are there any heating equipment in the cleanroom? What is their heat output or power? 7. Does the cleanroom need to be exhausted to the outside, and what is the exhaust volume? (For example: equipment needs to exhaust = 1000m3/h) 8. Does the building already have a chilled water system of 7℃~12℃? 9. Does the clean room need to control the concentration of bacteria? (Does the air conditioning system need to be equipped with sterilization facilities?) | ||||||||
>>>Click here to get more details<<< | ||||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $100 / set
- 5+ set: US $95 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
