This air handling unit is published with the manufacturer’s full specification — airflow 1958-239469m3/h, type Air Handling Unit. Made by Zero Technologies Co., Ltd. (8 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Handling Unit
- Operating Voltage: 220V
- Air Flow Range: 1000~320000 CMH
- Airflow: 1958-239469m3/h
- Warranty: 1 Year
- After Warranty Service: Video technical support
- Place Of Origin: China
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Airflow | 1958-239469m3/h |
| Operating Voltage | 220V |
| Mounting Type | Floor Standing |
| Key Selling Points | Low Noise Level |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Not Available |
| Core Components | Motor, PLC |
| Place Of Origin | China |
| Weight (Kg) | 100 KG |
| Brand Name | TICA |
| Product Name | TICA Brand Modular Air Handling Unit |
| Model | TAC /TBC |
| Heating Coil | 300 /600 |
| Coooling Coil | 600 /700 /900 |
| Sterilization Method | Electronic purification,Activated carbon,Ultraviolet lamp |
| Air Flow Range | 1000~320000 CMH |
| Functional Sections | Luxuriant |

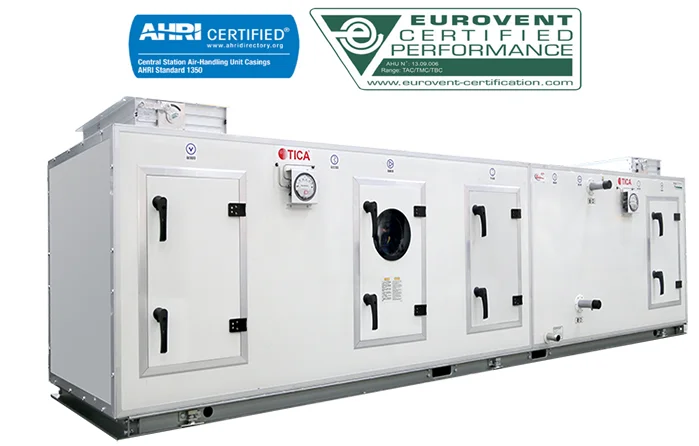

| Certified | AHRI and Eurovent Certified |
| Feature | Labyrinth Frame Design |
| After Warranty Service | Video technical support |
| Port Of Dispatch | FOB ZHUHAI |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 30000 sets per Year |
Product Details
Company Profile
TICA R&D INSTITUTE JAPAN
Our Advantages

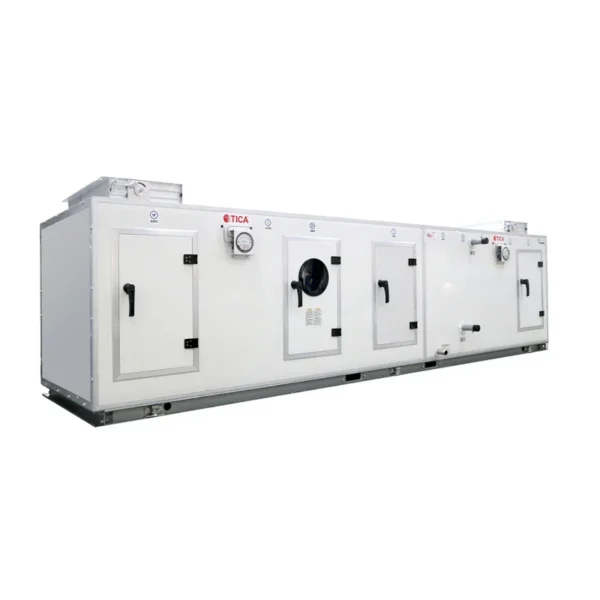

TICA Modular Air Handling Unit Description
Providing various combination patters of their functional sections based on customers’ requirements, and applied in many working conditions; Featured by a patented structure, low air leakage, modular design and level interior, and applicable to purification; Equipped with professional selection software and secure structure design, and free from any cold bridge or rusting;Provided with a base c/w a level regulator to ensure seamless splice with the housing.

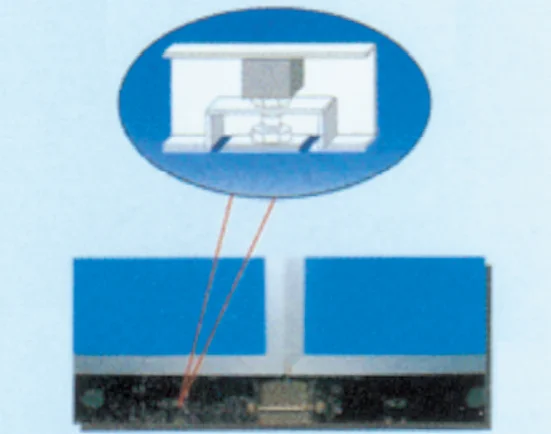

Patented structure, low air leakage rate
TICA patented design of labyrinth seal structure which provides low air leakage formed by using aluminum sections with concave and convex chamfer at joints of AHU body and tightening with bolts and nuts
Robust structural design
TICA labyrinth AHU has an aluminum alloy frame and a hidden metal inner frame, in which the former constitutes a rigid body with
high resistance to torsion by using a tenon structure and tightening with bolts and nuts, while the latter greatly improves the strength of the unit.
high resistance to torsion by using a tenon structure and tightening with bolts and nuts, while the latter greatly improves the strength of the unit.

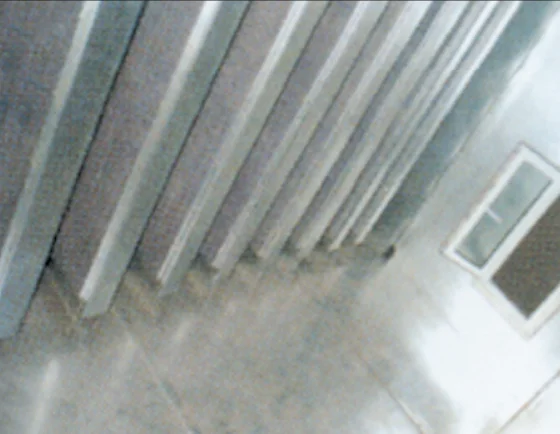

Flat interior, applicable for purification applications
TICA labyrinth AHU is flat interiorly and has no insulation strips, seals and small cumbersome parts, making it ideal for
purifiying air conditioning and IAQ. The inner panel can be of hot dip galvanized panel, color panel or stainless steel panel
purifiying air conditioning and IAQ. The inner panel can be of hot dip galvanized panel, color panel or stainless steel panel
Prevention of cold bridge and rust
All metals inside TICA labyrinth AHU are isolated from those outside by means of polyurethane foaming and specially designed
seals, eliminating insulation strips commonly used in general AHUs and therefore preventing the cold bridge. Frames of aluminum
sections are embedded around all panels, completely isolating corners of metal panel from air and moisture and thereby preventing
rust spot on panels.
seals, eliminating insulation strips commonly used in general AHUs and therefore preventing the cold bridge. Frames of aluminum
sections are embedded around all panels, completely isolating corners of metal panel from air and moisture and thereby preventing
rust spot on panels.
Leveling device
A leveling device is provided on the base, which levels individual AHU body before connecting functional sections of two AHUs,
ensuring seamless connection of AHUs
ensuring seamless connection of AHUs
Aerotechnics technology designed access doors
The access door is designed with aerotechnics technology, with high strength, small deformation, double knife seal and no leakage, and a safety pressure relief device to ensure the safe operation of the access door.

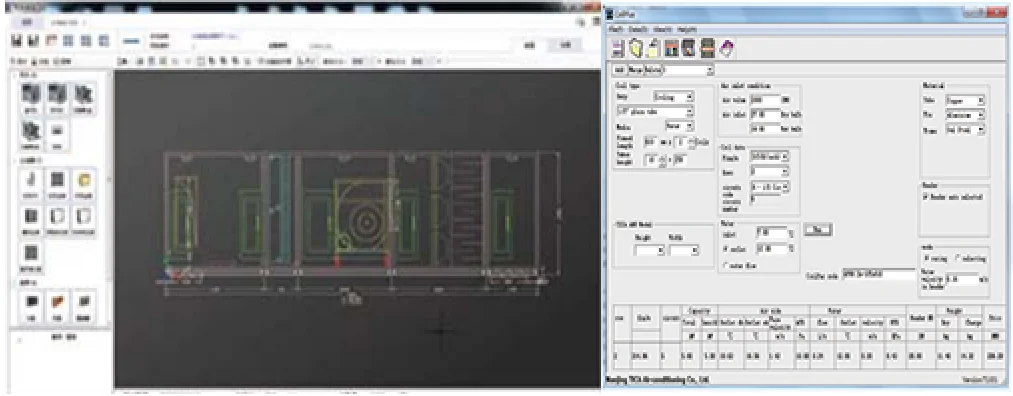

Professional selection software
TICA’s AHUs are selected by professional selection software which is programmed in strict accordance with laws of engineering and
modified according to actual service to provide more reliable software.
modified according to actual service to provide more reliable software.
1.United Technologies
TICA has established a global strategic joint venture with United Technologies Corporation (UTC) whose businesses include the
world’s most advanced Pratt & Whitney Aircraft Engines, the largest air-conditioning company Carrier and the biggest elevator
company Otis.
2.Market Share
No.1 air side products provider with 14.1% of market share.Consecutive 8 years of No.1 AHUs provider in China.
3.Export Ability
TICA products are exported to more than 50 countries and regions in the world, including Russia, Central Asia, Eastern Europe,Argentina, Southeast Asia, Indonesia, etc.
4.Choice of International Brand
The largest purification equipment supplier in the electronic cleaning industry, More than 2000 electronic enterprises choose TICA brand.The biggest supplier of clean room equipment in China; and Serving over 3000 GMP-Certified Pharmaceutical facilities;The biggest supplier of integrated clean room equipment for operating room in China;Serving over 6000 Grade-A Class 2 and Class 3.
hospitals;
TICA has established a global strategic joint venture with United Technologies Corporation (UTC) whose businesses include the
world’s most advanced Pratt & Whitney Aircraft Engines, the largest air-conditioning company Carrier and the biggest elevator
company Otis.
2.Market Share
No.1 air side products provider with 14.1% of market share.Consecutive 8 years of No.1 AHUs provider in China.
3.Export Ability
TICA products are exported to more than 50 countries and regions in the world, including Russia, Central Asia, Eastern Europe,Argentina, Southeast Asia, Indonesia, etc.
4.Choice of International Brand
The largest purification equipment supplier in the electronic cleaning industry, More than 2000 electronic enterprises choose TICA brand.The biggest supplier of clean room equipment in China; and Serving over 3000 GMP-Certified Pharmaceutical facilities;The biggest supplier of integrated clean room equipment for operating room in China;Serving over 6000 Grade-A Class 2 and Class 3.
hospitals;
Spectification
Horizontal Combination 1
Mixing +Panel Filter + Cooling Coil + Fan
Horizontal Combination 2
Mixing+ Panel Filter + Bag Filter
+ Cooling Coil + Fan
Horizontal Combination 3
Exposed Filter + Cooling Coll Fan
Horizontal Combination 4
Mixing + Panel Filter + Bag Filter + Cooling Coil + Heating Coil + Fan
Horizontal Combination 5
Mixing + Panel Filter + Cooling Coil + Heating Coil + Humidifer
+ Fan Diffusion + Bag Filter + Air Supply
+ Fan Diffusion + Bag Filter + Air Supply
Vertical Combination 1
Exposed Filter + Cooling Coil + Fan
Vertical Combination 2
Mixing + Panel Filter + Cooling Coil + Heating Coil + Humidifer
+ Fan + Diffusion + Bag Filter + Air Supply
+ Fan + Diffusion + Bag Filter + Air Supply
Model： | Air Flow Range |
TAC/ TBC | 1000~320000 CMH |
Certifications and Authorization
Product packaging
PRESTIGIOUS PROJECTS IN OVERSEAS MARKET
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $5000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air handling unit be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
