Air Handling Unit, FFU, HEPA

The air handling unit listed here carries power supply 220 240V 50 60Hz, certifications CE FCC RoHS, documented exactly as the manufacturer publishes it. Made by Shenzhen Fairtech Electronics Co.,LTD (6 years on the platform, typical reply ≤10h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air Handling Unit

• Power Supply: 220 240V 50 60Hz
• Frame Material: Cold plate environmentally friendly galvanized sheet
• Wind Speed: Three gears
• Certifications: CE FCC RoHS
• Place Of Origin: China
• Single Package Size: 130X40X60 cm

Technical Specifications

Product Details

Product Description

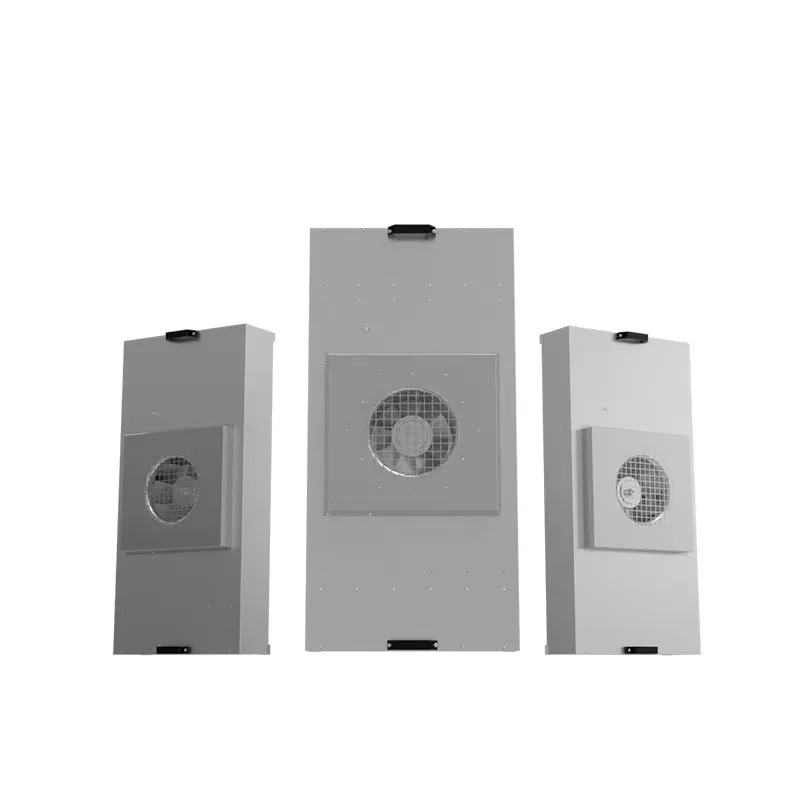

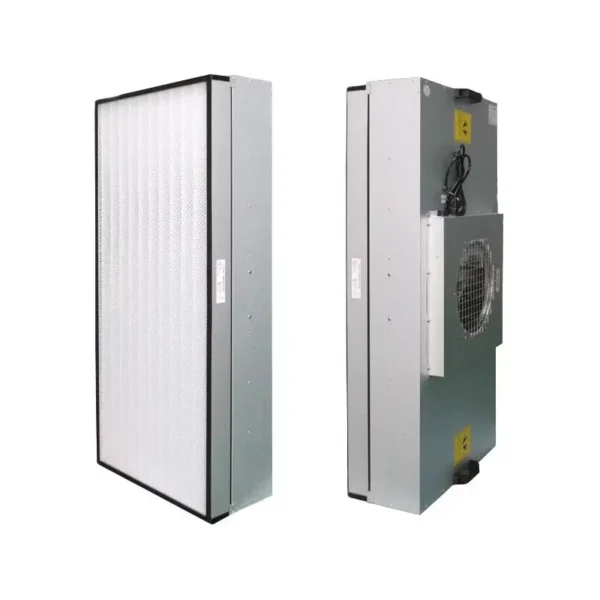

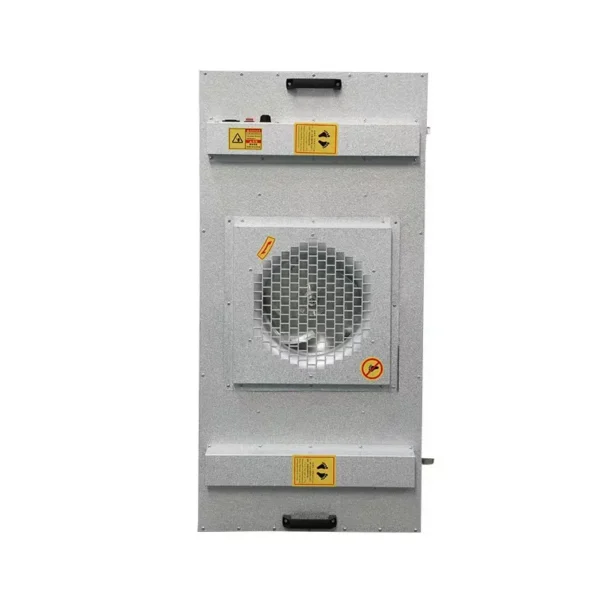

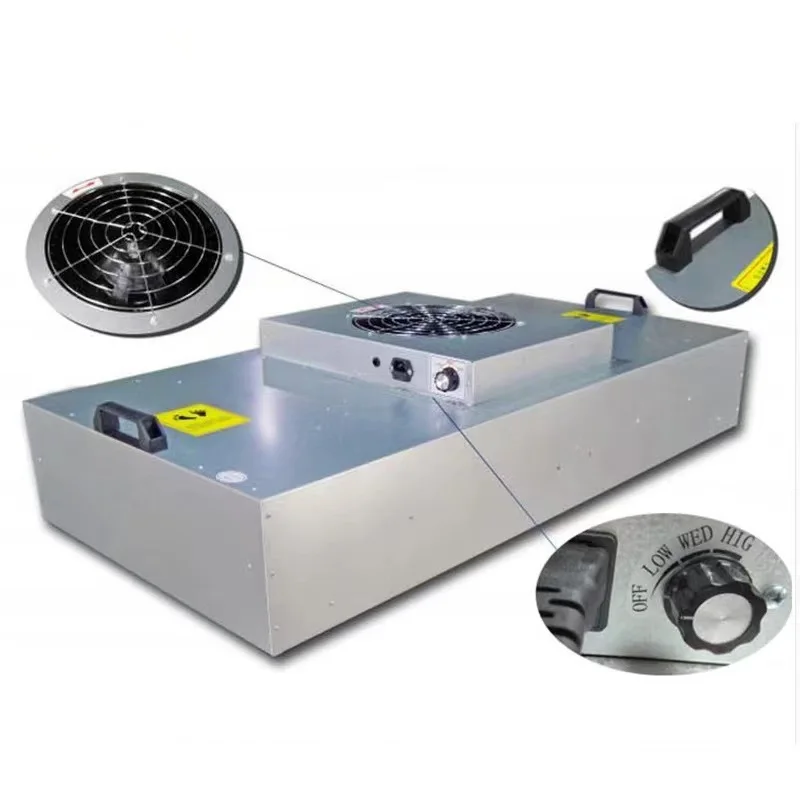

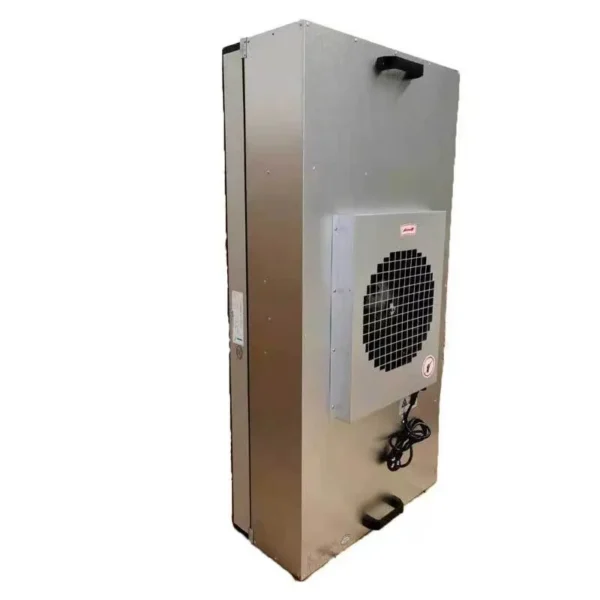

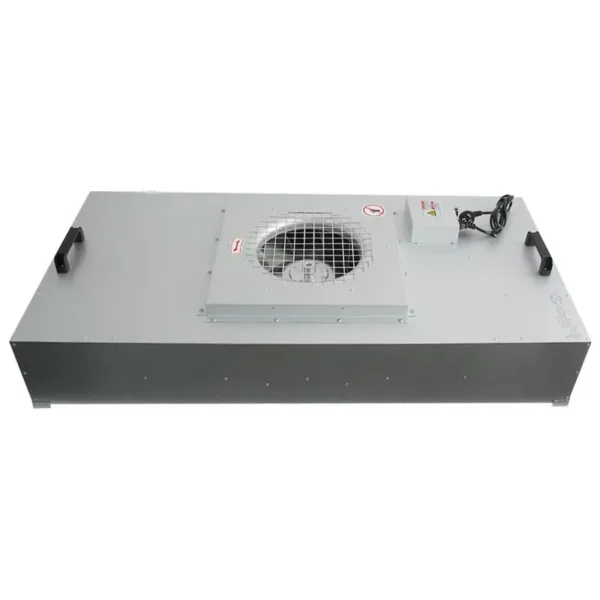

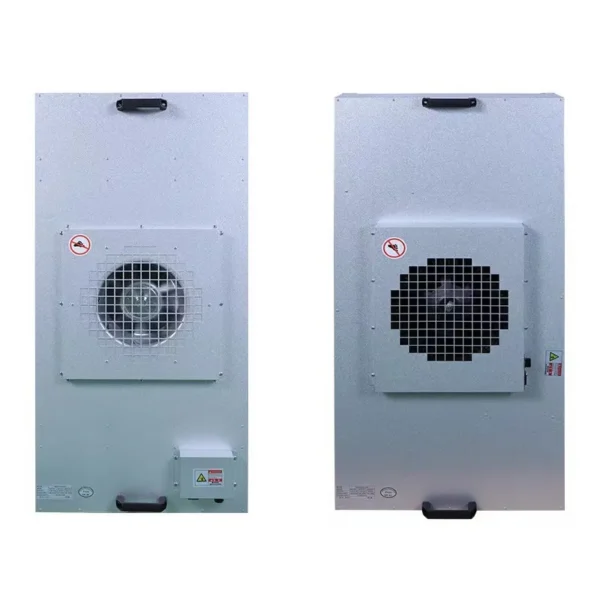

HEPA FFU with High Efficiency 99.999% HEPA Filter Large Area Purification Commerical home Hepa Filter Air Purifier

Description:

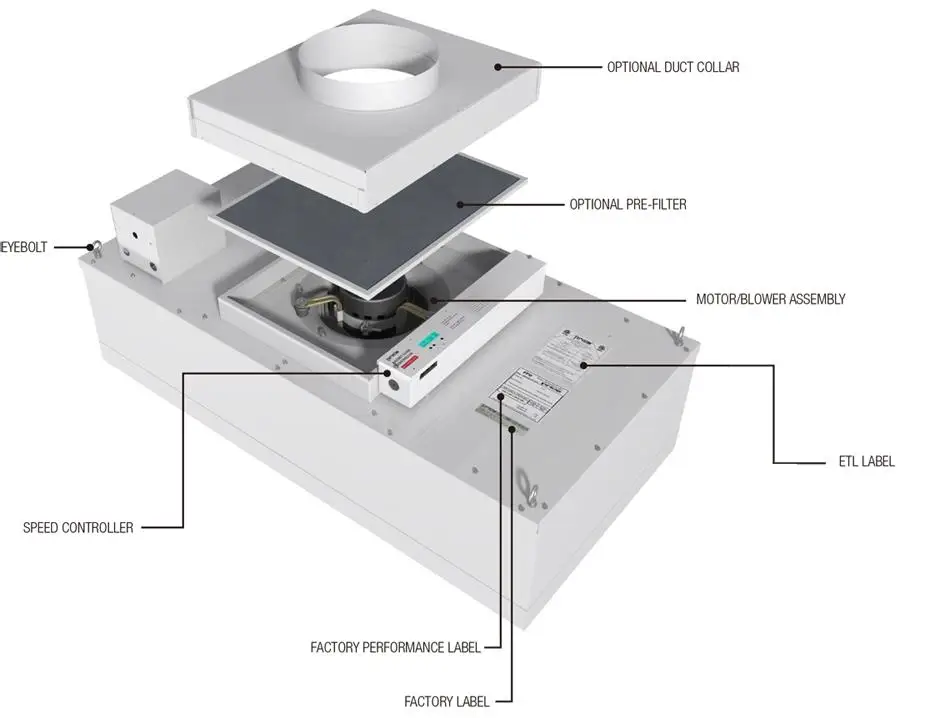

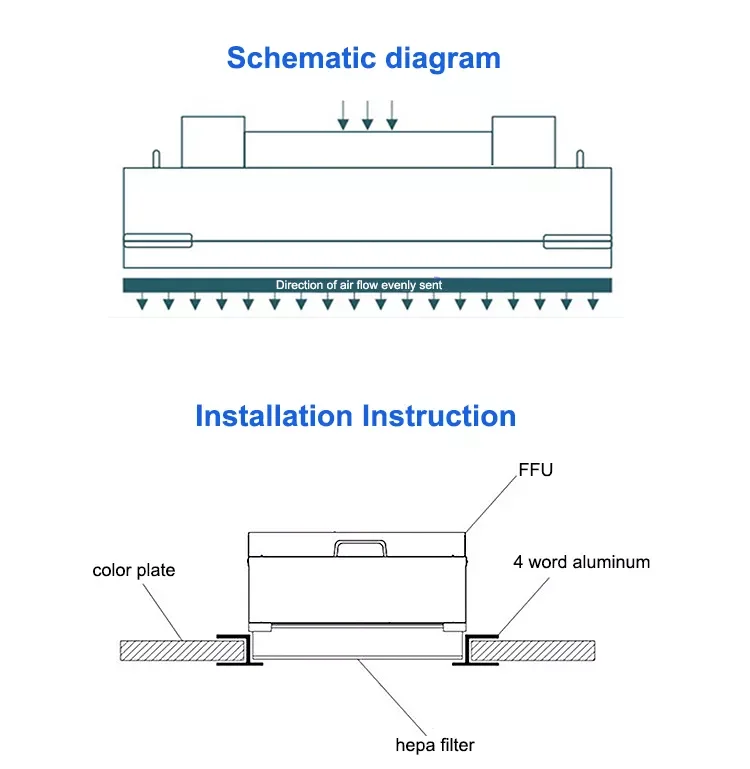

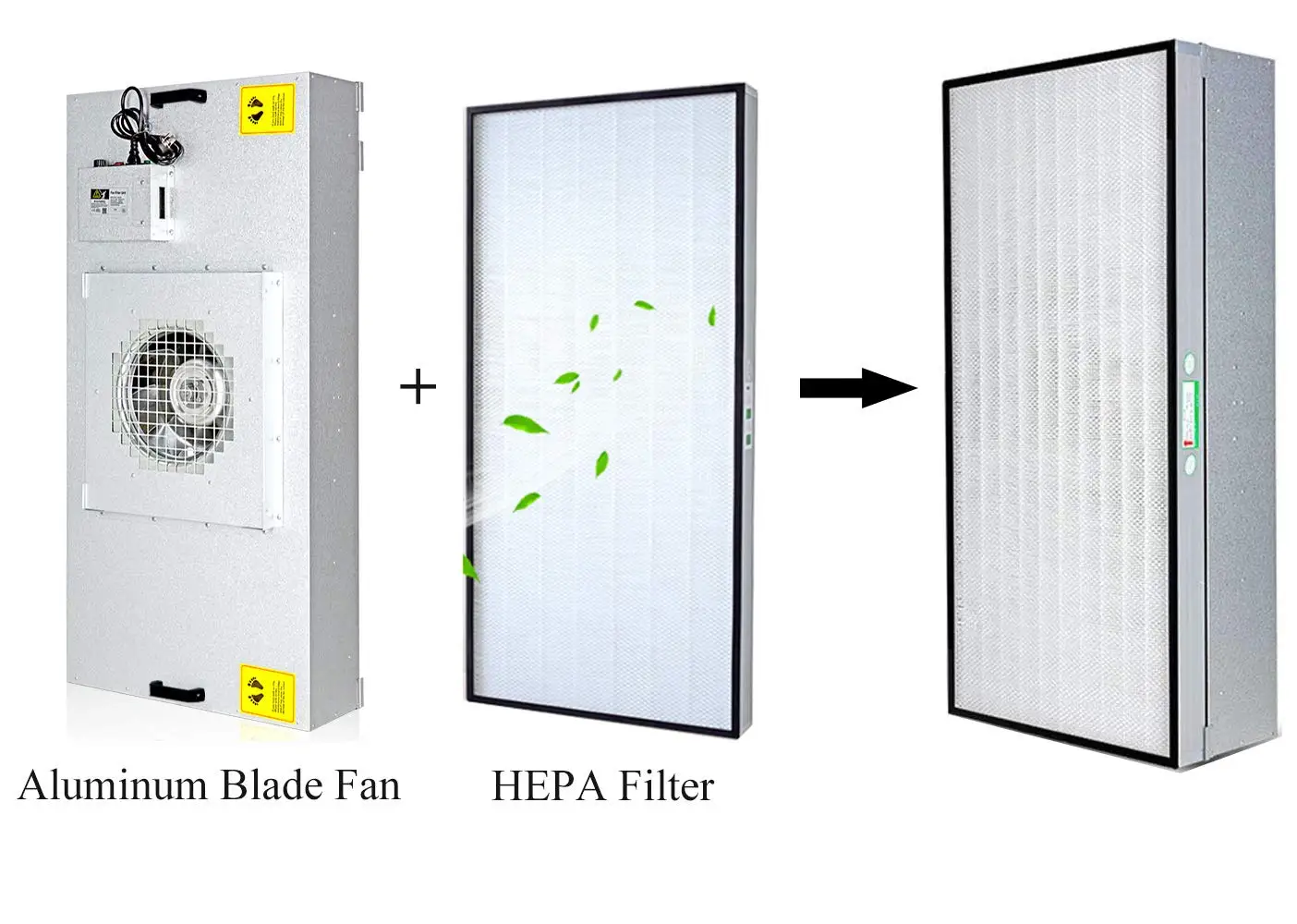

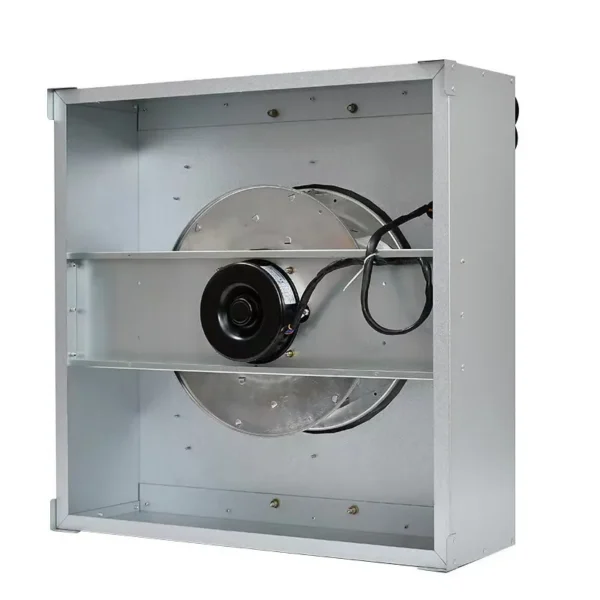

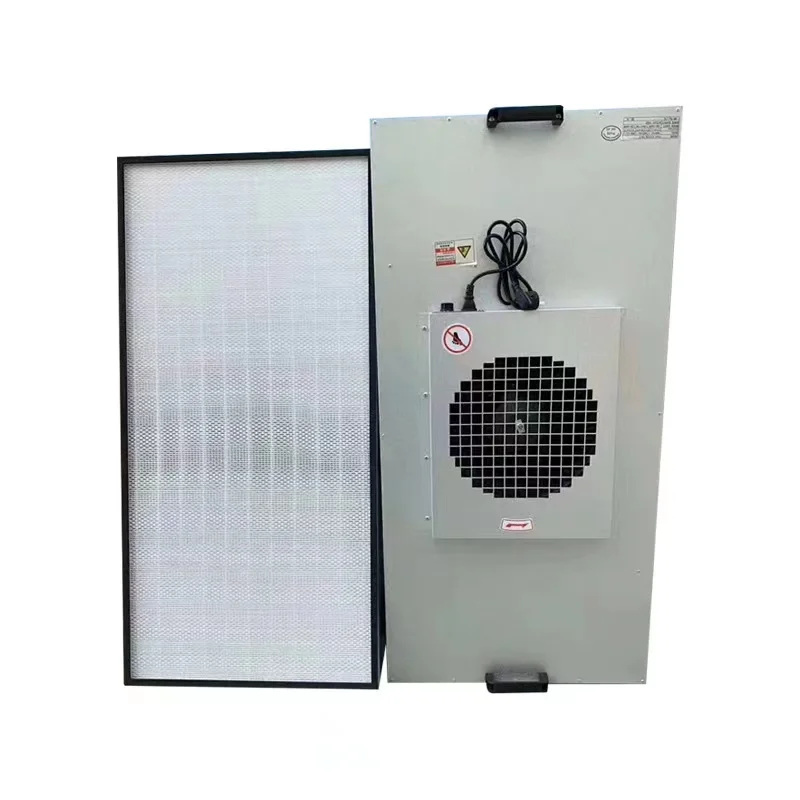

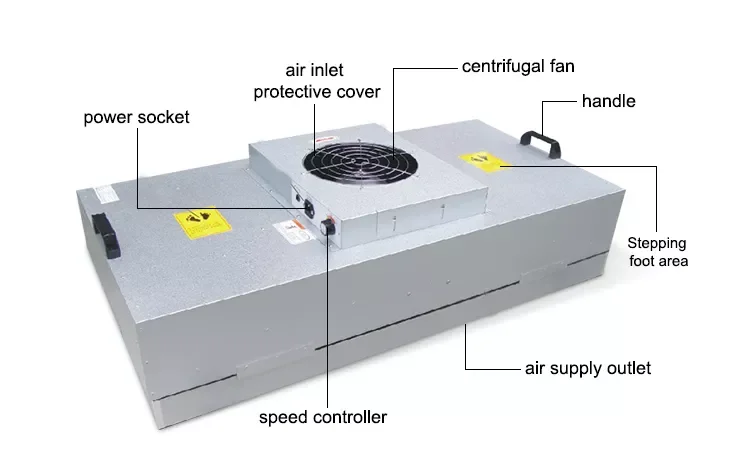

A fan filter unit (FFU) is a of type of motorized air filtering equipment. It is used to supply purified air to cleanrooms,laboratories, medical facilities or microenvironments by removing harmful airborne particles from recirculating air. The units are installed within the system's ceiling or floor grid. Large cleanrooms require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand. Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution.

Spefication:

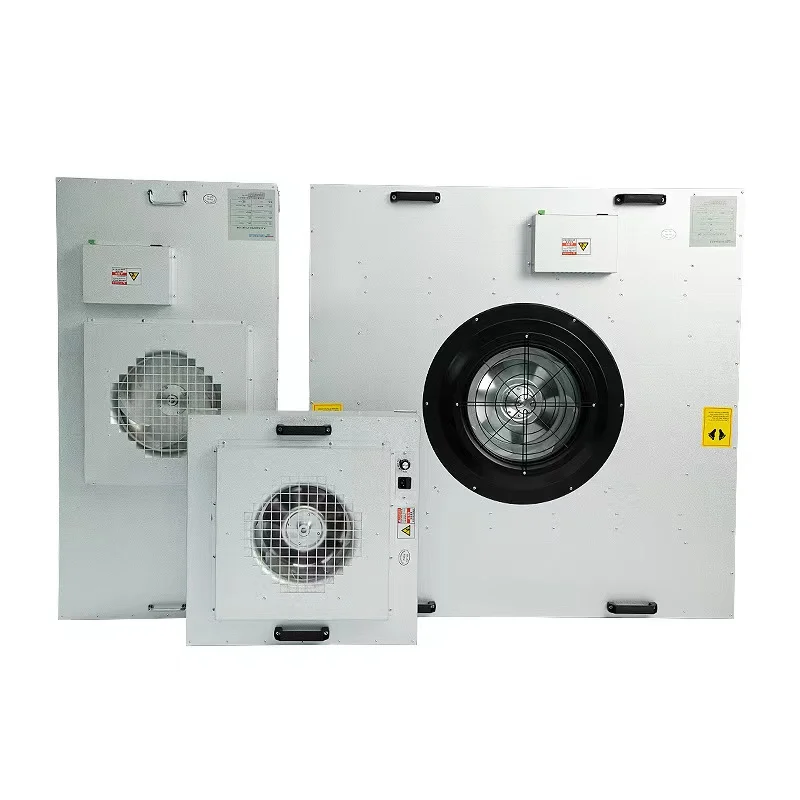

	Type 1	Type 2	Type 3	Type 4
External dimension	575X575X325	1175X575X325	1175X875X325	1175X1175X325
Air volume(m3/h)	520	1080	1800	2210

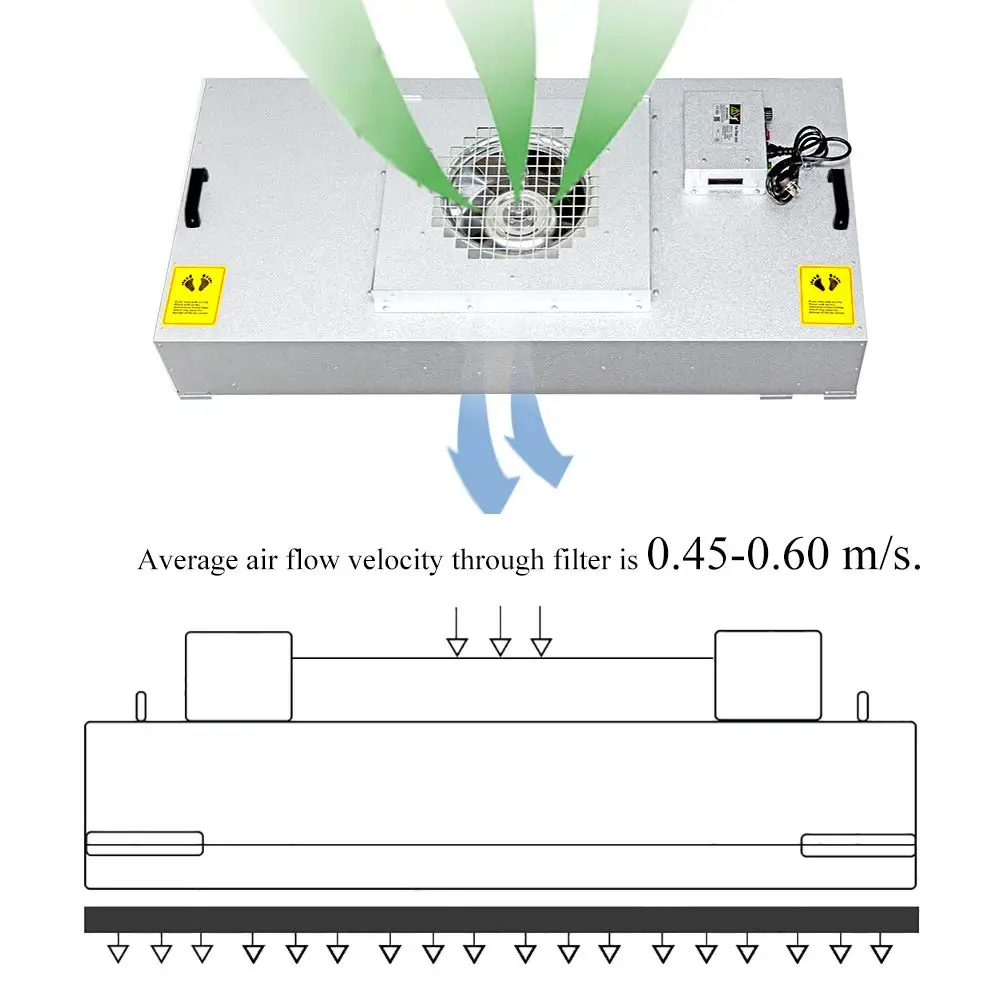

Air speed (m/s)	0.45m/s ± 20%
Cleanliness	Class 1-100 (the U.S federal standard209E )
HEPA	H 14~ U16 (99.99%@0.3u m~99.9999%0.12u m)
HEPA size	570X570X70	1170X570X70	1170X870X70	1170X1170X70
Noise (dB)	The test point is one meter below , speed 0.35m/s
		<47dB	<53dB	<54dB	<55dB
Main body material	Stainless steel/zinc aluminum alloy/steel paint
Power (230VAC50HZ)	75w	120w	230w	230w
Weight	18Kg	35Kg	38Kg	41Kg

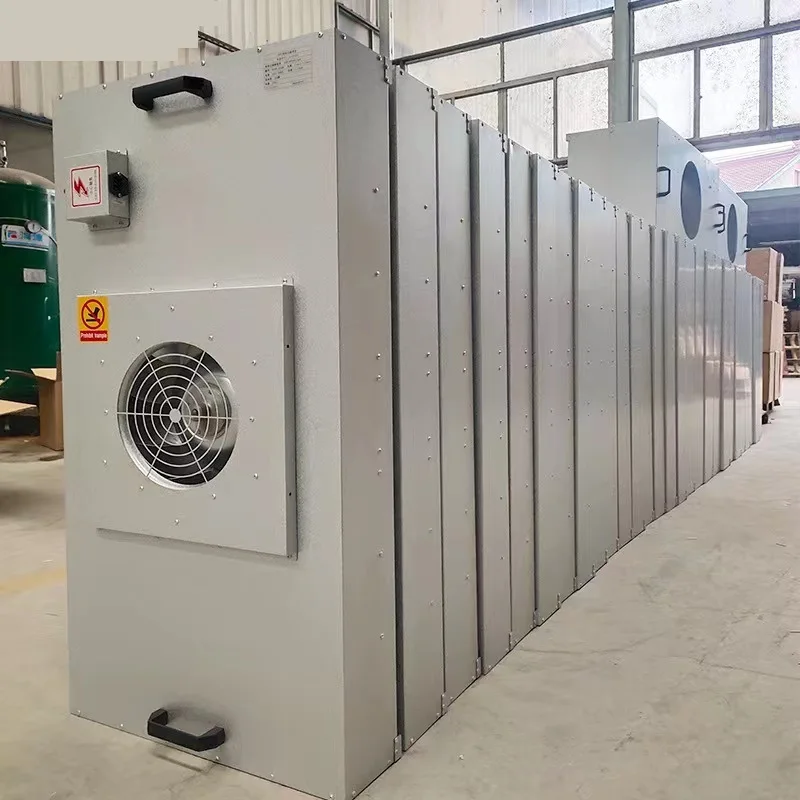

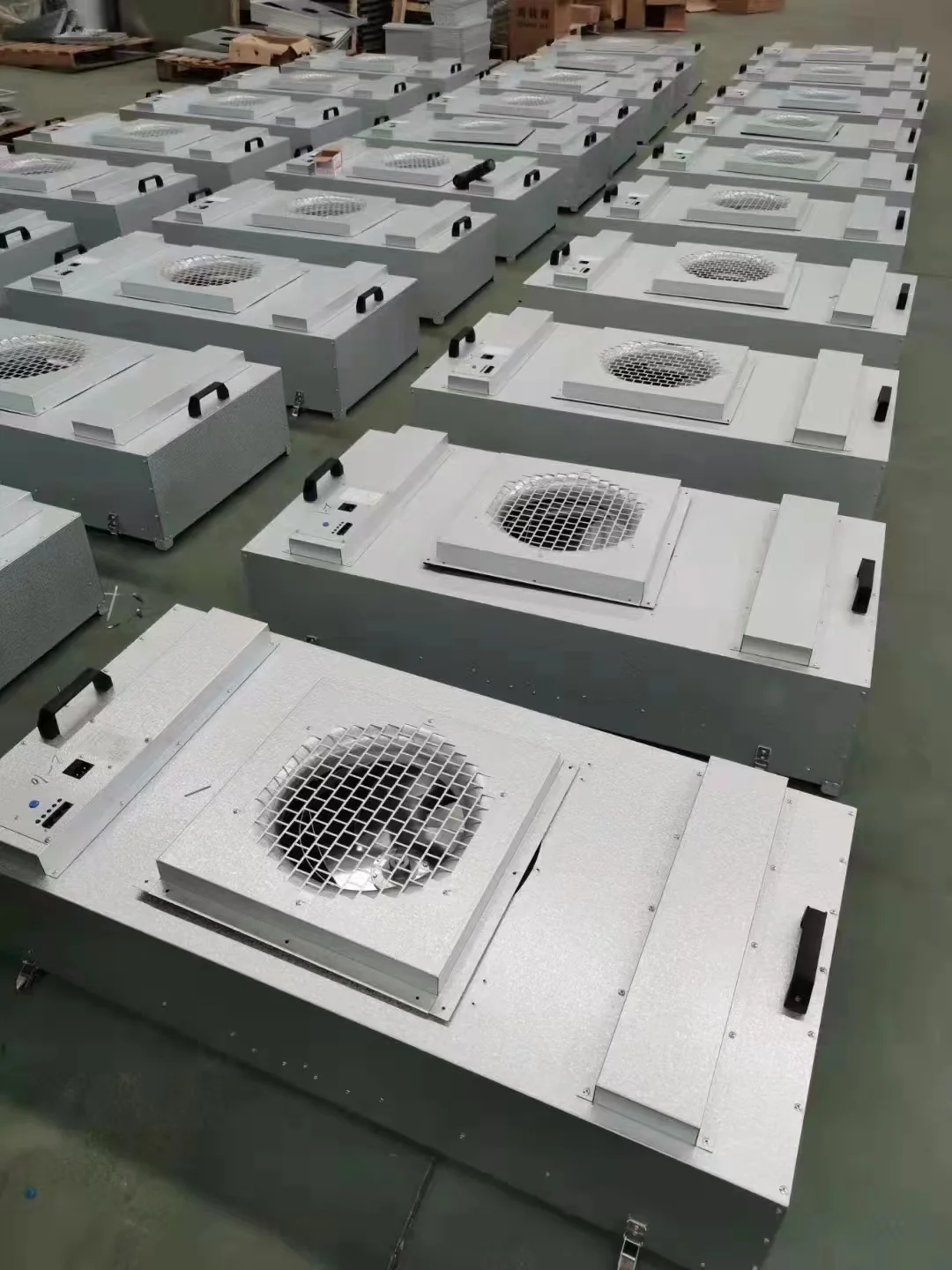

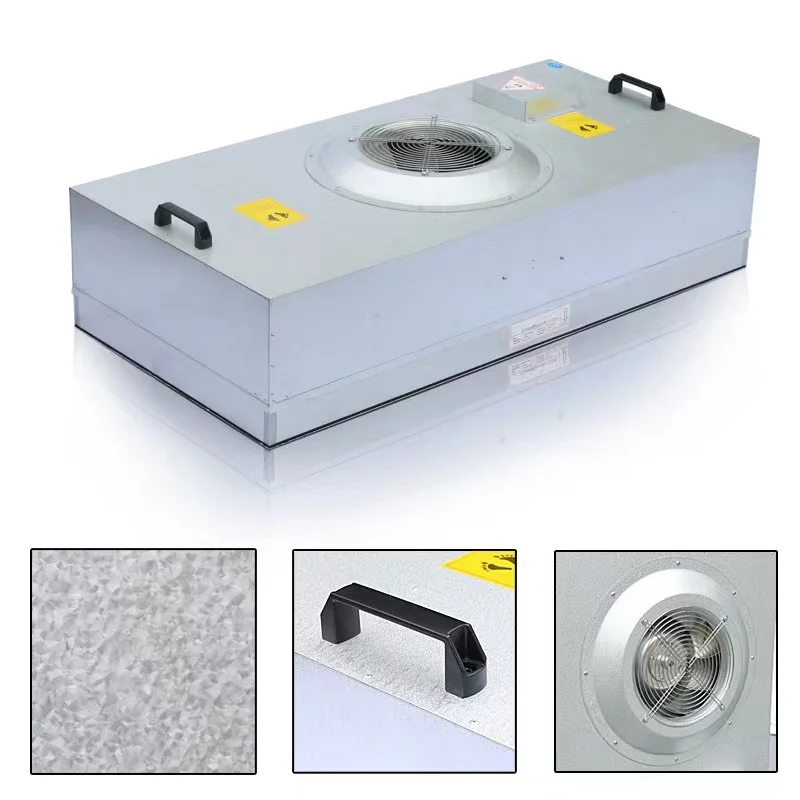

Details Images

Buyer Reviews

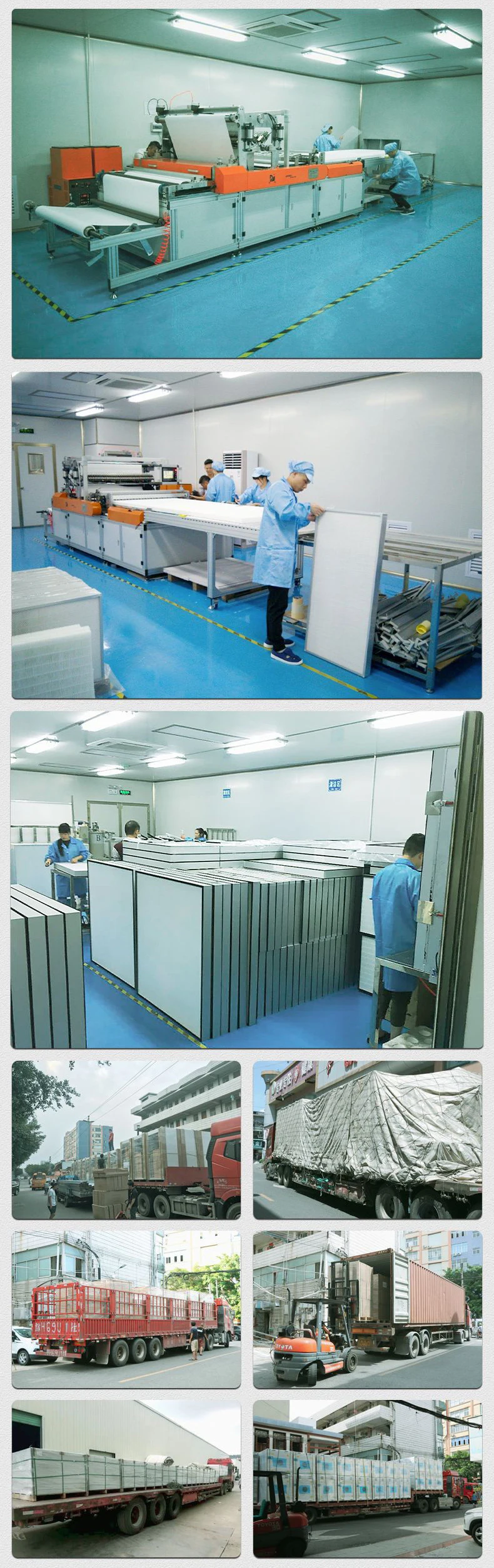

Packing & Delivery

Certifications

Company Profile

Shenzhen Fairtech is a manufacturer of static control, static disipassive, cleanroom products with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, Our products can be widely used in manufacturing microelectronics, semiconductors, TFT-LCD, HDD, optics, biomedical, pharmaceutical medical, petrochemical industries and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We export to Southeast Asia, E.U. America, Middle East.Due to our innovative technology and good service in the past years, we are widely accepted by customers like: INTEL, SAMSUNG, MOTOROLA and etc. The advancement of technology and teh requirment of customers is our factory of development and gravitation of amibition. we will do our best to bring our customers more prefect products, more professional service and more competitive price.With our sincerity, Trust, Cooperation to creat a "win-win" bright future for both us.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success! At present, the company has a strict quality assurance system. The company introduced advanced equipment, and set up a professional quality testing process to ensure that its production in strict accordance with customer requirements. The company has passed the iso9001 quality system certification. At the same time, the company also has more than 20 supporting production units and a strong development team, which provides a comprehensive and strong guarantee. for the company's production, research and development . OEM and ODM is highly welcome Quality, service, and credibility are our eternal pursuit! We firmly believe that customers are our center, products are our business card. We cherish every customer, look forward to have a long business with you

Contact US

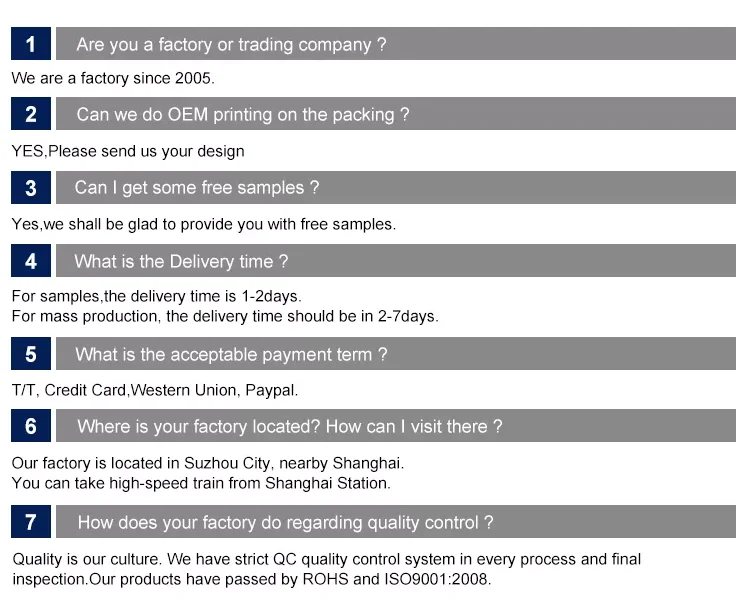

FAQ

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–99 piece: US $441 / piece
  • 100–499 piece: US $369 / piece
  • 500+ piece: US $336 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Which certifications does this air handling unit carry?

It is supplied with CE FCC RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the air handling unit be supplied for my local voltage?

The standard configuration is 220 240V 50 60Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Fairtech Electronics Co.,LTD, based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Fairtech Electronics Co.,LTD range on HVACR Nexus.
