Ahu Air Conditioning Unit, Air Purifier Filter

The ahu air conditioning unit listed here carries material Polyester fiber filter cotton, type Air Purifier Filter, documented exactly as the manufacturer publishes it. Made by Dawei Purification Technology (Hebei) Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Ahu Air Conditioning Unit

• Material: Polyester fiber filter cotton
• Warranty: 1 Year
• Place Of Origin: Hebei, China
• Type: Air Purifier Filter
• Drain Type: Not Available
• Air Inlet Size: 1 in

Technical Specifications

Product Details

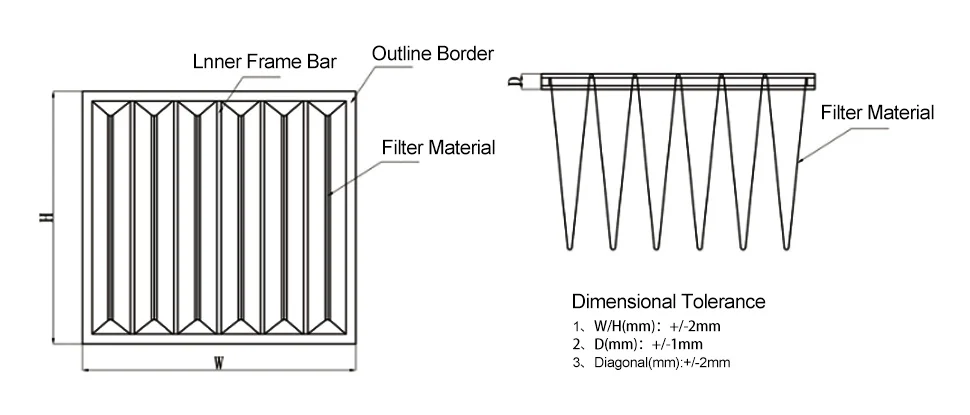

Outline border	Aluminum frame, galvanized frame, stainless steel frame, plastic outer frame
Filter material	High-quality polyester fiber filter cotton
Filtration efficiency	G3/G4/M5
Maximum operating temperature	90℃
Rated wind speed	2.5m/s
Internal stay	Galvanized frame/stainless steel frame (riveted/snap)

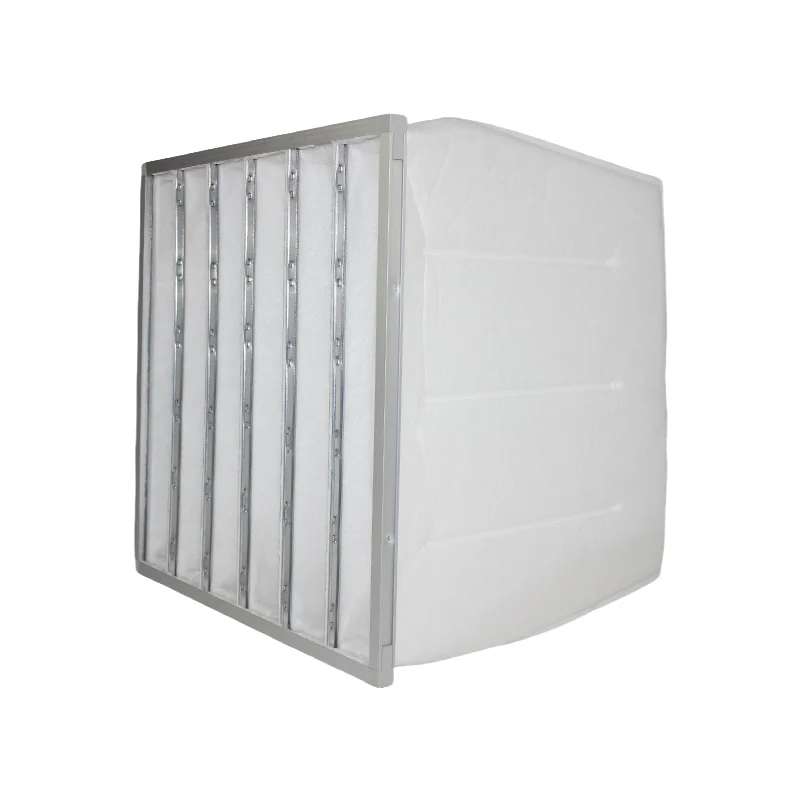

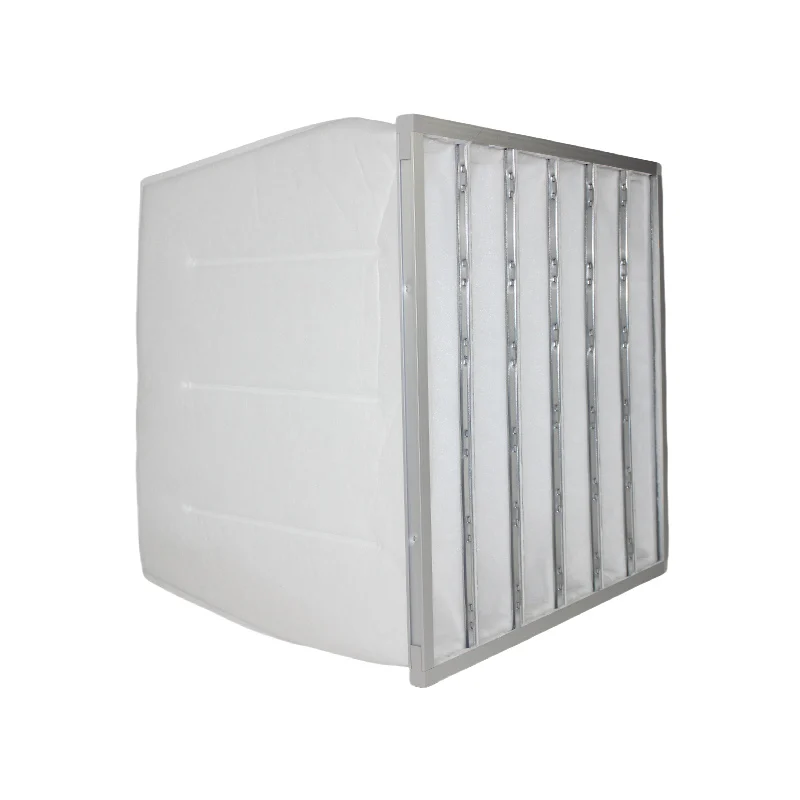

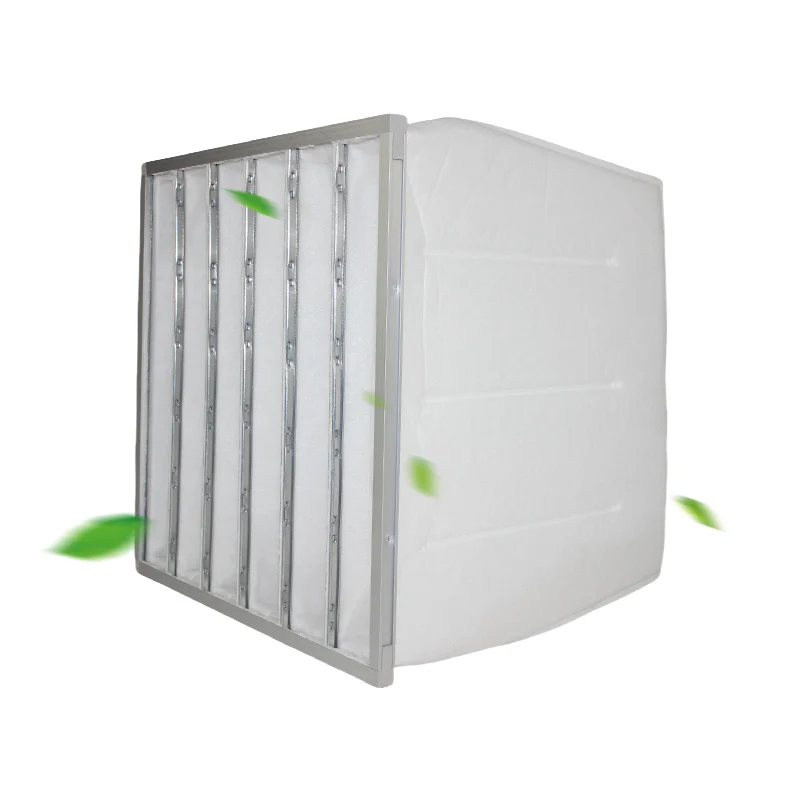

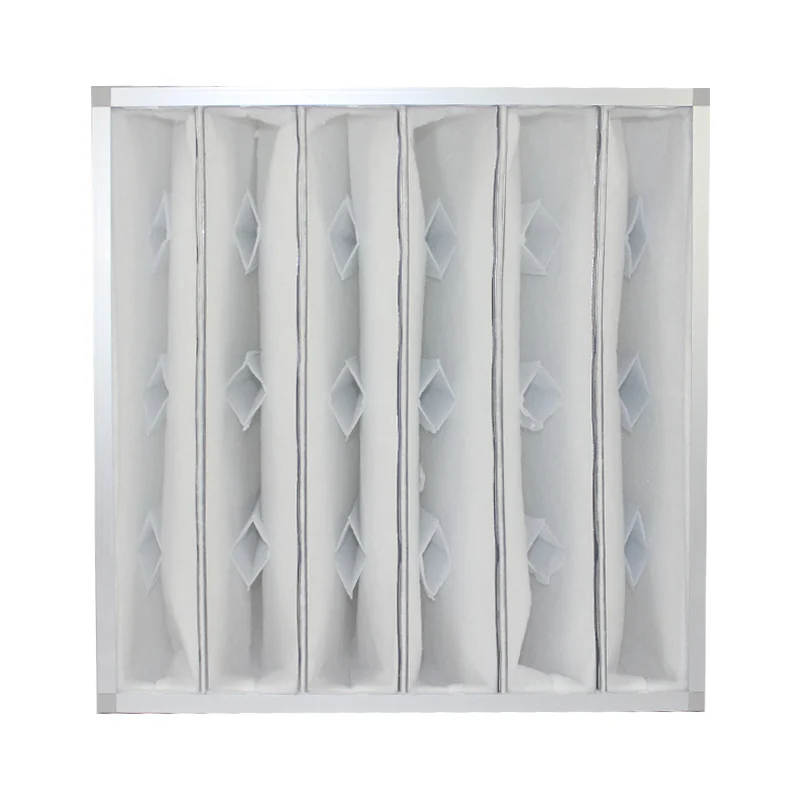

Primary bag filter

The primary bag filter is used for the first filtration of fresh air in the purification air conditioning system. It mainly filters suspended particles larger than 2μm and various foreign substances in the atmosphere (such as cleaning dust, pollen, mites, sand, spray paint, fiber dust, willow catkins, etc.).

Product feature

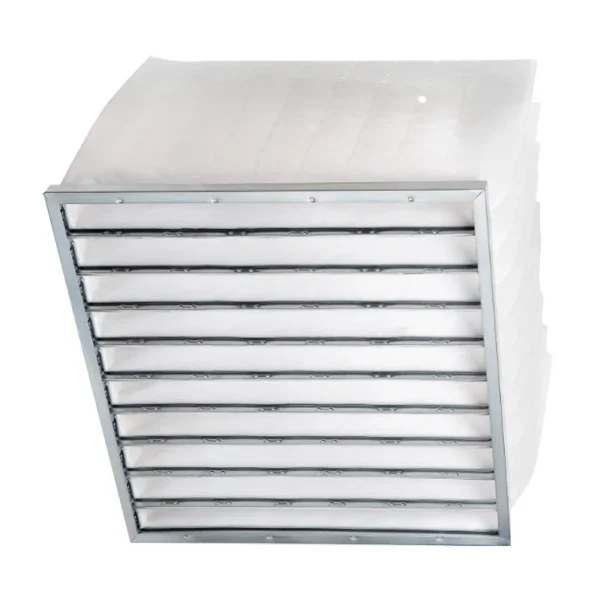

●The metal frame structure is sturdy

The metal outer frame and the metal inner frame provide support. The structure is sturdy and easy to install and disassemble. The filter bags and the inner frame are fixed by perforated riveting or metal strip crimping process

● High-quality fluffy fiber filter cotton

High-quality polyester fiber filter material, made by stepwise encryption technology, has excellent filtration performance. The filter bags are made by five-thread sewing or microwave hot melt edge sealing process. The filter bag and the supporting frame adopt a rigid connection structure to ensure the sealing performance of the filter bag and the reliability of operation, and prevent secondary dust generation

●High dust holding capacity, low resistance

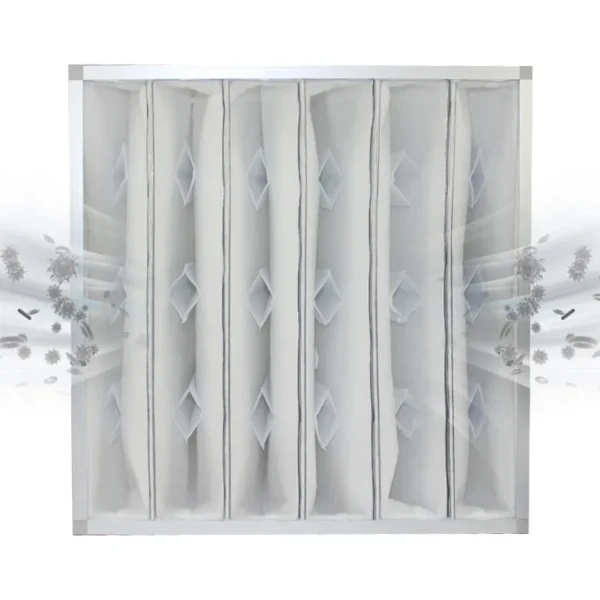

The filter bags adopt a standard V-shaped structure that conforms to the airflow, featuring strong airflow stability, ensuring the effective utilization of the filter medium and guaranteeing the filtration effect. It can be cleaned and reused, and has a long service life

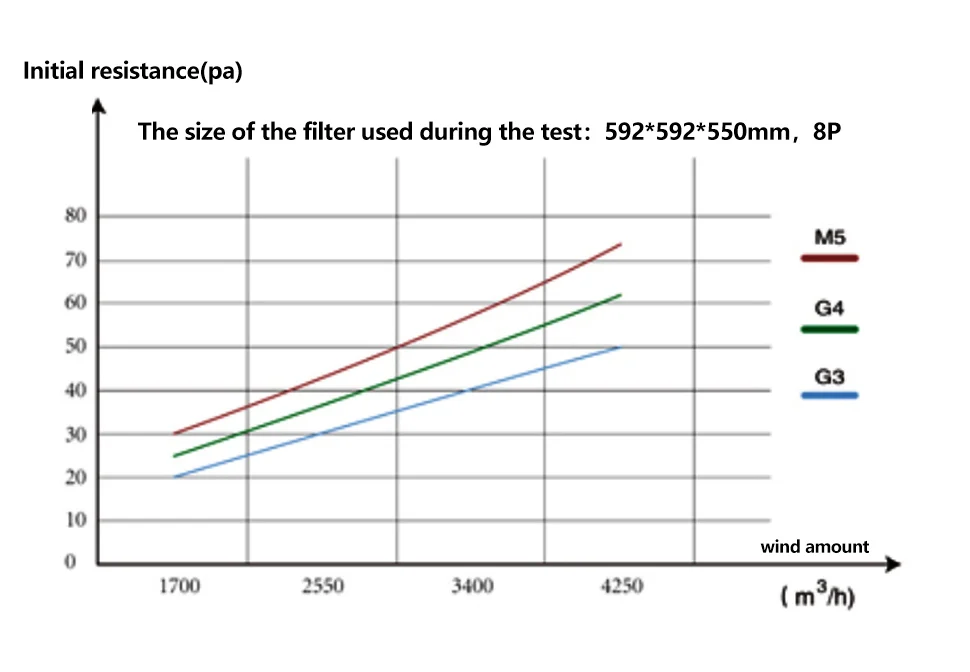

Initial resistance-wind speed relationship curve graph

Product application

●Pre filtration of large air compressors

●Pre filtration of air conditioning and ventilation systems to avoid dust pollution inside the system

●Centralized ventilation and air conditioning system and return air filtration in the clean room extend the service life of the high-efficiency filter in the later stage

●The ventilation system of ordinary industrial plants meets the general cleanliness requirements for air

Nominal size W * H * D (inch)	Boundary dimension W * H * D (mm)	Number of bags（number）	Nominal air delivery(m ³/h)	Initial resistance at different efficiencies (Pa)					Suggested final resistance(Pa)
								G3	G4	M5	250
24*24*22	592*592*550	8	3400	40	49	60	250
20*24*22	490*592*550	6	2850	40	49	60	250
20*20*22	490*490*550	5	2300	42	50	60	250
12*24*22	287*592*550	4	1700	42	50	60	250
24*24*15	592*592*381	8	3400	45	58	70	250
20*20*15	490*490*381	5	2300	46	60	70	250
12*24*15	287*592*381	4	1700	46	60	70	250
20*24*15	490*592*381	6	2850	46	60	70	250

Q: What is your delivery time?

A:(1) Under normal circumstances, if the goods are in stock, the samples will be sent by courier
immediately within 3-7 days.

(2) Usually within 30 days, please confirm with us before ordering!

Q: What are the payment terms?

A: Generally, customers need to pay 30% as a deposit; 70% before shipment;

Q: Can you produce according to samples?

A: Yes, we can produce according to your samples or technical drawings. We will make molds and fixtures.

Q: What is your sample policy?

A: If we have stock, we can provide samples, but the customer must pay the sample fee and express delivery fee.

Q: Do you test all goods before delivery?

A: Yes, we undergo 100% professional testing before shipment.

Q: How do you make our business build a long-term good relationship?

A: We maintain good quality and competitive prices to ensure that our customers benefit.

Q: Are you a manufacturer or a trading company?

A: We are a real factory. We have internationally advanced equipment, first-class product testing methods, quality certification system and modern lean production management team. Products have undergone strict supervision and inspection.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–99 piece: US $4.59 / piece
  • 100–999 piece: US $3.74 / piece
  • 1000+ piece: US $2.89 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ahu air conditioning unit?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
