Galvanized Frame Pleated Panel, HVAC, 20x20x1

This galvanized frame pleated panel is published with the manufacturer’s full specification — material Mesh filter cotton, type Air Purifier Filter. Made by Dawei Purification Technology (Hebei) Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Galvanized Frame Pleated Panel

• Material: Mesh filter cotton
• Warranty: 1 Year
• Place Of Origin: Hebei, China
• Type: Air Purifier Filter
• Drain Type: Not Available
• Air Inlet Size: 1 in

Technical Specifications

Product Details

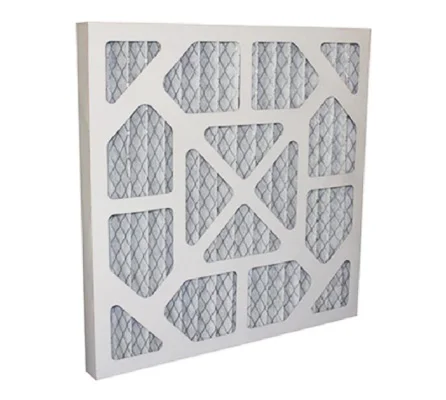

Outline border	Moisture-proof paper frame
Filter material	Mesh filter cotton
Filter efficiency	G3/G4/M5
Continuous operating temperature	≤80 ℃
Rated wind speed	2.5m/s
Product application	Pre-filtration of the centralized ventilation system in the cleanroom; 2. Centralized ventilation systems for large-scale ordinary industrial households; 3. In the purification of central air conditioning ventilation systems, pharmaceuticals, hospitals, electronics, food and other industries. 4. Pre-filtration for ventilation and purification in livestock breeding

Product Features

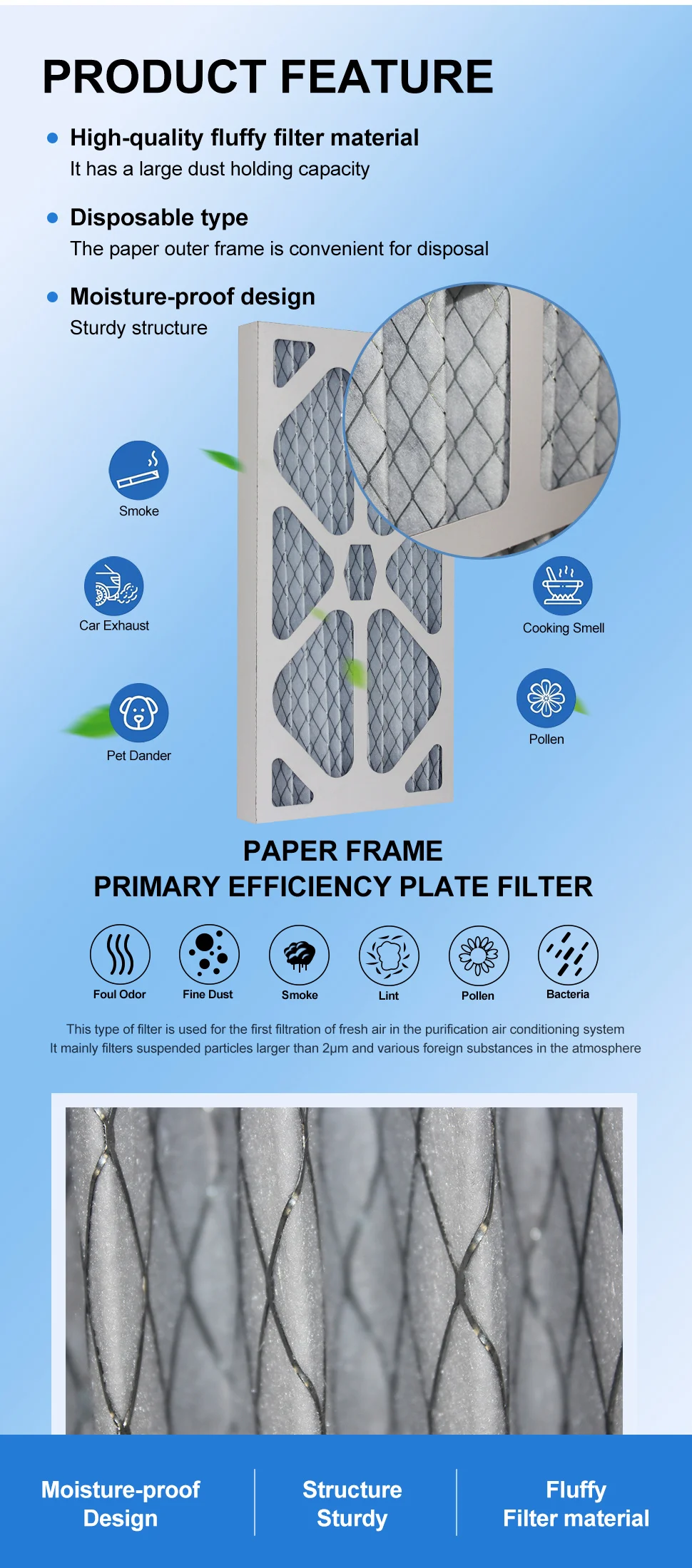

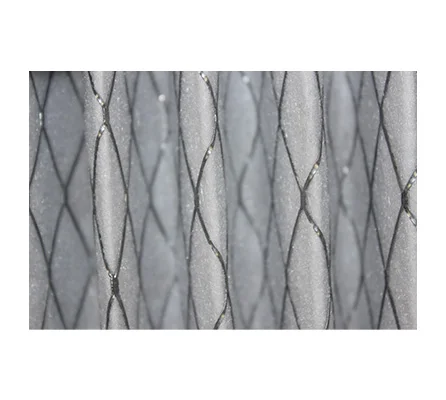

● High pleated design with excellent performance and sturdy structure ●High quality fluffy filter material with large dust holding capacity and good universal performance Expanded pleated plate disposable filter, using a complete set of integral, hard mold cutting, equal height pleated, double-layer cardboard frame plate structure design, compact structure, lightweight and convenient

Material List

Framework: High strength cardboard Available thicknesses: 25mm, 46mm, 96mm Filter material: non-woven fabric and synthetic fiber coated metal mesh

Product application

●Pre filtration of air conditioning and ventilation systems to avoid dust pollution inside the system

●Pre filtration of large air compressors

●Centralized ventilation and air conditioning system and return air filtration in the clean room extend the service life of the high-efficiency filter in the later stage

●The ventilation system of ordinary industrial plants meets the general cleanliness requirements for air

● Coarse dust filtration system for general building air conditioning

Efficiency

● G4(EN779)

Applicable conditions

● Maximum temperature: 70 ℃ (158 °F)

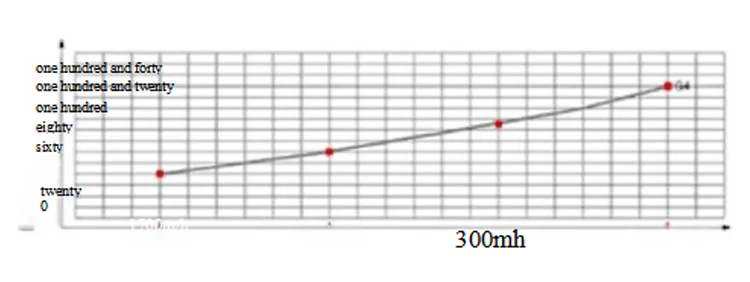

Initial resistance air flow relationship curve graph

Nominal size W * H * D (inches)	Actual dimensions W * H * D (mm)	Rated wind turbine (m ³/h)
16*24*2	390*592*46	1270	2090	2660
20*20*2	493*493*46	1445	2380	2980
20*24*2	493*592*46	1700	2800	3570
24*24*2	592*592*46	2040	3400	4250
12*24*4	292*592*96	1020	1700	2125
20*24*4	493*592*96	1700	2800	3570
24*24*4	592*592*96	2040	3400	4250

DP30			DP20			DP10
Number of folds (folds)	Filter paper area (m ²)	Number of folds (folds)	Filter paper area (m ²)	Number of folds (folds)	Filter paper area (m ²)
18	0.95	14	0.74	10	0.53
23	1.01	17	0.74	12	0.52
23	1.21	17	0.89	12	0.63
28	1.47	22	1.15	15	0.79
10	1.13	8	0.91	7	0.79
23	2.59	17	1.91	12	1.35
21	2.37	18	2.03	15	1.70
