Key specification for this air handling unit: 220V/1P/50/60Hz, exhaust airflow 600CMH. Everything below is reproduced from the factory data sheet. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (11 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Handling Unit
- Model Number: AV-HTPF60
- Power Supply: 220V/1P/50/60Hz
- Exhaust Airflow(Ventilation Mode): 600CMH
- Exhaust Airflow(Heating/Cooling Mode): 600CMH
- Refrigerant: R32 or R410A
- Warranty: 1 Year
Technical Specifications
| Type | Ventilation |
|---|---|
| Application | Hotel, Villa, Apartment, Office Building, Home Office, Bedroom, Dining, Basement |
| Feature | Easy Installation, Flexible |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Free Spare Parts |
| Design Style | Contemporary, Modern |
| Project Solution Capability | total solution for projects |
| Place Of Origin | Guangdong |
| Model Number | AV-HTPF60 |
| Exhaust Airflow(Ventilation Mode) | 600CMH |
| Exhaust Airflow(Heating/Cooling Mode) | 600CMH |
| External Static Pressure | 100pa |
| Noise | 37/42dB(A) |
| Power Supply | 220V/1P/50/60Hz |
| Dimension | 760*600*1000 mm(LWH) |
| Weight | 125kg |
| Refrigerant | R32 or R410A |
| Operation Temperature | -15 ~ 50℃ |
| Selling Units | Single item |
| Single Package Size | 76X60X100 cm |
| Single Gross Weight | 140.0 kg |

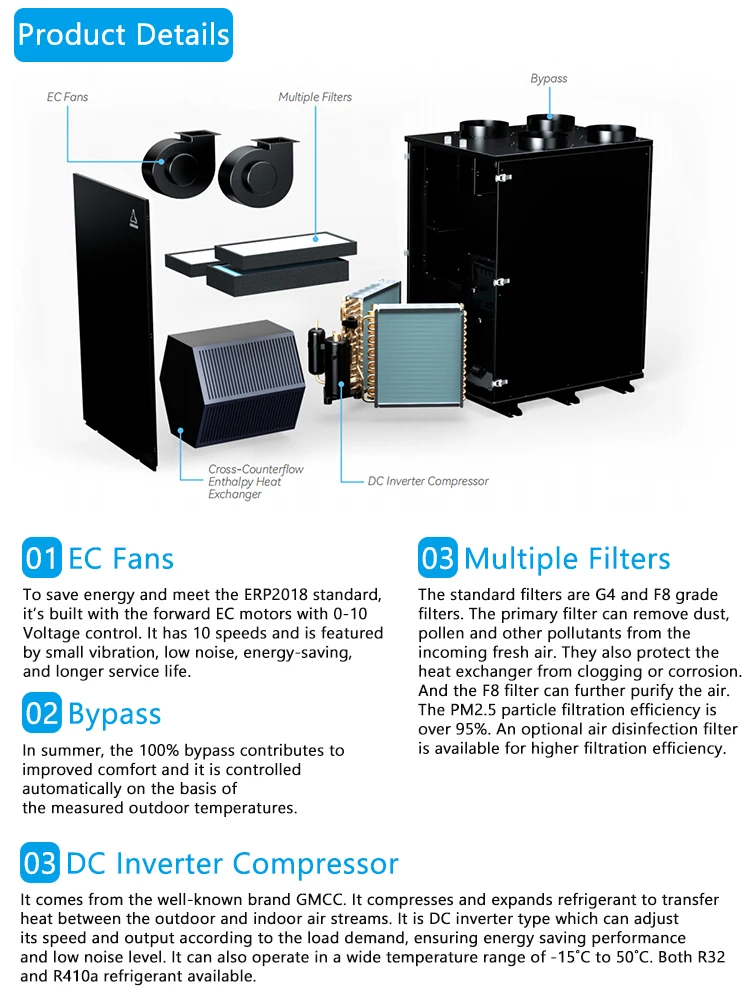

Product Details
Get the Hightlights

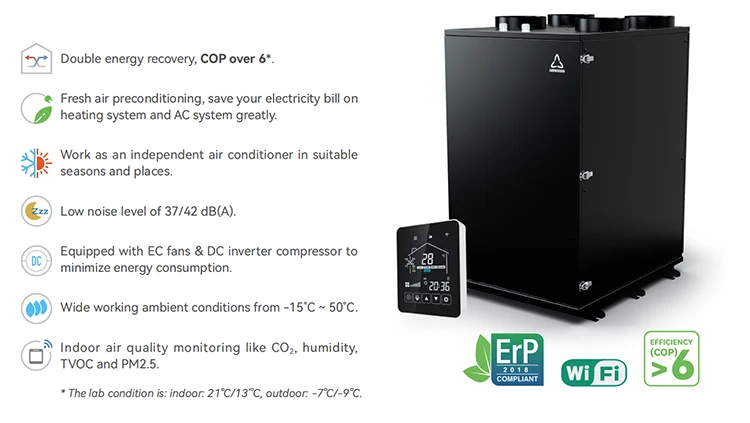

- High-Performance Energy Recovery Ventilator:Achieves up to 78% temperature efficiency and 77% enthalpy efficiency.
- DC Inverter Heat Pump HVAC Technology:Built-in variable-speed heat pump delivers powerful cooling and heating with EER up to 5.14 and COP up to 6.09, providing year-round comfort as a fresh air heat pump solution.
- Whisper-Quiet Fresh Air Operation:Operates as low as 37 dB(A), ensuring sleep-friendly noise levels in bedrooms and living areas.
- Versatile Installation for Any Space:Available in three capacities (350-950 m³/h) with compact footprint.

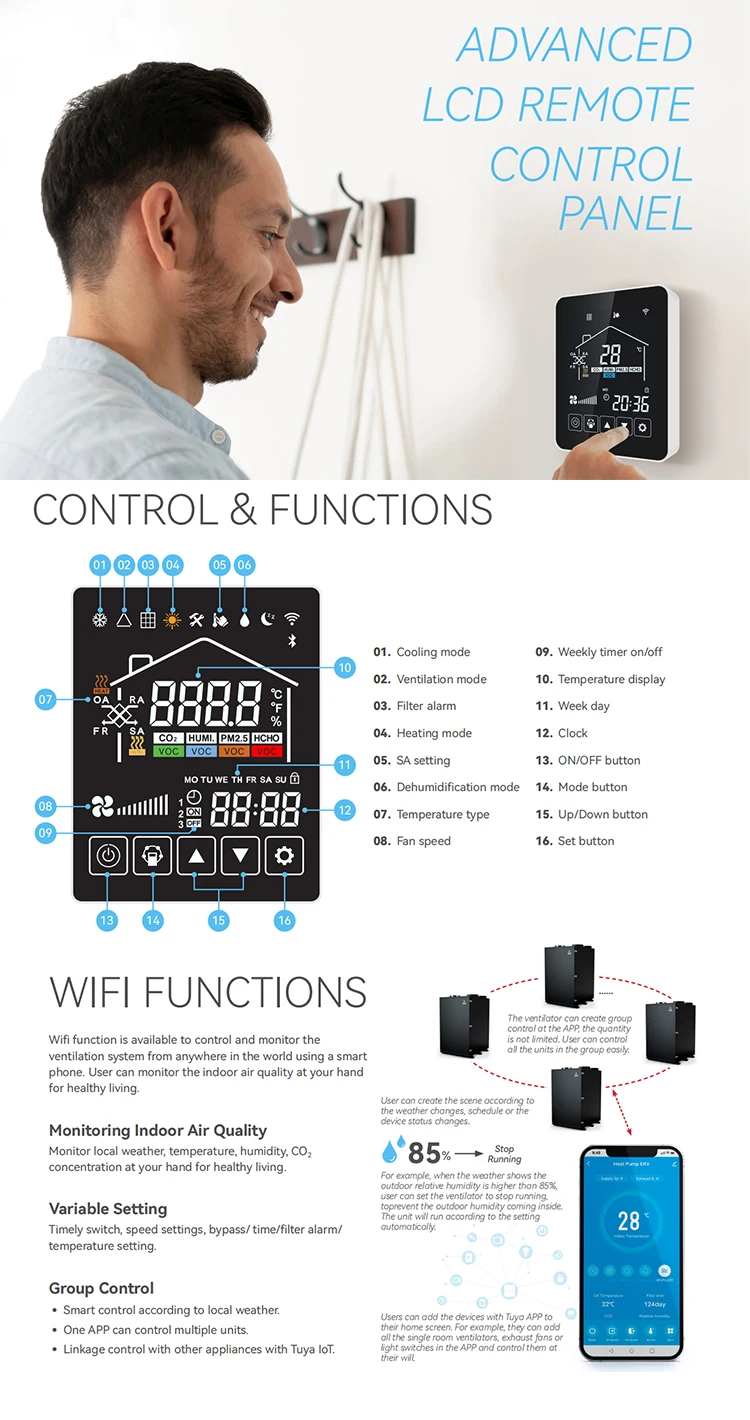

- Home Energy Recovery Ventilator With Tuya Smart Control CO2 Sensor And High Efficiency Heat Exchanger.
- Compact Residential Energy Recovery Ventilator With Heat Exchange Fresh Air Supply And Quiet Operation.
SCENE IMAGE
DETAIL SHOT

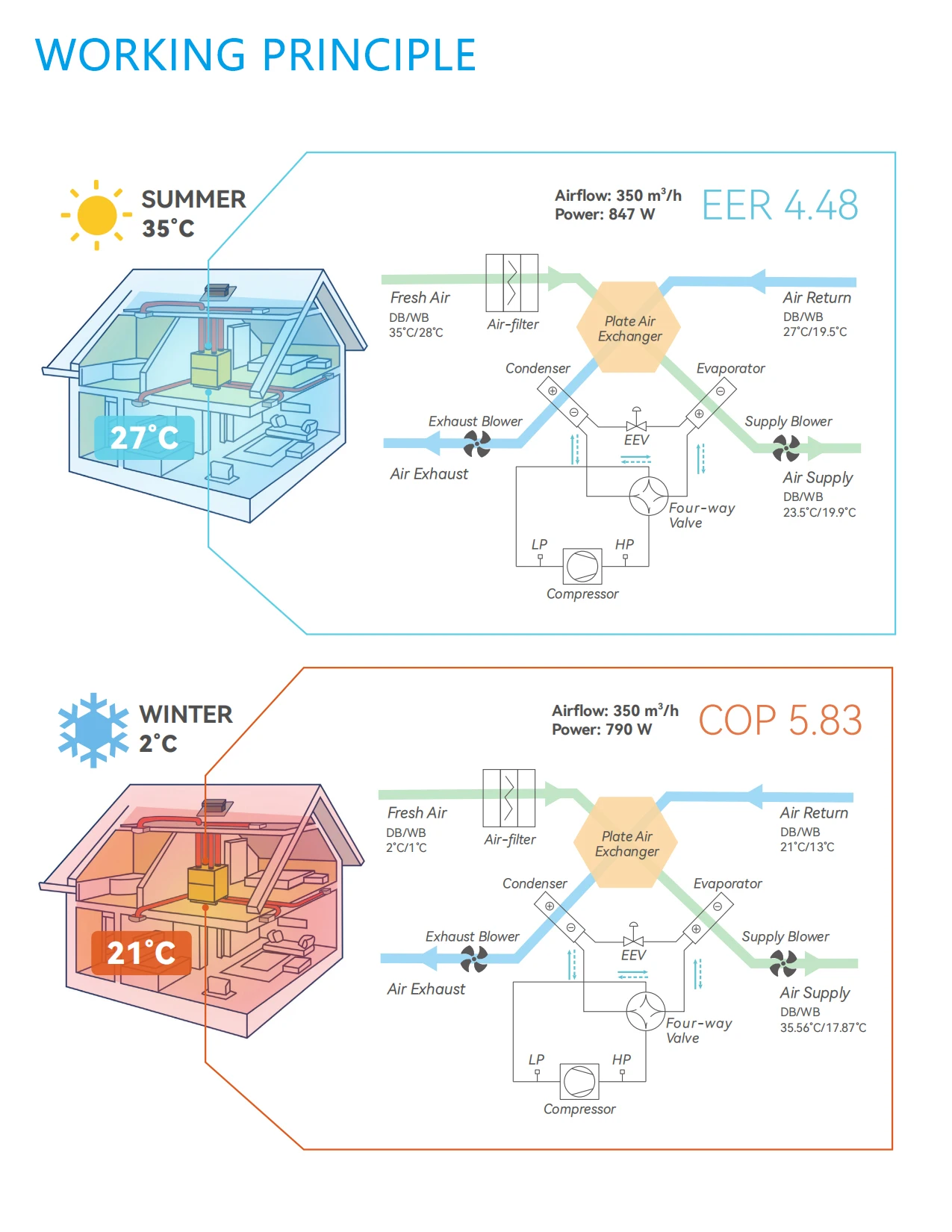

Advantages Compared with Standard ERV | ||||||
SUMMER CONDITIONS | ||||||
No | Description | Temperature | Relative Humidity | |||
1 | Outside Temperature OA | 35˚C | 59.10% | |||
2 | Inside Temperature RA | 27˚C | 49.80% | |||
3 | Fresh Air (Standard Heat Recovery Units) SA | 29.24˚C | 55.48% | |||
4 | Fresh Air (Heat Pump Heat Recovery Units) SA | 23.5˚C | 72.11% | |||
WINTER CONDITIONS | ||||||
No | Description | Temperature | Relative Humidity | |||
1 | Outside Temperature OA | 2˚C | 83.84% | |||
2 | Inside Temperature RA | 21˚C | 39.16% | |||
3 | Fresh Air (Standard Heat Recovery Units) SA | 15.68˚C | 73.57% | |||
4 | Fresh Air (Heat Pump Heat Recovery Units) SA | 35.56˚C | 17.87% | |||
Model | Unit | AV-HTPF35 | AV-HTPF60 | AV-HTPF90 | ||||
Rated airflow | CMH | 350 | 620 | 950 | ||||
Exhaust airflow(ventilation mode) | CMH | 350 | 620 | 950 | ||||
Exhaust airflow(heating/cooling mode) | CMH | 350 | 620 | 950 | ||||
External static pressure | Pa | 100 | 100 | 100 | ||||
Ventilation mode | Temperature Effi. (heating) | % | 77 | 78 | 77 | |||
Temperature Effi. (cooling) | % | 72 | 72 | 73 | ||||
Enthalpy Effi. (heating) | % | 76 | 77 | 70 | ||||
Enthalpy Effi. (cooling) | % | 70 | 65 | 66 | ||||
Input power | W | 185 | 451 | 788 | ||||
Input current | A | 1.67 | 3.77 | 3.93 | ||||
Cooling/Heating | Nominal cooling capacity | W | 3798 | 6394 | 8293 | |||
Max cooling capacity | W | 4173 | 6946 | 8801 | ||||
Input power(cooling) | W | 847 | 1243 | 1487 | ||||
Operation current(cooling) | A | 4.43 | 6.55 | 6.95 | ||||
Nominal heating capacity | W | 4631 | 6287 | 8870 | ||||
Max heating capacity | W | 4981 | 6921 | 9110 | ||||
Input power(heating) | W | 790 | 1033 | 1427 | ||||
Operation current(heating) | A | 3.91 | 5.74 | 6.76 | ||||
Noise | dB(A) | 37/42 | 40/44.6 | 41/46 | ||||
Power | / | 220V 1Ph 50/60Hz | ||||||
Dimension(W*L*H) | mm | 600*760*1100 | 740*1050*990 | 740*1090*1130 | ||||
Weight | Kg | 135 | 165 | 190 | ||||
Air Inlet/Outlet Diameter | mm | 195 | 245 | 245 | ||||
Air Inlet/Outlet Height | mm | 40 | ||||||
Machine Base Height | mm | 40 | ||||||
Drainage pipe | / | G1/221mm | ||||||
Refrigerant | / | R32 | ||||||
Refrigerant charge | g | 370 | 500 | 660 | ||||
OTHER PRODUCT IMAGES
ABOUT THE SUPPLIER
Guangzhou Airwoods Environment Technology Co., Ltd. specializes in high-efficiency HVAC solutions, including heat recovery ventilators and energy-efficient chillers. ISO9001 certified, the company leverages advanced R&D to develop patented technologies like digital geo-thermal heat pumps. It serves global markets with reliable, energy-saving products for comprehensive air quality solutions.
COMPANY OVERVIEW
FACTORY PROFILE
TRADE SHOW PARTICIPATION
COMPETITIVE ADVANTAGES
EXTENDED COMPANY PROFILE
FAQs
Q: How to select the suitable model ?
A: Before we make recommendations to you, we may need below information: * Where do you want to apply it? * What is the room size/ room type/ number of person We will make advice to you according to your specific conditions, based on the airflow required and application.
Q: What is an energy recovery ventilation system?
A: An Energy Recovery Ventilation (ERV) system exchanges stale indoor air with fresh outdoor air while transferring both heat and moisture between the two airstreams. This process improves indoor air quality and energy efficiency by preconditioning incoming air, reducing heating and cooling loads, while helping maintain indoor humidity levels. ERVs are ideal for climates with both extreme temperatures and high humidity, offering enhanced comfort and lower energy costs.
Q: How much does an erv system cost?
A: An Energy Recovery Ventilation (ERV) system price can vary based on the system's size, features, and the complexity of installation. Airwoods expert can help you determine the best ERV to meet the needs of your home and provide you with an estimate.
Q: Are erv systems worth it?
A: Investing in an ERV system can be worth it as it helps improve indoor air quality and energy efficiency, providing you with healthier, fresher indoor air, helping enhance your home comfort and potentially reducing your heating and cooling costs.
Q: What does an erv do in a house?
A: An Energy Recovery Ventilation (ERV) system exchanges stale indoor air with fresh outdoor air while transferring both heat and moisture between the airstreams. This process helps improve indoor air quality, comfort and energy efficiency by preconditioning incoming air, reducing heating and cooling demands, and balancing indoor humidity levels.
Q: Do i need a dehumidifier if i have an erv?
A: An ERV (Energy Recovery Ventilator) helps manage humidity by exchanging indoor and outdoor air, but if your home has high humidity, you may still need a dehumidifier. The ERV improves ventilation but may not reduce humidity levels enough in very damp environments.
Q: Should you run an erv all the time?
A: Yes, it's generally beneficial to run an Energy Recovery Ventilator (ERV) all the time to ensure consistent ventilation and improve indoor air quality. It continuously exchanges stale indoor air with fresh outdoor air, while also conserving energy by transferring heat and moisture between the two.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–10 piece: US $2499 / piece
- 11–99 piece: US $2374 / piece
- 100+ piece: US $2249 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air handling unit be supplied for my local voltage?
The standard configuration is 220V/1P/50/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
