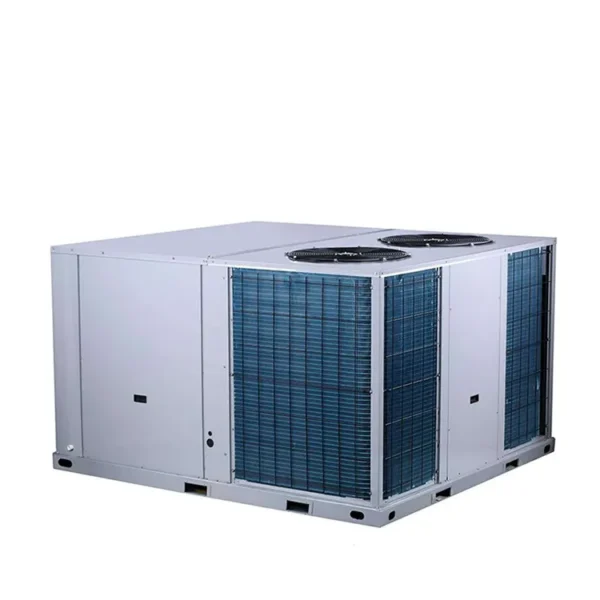

Only rooftop package unit — 380v/60hz/3ph, refrigerant R410A. The complete factory specification follows. Made by Henan Shangfeng Hvac Engineering Co., Ltd. (4 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Only Rooftop Package Unit
- Model Number: rooftop
- Voltage: 380v/60hz/3ph
- Refrigerant: R410A
- Warranty: 3 Years
- Place Of Origin: Guangdong, China
- Type: Rooftop Packaged Unit
Technical Specifications
| Type | Rooftop Packaged Unit |
|---|---|
| Refrigerant | R410A |
| Mounting Type | Rooftop And floor standing |
| Compressor Brand | Copeland, Hitachi |
| Fan Motors Type | DC |
| Motor Type | DC Motor |
| Key Selling Points | Competitive Price |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Not Available |
| Core Components | Motor, Pump, Engine |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 390 |
| Brand Name | Midea |
| Model Number | rooftop |
| Dimension(L*W*H) | 2250 x 1290 x 1980 mm |
| Product Name | Rooftop Package Unit |
| Voltage | 380v/60hz/3ph |
| Cooling And Heating | Cooling only |
| Ambient Temperature | 10-52 ℃ |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

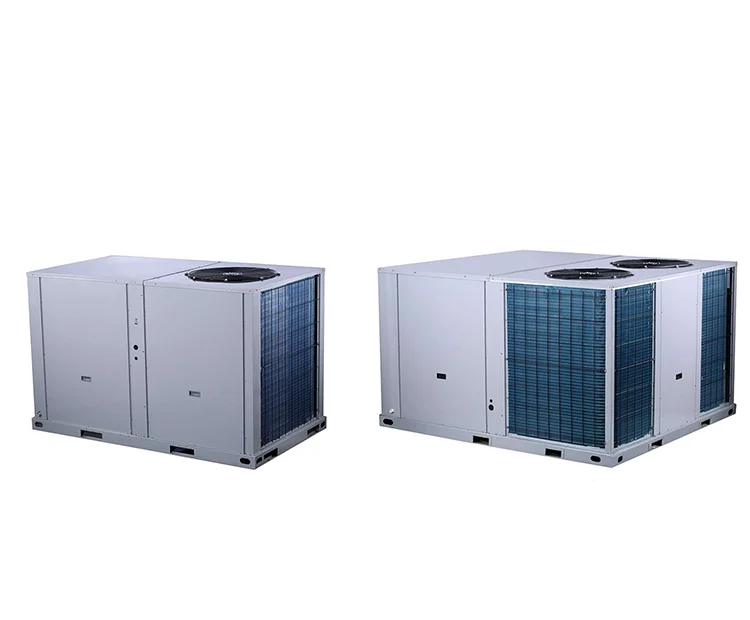

60 HZ 10 Ton 12 Ton 15 Ton 20 Ton Cooling Heating Rooftop Package Unit

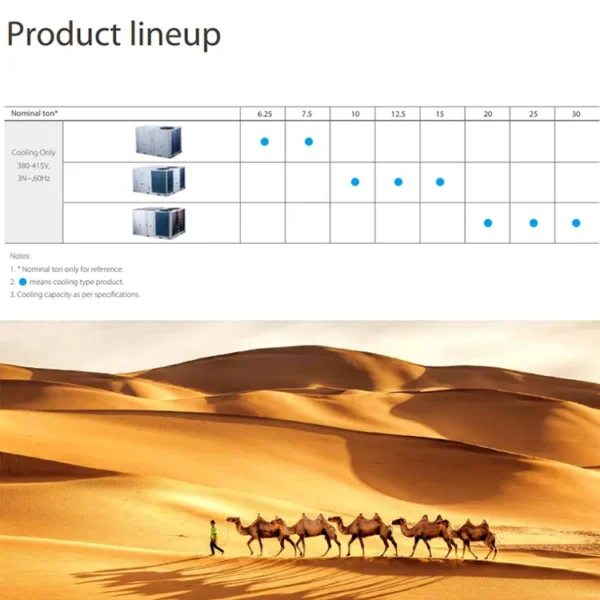

>>Product lineups
| Nominal TON | 6.25 | 7.5 | 10 | 12.5 | 15 | 20 | 25 | 30 |
| cooling only, 380V-415V, 3N, 60HZ | √ | √ | √ | √ | √ | √ | √ | √ |

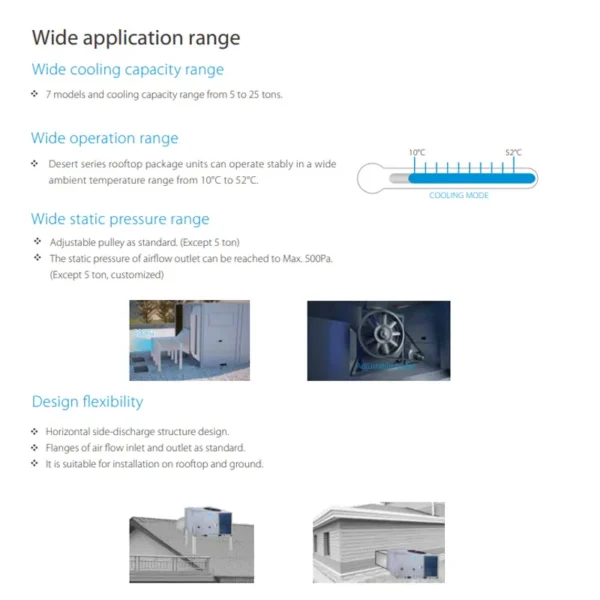

>>Wide application range
–Wide cooling capacity range
7 models and cooling capacity range from 6.25 ton to 25 tons.
–Wide operation range

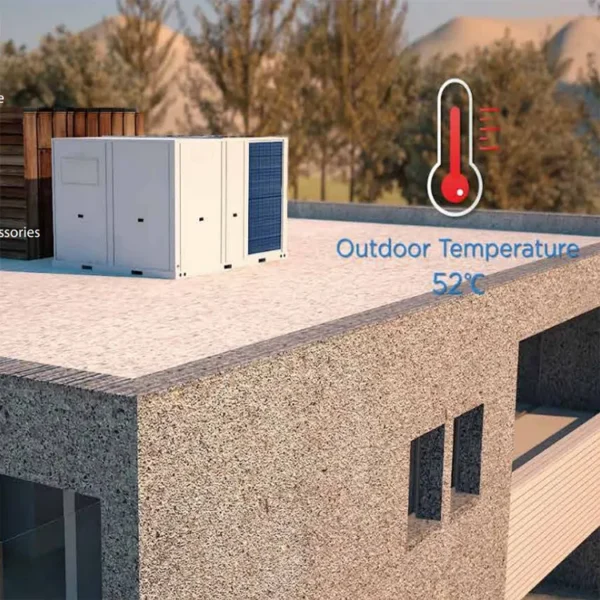

Desert series rooftop package units can operate stably in a wide ambient temperature range from 10°C to 52°C.
–Wide static pressure range
Adjustable pulley as standard. (Except 5 ton)
The static pressure of airfow outlet can be reached to Max. 500Pa. (Except 5 ton, customized).
–Design Flexibility
Horizontal side-discharge structure design.
It is suitable for installation on rooftop and ground.
>>Easy installation
–Convenient for wires connection
Removable access door on the electric box. It is easy to move the cover of the electric box.
Only connect the wires of power supply, and no need to connect any signal wires.
–Easily connect the drainage pipe
Reserved external drainage port, quickly and accurately connect the rubber drainage pipe.
>>Easy maintenance
–External pressure gauge ports
The unit provides external pressure gauge ports for convenient and fast checking
system pressure without removing the panel.
–Easy access doors design
Removable the access doors for the Filter, fan motor, and electric control box.
Provide convenient access to system components for mainenance and service.
–Rotatable control box
Rotatable control box permits easy access to the inner parts.
–System self-diagnostic
Press the ‘Check’ button, the LED display in PCB board of the unit will dislay the normal checking code.
If the unit is in running with abnormal operation, the LED display will show the error code.
–Washable Filter
>>Outstanding reliability
–Durable construction
Pre-painted exterior cabinet panels pass 500 hours Salt Spray Test for durability.
Weather-resistant construction with capped steams and sloped top panels.
G90 galvanized heavy gauge plate conforming to ASTM-A-653.
–Customized anti-corrosion treatment
The rooftop package air conditioners with special anti-corrosion treatment are suitable for seaside areas or the areas exposed to acidic substances.
–Reliable scroll compressor
Famous brand compressor: Copeland, LG, Danfoss, etc.. More reliable.
No complex internal suction and discharge valves for quieter operation and higher reliability.
Compact, light-weight, and fewer moving parts design.
–Multi-protection design
Multiply measures to ensure units operate normally and reliably.
System current protection, High/low pressure protection, Temperature sensor protection, etc.
Three-phase protector can be customized.
>>Accessories
- We have a professional customer service team to answer your various questions in 24h.
- Support small batch production and OEM.
- We have a professional design team to help you design drawings.
Henan Shangfeng Hvac Engineering Co., Ltd.(registered trademark: TX) is located in Taixing City, Jiangsu Province. The company is committed to heat pump heating, air energy hot water, central air conditioning, terminal and integrated application solutions .
The company covers an area of 250 mu, with a construction area of 68000 square meters in the first phase. It has six modern electrical flow production lines, three of which can produce 3P to 24P host products, and each line has a single shift.
The daily output is 50 sets, and the cumulative daily output of a single shift is 150-200 sets. The enterprise has passed the certification of IS09001 IS014001 GB/T28001 three systems, and has the comprehensive – 25C ultra-low temperature national heat pump laboratory. At the same time, it works for domestic and international first-tier brands.
TX Company focuses on the research, development and production of air source heat pump technology and products. The R&D team and process team are from well-known technical experts in the field of air conditioning at home and abroad, and master many core technologies.
Heart technology has more than 1000 invention and design patents. The products include air-cooled modules, fan trays, ceiling cabinets, combined air conditioning boxes, commercial air source heat pump hot water, and domestic air source heat
Air source heat pump products such as pump hot water and ground heating hot water.
The products can be used in various new and renovation projects, and perfectly replace traditional coal-fired boilers, air conditioners, lithium bromide and hot water equipment, such as northern heating, hotels, schools, hospitals
Heating, hot water, refrigeration, high-temperature slaughtering hot water, high-temperature drying, agricultural greenhouse insulation, aquaculture constant temperature, industrial hot water, waste heat recovery and other sectors, covering industrial
Industry, agriculture, tertiary industry and other fields.
The company adheres to the concept of "building an industry benchmark for integrated heating, hot water and cooling solutions", and contributes to the production of users' satisfaction for "emission reduction in the north" and "cooling in the south"
Products, services and overall solutions contribute to the national low-carbon economy and green environmental protection industry.
Are you Factory ?
Our factory is located in Taizhou City, Jiangsu Province. The company is committed to terminal and integrated solutions for heat pump heating, air energy and hot water, central air conditioning, modular units, fan panels, etc. The company covers an area of 250 mu, with a building area of 68000 square meters, and has six modern electrical flow production lines. Each line produces 50 sets per shift, with a cumulative daily output of 150-200 sets.
The enterprise has passed the certification of IS09001 IS014001 GB/T28001 three systems, and has the comprehensive of – 25 ℃ ultra-low temperature national heat pump. At the same time, it is OEM for domestic and international first-tier brands.
Can you make samples?
We can make samples for you, but they are not free. You should bear the freight. However, if you order large goods later, we will refund you part of the cost of the sample higher than the price of the large goods.
Can you design for free ?
We have special designers who can help you design drawings for free, as long as you tell us your needs.
How to contact us ?
Tel: +8615138241806
whatsapp: +8615138241806
wechat: yytcandice
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $4518 / set
- 10–29 set: US $4366 / set
- 30–49 set: US $3879 / set
- 50+ set: US $3648 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this only rooftop package unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the only rooftop package unit be supplied for my local voltage?
The standard configuration is 380v/60hz/3ph. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
