Air handling units — voltage 220, duct dehumidifier fresh air flow 250-450m3/h. The complete factory specification follows. Made by Hangzhou Fedywos Electrical Appliance Co., Ltd. (9 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Air Handling Units
- Model Number: FD-EX60L
- Power Source: Electric
- Power (W): 550
- Voltage (V): 220
- Duct Dehumidifier Voltage: 220V/50Hz
- Duct Dehumidifier Capacity(30℃,80%RH): 60L/D
Technical Specifications
| Application | Hotel, Garage, Commercial, Household |
|---|---|
| Type | Refrigerative Dehumidifier |
| Power Source | Electric |
| Function | Adjustable Humidistat, Auto Restart, Automatic Defrost, Automatic Humidistat Control, External Drain Connect, Washable Air Filter |
| App-Controlled | Yes |
| Warranty | None |
| After-Sales Service Provided | None |
| Voltage (V) | 220 |
| Brand Name | LUKO |
| Place Of Origin | Zhejiang, China |
| Dimensions (L X W X H (Inches) | 1550*769*315mm |
| Power (W) | 550 |
| Model Number | FD-EX60L |
| Duct Dehumidifier Capacity(30℃,80%RH) | 60L/D |
| Duct Dehumidifier Fan Speed | 2-speed/variable speed |
| Duct Dehumidifier Static Pressure | 150 Pa |
| Duct Dehumidifier Fresh Air Flow(M3/H) | 250-450m3/h |
| Duct Dehumidifier Exhaust Air Flow(M3/H) | 220-400m3/h |
| Duct Dehumidifier Current | 2.5-4.5A |
| Duct Dehumidifier Voltage | 220V/50Hz |
| Duct Dehumidifier Control | touch screen LCD controller |
| Duct Dehumidifier Noise Level | <40DB |
| Packaging Details | plywood case |
| Port Of Dispatch | Shanghai/Ningbo |
| Selling Units | Single item |
| Supply Ability | 1000 pieces per Month |
Product Details

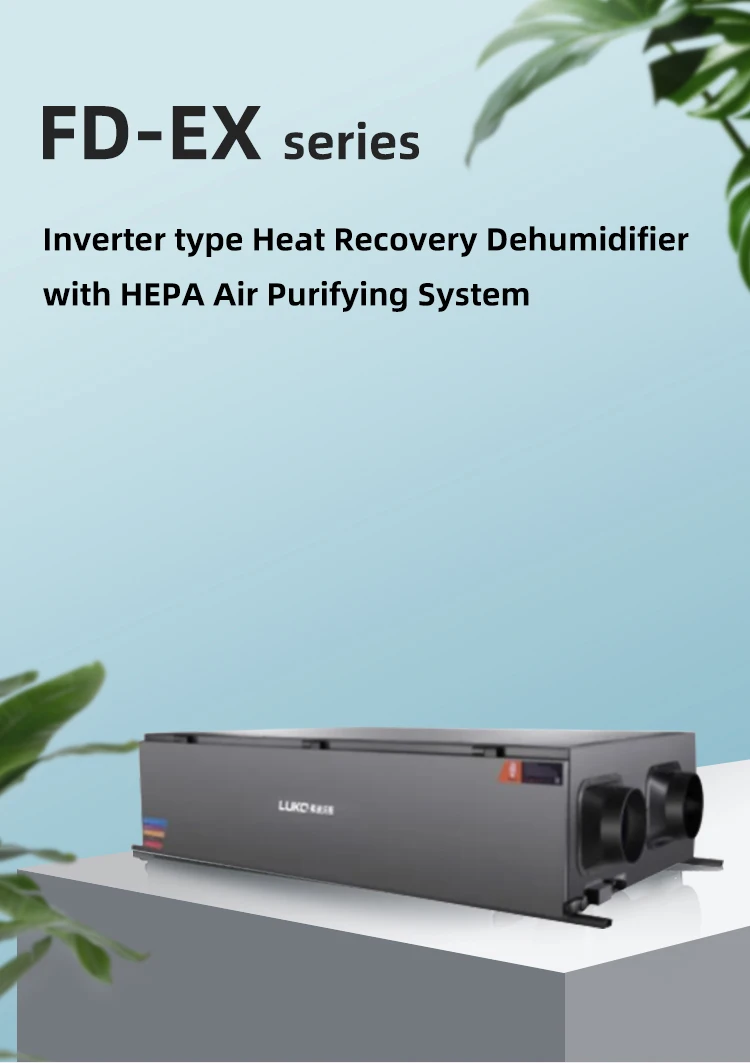

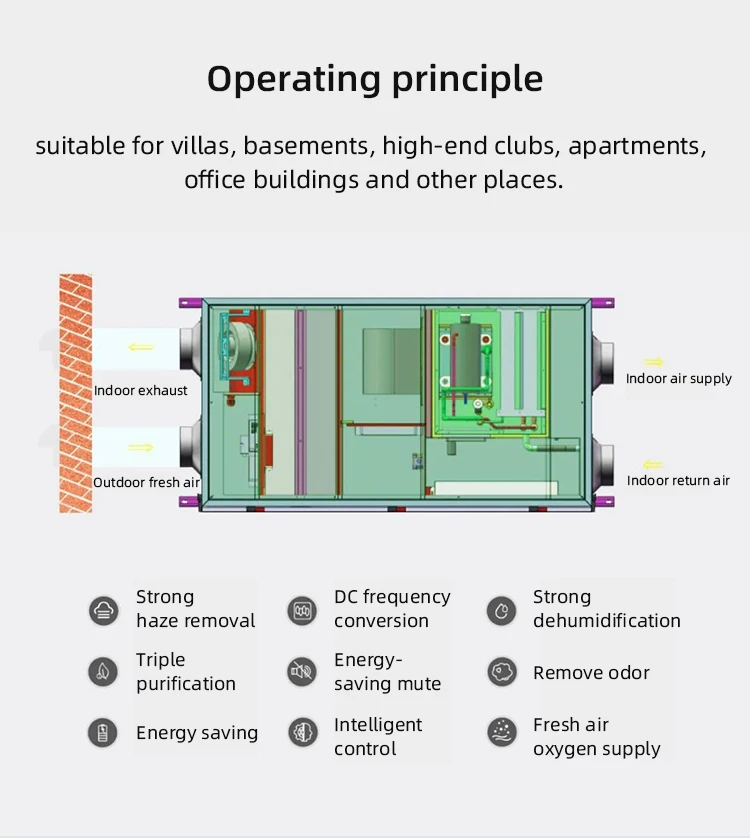

Device type | Inverter type Heat Recovery Dehumidifier with HEPA Air Purifying System | ||

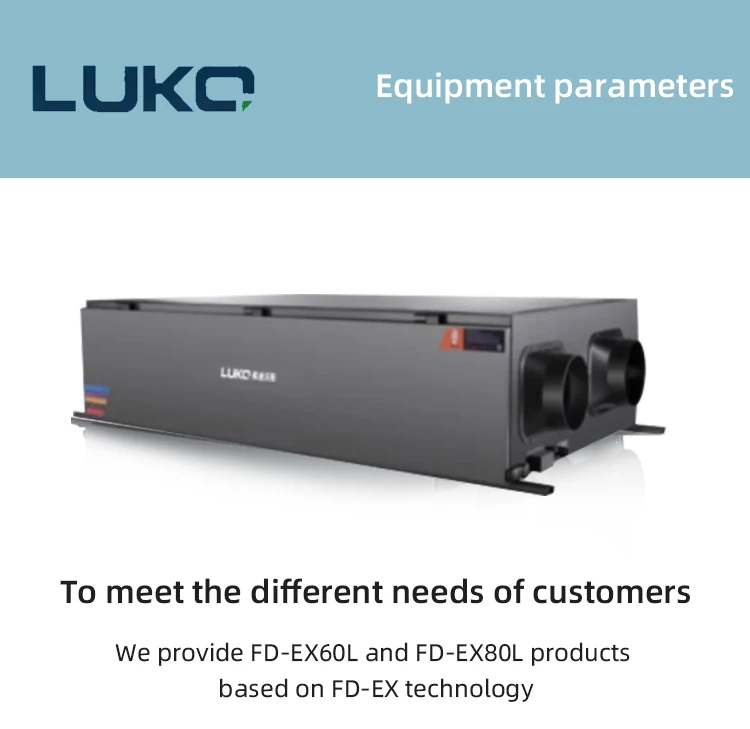

Equipment model | FD-EX60L | FD-EX80L | |
Fresh air volume | 250-450m³/h | 360-750m³/h | |
Exhaust air volume | 220-400m³/h | 320-670m³/h | |

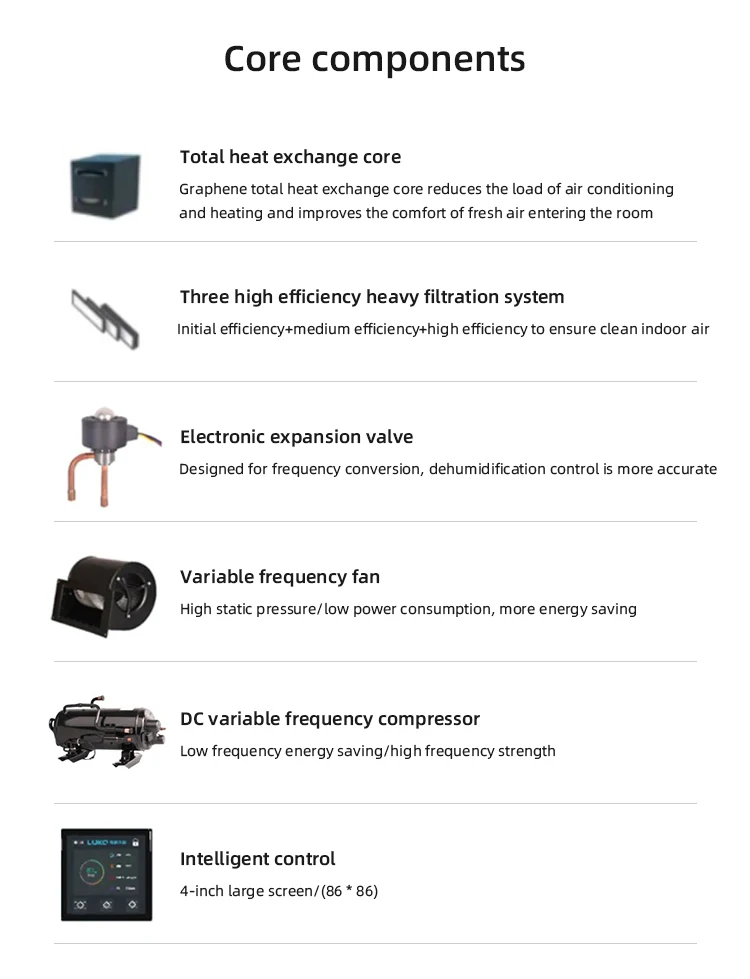

Total heat exchange | Polymer film graphene | ||
Refrigeration heat exchange rate | ≥55% | ||
Heating heat exchange rate | ≥60% | 730-850m³/h | |
Fresh air power/current | 550W/2.5A | 680W/3.1A | |
Dehumidification method | Dehumidification of variable frequency compressor | 450-850m³/h | |
Throttling mode | Electronic expansion valve | 200m³/h | |
Voltage frequency | 220V/50Hz | 850W/3.7A | |
Filter module (standard) | Primary/intermediate/high efficiency | ||
Cleaning module | UV sterilization/negative ion | ||
Drainage mode | Positive pressure drainage | ||
Dehumidification capacity | 40L-60L/DAY | 70L-120L/DAY | |
Dehumidification power/current | 550W-970W 2.5A-4.5A | 1050W-1600W 4.7A-7.2A | |
Dehumidification air volume | 620-750m³/h | 750-980m³/h | |
Fan form | Stepless speed regulation/150Pa | Stepless speed regulation/180Pa | |

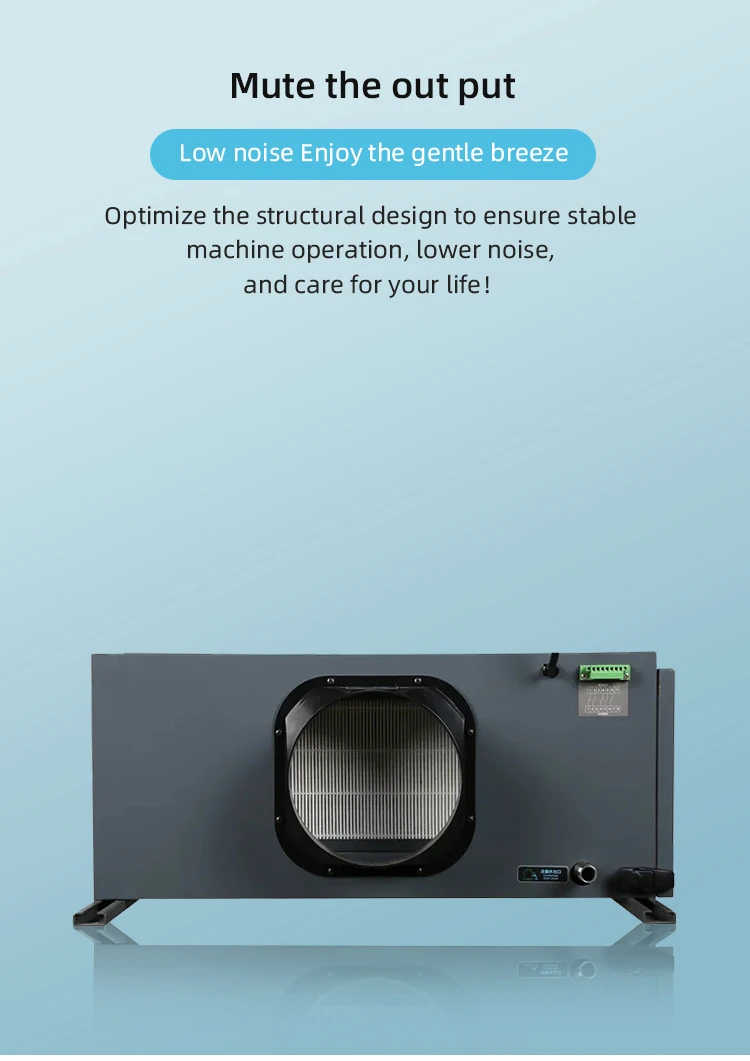

Noise | <40DB | ||

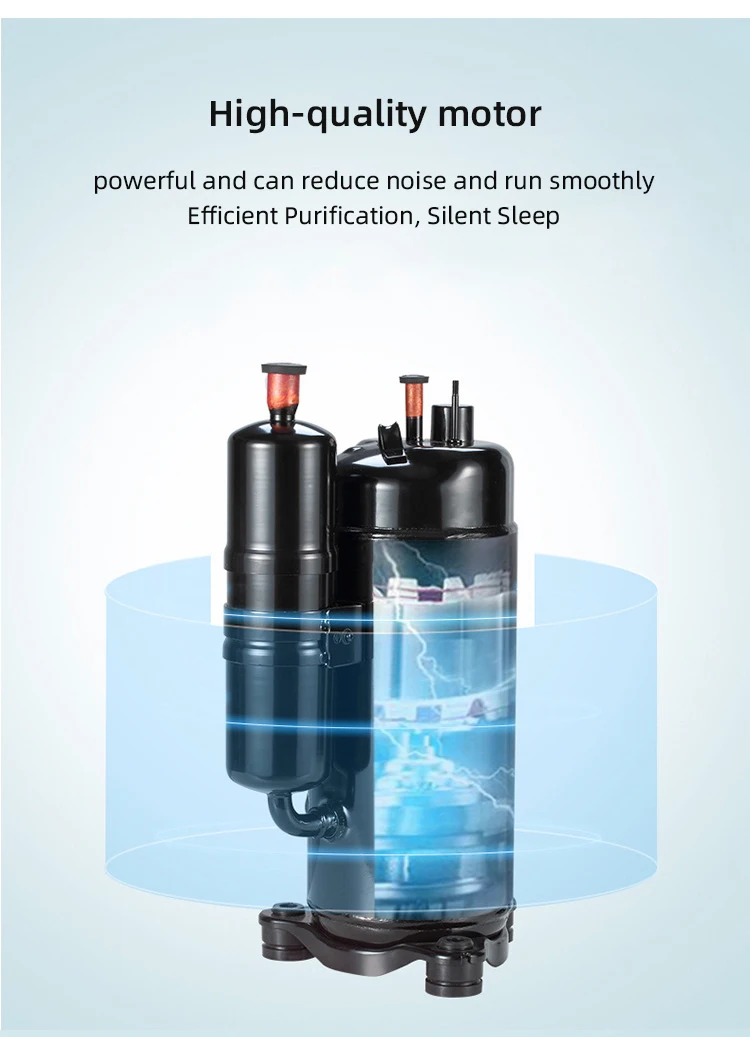

Compressor | Full dc conversion/R410A | ||
Fresh air tuyere | Φ150 | ||
Return air outlet | Φ150 | ||
Supply air outlet | Φ150 | ||
Exhaust tuyere | Φ150 | ||
Overall dimension | 1550*769*315mm | ||
Dehumidification condition | 27℃ 60% | ||
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–4 piece: US $5500 / piece
- 5–9 piece: US $5300 / piece
- 10+ piece: US $5000 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling units?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a None warranty. Spare parts and technical support remain available after the warranty period.
Can the air handling units be supplied for my local voltage?
The standard configuration is 220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hangzhou Fedywos Electrical Appliance Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hangzhou Fedywos Electrical Appliance Co., Ltd. range on HVACR Nexus.
