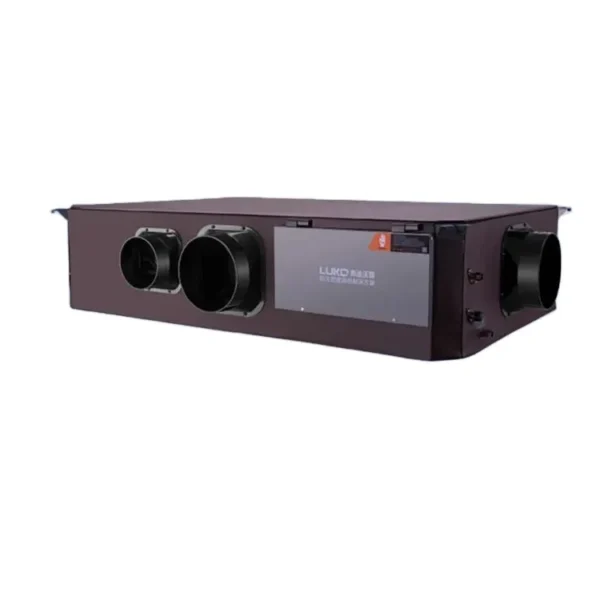

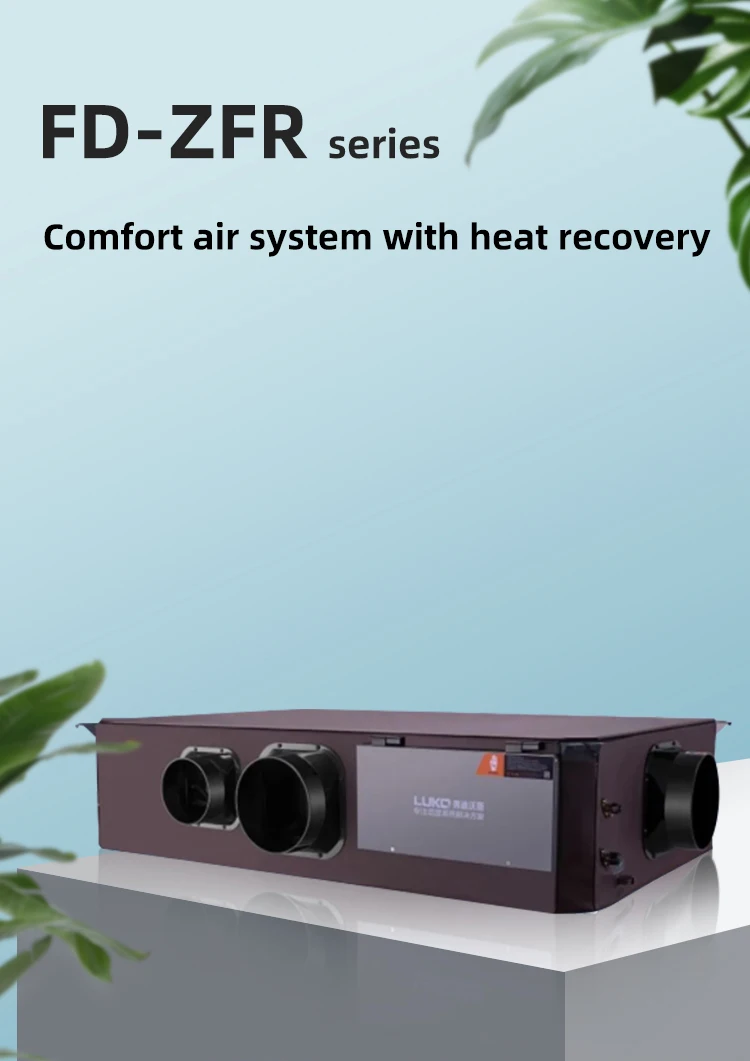

Home hvac systems — voltage 220, duct dehumidifier fresh air flow 0-250m3/h. The complete factory specification follows. Made by Hangzhou Fedywos Electrical Appliance Co., Ltd. (9 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Home Hvac Systems
- Model Number: FD-ZFR550
- Power Source: Electric
- Power (W): 1720
- Voltage (V): 220
- Duct Dehumidifier Voltage: 220V/50Hz
- Duct Dehumidifier Fresh Air Flow(M3/H): 0-250m3/h
Technical Specifications
| Application | Hotel, Garage, Commercial, Household |
|---|---|
| Type | Refrigerative Dehumidifier |
| Power Source | Electric |
| Function | Adjustable Humidistat, Auto Restart, Automatic Defrost, Automatic Humidistat Control, External Drain Connect, Washable Air Filter |
| App-Controlled | Yes |
| Warranty | None |
| After-Sales Service Provided | None |
| Voltage (V) | 220 |
| Brand Name | LUKO |
| Place Of Origin | Zhejiang, China |
| Dimensions (L X W X H (Inches) | 1615*920*299mm |
| Power (W) | 1720 |
| Model Number | FD-ZFR550 |
| Duct Dehumidifier Fan Speed | 2-speed/variable speed |
| Duct Dehumidifier Static Pressure | 180 Pa |
| Duct Dehumidifier Fresh Air Flow(M3/H) | 0-250m3/h |
| Duct Dehumidifier Exhaust Air Flow(M3/H) | 0-220m3/h |
| Duct Dehumidifier Current | 8.7-17A |
| Duct Dehumidifier Voltage | 220V/50Hz |
| Duct Dehumidifier Control | touch screen LCD controller |
| Duct Dehumidifier Noise Level | <38DB |
| Packaging Details | plywood case |
| Port Of Dispatch | Shanghai/Ningbo |
| Selling Units | Single item |
| Supply Ability | 1000 pieces per Month |

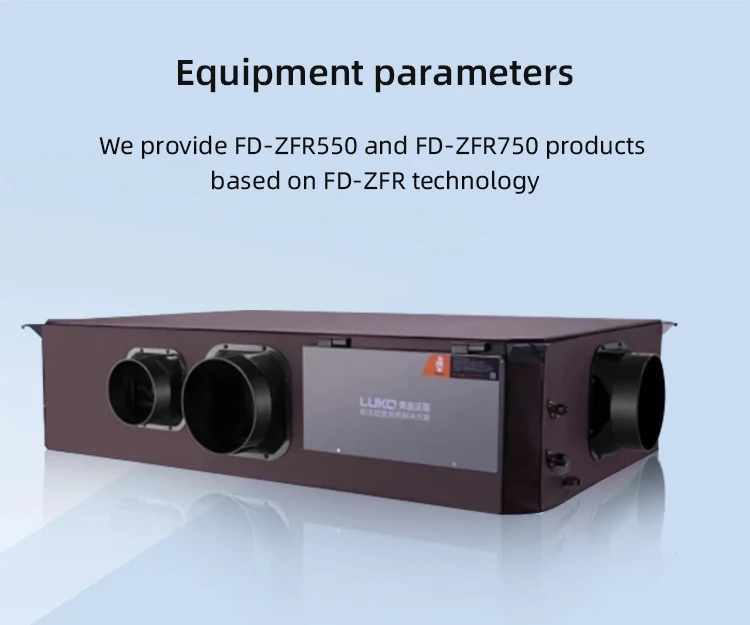

Product Details
External machine type | Fan form | Refrigerating capacity | Power/current（Standard refrigeration） | Heat production | Power/current（Standard heating） | |
Variable frequency ultra-low temperature（R410A) | Stepless speed regulation/180Pa | 5400W | 1720W/7.8A | 5600W+1000W(electrothermal) | 1920W/8.7A | |

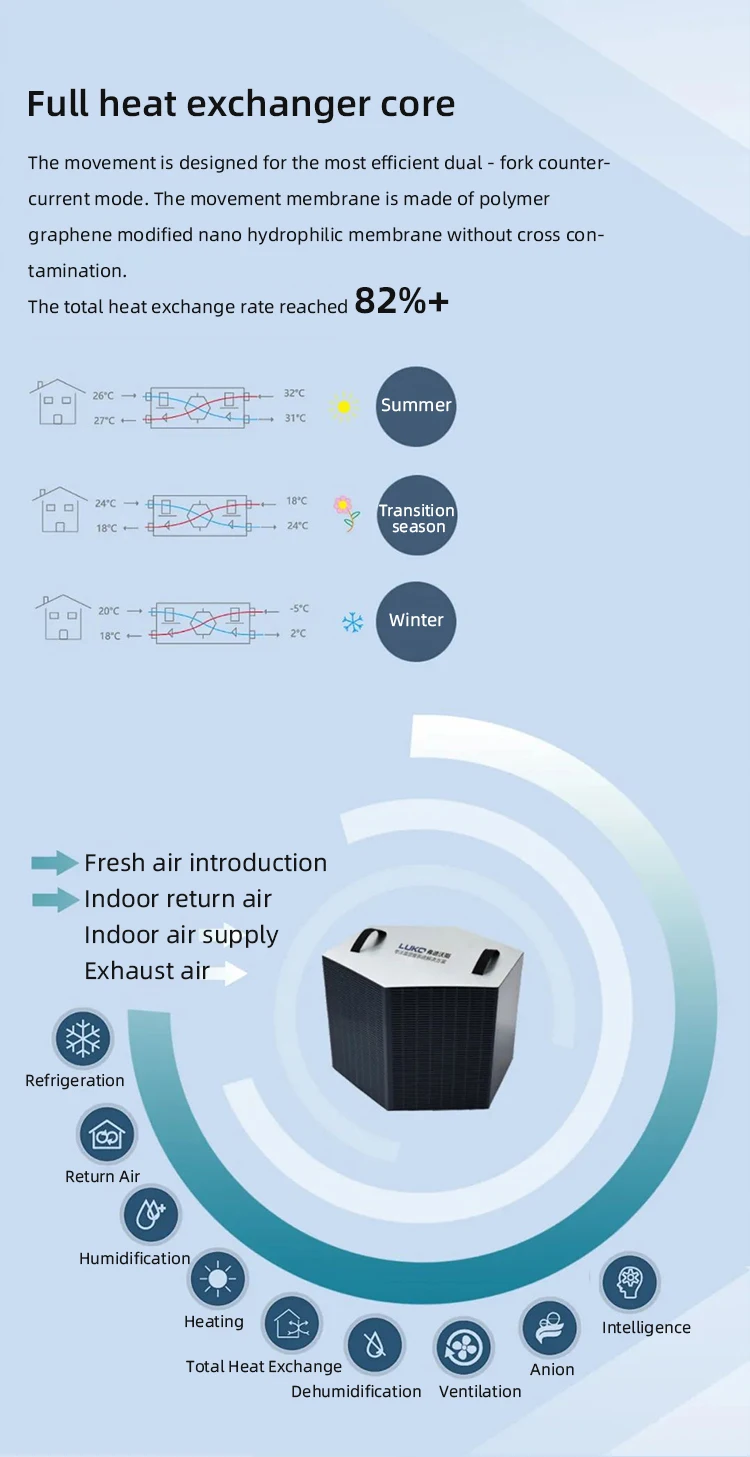

Maximum dehumidification | Liquid tube/Reheating tube/gas pipe | Fresh air preheating | Voltage/frequency | Graphene heat exchange | Filter module (standard) | |
8.2kg/h | Φ6.35/Φ6.35/Φ9.52 | 400W | 220V/50Hz | Refrigeration: enthalpy efficiency：68% Temperature efficiency：60% | Heating: enthalpy efficiency：75% Temperature efficiency：80% | |
Maximum output power/current | Fresh air volume | Return air volume | Exhaust air volume | Supply air volume | Drainage mode | |
3800W/17A | 0-250m³/h | 300m³/h | 0-220m³/h | 480-580m³/h | Positive pressure drainage/Φ20 | |
Noise | Fresh air tuyere | Return air outlet | Supply air outlet | Exhaust tuyere | Overall dimension | |
<38DB | Φ150mm | Φ200mm | Φ200mm | Φ150mm | 1615*920*299mm | |
External machine type | Fan form | Refrigerating capacity | Power/current（Standard refrigeration） | Heat production | Power/current（Standard heating） | |
Variable frequency ultra-low temperature（R410A) | Stepless speed regulation/250Pa | 8200W | 2430W/11A | 9800W+1500W(electrothermal) | 2650W/12A | |
Maximum dehumidification | Liquid tube/Reheating tube/gas pipe | Fresh air preheating | Voltage/frequency | Graphene heat exchange | Filter module (standard) | |
11kg/h | Φ9.52/Φ9.52/Φ15.88 | 500W | 380V/50Hz | Refrigeration: enthalpy efficiency：68% Temperature efficiency：60% | Heating: enthalpy efficiency：75% Temperature efficiency：80% | |
Maximum output power/current | Fresh air volume | Return air volume | Exhaust air volume | Supply air volume | Drainage mode | |
4650W/22A | 0-350m³/h | 400m³/h | 0-300m³/h | 680-820m³/h | Positive pressure drainage/Φ20 | |
Noise | Fresh air tuyere | Return air outlet | Supply air outlet | Exhaust tuyere | Overall dimension | |
<40DB | Φ150mm | Φ200mm | Φ200mm | Φ150mm | 1615*920*299mm | |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–4 piece: US $5500 / piece
- 5–9 piece: US $5300 / piece
- 10+ piece: US $5000 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this home hvac systems?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a None warranty. Spare parts and technical support remain available after the warranty period.
Can the home hvac systems be supplied for my local voltage?
The standard configuration is 220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hangzhou Fedywos Electrical Appliance Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hangzhou Fedywos Electrical Appliance Co., Ltd. range on HVACR Nexus.
