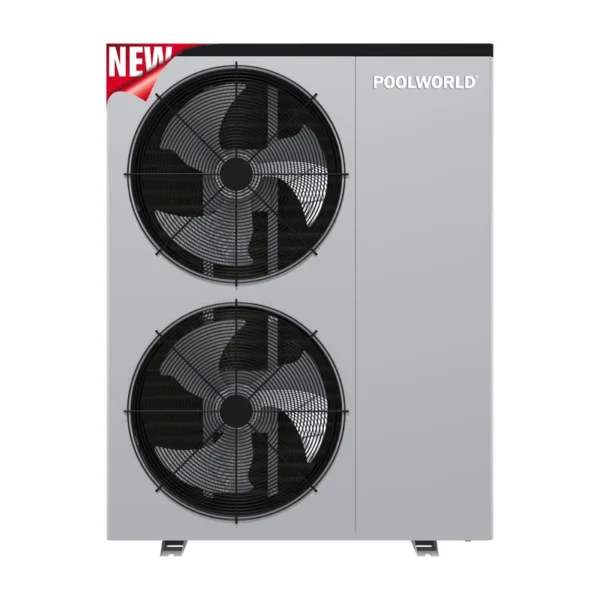

Water Heater, EVI, Inverter, 30kw

This water heater is published with the manufacturer’s full specification — power source Electric, material Galvanized Sheet. Made by Guangzhou Pool World Environmental Technology Co., Ltd. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Water Heater

• Model Number: PD50-CRL-DC
• Power Source: Electric
• Housing Material: Metal
• Material: Galvanized Sheet
• Refrigerant: R410A/R32
• Warranty: 2 Years

Technical Specifications

Product Details

Products Description

EVI Inverter Heat Pump Monoblock – A+++ Energy Label

Pool World EVI Inverter Heat Pump is a multifunctional unit, creatively combining environmentally friendly R32 refrigerant, with extremely cost-effective EVI full frequency conversion technology, especially with the A +++ ERP energy label, which can be used in areas with extremely low climate temperatures. The temperature of heating/cooling and domestic hot water is as low as -25°C. The free WiFi function and clear smartphone APP can be operated, indicating that it can be easily and intelligently controlled anytime and anywhere.

Details

A+++ ENERGY LABEL

Pool World DC inverter technology enables the heat pump to adjust its frequency from 30Hz to 90Hz according to actual heating requirements. With this technology, the Pool World EVI DC inverter heat pump (capacity range from 1.28kw to 30.7kw) reached the energy level of A+++ according to the ERP directive.

DC INVERTER EVI TECHNOLOGY

The twin-rotor Panasonic compressor with full DC inverter EVI technology, ensures the unit running stably at ambient temperature from -25°C to 43°C based on different requirements of heating/cooling, DHW, and working voltage range from 170V-254V(1ph) and 320V-460V(3ph).

MULTI-FUNCTION OPERATION

There are 5 optional operations as follows, which help to offer the users comfortable house heating & cooling and stable hot water supply(by a 3-way valve) all year round based on their demands.

A. Single space heating;

B. Single domestic hot water;

C. Single space cooling;

D. Space heating+DHW(hot water priority);

E. Space cooling+DHW(hot water priority).

Installation Reference

Components

Product Paramenters

Model

PD30-CRL-DC

PD40-CRL-DC

PD50-CRL-DC

PD60-CRL-DC

PD80-CRL-DC

PD100-CRL-DC

Heating

Heating Capacity Range (kW)

1.57~8.40

4.40~13.00

5.9~18.2

7.5~23.0

9.6~26.1

11.2~30.8

Heating Input Range (kW)

0.32~1.87

0.90~3.02

1.20~4.11

1.53~5.23

1.98~6.11

2.30~7.15

Current Range (A)

1.42~8.30

1.39~4.68

1.86~6.37

2.37~8.11

3.54~10.92

4.11~12.78

COP Range

4.49~4.91

4.30~4.90

4.43~4.92

4.40~4.90

4.27~4.85

4.31~4.87

Cooling

Cooling Capacity Range (kW)

0.99~6.22

2.80~8.20

3.81~11.53

4.73~14.6

10.1~18.1

11.8~22.8

Cooling Input Power(kW)

0.29~2.18

0.85~3.31

1.11~4.05

1.39~5.14

2.98~6.68

3.47~8.35

Current Range (A)

1.28~9.67

1.32~5.13

1.72~6.28

2.16~7.97

5.33~11.94

6.20~14.93

EER Range

2.85~3.41

2.48~3.29

2.85~3.43

2.84~3.40

2.71~3.39

2.73~3.40

DHW

Heating Capacity Range (kW)

1.28~6.81

3.52~10.50

4.80~14.72

6.1~18.5

10.7~22.6

11.5~30.7

Heating Input Range (kW)

0.31~2.13

0.88~3.39

1.17~4.60

1.53~5.97

2.61~7.06

2.88~9.90

Current Range (A)

1.38~9.45

1.36~5.26

1.82~7.15

2.37~9.26

4.67~12.62

5.15~17.69

COP Range

3.2~4.1

3.1~4.0

3.2~4.1

3.1~4.0

3.2~4.1

3.1~3.99

Refrigerant

R32

Power Supply

230V/1Ph/50-60Hz

380V/3Ph/50-60Hz

Working Area

-30~43℃

Water Circulation (m³/H)

1.4

2.2

3.1

4.0

4.5

5.3

Water Pressure Drop (kPa)

31

25

35

45

50

55

IP Grade (Level of protection)

IPX4

IPX4

IPX4

IPX4

IPX4

IPX4

Anti-electric Shock Rate

I

I

I

I

I

I

Noise (dB(A))

≤53

≤55

≤57

≤58

≤61

≤63

Net Weight/Gross Weight(kg)

110/120

140/150

170/180

180/190

210/220

210/2220

Water Connection

G1'

G1'

G1'

G1'

G1¼'

G1¼'

Body Size(W*D*H) (mm)

970×475×835

1100×475×985

1050×480×1330

1050×480×1330

1050×520×1380

1050×520×1380

Packing Size(W*D*H)(carton)

1028×520×974

1120×515×1108

1100×530×1470

1100×530×1470

1100×570×1430

1100×570×1430

Packing Size(W*D*H)(Polywood)

1048×520×974

1140×515×1110

1120×530×1470

1120×530×1470

1100×570×1430

1100×570×1430

Loading QTY(20GP/40GP/40HQ)

44/88/88

44/88/88

22/42/42

22/42/42

22/42/42

22/42/42

ErP Level (35°C)

A++

A++

A++

A++

A++

A++

ErP Level (55°C)

A++

A++

A++

A++

A++

A++

Compressor Type/QTY

Twin-rotary/1

Condensor Type

High efficiency tank

Fan Motor

DC type

Defrosting

By four-way valve

Throttle Device

Electronic expansion valve

Operating Water Temp. (℃) DHW

9~60℃

Operating Water Temp. (℃) Heating

9~50℃

Operating Water Ttemp.(℃) Cooling

7~35℃

Remark: Heating working condition: Inlet/Outlet water temp. 30℃/ 35℃, Dry/Wet bulb temp. 7℃/6℃. Cooling working condition: Inlet/Outlet water temp. 12℃/ 7℃, Dry/Wet bulb temp. 24℃. DHW working condition: Inlet/Outlet water temp. 15℃/55℃, Dry/Wet bulb temp. 7℃/6℃. Note: The data above is for reference only. Please refer to the nameplate on the unit for more specific data.

Company Profile

Guangzhou Pool World Environmental Technology Co., Ltd

Guangzhou Pool World Environmental Technology Co.,Ltd specializes in heat pump R&D, manufacturing and providing comprehensive energy-saving heating solutions to worldwide market since 2008, our factory is located in Dongguan, China,which respectively manufacture  heat pumps including pool heat pumpsHeating&Cooling&DHW Heat Pump etc., covering an area of 30,000 square meters, with 4 international laboratory attained EN14511 certificate(TUV certificated) and more than 50 R&D professional engineers, Pool World has obtained 416 patents, the products were certificated by CE,CB, ROHS, and passed the European EN14825 and EN14511 energy efficiency certificate which is complied strictly based on the latest EHPA requirement,most products are exported to Europe, Southeast Asia, South America, Middle East markets.

With over 13 years export experience,Pool World has the rich experience and the good knowledge with our professional, worldwide and customer oriented team are trained to support our partners in finding the right solution that satisfies their requirements. We are conscious that our customers are the most valuable part of our business. Therefore, we focus on giving the product quality and service that exceeds your expectations, with integrity, professionalism, and a teamwork approach.

We will strive to exceed expectations,boost the enterprise energy conservation and keep promoting the environment protection all the time.

OEM & ODM Support

01. OEM
POOLWORLD provides high efficiency air source heat pumps for your brand.
02. ODM
POOLWORLD custom manufactures heat pumps to your design.
03.POOLWORLD Provides the Following Services for Your OEM/ODM:
√ Produce European standard products with your brand/logo.
√ Shape, color and material can be customized according to your needs.
√ Customized parameter specifications according to your architecture.
√ Produce heat pump with competitive ex-factory price to guarantee your satisfactory profit.
√ Sign a non-disclosure agreement!
We will implement your heat pump OEM/ODM strategy. Let us hear from you and start your project.

Pre-sales service

01. EXPO Participation
Even during the epidemic, we participated in various exhibitions around the world, rain or shine, to promote the concept of
environmental protection to the world.
02. Marketing Support
Provide promotional materials of various media, including catalogs, brochures, data, videos, etc. Through various forms, customers can feel the high quality of POOLWORLD products in all directions.

In-sales service

01. Instant Answer and Model Selection
24-hour online customer service provides global customers with answers to various questions including model selection, technology,etc.

02. Certificate Application
According to your market, apply for the required certification to ensure that your buying and selling process is smooth.

After-sales service

01. Warranty Service
From the moment the customer receives the product, we will provide various warranty services including spare parts, maintenance,
and repairs according to different situations.
02. After-sales Center
24 hours global customer service. Professional technicians in overseas markets, plus the after-sales center built in Germany,
provide you with detailed technical assistance from online to offline.
03. Marketing Guidance
Experienced marketing experts will provide you with a marketing career in your market and help every dealer enter the heat pump
environmental protection industry and grow together.

Client feedback

Recommend Products

FAQ

Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturer factory with 15,000 sq meters modern factory.

Q: Do you accept OEM & ODM?
A: Yes. We can produce Pool World standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.

Q: What support do you offer to clients?

A: We can provide product certification requirements for local markets; provide catalogs,technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.

Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.

Q: How about the channel management?

A: We are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer Pool World’s own brand products and services to dealers.

Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 12 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.

My friend,if you are interested in our heat pumps,please don't hesitated to send us your inquiry ,we will send you the latest product catalog and price within 1 hour! Pool World looking forward to cooperating with you!

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $5405 / piece
  • 10–49 piece: US $5205 / piece
  • 50+ piece: US $4054 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water heater?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this water heater carry?

It is supplied with CB/CE/EMC/Emf/GS/LFGB/RoHS/SASO, etc documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
