This air handling units is published with the manufacturer’s full specification — power: AC220V+/-10%, model: AK200-D10-K. Made by Winner Ball Valves Company Limited (15 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Air Handling Units
- Power:: AC220V+/-10%
- Operating Power:: 3W
- Standstill Power:: 3W
- Warranty: 1 Year
- Place Of Origin: Hunan, China
- Application: Office Building
Technical Specifications
| Application | Office Building |
|---|---|
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support |
| Design Style | Modern |
| Project Solution Capability | 3D model design |
| Place Of Origin | Hunan, China |
| Brand Name | WINNER |
| Name: | Air Damper Actuator |
| Model: | AK200-D10-K |
| Control Way: | 3~Point |
| Power: | AC220V+/-10% |
| Running Time | 30~150s |
| Operating Power: | 3W |
| Standstill Power: | 3W |
| Output Angle | 90 degree |
| MOQ: | 1 SET |
| Protect Rank: | IP54 |
| Packaging Details | Carton |
| Port Of Dispatch | Shenzhen/Guangzhou/Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 2000 sets per Month |
Product Details

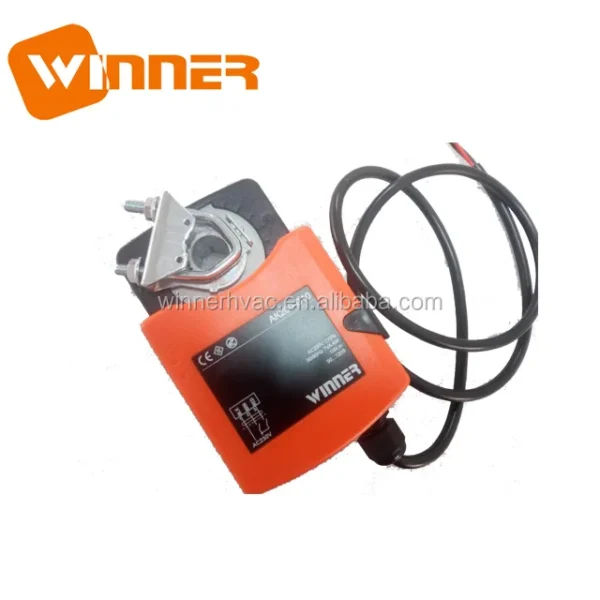

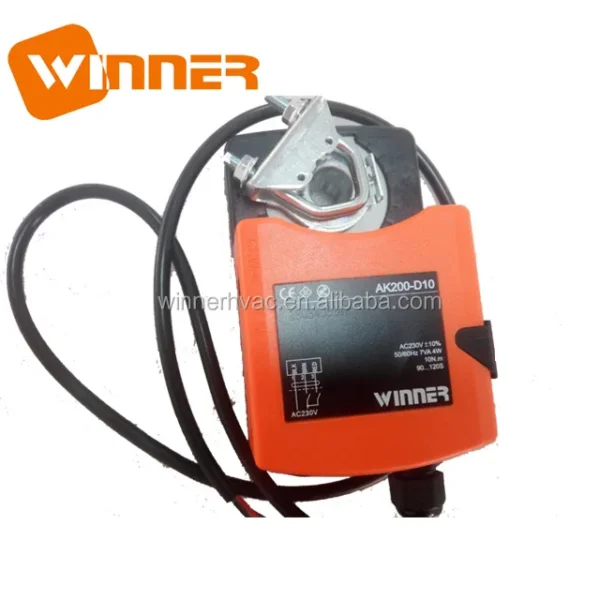

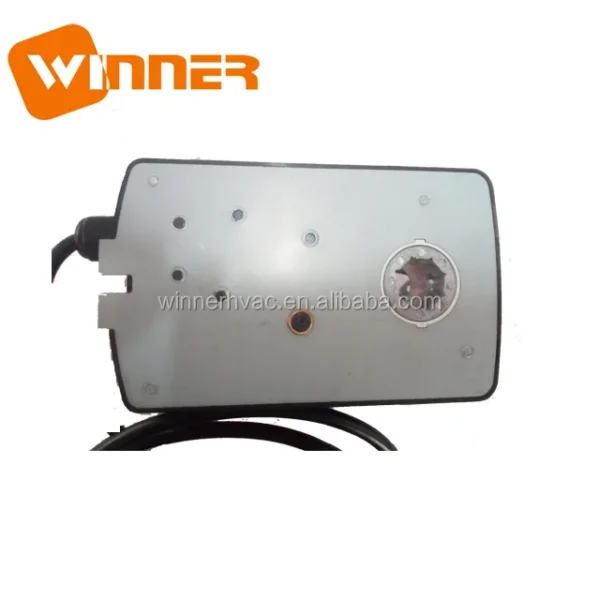

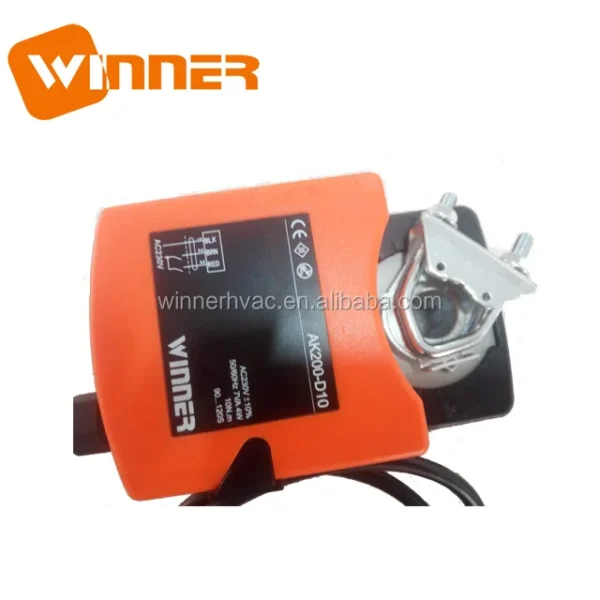

Winner Air Damper Actuator
The actuator is suitable for cicular spindle with 10~18mm, or square spindle size 6~12mm, length >40mm, and the rotation direction can be reversed by pushing the CCW/CW switch side of the case. To change the input/output signal valve, open the case, and find the JP plug on the PCB. The control signal valve can be changed by connecting the plug. Torque could be 4, 6, 10N.m
| Model Code
| AK200-D04 | AK24-A/D04 | |
| Output Torque | |||
| Power Supply | AK200-D.. | AK24-A/D | |
| AC230V | AC/DC24V | ||
| Run time | 30~150s | 30~120s | |
| Operating Power | 12VA, 3W | 5VA, 3W | |
| Standstill power | 12VA, 3W | 5VA, 3W | |
| Output angle | 90 degree (95 degree max) | ||
| ON/OFF Control Signal | 2 wires control | ||
| Modulating Control signal 1 | DC0 (2)…10V (100k ohm) | ||
| Modulating Control Signal 2 | DC0 (4)…20mA (500 ohm) | ||
| Modulating Feedback signal | DC0 (2)…10V | ||
| Protection class | IP54 | ||
| Ambient Conditions | -10..+50 Celsius Degree, 0~90% RH | ||
| Noise Max | 40dB (A) | ||
| Weight | 600…900g | ||
Payment Method
TT/WESTERN UNION/PAYPAL/LC
—————————————————————————————————————————————————————————–
The actuator and valve body is packed seperatedly in a carton box.
For shipping by sea, the inner carton box is protected by waterproof transparent film.
Winner electronic was established in 2005 in Wuhan ,Hubei province, China. Winner electronic is the first company in China to develop, produce and sell small automotive electric ball valve and put the ball valve for central air condition system. After first generation, second generation, third generation improvement, our products are now widely used for HVAC system, hospital equipment system and environmental control system. All our valves are our patent products and they are CE, ROSH certified. Winner has developed to be the most professional which has the longest experience in electronic ball valve manufacturer. In 2010, winner set up its branch in Changsha ,Hunan Province to match up the fast developing market.
Our company is a professional supplier of motorized ball valves, automatic control valves and thermostats, which are widely used in HVAC equipment, water treatment systems and some industrial equipments. With high-quality products, excellent services and a good reputation, we have won great support from customers around the world. Thus, our company scale has expanded. We also offer all kinds of OEM/ODM services. At present, we export products to America, Europe, the Middle East and other countries in Asia. We have established long-term stable and good business relationships with many manufacturers and wholesalers around the world. Currently, we are looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.

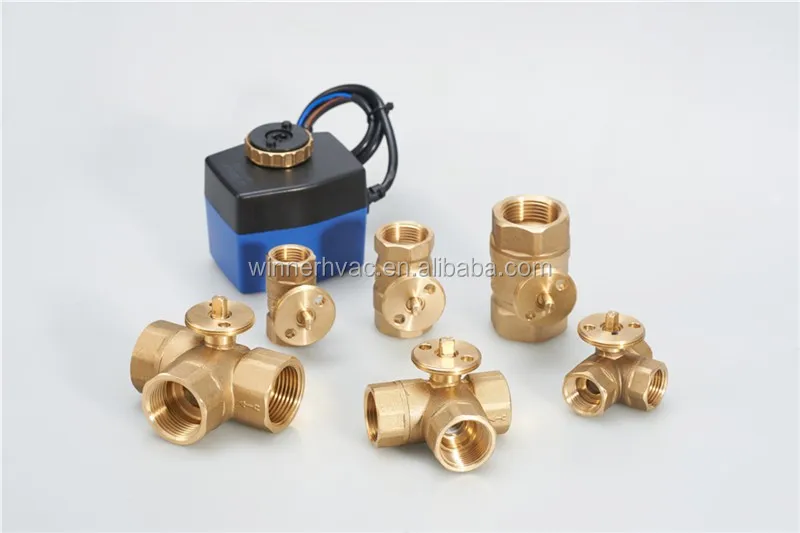

Motorized Ball Valves
Proportional Control Ball Valves

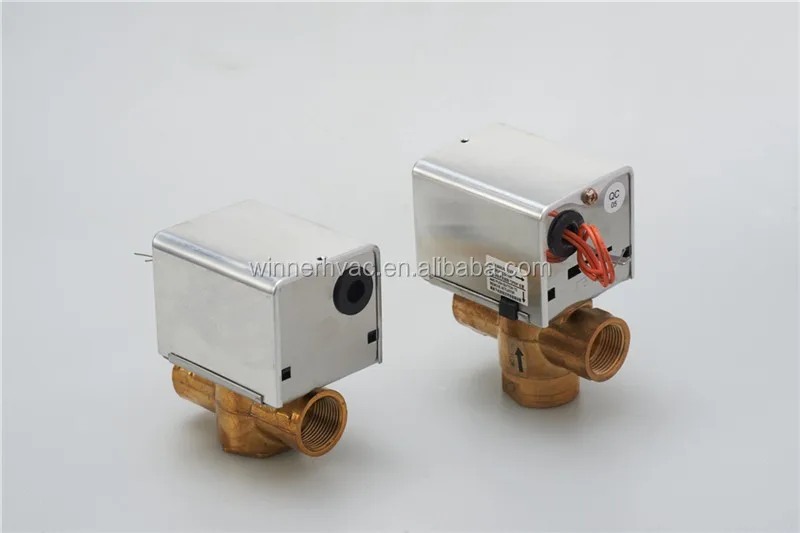

Self Close Spring Return Zone Valve
Room Digital Temperature Control Thermostat
Q1: Only Bulk Orders?
No, Sample orders are aslo welcome.
Q2: How to place orders?
Your can send inquiry or leave messages about your requirements or questions on Alibaba. Our sales will get back to you within 24hours.
Q3: How many days for delivery?
Usually it takes about 3 working days if stock available.
Q4: How to make payment?
After confirming all details, our sales will provide a PI with payment method (TT/WESTERN UNION/PAYPAL/LC).
Q5: Quality Guarantee?
18months
Q6: After-Sales services?
We shall be grateful if pictures or videos can be provided once there is any problem when you use our product. Our sales will
give prompt response and solving method will be provided in the first time.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling units?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
