Key specification for this fan coil unit: voltage: AC220V±10% 50/60Hz, power load: 3A/5A. Everything below is reproduced from the factory data sheet. Made by Winner Ball Valves Company Limited (15 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Fan Coil Unit
- Model Number: DW-T108
- Power Load:: 3A/5A
- Power Self-Consumption: < 1 . 5W
- Voltage:: AC220V±10% 50/60Hz
- Material: PVC
- Housing Material: PC+ABS
Technical Specifications
| Application | Hotel, Office Building, Hospital, School, Supermarket, Other, Home Office |
|---|---|
| Material | PVC |
| Feature | Easy Install |
| Design Style | Modern |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support |
| Project Solution Capability | 3D model design |
| Model Number | DW-T108 |
| Place Of Origin | Hunan, China |
| Brand Name | Winvall |
| Certificate | CE/ROHS |
| OEM | Acceptable |
| Waranty | 18 months |
| Color | various |
| Voltage: | AC220V±10% 50/60Hz |
| Power Load: | 3A/5A |
| Power Self-Consumption | < 1 . 5W |
| Housing Material | PC+ABS |
| Dimmention | 86mm*86mm*13mm |
| Certification | RoHS |
| Selling Units | Single item |
| Single Package Size | XX cm |
| Single Gross Weight | 0.0 kg |
Product Details
[ Product Overview]

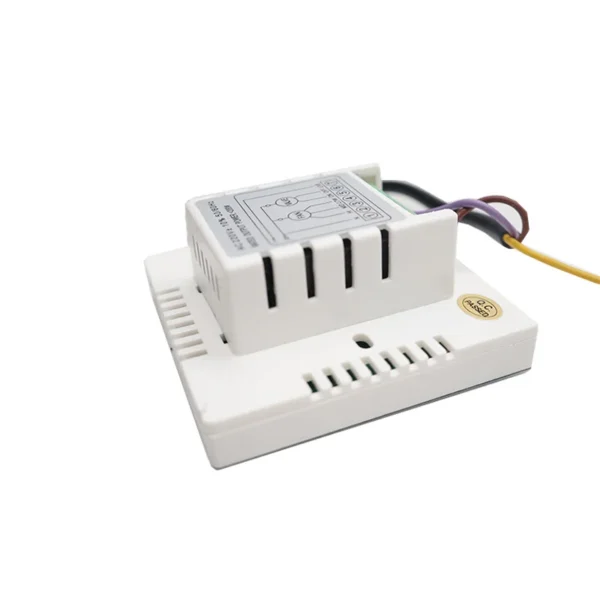

LCD digital thermostats,applying the most advanced and international standardized microcomputer control chip, measures the indoor temperature by the in-built NTC high- precision sensor. It can always compare with the setting temperature, and automatically regulate the heating/cooling air input or switch on/off the motorized valve, so as to keep room in a certain temperature.
[ Technical Data ]
Working voltage : AC220V ±10 % ,50 / 60Hz Load current : < 1A
Power self-consumption : < 1 . 5W Temperature Accuracy : ±1℃
Timing error: <1% Output rated power : < 200W
Temperature setup range : 5℃-35℃ Dimension: 86mm * 86mm*13mm
[ Standard configuration ]

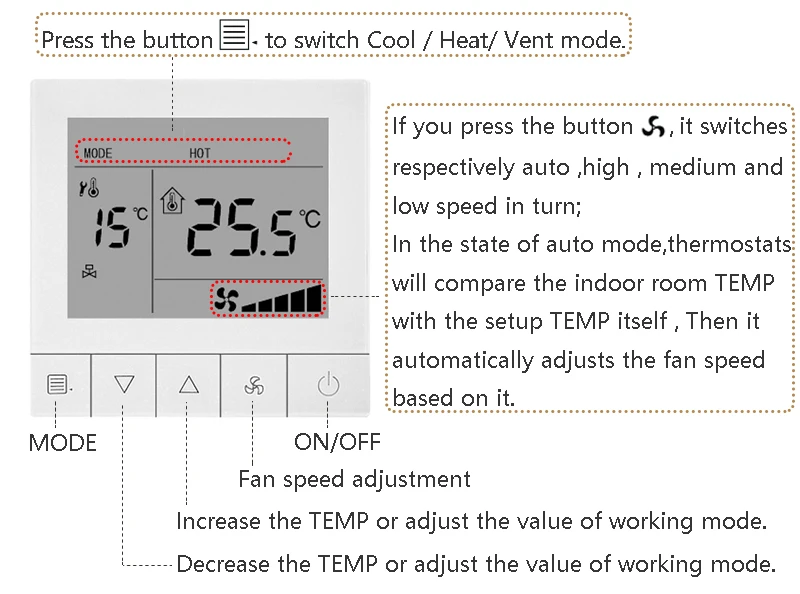

A,Large Interactive touch screen, clear display with backlight shows even in the dark.
B,Fan coil unit and motorized valve control;
C,Fan coil unit wind speed conversion–. High, Medium, Low, Automatic;
D,Locking function — When locked, the temperature can not be set, and only heat & cool transfer, power on & power off and Fan speed setting ;
E,Lock hidden function— This function can only operate when the thermostat in power offstatus;
F,Shell pieces for the white colors.
[ Caution ]

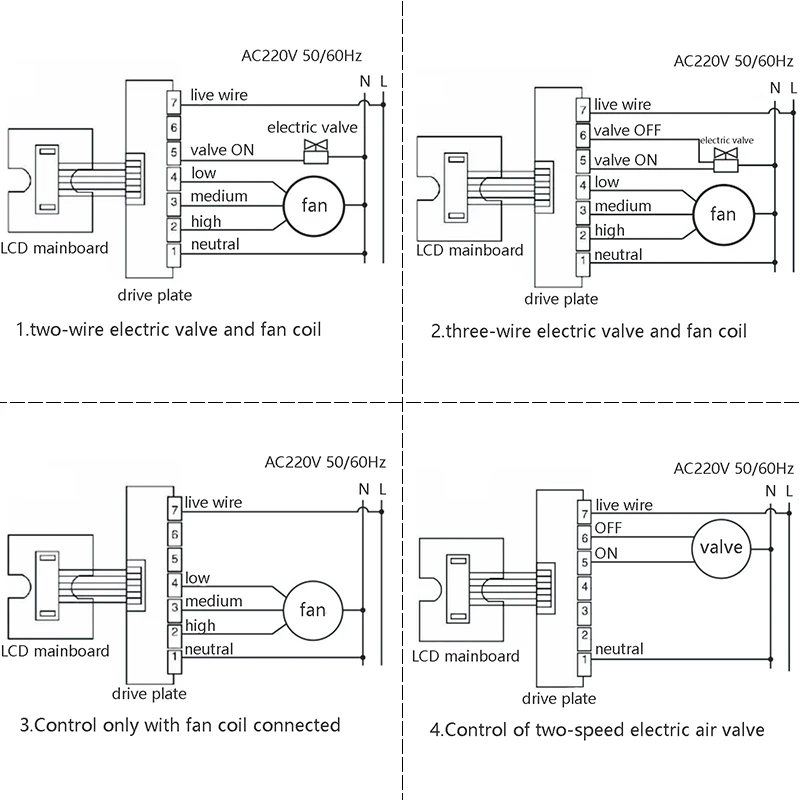

Please connect wires in strict compliance with the installation wiring diagram ;
Please install a thermostat correctly in strict compliance with the installation diagram
Do not pull the cable forcibly , or it may be damaged .
Do not squeeze the LCD or scratch the LCD surface during the installation; During the installation ,do not knock those electronic components on the circuit board , and do not drop or deform the back cover.
If hard plastic lines are used during the installation , do bend it into a appropriate angle firstly
Do not drop it into construction mud
[ Different Lines Match ]
[ Installation ]
We suggest installing the thermostat after the completion of the interior decoration.

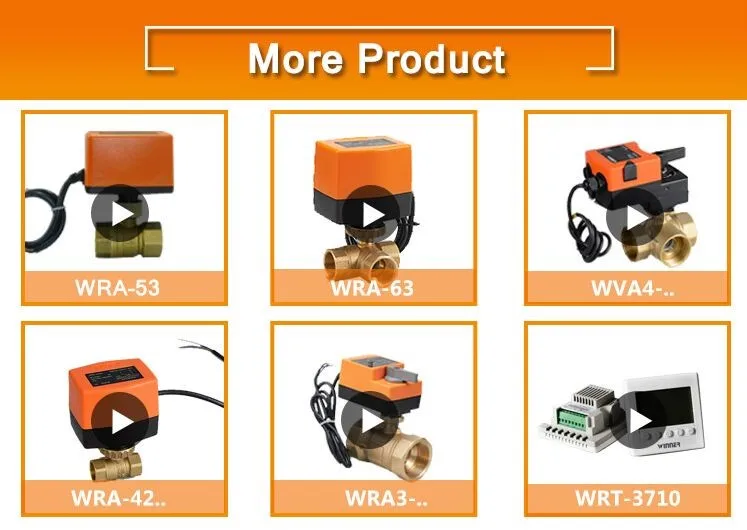

 | WRA-53 Series | 220v ON/OFF, 3-Point |
| WRA-63 Series | 220V/110V/24V ON/OFF, 3-Point | |
| WVA4-.. Series | 220V/24V ON/OFF, Proportional | |
| WRA3-.. AC Series | 220V/110V/24V ON/OFF, 3-Point | |
| WRA-42 DC Series | 24V/12V/3V ON/OFF, 3-Point | |
| WRA3-.. DC Series | 24V/12V/3V, ON/OFF, Proportional |
Ordering and Pricing
- Minimum order quantity: 100 set
- Volume pricing:
- 100–999 set: US $28.5 / set
- 1000+ set: US $18.5 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 100 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this fan coil unit carry?
It is supplied with CE/ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the fan coil unit be supplied for my local voltage?
The standard configuration is AC220V±10% 50/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
