Fan coil unit — model number WRA-5320, certificate: CE,. The complete factory specification follows. Made by Winner Ball Valves Company Limited (15 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Fan Coil Unit
- Model Number: WRA-5320
- Warranty: 1 Year
- Place Of Origin: Hunan, China
- Application: Office Building
- Single Gross Weight: 0.0 kg
- Design Style: Modern
Technical Specifications
| Application | Office Building |
|---|---|
| Design Style | Modern |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support |
| Project Solution Capability | 3D model design |
| Model Number | WRA-5320 |
| Place Of Origin | Hunan, China |
| Brand Name | WINNER |
| Certificate: | CE, |
| Color: | various |
| Temperature Of Medium | 2°C…90°C |
| Rated Pressure | PN16 |
| Pipe Connector | internal thread |
| Flow Characteristic | on/off |
| Valve Body | forged brass |
| Seal: Ball: | EPDM+PTFE |
| Ball: | brass |
| Packaging Details | 57 untis per carton, size:50*33*30cm |
| Port Of Dispatch | Changsha |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 1800 pieces per Week |
Product Details

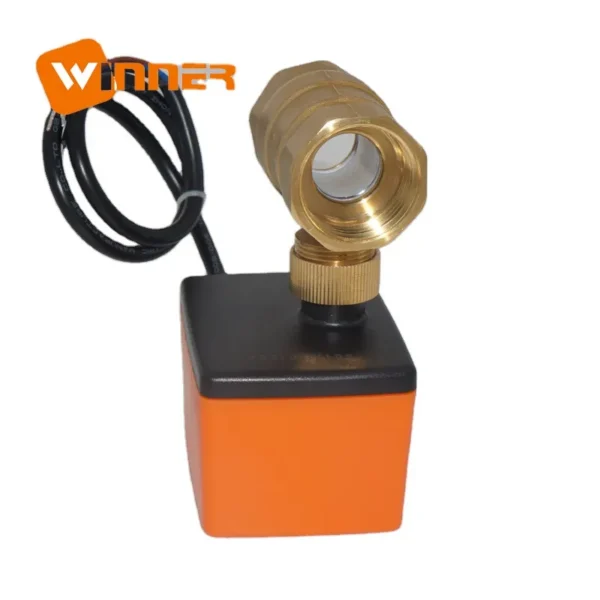

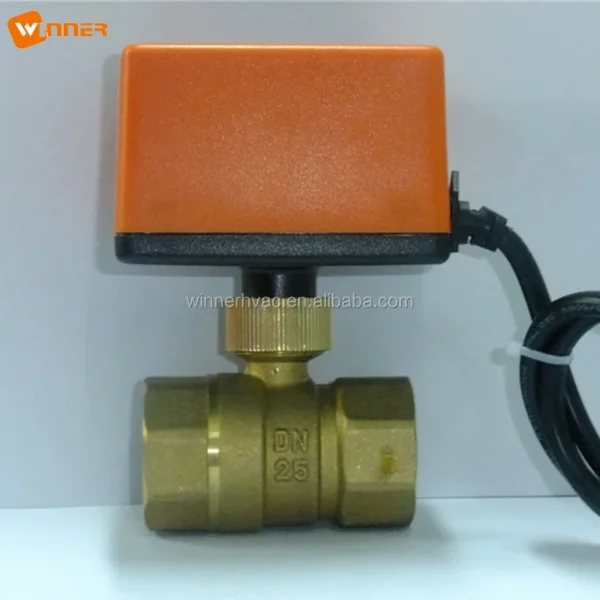

220v electric acutated flow control valve for HVAC system, fan coil unit
Description
Winner motorized ball valve consists of on/off type or 3-point type actuator and W6BV… series ball valve,which have compact structure,stable operation,excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.
Application
HVAC system, heating system, Water treatment system, Industrial equipment
Operational mode
Winner motorized ball valve is motor-operated by a type of WRA-5320, and WRA-5320A actuator. The actuator is controlled by a modulating on/off or 3-point control system and move the ball of the valve, to the opening position dictated by the control signal.
Technical data

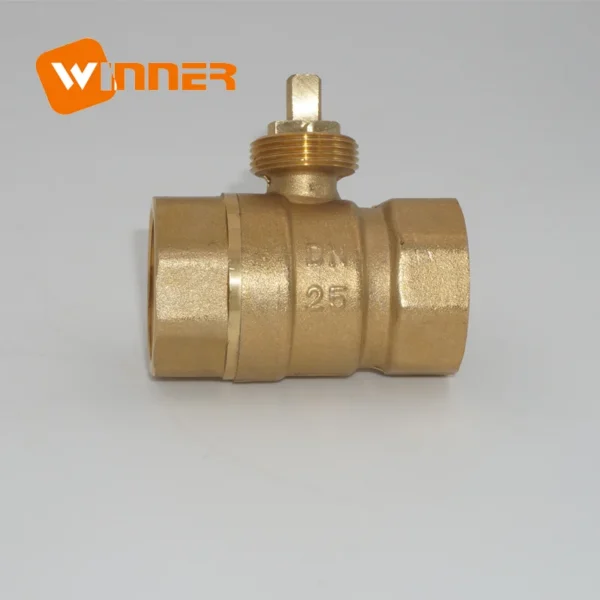

Valve body:
Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C…90°C
Rated pressure: PN16 Pipe connector: internal thread
Ambient temp. range: −5…+60°C;0…90%RH Size: 1/2’’, 3/4’’ and 1’’ Valve type: 2-way
Material
Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE
Ball: chrome-plated brass stem: EPDM O-rings
| Model No. |
| Inner Dia. | Inch | Kvs(m3/h) | Pvmax(KPa) | Ps(KPa) |
| W6BV215 | 2-way | 12mm | 1/2” | 8.6 | 600 | 900 |
| W6BV220 |
| 15mm | 3/4” | 21 | 600 | 900 |
| W6BV225 |
| 20mm | 1” | 26 | 600 | 900 |
Function (3-point or on/off type)
The actuator is controlled by an on/off control signal, using unidirectional synchronous motor and gear speed reducer drive to fix and lock. .
Actuator
WRA-5320A AC220V, 50/60Hz, on/off
WRA-5302A AC24V, 50/60Hz, on/off
WRA-5320 AC220V, 50/60Hz, 3-point
WRA-5302 AC24V, 50/60Hz, 3 point
Output torque: 3.5 N.m Angle of rotation: 360° same direction
Protect rank: IP54 On/off time: 19S/50Hz; 15S/50Hz
Power consumption: <6W Insulation resistance:>DC500V 100MΩ
RoHS/3C: meet RMS value: 10mA
Function
(on/off type)
The actuator is controlled by a modulating on/off control signal, using unidirectional synchronous motor and gear speed reducer drive to fix and lock.
WRA-53…A on/off type
Black wire is the control wire. Power on: valve open, power off: valve close
Blue wire is connected to the com.
Brown wire is connected to the power wire.
Only can be used as on/off type.
(3 point type)
The actuator is controlled by a modulating 3 point control signal, using directional synchronous motor and gear speed reducer drive to fix and lock.
WRA-53… 3-point type
Brown wire is power on Valve open
Blue wire is power on Valve close
Brown or blue wire is power off Valve keep the current position
Black wire is connected to the null wire.
Also can be used as on/off type.
| Model No. | Working Voltage | Actuator type | Output torque | Consumption | On/off time | Valve body |
| WRA-5320 | 230VAC±15% 50/60Hz | 3-point or on/off | 3.5N.m | 6W | 50Hz:19S 60Hz:15S | W6BV215 W6BV220 W6BV225 |
| WRA-5320A | On/off |
Installation:
IInsert the valve stem to the bottom of the actuator, and insert 2 pin, located in the bottom of the actuator to the valve’s mounting hole. Then screw down the brass cap nut
 | WRA-53 Series | 220v ON/OFF, 3-Point |
| WRA-63 Series | 220V/110V/24V ON/OFF, 3-Point | |
| WVA4-.. Series | 220V/24V ON/OFF, Proportional | |
| WRA3-.. AC Series | 220V/110V/24V ON/OFF, 3-Point | |
| WRA-42 DC Series | 24V/12V/3V ON/OFF, 3-Point | |
| WRA3-.. DC Series | 24V/12V/3V, ON/OFF, Proportional |
skype/email:yuri.winner#winner-hvac.com
whatsapp/wechat:0086 18711199805
g
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this fan coil unit carry?
It is supplied with CE, documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
