The air handling units listed here carries material Steel, type Steel Structural Fabrication Construction, documented exactly as the manufacturer publishes it. Made by Shenyang Zishenlong Light Steel Color Plate Co. , Ltd. (3 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Air Handling Units
- Model Number: Q235/Q355 prefab steel structure building
- Material: Steel
- Warranty: 3 Years
- Place Of Origin: Liaoning, China
- Application: Garage Shed, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Supermarket, Warehouse, Workshop
- Application Fields: Shop, Hotel, Office Building, Supermarket, Workshop, Warehouse
Technical Specifications
| Use | Warehouse |
|---|---|
| Material | Steel |
| Maximum Wind Resistance (Mph) | 81-120mph |
| Maximum Roof Load (Lb./Sq.Ft) | 20+lb/sq.ft |
| Application | Garage Shed, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Supermarket, Warehouse, Workshop |
| Warranty | 3 Years |
| After-Sale Service | Online Technical Support |
| Product Type | Steel Structure |
| Project Solution Capability | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation |
| Design Style | Modern |
| Place Of Origin | Liaoning, China |
| Brand Name | Zishenlong |
| Model Number | Q235/Q355 prefab steel structure building |
| Product Name | Prefabricated Steel Warehouse |
| Application Fields | Shop, Hotel, Office Building, Supermarket, Workshop, Warehouse |
| Type | Steel Structural Fabrication Construction |
| Certificate | ISO9001 NO.29026Q00046R001, CE Certificate NO.ICR/VC/HS240639 |
| Purlin | C.Z Shape Steel Channel |
| Column And Beam | Welded/ Hot-rolled H-section Steel, Square Tube Etc |
| Roof & Wall Panel | Color Steel Veneer, EPS Sandwich Panel, PU Sandwich Panel Etc |
| Color | Blue Red White Green Etc |
| Processing Service | Welding, Punching |

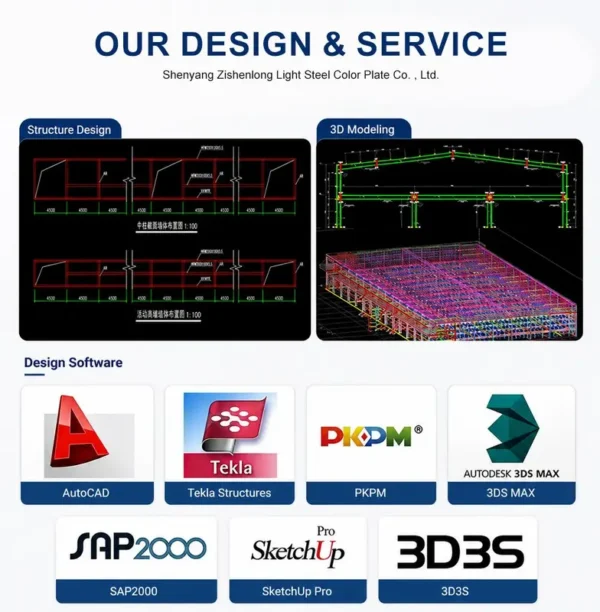

| Drawing Design | SAP2000/AutoCAD /PKPM /3D3S/TEKLA |
| Selling Units | Single item |
| Single Package Size | 45X35X30 cm |
| Single Gross Weight | 50.0 kg |
Product Details
Specification
Our complete one-stop solution includes global installation guidance and hassle-free service, enabling you to cut down project lead times efficiently.
Structure | Material | Details | ||
Main Structure | Frame Columns and Beams | Q235B/Q355B | ||
End Wall Column | Q235B/Q355B | |||

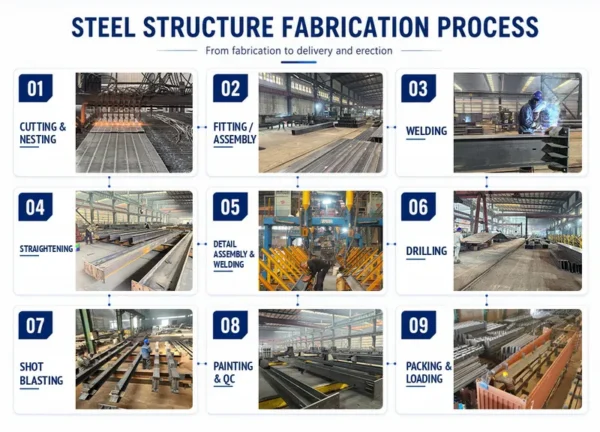

H-beam welding(columns and beams) | Automatic Submerged Arc Welding | |||
Rust Removal | Shot Blasting | |||
Surface Processing | Alkyd Paint/Epoxy Zinc Rich/Galvanized | |||
High-Strength Bolt | Grade 10.9/8.8 | |||
Common Bolt | Grade 4.8 | |||
Secondary Structure | Flange Brace | Angle Steel | ||
Horizontal Support | Angle/Round Steel | |||
Vertical Support | Angle/Round Steel | |||
Tie Rod | Angle/Round Steel | |||
Tie Bars | Round Steel/Casing/Shaped Steel | |||
Purlin | Galvanized Z-beam/C-beam | |||
Enclosure system | Roofing system | Roofing Materials | 360°Locking Seam System / Locking Screw System / Composite Panel Roofing / Rockwool Maintenance System | |
Daylighting Band | FRP Plate | |||
Gutter (inside/outside) | Stainless Steel/Colored Steel Plate | |||
Rain Pipe | PVC Pipe/Colour Steel Rainwater Pipe | |||
Wall System | Wall Materials | Locking Screw System / Composite Panel Wall / Rockwool Maintenance System | ||
Accessories | Sealant, Self-tapping Self-drilling Screws, etc. | |||
Edge Flashing | Color Plate/Stainless Steel | |||
Ventilator | Powered/Unpowered Axial Flow Ventilators | Customizable | ||
Ventilation tower | Finished Product | Customizable | ||
Door | Electric Rolling Door/Sliding Door/Fireproof door | Customizable | ||
Window | Aluminum Alloy/plastic Steel Window/Fireproof Window | Customizable | ||
Technical Index | Design Standard | Verification |
Dead Load | 0.30 KN/㎡ | PASSED |
Live Load | 0.50 KN/㎡ | PASSED |
Wind Load | 0.50 KN/㎡ (Customizable) | PASSED |
Snow Load | 0.65 KN/㎡ | PASSED |
Seismic Intensity | 8.0 Magnitude | PASSED |
Products Description
How to Get Quotes
If you have drawings, welcome to share drawings with us, quoation will be done based your drawings. Our excellent design team will design the steel structure workshop warehouse for you.
If you give the following information, we will give you an satisfactory drawing.
1 Location (where will be built? ) which country? which city?
2 Size: Length*width* Eave height _____mm*_____mm*_____mm
3wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height) _____kn/m2, _____mm, temperature range?
5 anti-earthquake _____level
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high? or other?
7 thermal insulation If yes, EPS,fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity &size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max.Lifting height _____m
FAQ
Q1： Can your buildings withstand high wind/snow loads in my region?
A: Yes. We customize every design based on your local climate data (e.g., 120mph wind speed or heavy snow loads).
Q2: Do you provide installation services overseas?
A: We provide detailed 3D manuals and can send a technical supervisor to your site if required for large-scale projects.
Q3: What is the lifespan of your steel structures?
A:Our primary frames are designed for a 50+ year lifespan with proper maintenance.
Q4: How long is the use life of roof cover?
A: The use life of PE coating is usually 10-25 years.
Q5: How do we cooperate on certain project?
A: Firstly, please send us your project details and your requirements. Then we will design accordingly, free of charge. Afterwards, please check and confirm whether you like the drawings. If not, we shall get the drawings revised until your confirmation. Finally we make a deal on alibaba.com with Trade Assurance.
The Case for Steel Structure Buildings If you are building a factory, warehouse, workshop, hangar, or commercial facility, you have two structural options: concrete or steel. For most industrial and commercial projects, steel is the superior choice — not because it is cheaper per ton, but because it delivers a better building, faster, for less total cost.
1. Speed A steel building goes up in half the time of concrete — often less. The structure is fabricated in a factory while your foundation is being poured on site. When the two streams converge, a crane and a small crew bolt the frame together. No formwork. No curing time. No weather shutdowns. What this means in practical terms: a steel building that takes six weeks to erect would take four to five months in concrete. That is three extra months of production, three extra months of revenue, and three fewer months of construction loan interest. Speed is not a convenience — it is a financial instrument.
2. Clear Spans
Concrete beams become impractically heavy and expensive beyond about 8 to 10 meters of span. Steel portal frames and trusses routinely clear 30 meters, 50 meters, and up to 100 meters without intermediate columns.
For a warehouse, that means more pallet positions and straight forklift aisles. For a factory, it means production lines you can lay out and reconfigure freely. For an aircraft hangar or exhibition hall, it means the only practical way to build. You are
buying usable floor area, not a grid of structural obstacles.
Concrete beams become impractically heavy and expensive beyond about 8 to 10 meters of span. Steel portal frames and trusses routinely clear 30 meters, 50 meters, and up to 100 meters without intermediate columns.
For a warehouse, that means more pallet positions and straight forklift aisles. For a factory, it means production lines you can lay out and reconfigure freely. For an aircraft hangar or exhibition hall, it means the only practical way to build. You are
buying usable floor area, not a grid of structural obstacles.
3. Lighter Weight, Lower Foundation Cost
A steel frame weighs roughly one-third of an equivalent reinforced concrete structure. That lighter dead load translates directly into smaller footings, fewer piles, less excavation, and less concrete below grade. Foundation costs for steel buildings are typically 20% to 30% lower than for concrete alternatives. On a large project, this saving alone can offset the entire material cost difference between steel and concrete.
A steel frame weighs roughly one-third of an equivalent reinforced concrete structure. That lighter dead load translates directly into smaller footings, fewer piles, less excavation, and less concrete below grade. Foundation costs for steel buildings are typically 20% to 30% lower than for concrete alternatives. On a large project, this saving alone can offset the entire material cost difference between steel and concrete.
4. Seismic Performance Concrete is brittle in tension. Under earthquake loading, it cracks — and if cracking propagates, failure is sudden and catastrophic. Post-earthquake damage surveys worldwide consistently show steel-framed buildings surviving events that reduce neighboring concrete structures to rubble. Steel yields before it breaks. It bends, absorbs energy through controlled plastic deformation, and redistributes loads rather than fracturing. If you are building in any seismically active region, this is not a preference — it is a safety requirement.
Ordering and Pricing
- Minimum order quantity: 300 square meter
- Volume pricing:
- 300–4999 square meter: US $45.89 / square meter
- 5000–9999 square meter: US $35.89 / square meter
- 10000+ square meter: US $24.89 / square meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling units?
The standard minimum order quantity is 300 square meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this air handling units carry?
It is supplied with ISO9001 NO.29026Q00046R001, CE Certificate NO.ICR/VC/HS240639 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenyang Zishenlong Light Steel Color Plate Co. , Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenyang Zishenlong Light Steel Color Plate Co. , Ltd. range on HVACR Nexus.
