Key specification for this air heater: 220 V, 380 V, heating capacity Warm Air Blower. Everything below is reproduced from the factory data sheet. Made by Henan Tuofang Energy Saving Technology Co., Ltd. (3 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Heater
- Power Source: Electric
- Voltage: 220 V, 380 V
- Heating Capacity: Warm Air Blower
- Material: Alloy
- Warranty: 1 Year
- After Warranty Service: Video technical support, Online support, Spare parts, Field
Technical Specifications
| Type | Air Heater |
|---|---|
| Power Source | Electric |
| Voltage | 220 V, 380 V |
| Material | Alloy |
| Core Components | Engine |
| Key Selling Points | Eco-Friendly, Automatic, Competitive Price, Easy To Operate |
| Temperature Range | medium-temperature |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | Warm Air Blower |
| Place Of Origin | Henan, China |
| Weight (Kg) | 50 |
| Brand Name | Customized |
| Dimension(L*W*H) | Customized |
| Product Name | Warm air blower |
| Certification | ISO9001 |
| After Warranty Service | Video technical support, Online support, Spare parts, Field |
| Maintenance And Repair Service | Local Service Location |
| Application | Heater Parts |
| Connection Type | Thread, Flange |
| Selling Units | Single item |
| Single Package Size | 35X35X20 cm |
| Single Gross Weight | 16.0 kg |
Product Details
Overview
Commercial Warm Air Heating Systems hanging unit heaters

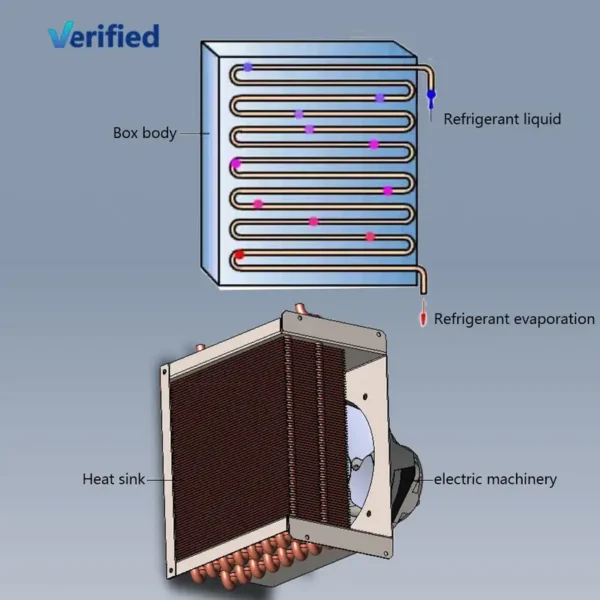

These compact units are designed to maximize heat transfer by utilizing a series of 3/8" copper tubes with a high density of
aluminum fins.
These fins are spaced such that the fin density is 12 fins per inch.
This design enables heating loads of 50,000-60,000 Btu per square foot (please see performance chart).
Despite such high fin density there is minimal pressure drop through these coils.
This heat exchanger is crafted of stainless steel.
Because water flows through this exchanger at such a high rate of speed, it cleans itself.
The model of heat exchanger you will require is based on the volume of water that you need it to handle.
Applications thaools, hot tubs, and waste water. This particular heat exchanger features a capacity of 60,000 BTU/H.
heat exchangers such as this one can be used for include oil coolers, transmission and engine coolers, boiler sample coolers
Specifications
Model | Capacity, | Water flowrate(gpm)/pressure drop(psi) | Air flowrate(cfm) | ||||
BTU/h | 180-160F | 180- 150F | 180- 170F | Delta T 20F | |||
12×12 | 60000 | 6.2/0.04 | 4.1/0.02 | 12.4/0.14 | 273A | ||
16×16 | 80000 | 8.2/0.09 | 5.5/4.04 | 16.5/0.30 | 3630 | ||
16×18 | 100000 | 10.3/0.15 | 6.9/0.07 | 20.6/0.49 | 4544 | ||
18×18 | 120000 | 12.4/0.17 | 8.2/0.08 | 24.7/0.57 | 5450 | ||
18×20 | 140000 | 14.4/0.24 | 9.6/0.12 | 28.8/0.83 | 6360 | ||
19×20 | 150000 | 15.5/0.28 | 10.3/0.14 | 30.9/0.94 | 6810 | ||
20×20 | 160000 | 16.5/0.26 | 11.0/0.13 | 33.8/0.87 | 7270 | ||
22×22 | 200000 | 20.6/0.35 | 13.7/0.17 | 41.2/1.19 | 9080 | ||
20×25 | 190000 | 19.6/0.43 | 13.1/0.21 | 39.1/1.46 | 8630 | ||
22×25 | 220040 | 22.7/0.47 | 15.1/0.23 | 45.3/1.59 | 9990 | ||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–19 piece: US $99 / piece
- 20+ piece: US $49 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this air heater carry?
It is supplied with ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the air heater be supplied for my local voltage?
The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Tuofang Energy Saving Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Tuofang Energy Saving Technology Co., Ltd. range on HVACR Nexus.
