Key specification for this stainless steel tube: material Aluminum Alloy, Stainless Steel, Copper, type Fin Tube. Everything below is reproduced from the factory data sheet. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Stainless Steel Tube
- Material: Aluminum Alloy, Stainless Steel, Copper
- Warranty: 1 Year
- After Warranty Service: Video technical support, Online support, Spare parts, Field
- Certification: ISO9001
- Place Of Origin: Henan, China
- Application: Refrigeration Parts&Heater Parts
Technical Specifications
| Application | Refrigeration Parts&Heater Parts |
|---|---|
| Type | Fin Tube |
| Material | Aluminum Alloy, Stainless Steel, Copper |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 10 |
| Place Of Origin | Henan, China |
| Brand Name | ODM |
| Maintenance And Repair Service | Local Service Location |
| Product Name | Finned Tube |
| After Warranty Service | Video technical support, Online support, Spare parts, Field |
| Certification | ISO9001 |
| Tube Length | 18 meters max |
| Fin Height | 16 mm max |
| Tube Materia | Aluminum, Copper And Steel |
| Selling Units | Single item |
| Single Package Size | 10X10X10 cm |
| Single Gross Weight | 1.0 kg |
Product Details

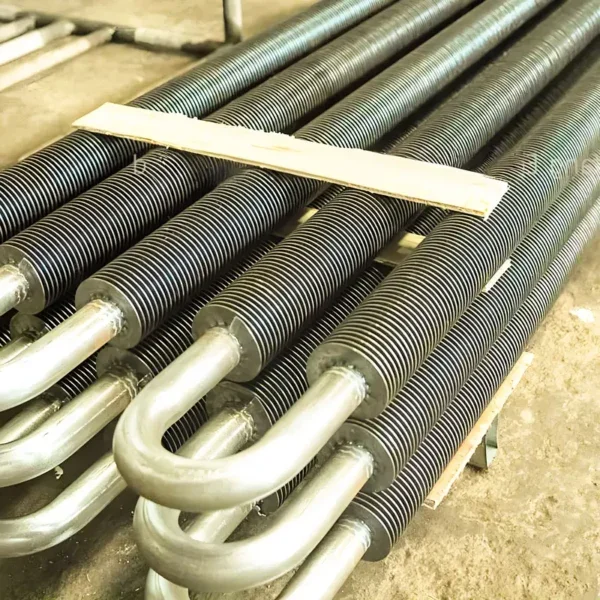

Laser Welding FinnedTube
Tube Material:Carbon Stee Tube,Stainless Steel Tube,TitaniumTube Fin Material: Copper,Stainless Steel
Tube oD:10-150mm
Tube Thk:1.0-5.0mm
Fin Thk:0.4-1.0mm
Fin Pitch:2.0-20.0mm
Fin Height:0.4-16mm
Common Specifications of Steel-AluminumExtruded Type Finned Tube
All dimensions are in Inches and specification upon your requests
Tube oD | Fin Height | Fin Thickness | Fins per Pitch(Density) | |||
5/8 | 3/8.1/2 | .015/.016/.020 | 4.5.6.7.8.9.10.11.12 | |||
3/4 | 3/8.1/2.5/8 | .015/.016/.020 | 4.5.6.7.8.9.10.11.12 | |||
1 | 3/8.1/2.5/8 | .015/.016/.020 | 4.5.6.7.8.9.10.11 | |||
1 1/4 | 3/8.1/2.5/8 | .015/.016/.020 | 4.5.6.7.8.9.10 | |||
1 1/2 | 3/8.1/2.5/8 | .015/.016/.020 | 4.5.6.7.8.9.10.11 | |||
1 3/4 | 3/8.1/2.5/8 | .015/.016/.020 | 4.5.6.7.8.9.10 | |||
2 | 3/8.1/2.5/8 | .015/.016/.020 | 4.5.6.7.8.9.10 | |||
We can customize The case of steel-Aluminum Extruded Type Finned Tube according to your drawings | ||||||
General technical conditions for high-frequencywelded finned tubes for heat exchangers
All dimensions are in Inches and specification upon your requests
Peculiarity
1.High-quality material: high temperature resistance,corrosion resistance, gooheat exchange effect. 2.Large heat transfer area: The heat transfer tube of thecondenser adopts thedesign of threaded tube, which increases the contact area and has a goodcooling effect. 3.Wide range of applications: refrigeration industry,HVAC, chemical industry,metallurgical industry, machin-ery industry,electric power industry, paper industrycentral heating and other industries.
Advantage
1.Internal & external enhanced groove, ensure high heattransfer efficiency 2.Al-brass and Ni/Cu tubes are available for seawater application; 3.Cooling capacity from 2.5TR to 1,000TR; 4.One to eight refrigerating circuits available; 5.SO ,ASME and BR1 certificate are optional; 6.Specification and performance can be customized asper requirements
PRODUCT FEATURES
High-quality material
high temperature resistancecorrosion resistance, goodheat exchange effect.
arge heat transfer area
The heat transfer tube of thecondenser adopts thedesign ofthreaded tube, which increasesthe contactarea and has a goodcooling effect.
Wide range of applications
Refrigeration industry, HVAC,chemical industrymetallurgicalindustry,machinery industry,electric power industry, paperindustry, central heating
Easy installation
The tube bundle can bewithdrawn to facilitatecleaningof the tube and shell, and canbe easily changed,

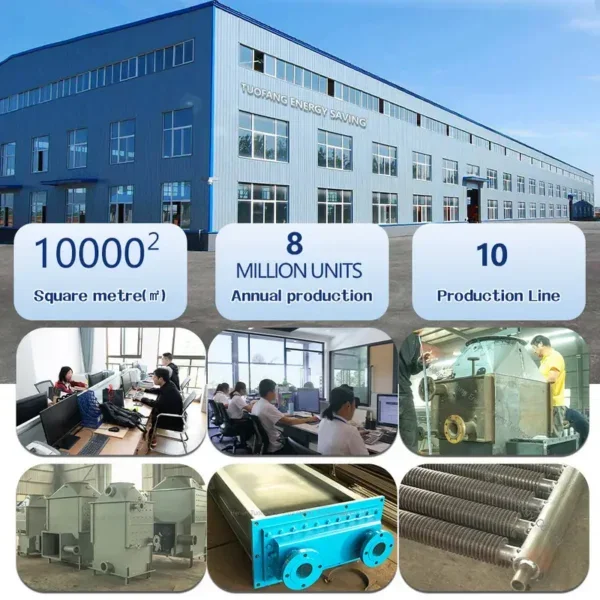

ABOUT US
Henan Tuofang Energy Saving Technology Co., Ltd.isa professional supplier of finned tubes and ener-gy-saving devices in Henan Province. Our factory islocated in Yanling County, Xuchang City, Henan Prov-ince.We produce laser-welded finned tubes, high-frequency welded finned tubes, pressed welded finnedtubes, energy-saving devices, coolers, and radiatorsAll of these are used for energy-saving and environ-mental protection parts and equipment. All of our products have passed the water pressuretest and the fin welding strength pull-out test. Thesefinned tubes are tested at 100% full load to ensurequality.These finned tubes have compressive, corro-sion-resistant,and anti-oxidation protection. With professional engineer support, efficient salesteam and competitive price advantage, we have at-tracted customers from al over the world. We haveexported to more than 20 countries,including EasternEurope, Poland, Serbia, Türkiye, Russia, the Philip-pines,Malaysia,Indonesia,India, Thailand, the MiddleEast and South Africa.
WELL-KNOWN COOPERATIVE BRAND
We provide repair and replacement of shells, tube sheettubes and various parts ofinternational brands like Afla, Tranter etc.
GLOBAL MARKET
regions around the world Products are exported to more than 80countries and
AIDEAR AFTER-SALE GUARANTEE
Warranty period of one year, and provide prefessional en-gineers overseas maintenance service, as well as hired ateam of overseas engineers long-term stationed in theUnited States to provide long-term technical support tocustomers.
FAQ | ||||||||
1. Q: I haven't done business with you guys before,how can I trust your company? | ||||||||
A: Our company is a gold medal supplier of Alibaba.com. In addition, we also have a considerable number of authoritativecertificates, such as CE, ISO9001, and Alibaba on-site inspection certificates. I hope the above content is convincing enough. | ||||||||
2. Q: What is the minimum order? | ||||||||
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we wouldbe very likely to make the MOQ as 1 piece for you though. | ||||||||
3. Q: How can I get a sample to check your quality? How long can I get the sample? | ||||||||
A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples willbe ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days. | ||||||||
4. Q: What payment methods your company accept? | ||||||||
A: We accept T/T, L/C, Western Union, Paypal. | ||||||||
5. Q: What's the shipment terms and delivery time of your company? | ||||||||
A: FOB,CFR,CIF,15-50days | ||||||||
6. Q: Do you give any discount ? | ||||||||
A: We'll surely try our best to help you get those by the best price and good service at the same time. | ||||||||
Henan Tuofang Energy saving Technology Co., Ltd
Fiona Li
AE & TUOFANG ENERGY SAVING Mob:+86 13193461389
WhatsApp:+62 895-1840-5984
Emai: jienengtf@gmail.com
No.13 Jinhui Avenue, Yanling County,Xuchang City, Henan Province, China
Offcial email: jienengtf@gmail.com
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $45 / piece
- 10–49 piece: US $40 / piece
- 50+ piece: US $30 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this stainless steel tube?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this stainless steel tube carry?
It is supplied with ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Tuofang Energy Saving Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Tuofang Energy Saving Technology Co., Ltd. range on HVACR Nexus.
