This air purifier is published with the manufacturer’s full specification — 115V, 230V, power source type Corded Electric. Made by Dongguan Kuhong Electronics Co., Ltd. (8 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Purifier
- Model Number: CM133061CH02B-EC
- Power Source Type: Corded Electric
- Voltage: 115V, 230V
- Material: Plastic
- Blade Material: Plastic
- Noise Level: 70dBA
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 115V, 230V |
| Motor Type | EC Motor |
| Speed | as required |
| Material | Plastic |
| Blade Material | Plastic |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 70dBA |
| Place Of Origin | Guangdong, China |
| Brand Name | COOLCOM |
| Model Number | CM133061CH02B-EC |
| Product Name | Industrial Centrifugal Fans |
| Size | 133*61mm |
| Type | Centrifugal Fan |
| Bearing | Ball Bearing |
| Feature | High Performance |
| Motor | BLEC Motor |
| Current | 0.84A |
| Weight | 1Kg |
| Applicable Industries | Construction Works |
| Application | Exhaust Ventilation |
| Selling Units | Single item |
| Single Package Size | 35X35X30 cm |
| Single Gross Weight | 3.000 kg |
Product Details
Product description
Specifications
| MODEL | RATED VOLTAGE
| OPERATING VOLTAGE | RATED CURRENT (A) | RATED POWER(W) | RATED SPEED (RPM) | AIR FLOW (CFM) | PRESSURE (MMH20) | NOISE (DB) | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| CM133061CH01B-EC | 115V | 92V-132V 60Hz | 0.84 | 56 | 4600 | 269.8 | 45.8 | 70 | 0.93 |
| CM133061CH02B-EC | 230V | 184V-265V 50Hz | 0.42 | 56 | 4600 | 269.8 | 45.8 | 70 | 0.93 |

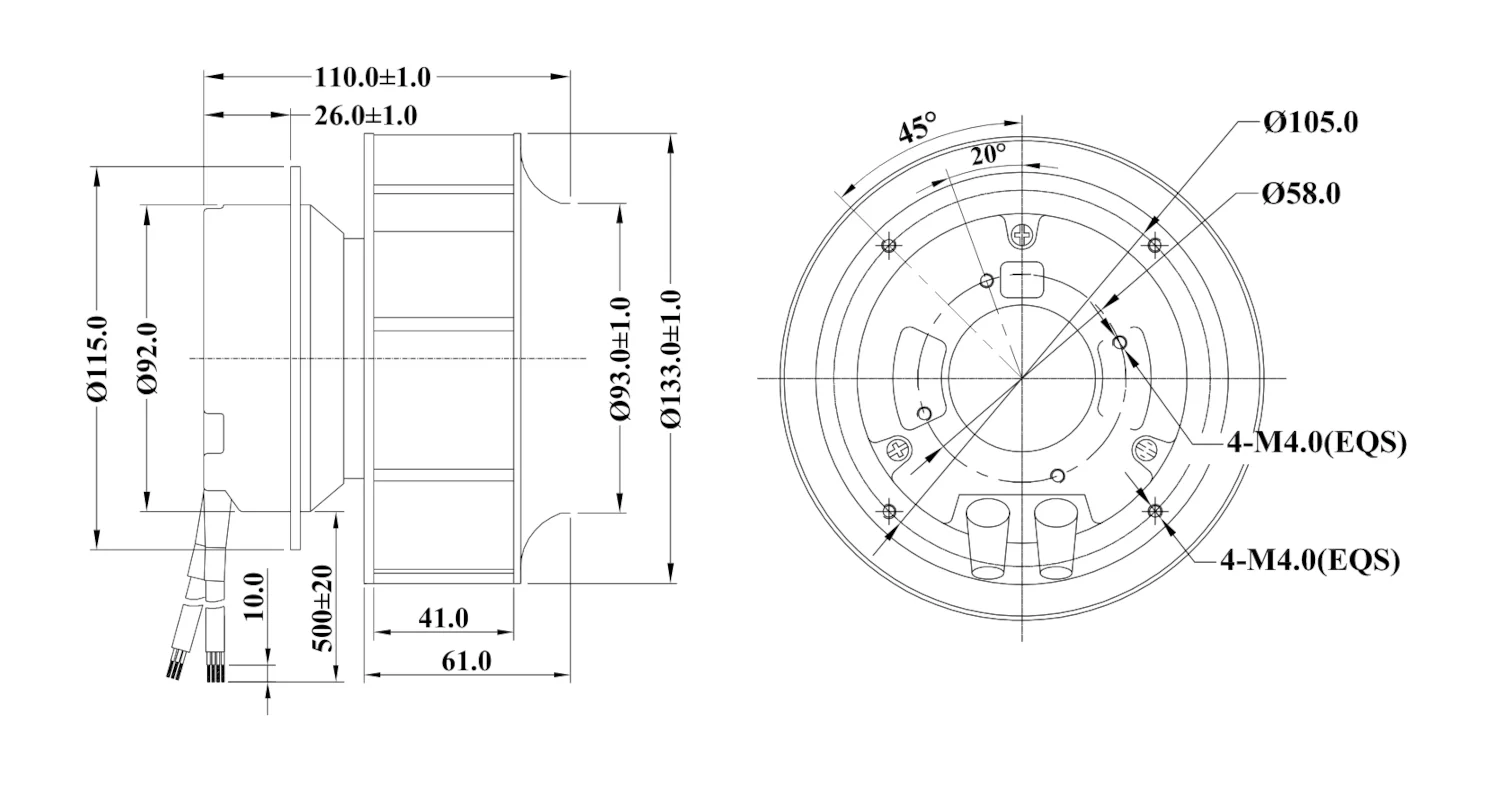

Dimension Drawings

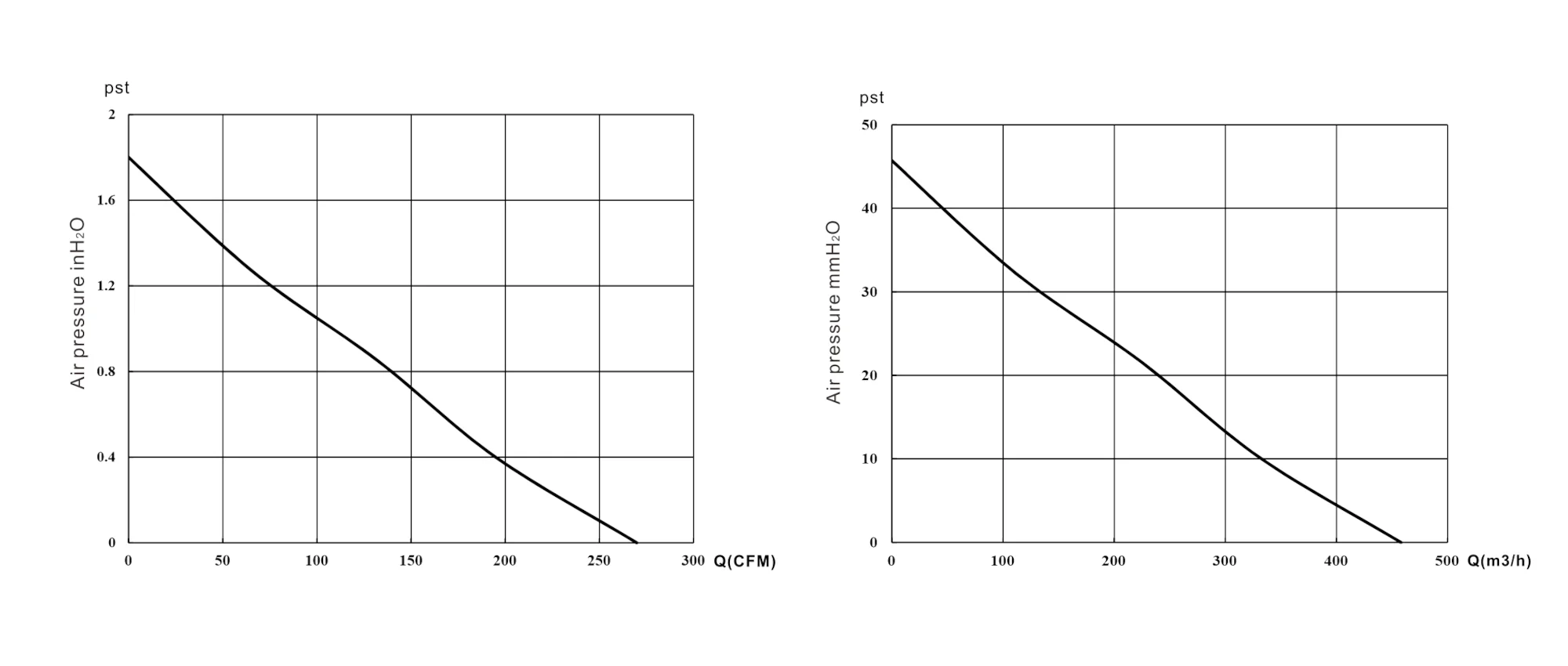

Fan Performance Curve
| Product Name | EC backward curved centrifugal fan |
| voltage | 115V 230V |
| Motor Type | BLEC Motor |
| Bearing type | Ball bearing |
| Speed control | 0-10V voltage/ PWM |
| protecting level | IP44 ,IP54,IP55 |
| Life time | Above 35k hours |
| Operating temperature range | -20℃~+70℃ |
| Certifications | CE ,RoHS, ISO19001,ISO 14001 |
| Application | AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust cooling |
| Features | High air flow,low noise |
DongGuan COOLCOM&KUHONG Group is professional manufacture of cross flow fans,centrifugal fans,blower fans and dc brushless motors.we had abundant experiences in this area and more than 1000products range and engineer solutions to customres over 10 countries! KUHONG&COOLCOM group is your business partner in fan&motor industrial establised in 2012, our goal is to become a lead exporter of fan &motor products, with strongest engineer team and excellent RD team, well trained quality team for inspection and quality assurance,we believe that long term partnership is a result of high quality products,value-based pricing ,exceptional flexible service and good communication and better understanding for customer's requirement. KUHONG&COOLCOM group are an energetic company ,most of the engineers and sales staff are young people belongs to 90 and 00 generation,our company had wide range marke with wide network versatile manufactures: we can even help our customer with consolidation of shipment from various electronics product suppliers to save the transport cost and support documentation. most of our products are ROHS compliant and designed to meet the toughest standard of UL,CSA,TUV and VCE,our main market are :US,EUROPE,Midele east and others; we are committed to supporting our customers with high quality products ,value-based pricing and exceptional flexible service. to provide high quality products with right cost production is our strength and motivation! It's our belief that the margin and our fan quality will make you happy!
1. who are we?
We are based in Guangdong, China, start from 2019,sell to Domestic Market(40.00%),North America(20.00%),South America(10.00%),Mid East(10.00%),South Asia(10.00%),Northern Europe(5.00%),Eastern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
cross flow fan,centrifugal fan,ec fan,axial fan,dc motor
4. why should you buy from us not from other suppliers?
we had 16 years RD,manufacture and sales experience, we committed to support customer with high quality product,value-base price and flexible service! our service and quality are top-notch,It's our belief that the margin and our quality will make you happy
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency: USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese.
Pls kindly contact us by email, skype, whatsapp if any comments ,suggestion or demand , we will reply to you immediately!
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–499 piece: US $159 / piece
- 500–999 piece: US $150 / piece
- 1000+ piece: US $149 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air purifier?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air purifier be supplied for my local voltage?
The standard configuration is 115V, 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
