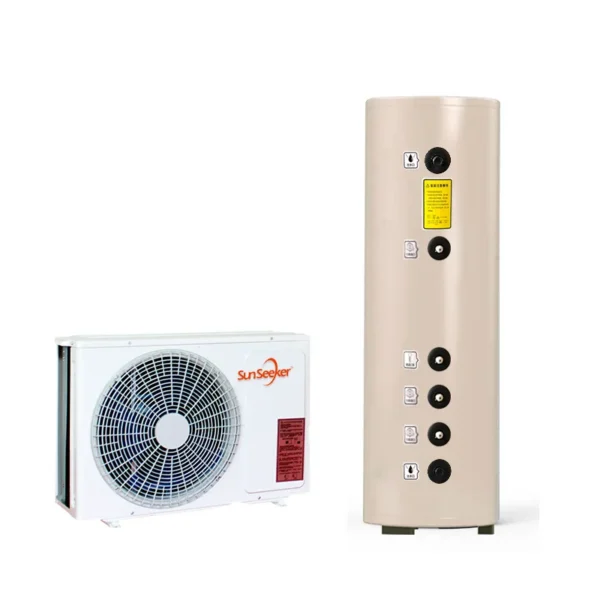

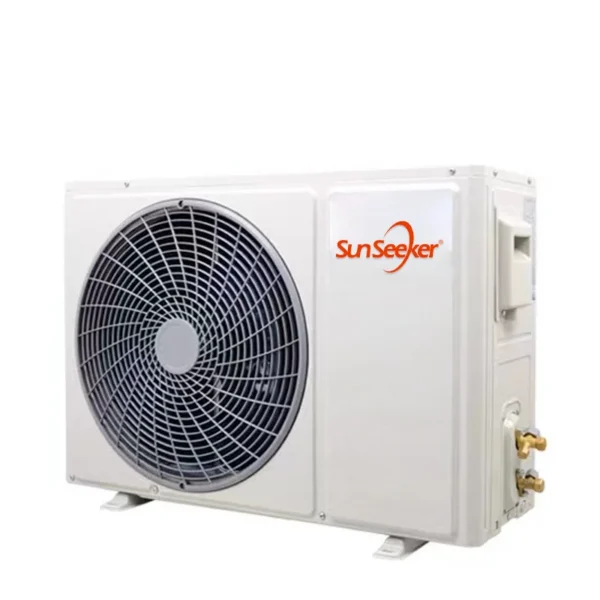

Heat Pump, Inverter, 220V, Electric

This heat pump is published with the manufacturer’s full specification — 220V, power source Electric, Gas. Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Heat Pump

• Model Number: ZYSHP-100L
• Power Source: Electric, Gas
• Applicable Power Supply: 220V
• Rated Input Power: 830W
• Rated Water Delivery Capacity: 75L
• Housing Material: Stainless Steel

Technical Specifications

Product Details

Advantages and Applications
Domestic air source split hot water heat pump is highly efficient and energy saving water heater . With electric starting,
absorbing heat of the air , no matter if there is sunshine , covers a small area . Safe and reliable , long life,energy saving and
environmental protection . The product is suitable for – 7 ~ 43℃ , working all the time throughout the year not affected by bad
weather such as rains and clouds .

It is especially suitable for residential areas , villas , public bathrooms, hotels , saunas ,schools , hospitals , factories and
other places to achieve constant temperature and centralized supply of hot water.

Product parameters

Model	ZYSHP-100L	ZYSHP-150L	ZYSHP-200L	ZYSHP-250L
Volume	100L	150L	200L	250L
Host model	KF-3.2D	KF-3.2D	KF-4.5D	KF-4.5D
Type	1P	1P	1.5P	1.5P
Applicable voltage	220V	220V	220V	220V
Rated heating capacity	3200W	3200W	5000W	5000W
Rated input power	830W	830W	1220W	1220W
Rated input current	3.77A	3.77A	5.54A	5.54A
Rated water delivery output	75L	75L	110L	110L
Efficiency	4.2	4.2	4.1	4.1
Hot water temperature range	30-60℃	30-60℃	30-60℃	30-60℃
Working temperature	35℃	35℃	35℃	35℃
Host noise dB(A)	48	48	50	50
Host size	760*260*535MM	760*220*535MM	760*220*535MM	760*220*535MM

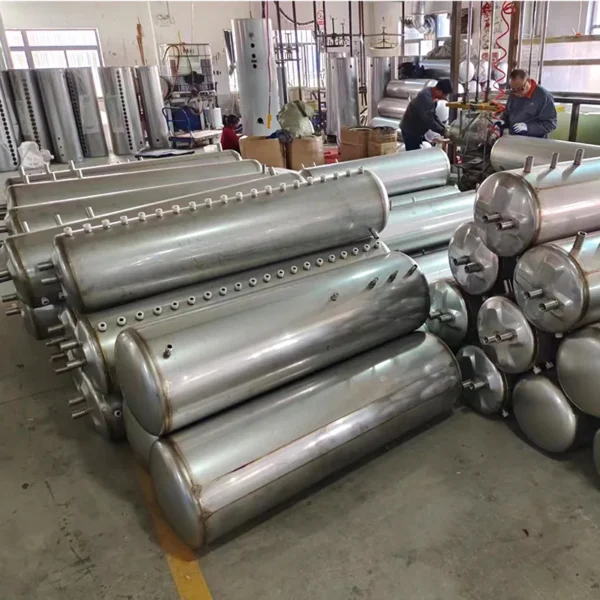

Water tank size	ø470*1130MM	ø470*1500MM	ø500*1520MM	ø570*1580MM
Inner barrel material	SUS304 1.0MM	SUS304 1.0MM	SUS304 1.0MM	SUS304 1.0MM
Liner size	ø370*930MM	ø370*1350MM	ø420*1300MM	ø470*1350MM
Outer tank material	Galvanized steel0.4MM
Outer tank size	ø470*1130MM	ø470*1500MM	ø500*1520MM	ø570*1580MM
Insulation thickness	50MM	50MM	50MM	50MM

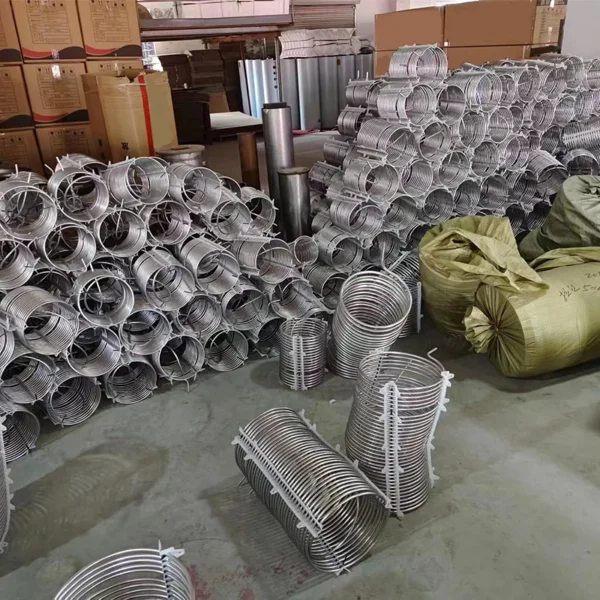

"SUS316 coil length (diameter 9.52MM)"	18M	20M	25M	25M

Model	ZYSHP-300L	ZYSHP-400L	ZYSHP-500L
Volume	300L	400L	500L
Host model	KF-4.5D	KF-7.0D	KF-7.0D
Type	1.5P	2P	2P
Applicable voltage	220V	220V	220V
Rated heating capacity	5000W	7000W	7000W
Rated input power	1220W	1660W	1660W
Rated input current	5.54A	7.54A	7.54A
Rated water delivery output	110L	150L	150L
Efficiency	4.1	4.2	4.2
Hot water temperature range	30-60℃	30-60℃	30-60℃
Working temperature	35℃	35℃	35℃
Host noise dB(A)	50	52	52
Host size	760*220*535MM	805*305*685MM	805*305*685MM
Water tank size	ø570*1880MM	ø680*1680MM	ø700*1900MM
Inner barrel material	SUS304 1.2MM	SUS304 1.5MM	SUS304 1.5MM
Liner size	ø470*1560MM	ø580*1450MM	ø600*1650MM
Outer tank material	Galvanized steel0.4MM
Outer tank size	ø570*1880M	ø680*1680MM	ø700*1900MM
Insulation thickness	50MM	50MM	50MM
"SUS316 coil length (diameter 9.52MM)"	25M	35M	35M

Installation Diagram

Company Profile

Exhibition and Certifications

Customer reviews

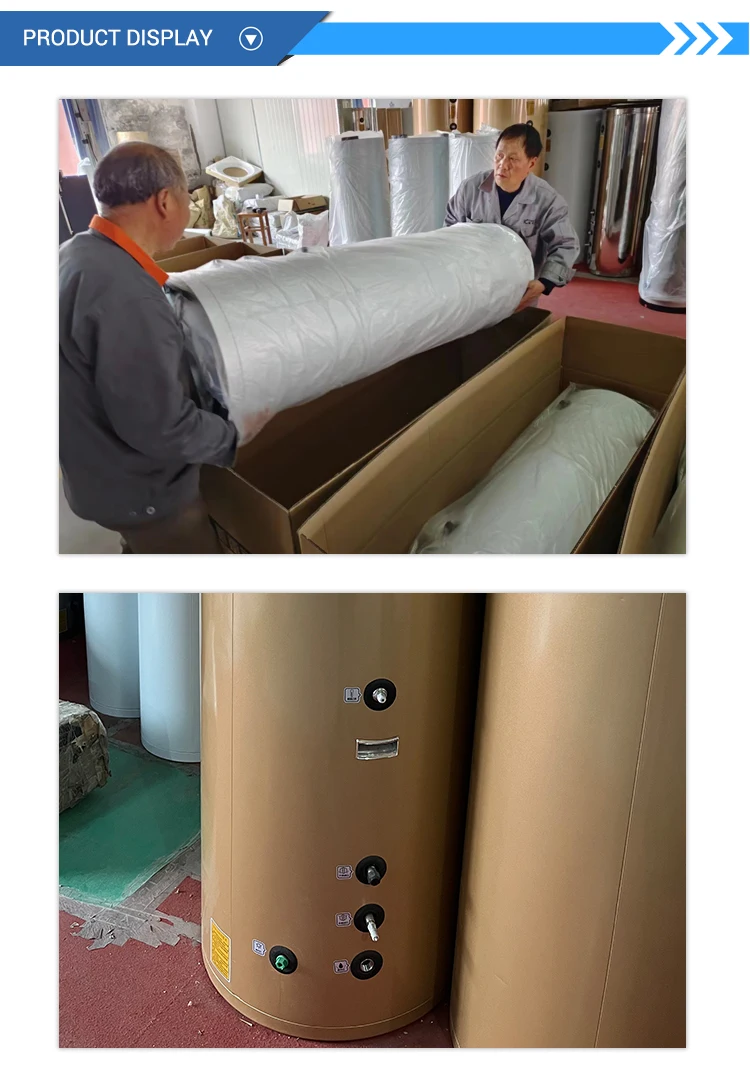

Packing and shipping

FAQ

Q: Are you a manufacture or trading company?

A: We are a manufacture special for solar Brushless DC pump;

Q: Which payment way you accept?

A: Paypal, Alipay, T/T, L/C ,D/P.

Q: What’s the MOQ?

A: For trail sample order, 1pcs is available.

Q.How can I get the solar pumps?

A: We can send the pump to customers by express like DHL, Fedex, or send by air and sea.

Q: What’s your delivery time?

A:1) We have stock for most of regular model and the sample can be sent to you within 2-3 days.

2) The quantity order can be shipped to you within 10-15 days after order confirmation.

Q: What about your product warranty& after sales service?

A: Three years warranty for all solar pump.

Q: Can you supply completely solar pump system?

A: Yes, we can supply whole solar pump system with solar panel, PV box, Panel structure and cable.

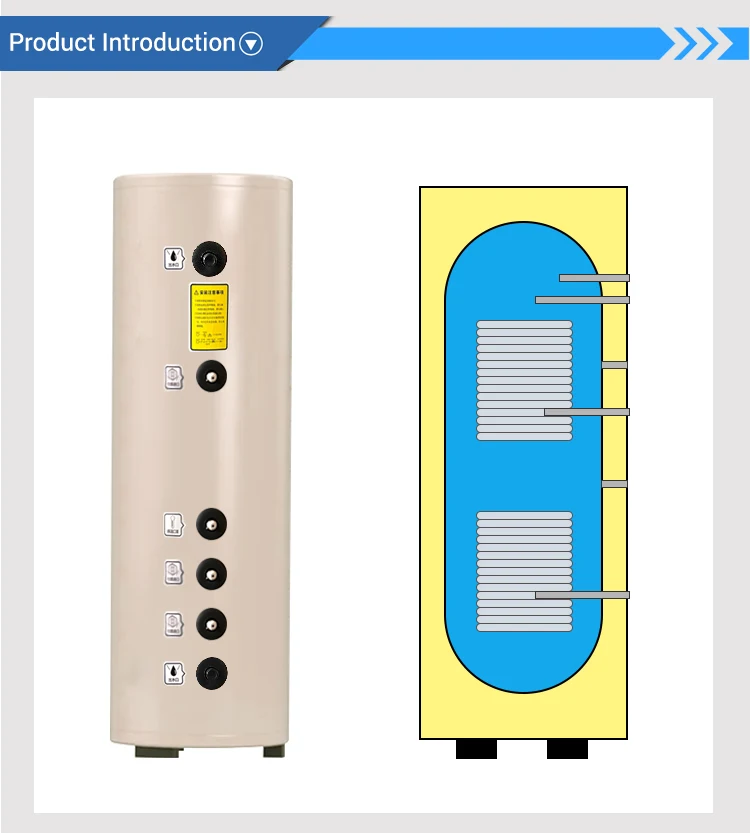

Product Introduction

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this heat pump?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the heat pump be supplied for my local voltage?

The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Hangzhou Zhongyi Solar Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hangzhou Zhongyi Solar Technology Co., Ltd. range on HVACR Nexus.
