Air source heat pump — 380V/3Ph/50-60Hz, 18kw-49.25kw. The complete factory specification follows. Made by Shenzhen Power World New Energy Technology Co., Ltd. (21 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Source Heat Pump
- Model Number: PW150-DKZLRS-E
- Power Source: Electric
- Power Supply: 380V/3Ph/50-60Hz
- Heating Capacity: 18kw-49.25kw
- Housing Material: Stainless steel or Galvanized powder coated steel
- Material: Sheet Metal
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 18kw-49.25kw |
| Energy Efficiency Rating | Class A |
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R290 |
| Storage / Tankless | Instant / Tankless |
| Compressor | Scroll Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Stainless steel or Galvanized powder coated steel |
| Feature | Eco-Friendly, Easy Installation, Easy Operation, Energy-Saving, Safe, High Efficiency |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement, Overseas Call Centers |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | No |
| Packaging Types | Corrugated Box, Color Box |
| Place Of Origin | Guangdong, China |
| Brand | Power World/ OEM |
| Model Number | PW150-DKZLRS-E |
| Power Supply | 380V/3Ph/50-60Hz |
| Function | Sanitary hot water, heating, cooling |
| Max Hot Water Temperature | 78C |
| Heat Source | Air Source 75%+electricity25% |
| Certification | CE Certificate |
| Heat Exchanger | Titanium Heat Exchanger |
| Product Name | R290 commercial heat pump |
| Material | Sheet Metal |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

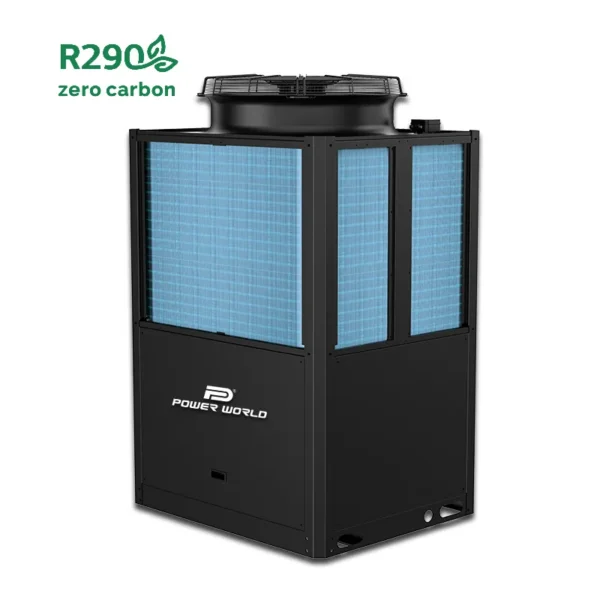

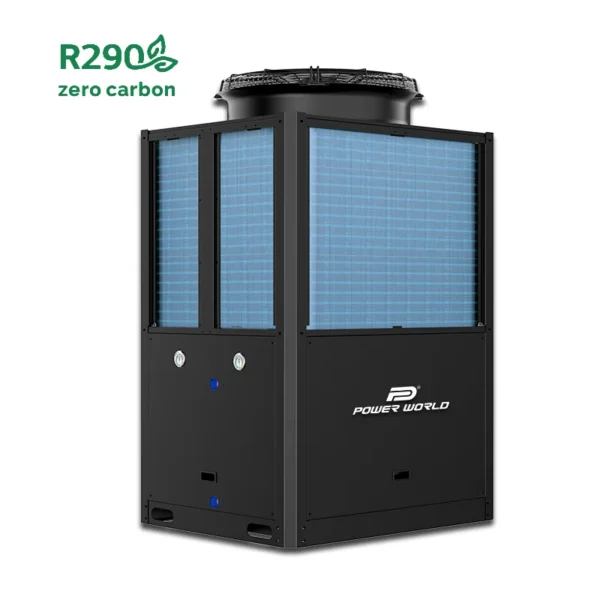

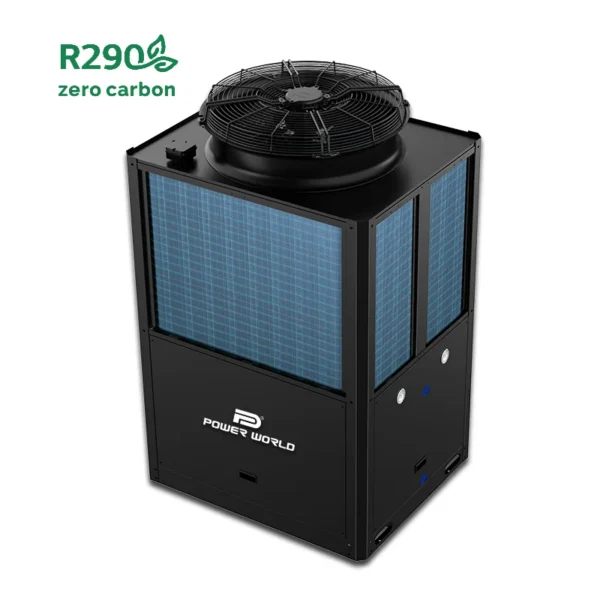

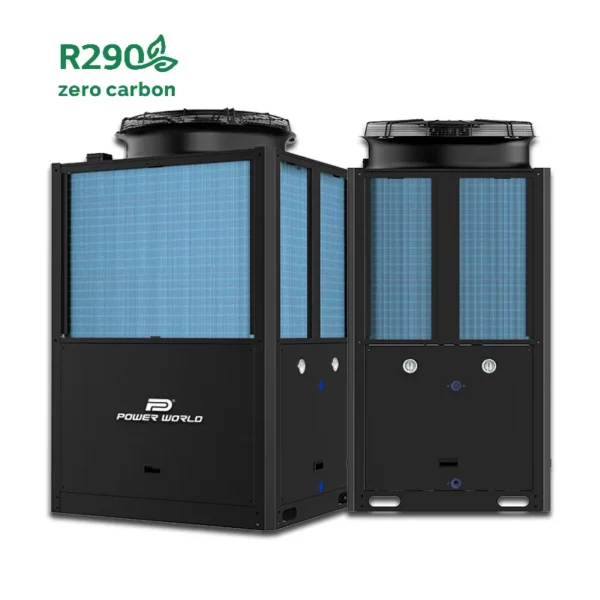

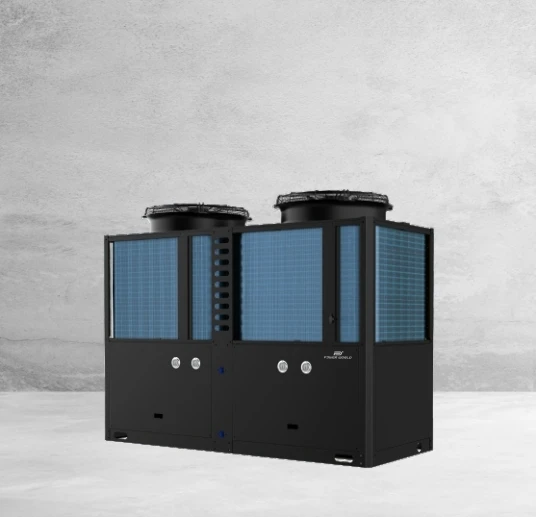

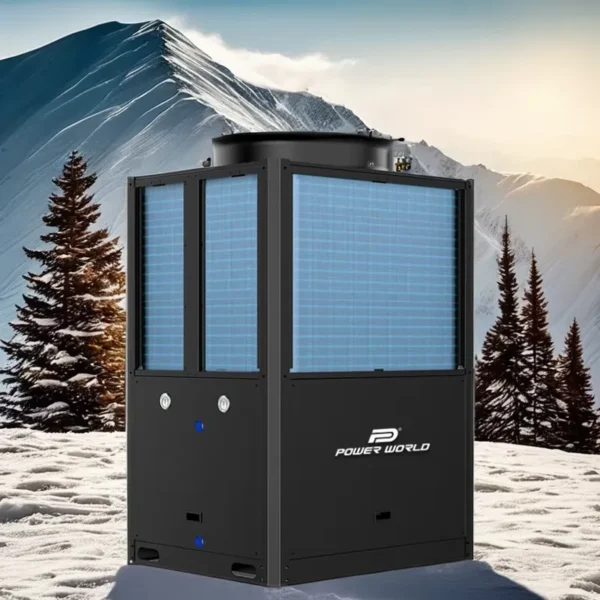

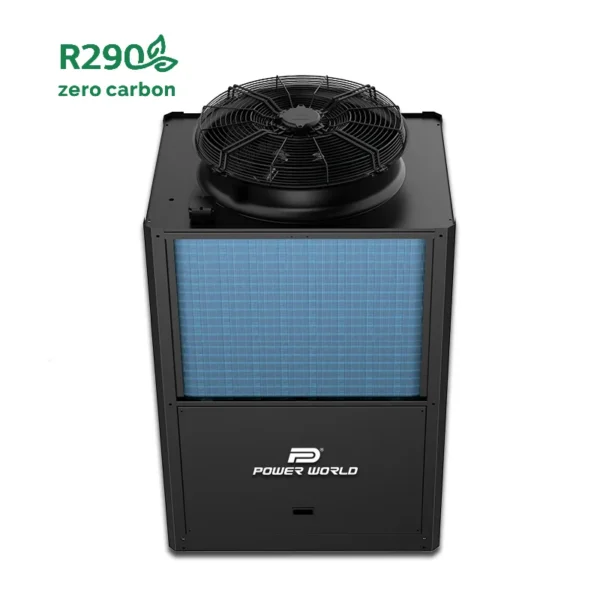

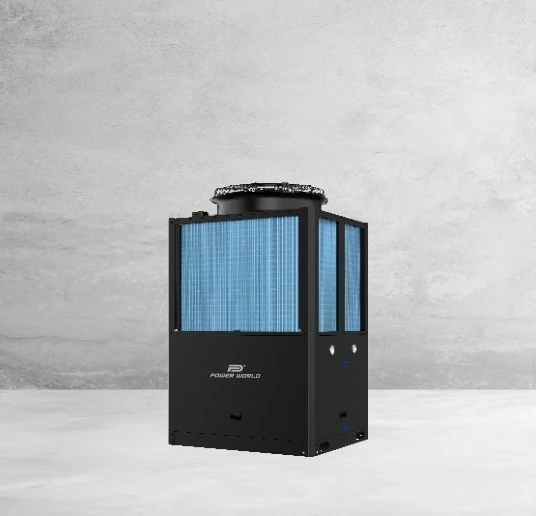

R290 Commercial Heat Pump
A cutting-edge solution designed for maximum efficiency and versatility in commercial applications.
Features
2.Dual DC Inverter Technology: Delivers precise and efficient heating with a maximum output temperature of 78°C.

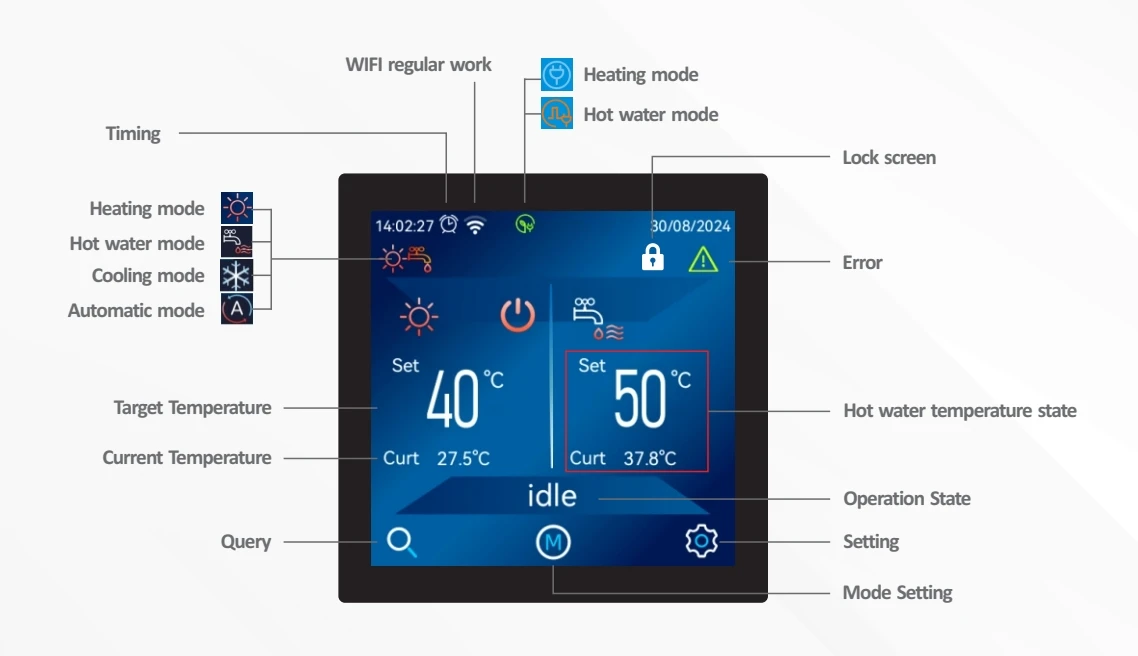

3.Top Efficiency Ratings: Achieves ErP Level A+++ (at 35°C) with a high COP of 5.62. 4.Built-in Wi-Fi Module: Provides seamless connectivity and control. 5.Multilingual Support: Easy operation in various languages.SG Smart Grid Functionality: Enhances energy management and integration.
6.Automatic Temperature Adjustment: Ensures optimal performance. 7.Night Operation Mode: Convenient control during off-hours. 8.Cascade Control: Supports up to 8 units for flexible scaling.
9.Timed High-Temperature Disinfection: Ensure the safe and healthy use of hot water.
10.IOT Cloud Management Platform

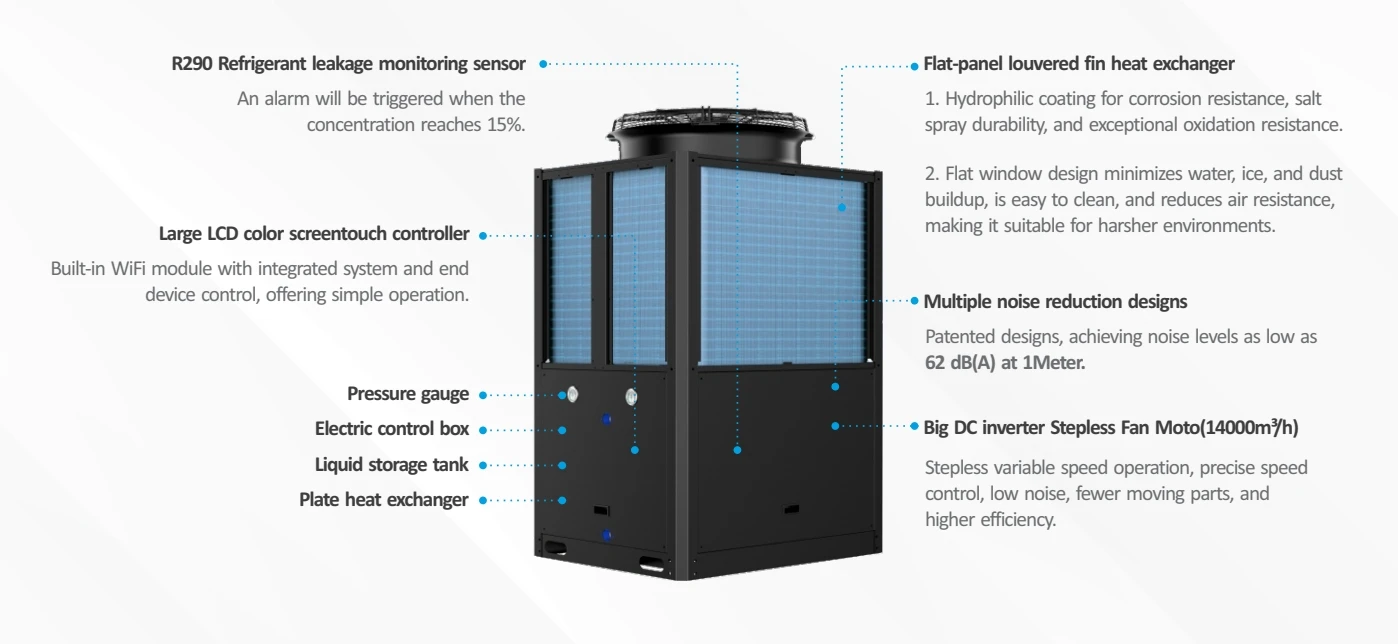

11.Customizable Features: Options for built-in pumps and Refrigerant leak sensors, as well as external heat source and water tank control.
DC Inverter Heat Pump for cooling heating and DHW （R290） | ||
Model | PW150-DKZLRS-E | |
Heating Condition – Ambient Temp.（DB/WB）: 7/6℃，Water Temp.（In/Out）：30/35℃ | ||
Heating Capacity Range (kW) | 18.4~49.25 | |
Heating Power Input Range(kW) | 4.23~12.96 | |
COP Range | 3.8~4.3 | |
DHW Condition-Ambient Temp.（DB/WB）: 20/15℃，Water Temp.（In/Out）：15/55℃ | ||
Heating Capacity Range (kW) | 23.8~68 | |
Heating Power Input Range(kW) | 4.23~15.46 | |
COP Range | 4.39~5.62 | |
Heated water output (L/H) | 1462 | |
Cooling Condition – Ambient Temp.（DB/WB）:35/24℃，Water Temp.（In/Out）：12/7℃ | ||
Cooling Capacity Range (kW) | 13.8~34.5 | |
Cooling Power Input Range(kW) | 5.2~16.2 | |
EER Range | 2.12~2.65 | |
ErP Level (35°C) | A+++ | |
ErP Level (55°C) | A++ | |
Power supply | 380V/3Ph/50-60Hz | |
Max. power input（kW） | 20 | |
Max. current （A） | 32 | |
Fuse or circuit breaker (A) | 40 | |
Wire diameter (mm²) | 10mm² | |
Diameter of pipe (mm) | G1.5" | |
Sound power level (dB(A)) | ≤77 | |
Sound pressure level (dB(A)) | 62 | |
Water Flow(m3/h) | 5.8 | |
Water Pressure Drop (max) kPa | 80 | |
Net Weight (kg) | 370 | |
Body size(W*D*H) (mm) | 1195×980×1900 | |
Packing size(W*D*H)(Polywood case) | 1275*1060*2100 | |
IP Grade (Level of protection) | IPX4 | |
Anti-electric shock Rate | I | |
Refrigerant | R290/4.0kg | |
Compressor Brand | HIGHLY | |
Compressor Model | WHP37600PSKTQ9JK | |
Operation Ambient Temp. (℃) | -25~43℃ | |
Water outlet temperature (℃) | 20~78℃(DHW ) | |
Water outlet temperature (℃) | 20~78℃(Heating) | |
Water outlet temperature (℃) | 7~35℃(Cooling) | |
