Intelligent Carel Controller, R32, EVI, Inverter, Titanium

The intelligent carel controller listed here carries power source Electric, material Galvanized Metal, documented exactly as the manufacturer publishes it. Made by Shenzhen Power World New Energy Technology Co., Ltd. (21 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Intelligent Carel Controller

• Model Number: PW050-DKZLRS-A
• Power Source: Electric
• Housing Material: Stainless steel or Galvanized powder coated steel
• Material: Galvanized Metal
• Refrigerant: R32
• Warranty: 2 Years

Technical Specifications

Product Details

Products Description

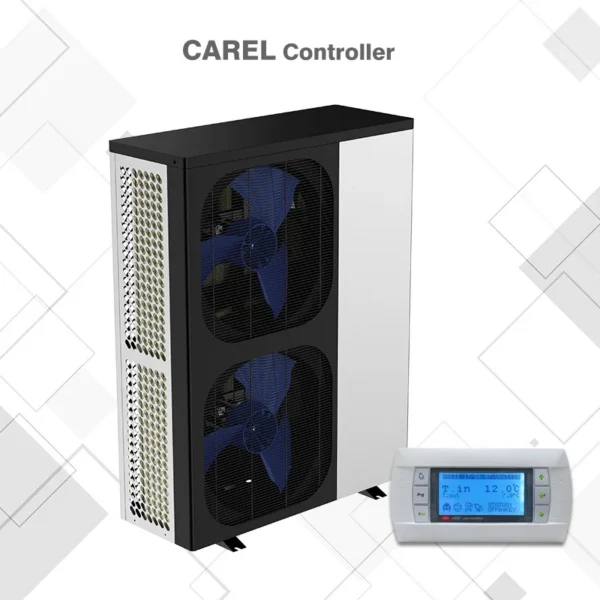

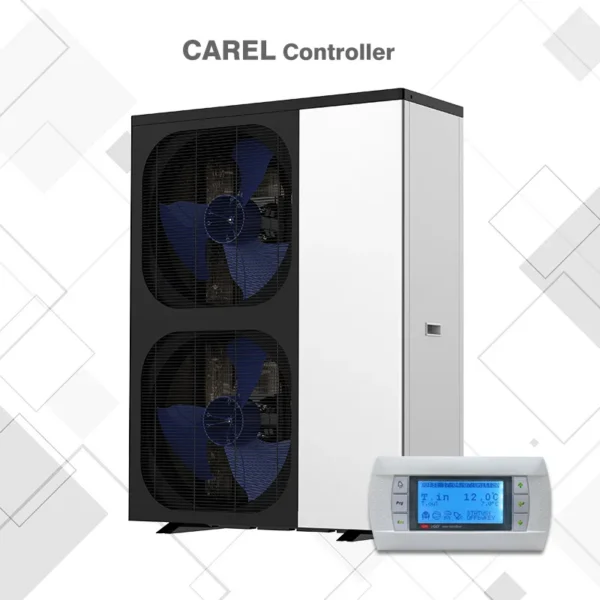

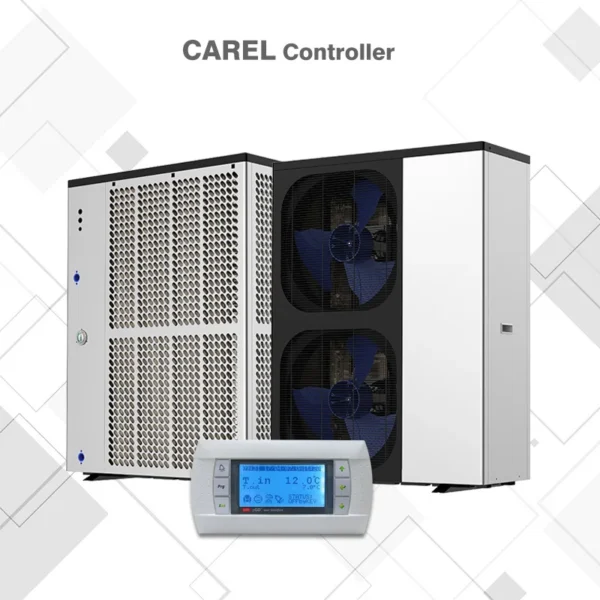

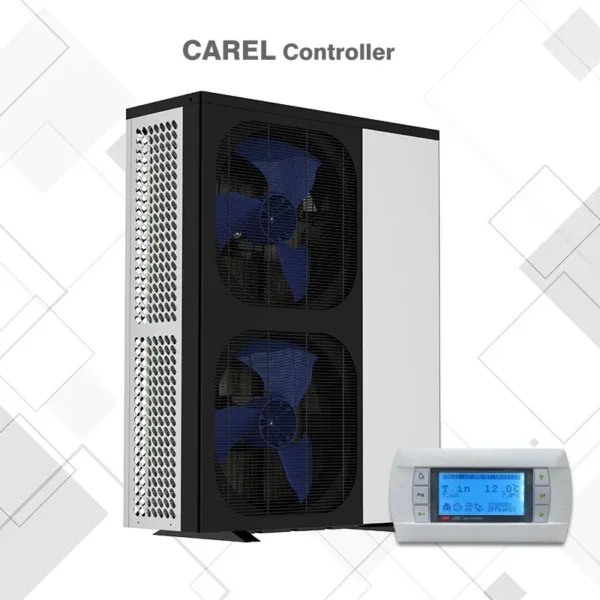

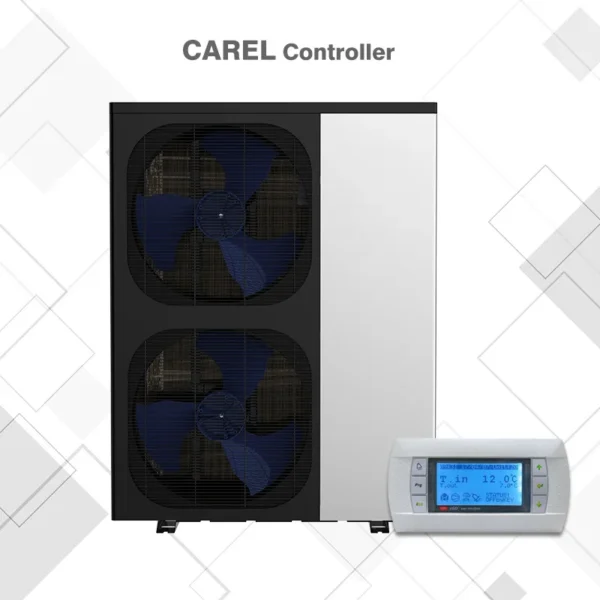

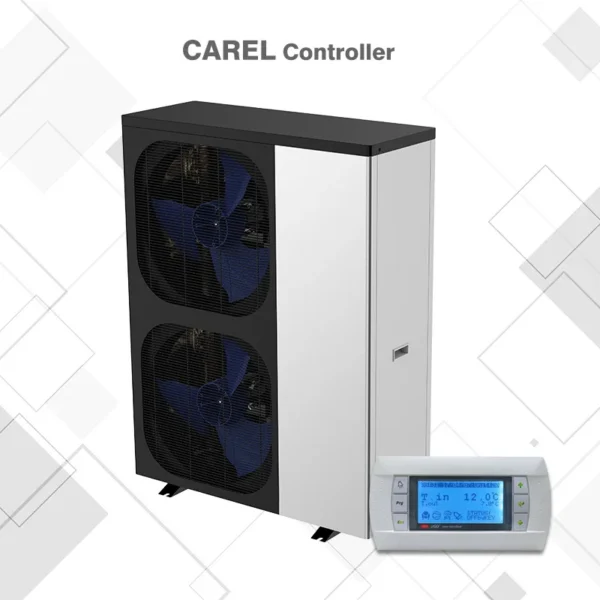

Easylife EVI DC Inverter Heat Pump with CAREL Controller

Easylife EVI DC Inverter Heat Pump with CAREL Controller not only enables the unit to have high-efficiency performance, but its excellent control logic ensures that the unit runs stably at the ultra-low temperature of -30°C, easily creating a warm and comfortable home for users.

1.Triple Supply of Heating, Cooling and DHW

2.Remote Wi-Fi and Internet of Thing (IoT) Remote Control

3.Multiple Noise Reduction Processes

4.Two Electric Heater Ports for Higher Heating Needs

5.Precise temperature control ±0.1°C

6.Four Operating Modes of Powerful, Smart, Silent, Vacation

MULTIFUNCTIONAL HEAT PUMP

This is a triple supply heat pump. It can be connected with floor heating, fan coil unit, radiator and water tank, and then through the reversing control of the three-way valve to achieve house heating, cooling and domestic hot water needs.

LCD CONTROL PANEL AND WI-FI APP

5-Inches large LCD touch screen control panel and “Smart Life” Wi-Fi App support local language +English options. This user-friendly design reduces users' foreign language dyslexia, and also facilitates distributors to expand their market locally.

FOUR OPERATING MODES SAVE YOUR ENERGY

Based on the different needs of users, Power World has developed 4 operating modes: Powerful Mode, Smart Mode, Silent Mode, Vacation Mode. Users can choose modes with different operating frequencies according to actual needs, which help users save a lot of electricity bills.

SUPER SILENT OPERATION

The unit uses a special three-layer sound insulation cotton, combined with Power World's multiple noise reduction technology, so that the unit can run smoothly and quietly without mechanical noise.

Product model

PW030-DKZLRS-A

PW040-DKZLRS-A

PW050-DKZLRS-A

PW060-DKZLRS-A

PW080-DKZLRS-A

PW010-DKZLRS-A

Heating

Heating Capacity Range (kW)

1.57~8.40

4.40~13.00

5.9~18.2

7.5~23.0

10.2~28.0

12.8~35.0

Heating input Range (kW)

0.32~1.87

0.90~3.02

1.20~4.11

1.53~5.23

2.07~6.36

2.61~7.99

current Range (A)

1.42~8.30

1.39~4.68/ 4.12~13.8

1.86~6.37/ 5.49~18.8

2.37~8.11

3.70~11.4

4.67~14.3

COP Range

4.49~4.91

4.30~4.90

4.43~4.92

4.40~4.90

4.40~4.92

4.38~4.90

Cooling

Cooling capacity Range (kW)

0.99~6.22

2.80~8.20

3.81~11.53

4.73~14.6

6.54~19.8

8.13~24.6

Cooling input power(kW)

0.29~2.18

0.85~3.31

1.11~4.05

1.39~5.14

1.92~6.97

2.42~8.75

current Range (A)

1.28~9.67

1.32~5.13/ 3.89~15.1

1.72~6.28/ 5.08~18.5

2.16~7.97

3.43~12.5

4.33~15.6

EER Range

2.85~3.41

2.48~3.29

2.85~3.43

2.84~3.40

2.84~3.40

2.81~3.36

DHW

Heating capacity Range (kW)

1.28~6.81

3.52~10.50

4.80~14.72

6.1~18.5

12.3~20.4

13.6~22.6

Heating input Range (kW)

0.31~2.13

0.88~3.39

1.17~4.60

1.53~5.97

2.8~5.37

3.09~5.95

current Range (A)

1.38~9.45

1.36~5.26/ 4.03~15.5

1.82~7.15/ 5.35~21.1

2.37~9.26

5.0~9.6

5.52~10.6

COP Range

3.2~4.1

3.1~4.0

3.2~4.1

3.1~4.0

3.8~4.4

3.8~4.4

Refrigerant

R32

Power supply

230V/1Ph/50-60Hz

380V/3Ph/50-60Hz

380V/3Ph/50-60Hz

380V/3Ph/50-60Hz

Working area

-30~43℃

Water circulation （m³/H）

1.4

2.2

3.1

4.0

4.8

6.0

Water pressure drop （kPa）

31

25

35

45

40

50

IP Grade (Level of protection)

IPX4

IPX4

IPX4

IPX4

IPX4

IPX4

Anti-electric shock Rate

I

I

I

I

I

I

Noise (dB(A))

≤53

≤55

≤57

≤58

≤62

≤66

Net weight/Gross weight(kg)

110/120

140/150

170/180

180/190

210/220

230/240

Diameter of pipe (mm)

DN25

DN25

DN25

DN25

DN32

DN32

Body size(W*D*H) (mm)

970×475×835

1100×475×985

1050×480×1330

1050×480×1330

1160×500×1580

1160×500×1580

Loading quantity (20GP/40GP/40HQ)

44/88/88

44/88/88

22/46/46

22/46/46

18/40/40

18/40/40

ErP Level (35°C)

A+++

A+++

A+++

A+++

A+++

A+++

ErP Level (55°C)

A++

A++

A++

A++

A++

A++

Operating water temperature (℃) DHW

9~55℃

Operating water temperature (℃) heating

9~50℃

Operating water temperature (℃) cooling

7~35℃

Remark: Heating working condition: Inlet water temperature 30℃, Outlet water temperature 35℃, Dry bulb temperature 7℃, Wet bulb temperature6℃. Cooling working condition:Inlet water temperature 12℃, Outlet water temperature 7℃, Dry bulb temperature 35℃, Wet bulb temperature 24℃. DHW working condition: Inlet water temperature 15℃, Outlet water temperature 55℃, Dry bulb temperature 7℃, Wet bulb temperature 6℃.

Company Profile

VR

FAQ

Q1: Are you heat pump supplier of trading company or manufacturer?
A1: We are an R&D and manufacturing factory with a 200,000 m² modern facility. We offer OEM services, and our minimum order quantity is 20+ units.

Q2: How long is your Heat Pump delivery time?
A2: Generally, it takes 1–5 working days if the goods are in stock, and 15–25 working days if not. The exact time also depends on the quantity.

Q3: Wonder if you accept small orders?
A3: Don't worry, and feel free to contact us. In order to secure more orders and provide our clients with greater convenience, we accept small orders.

Q4: Can you send products to my country?
A4: Sure, we can. If you don’t have your own shipping forwarder, we can help you.

Q5: Can you do OEM for me?
A5: We accept all OEM orders. Just contact us and send us your design, and we will offer you a reasonable price and make samples for you as soon as possible.

Q6: What's your payment terms?
A6: By T/T, LC AT SIGHT, 30% deposit in advance, balance 70% before shipment.

Q78: How can I place the order?
A7: First sign the PI, pay deposit,then we will arrange the production. After finished production need you pay balance. Finally we will ship the Goods.

Q8 When can I get the quotation?
A8: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation. Please call us or tell us in your mail, so that we could regard your inquiry priority.

Power World

Email:marketing@powerworld-e.com
Website: www.powerworld-e.com

Add:Headquarters Add: No.24, the fourth industrial zone, HouTing Street, ShaJing Town, BaoAn District, Shenzhen China.
Fatory Add: No. 1, Zhenxing South 1st Road, Zhihuigu Industrial Park, Shiwan Town, Boluo County, Guangdong Province,China

If you are interested in this product,please fill in the below and send us,we will reply you and also send you the latest product catalog and latest quotation within 1 hour.

↓↓↓↓↓

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $5405 / piece
  • 10–49 piece: US $5205 / piece
  • 50+ piece: US $4054 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this intelligent carel controller?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Power World New Energy Technology Co., Ltd., based in China. The company 21 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Power World New Energy Technology Co., Ltd. range on HVACR Nexus.
