This air to water heat pump is published with the manufacturer’s full specification — power supply 220-240V/50Hz/1ph, 3 kW. Made by Jiangsu Sunrain Solar Energy Co., Ltd. (22 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air To Water Heat Pump
- Model Number: SIHP-200TB2/250TB2/300TB2
- Power Source: Electric
- Power Supply: 220-240V/50Hz/1ph
- Heating Capacity: 3 kW
- Housing Material: Metal
- Refrigerant: R290
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 3 kW |
| Energy Efficiency Rating | Class A++ |
| Application | Industrial, Outdoor, Hotel, Commercial, Garage |
| Refrigerant | R290 |
| Storage / Tankless | Storage |
| Compressor | Scroll Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Metal |
| Feature | Eco-Friendly, Easy Installation, Easy Operation, Energy-Saving, High Efficiency, Safe |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts, Onsite Installation, Return and Replacement, Overseas Call Centers |
| Operating Language | English |
| Private Mold | No |
| Logo/Graphic Design | 3D Printing, Heat-Transfer Printing, UV printing, Inkjet Printing, Hot Stamping, Silk Screen Printing, Laser Printing |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Brand | Sunrain/OEM |
| Model Number | SIHP-200TB2/250TB2/300TB2 |
| Function | Hot Water Supplying |
| Volume | 200L/250L/300L |
| Max Hot Water Temperature | 75C |
| COP | 4.45 |
| Power Supply | 220-240V/50Hz/1ph |
| Electric Heater | 2kw |
| Wifi Control | Yes |
| OEM Service | Accept |
| Selling Units | Single item |
| Single Package Size | 75X75X190 cm |
| Single Gross Weight | 112.0 kg |
Product Details
Specification
Model | SIHP-200TB2 | SHIP-250TB2 | SHIP-300TB2 | |||
Power Supply | / | 220~240V~/1/50Hz | ||||
Heating Capacity | W | 2800 | 2800 | 2800 | ||
Rated Hot Water Production | L/h | 60 | 60 | 60 | ||
Rated Power Input | W | 629 | 629 | 629 | ||
Rated Current Input | A | 2.8 | 2.8 | 2.8 | ||
COP | W/W | 4.45 | 4.45 | 4.45 | ||
Electric Heater Rated Power Input | W | 2000 | 2000 | 2000 | ||
Electric Heater Rated Current Input | A | 8.9 | 8.9 | 8.9 | ||
Power Input Max. | W | 3000 | 3000 | 3000 | ||
Current Input Max. | A | 13.3 | 13.3 | 13.3 | ||
Refrigerant Type | / | R290 | R290 | R290 | ||
Working Ambient temperature | ℃ | -7~46 | -7~46 | -7~46 | ||
Operation Pressure(Low Side) | MPa | 0.8 | 0.8 | 0.8 | ||
Operation Pressure(High Side) | MPa | 3 | 3 | 3 | ||
Maximum Allowable Pressure | MPa | 3 | 3 | 3 | ||
Electrical Shockproof | / | I | I | I | ||
IP Class | / | IP1 | IP1 | IP1 | ||
Water Tank Capacity | L | 200 | 250 | 278 | ||
Water Piping Connections | In | 3/4 | 3/4 | 3/4 | ||
Rated Working Pressure Of Tank | MPa | 0.8 | 0.8 | 0.8 | ||
Air flow Rated | m³/h | 450 | 450 | 450 | ||
Unit Dimensions (W/H/D) | mm | 1650*φ620 | 1880*φ620 | 2050*φ620 | ||
Shipping Dimensions (W/H/D) | mm | 1755*700*700 | 1985*700*700 | 2155*700*700 | ||
Noise | dB(A) | 48 | 48 | 48 | ||
Net Weight | kg | 95 | 105 | 115 | ||
Option | / | Coil heat exchanger inside | ||||
Products Description

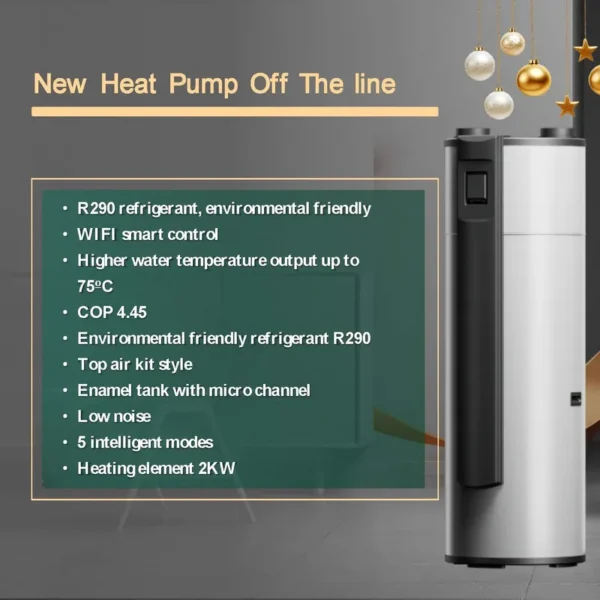

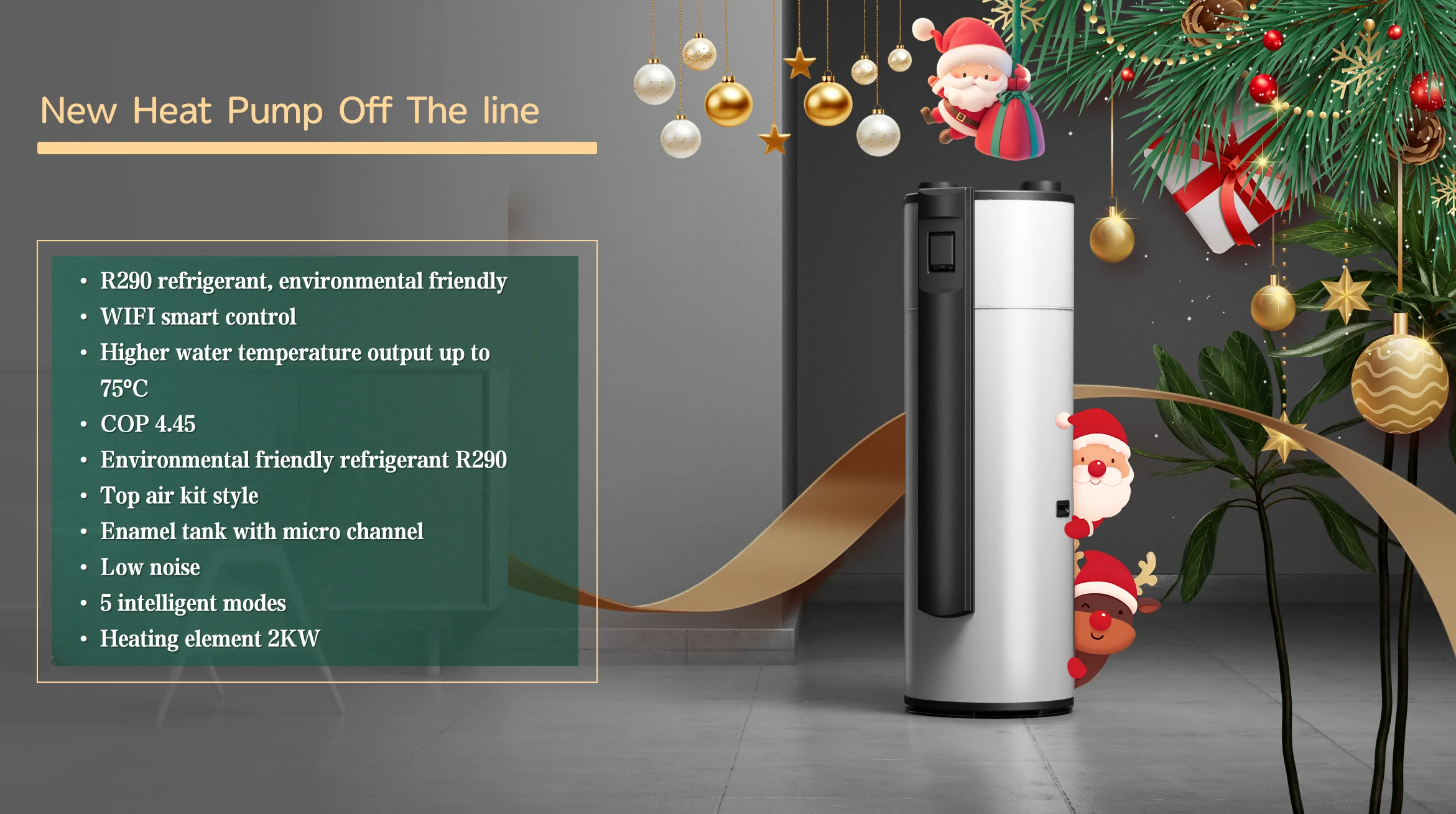

New Design All In One Heat Pumps
1) R290 refrigerant, environmental friendly. 2) WIFI smart control
3) Higher water temperature output up to 75ºC 4) COP 4.45
5) Environmental friendly refrigerant R290 6) Top air kit style
7) Enamel tank with micro channel 8) Low noise
9) 5 intelligent modes 10) Heating element 2KW

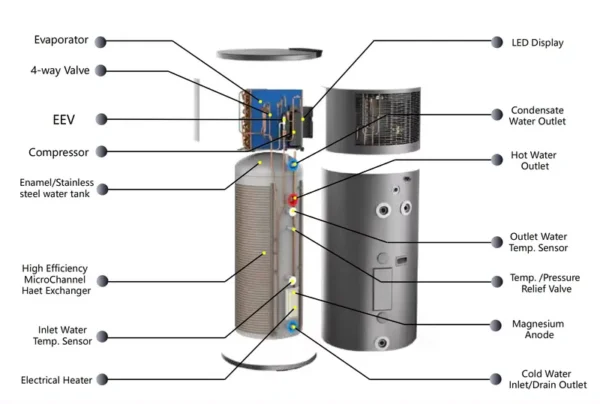

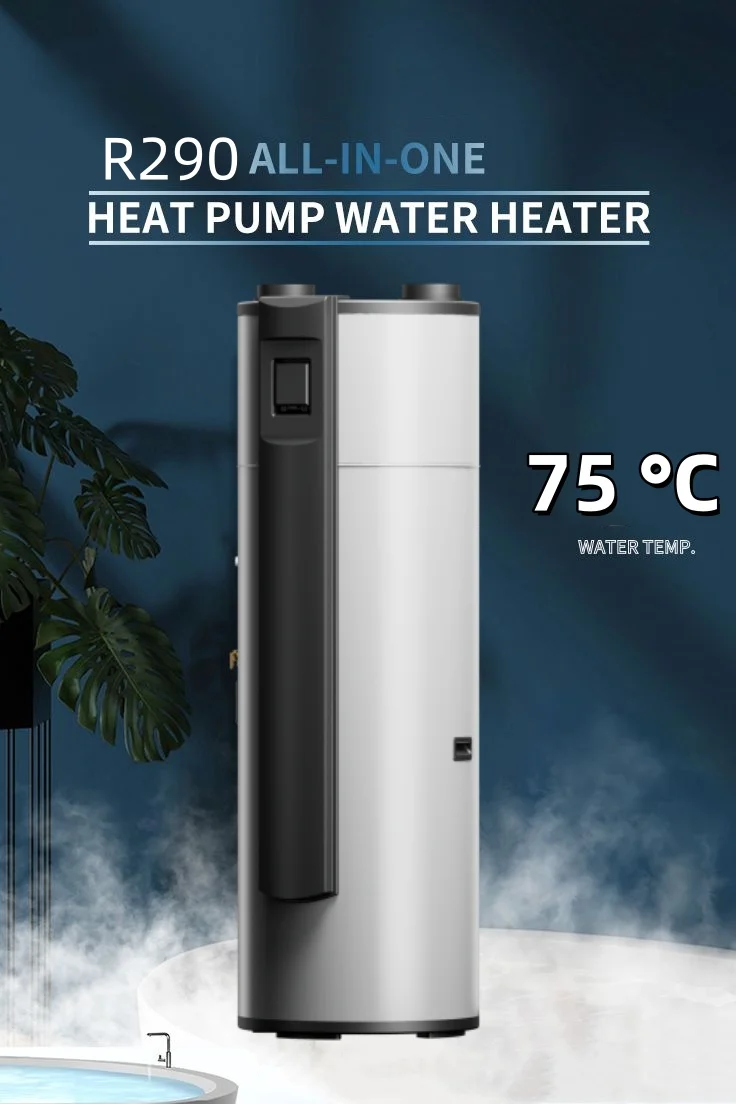

Sunrain R290 All In One Air Source Hot Water Heat Pump

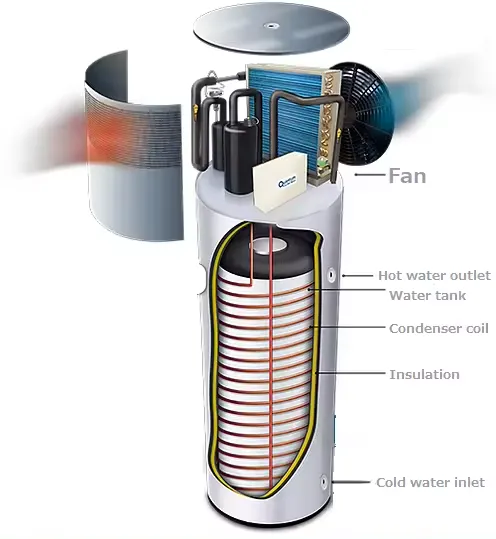

2 it features an external condenser coil that enhances safety and reliability.
3 it has an enamel inner tank that provides superior durability and corrosion resistance.
4 it is equipped with Wi-Fi control capabilities, allowing users to remotely monitor and control their water heating system from their smartphones or tablets.
This water heater is the perfect choice for those who seek a safe, reliable, and convenient hot water solution.
What are heat pumps?

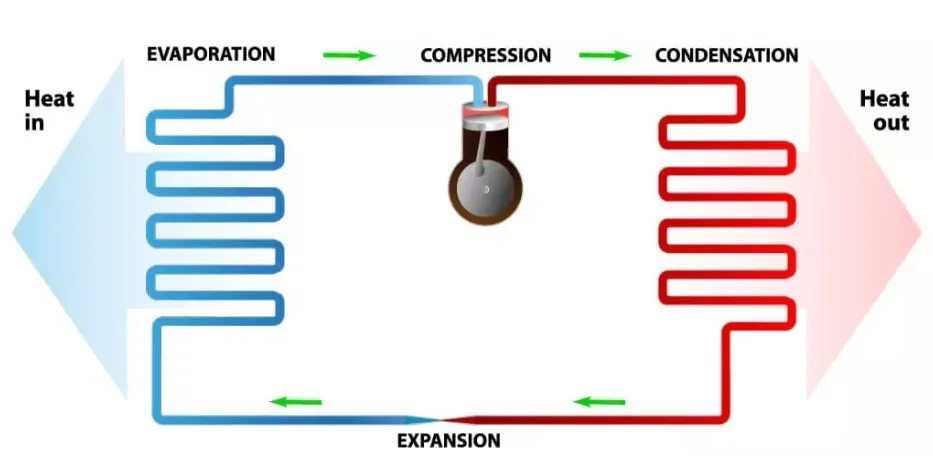

Heat pumps aren’t a new technology. In fact, if you have a refrigerator in your home, you already have a heat pump. Heat pump water heaters work like a refrigerator in reverse – they use electricity and refrigerants to take heat from the surrounding air and transfer it to water in the tank. This heat transfer technology makes heat pump water heaters three times more efficient than gas-powered water heaters.
What are the benefits?
* Reduced emissions: Heat pump water heaters don’t rely on fossil fuels. Switching from gas to electric heat pump versions could reduce emissions from water heating up to 77%. * Safety: Because heat pumps run on electricity, they eliminate the risk of carbon monoxide and nitrogen dioxide leaks.
* Save money over time: Heat pump water heaters use less energy than a conventional water heater which may lower your energy bills
and save you money over time. Heat pumps also allow you to preheat water during times of the day when power is cheaper and store the hot water for use during peak times when costs are higher.
* Longer lasting: Heat pump versions have a lifespan of around 13-15 years, while conventional versions typically need to be replaced every 8-12 years.
* Save money over time: Heat pump water heaters use less energy than a conventional water heater which may lower your energy bills
and save you money over time. Heat pumps also allow you to preheat water during times of the day when power is cheaper and store the hot water for use during peak times when costs are higher.
* Longer lasting: Heat pump versions have a lifespan of around 13-15 years, while conventional versions typically need to be replaced every 8-12 years.

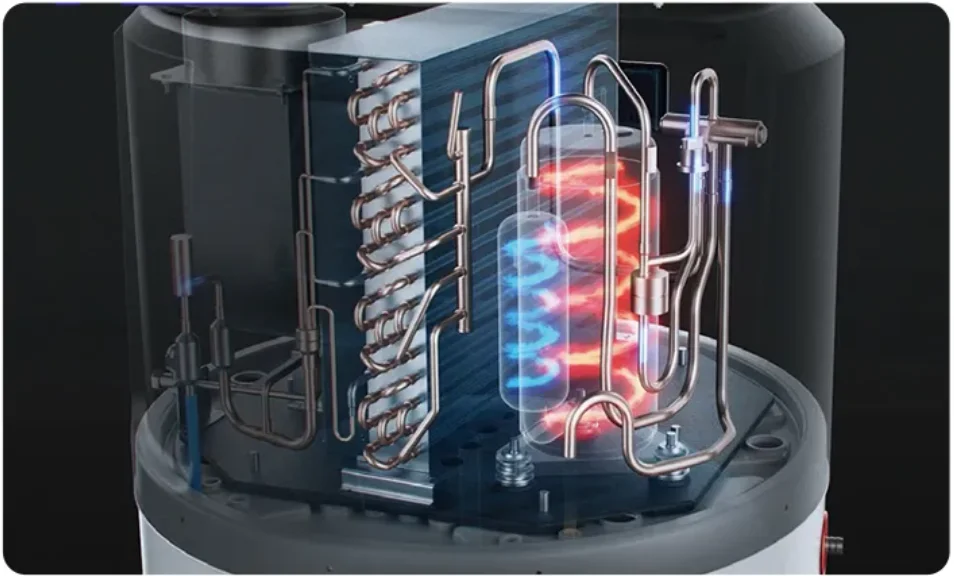

High Efficiency Compressor
Ensure faster heat exchange for more hot water.
R290 Natural Refrigerant
Low global warming potential (GWP).High efficiency values.
A high flow temperature of up to 75°C.
A high flow temperature of up to 75°C.

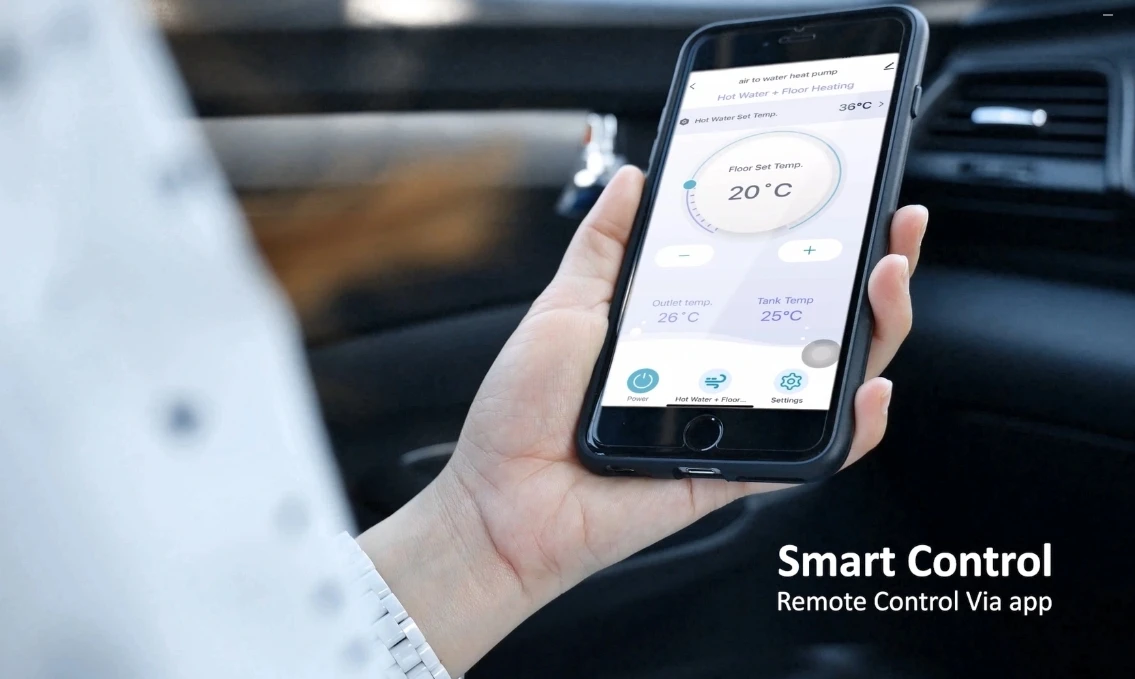

Wifi Control
User-fiendly touch screen LED display. Optional with Wifi control.
Company Profile
Certification & Shipping
Our Exhibition
FAQ
Q1 Are you a manufacturer? A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D, production, sales, and service supply. Q2: What is your main product? Answer: Our main products include DC variable frequency heat pumps, air source heat pumps water heaters, all in one heat pumps, swimming pool heat pumps, and EVI heat pumps in cold areas. Q3: How do I place an order? Answer: Please send us an inquiry or contact us through online services; After receiving your inquiry, we will reply to you Catalogs, quotations, and other information you need. Q4: Do you provide OEM/ODM customized manufacturing services? Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to your special needs. Q5: Can I apply to become your heat pump distributor/distributor? A: We are currently looking for more heat pump distributors/dealers worldwide, who can distribute our heat pump products in local countries/regions. Q6: I need to buy in large quantities. Can you provide a sample service? Yes, we can provide sample service, and we have engineers to help you solve installation problems.
Contact Now
Sunrain Group (http://www.sunrain.com) Lucas Qiu WhatsApp/Wechat/Mob:+86-16651059736 Email: lucas@sunrain.com
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–49 set: US $625 / set
- 50+ set: US $617 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air to water heat pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the air to water heat pump be supplied for my local voltage?
The standard configuration is 220-240V/50Hz/1ph. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Sunrain Solar Energy Co., Ltd., based in China. The company 22 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Sunrain Solar Energy Co., Ltd. range on HVACR Nexus.
