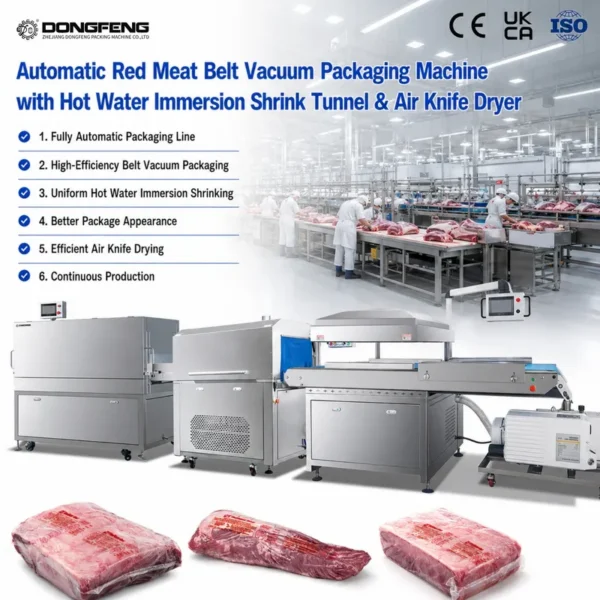

Automatic belt vacuum — 220 V, 380 V, 110 V. The complete factory specification follows. Made by Zhejiang Dongfeng Packing Machine Co., Ltd. (4 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Automatic Belt Vacuum
- Voltage: 220 V, 380 V, 110 V
- Vacuum Pump Capacity: Industrial 200m³/h Vacuum Pump (Busch is Optional)
- Packaging Material: Plastic, vacuum bag, Paper
- Packaging Speed: 50 kg per min
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
Technical Specifications
| Application | Food, Beverage, Commodity, Chemical, Machinery & Hardware, Apparel, Textiles, meat, cheese, poultry meat, Meat Primal Cuts, beef, lamb, steaks, sausage, ham, meat chops, pork, Meat Processing, Beef Packaging, Pork Packaging, Lamb Packaging, Fresh Meat Packaging, Food Processing, Vacuum Meat Packaging, Meat Processing Plant |
|---|---|
| Packaging Type | Bags, Pouch, Film, Foil, vacuum packaging |
| Voltage | 220 V, 380 V, 110 V |
| Driven Type | Electric |
| Automatic Grade | Automatic |
| VACUUM PUMP | BUSCH |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Packaging Material | Plastic, vacuum bag, Paper |
| Key Selling Points | High Productivity, Easy To Operate, Energy Saving, Long Service Life, Flexible Manufacturing, Competitive Price, High Rigidity, Eco-Friendly, Low Noise Level, Digital, Multifunctional, Superior Vacuum Packaging Performance, Perfect Shrink & Tight Fit, High-Efficiency Automatic Production, Better Product Appearance & Shelf Life, Flexible Meat Processing Solutions, Fully Automatic Packaging Line, Full immersion heating, Better Package Appearance, Continuous Belt Conveyor System, Efficient Air Knife Drying, Suitable for Fresh Meat Products, Reduced Manual Handling, Adjustable Processing Parameters, Hygienic Stainless Steel Construction, Integrated Production Solution, High-Efficiency Belt Vacuum Packaging |
| Core Components | Motor, PLC, High Pressure Blower, Vacuum Pump, Touch Screen, Heat Element, Frequency converter, Air Switch, Electromagnetic Relay, AC contactor, Temperature Controller, Vacuum Pump Motor, Conveyor Motor, Electrical Components, Pneumatic Components, Heating System, Air Knife System, Siemens PLC, Busch / Other Brand |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 1480 |
| Brand Name | dongfeng |
| Machine Type | Automatic Red Meat Vacuum Packaging Line |
| Vacuum Packaging Type | Chamber Belt Vacuum Packaging System |
| Shrink Tunnel Type | Hot Water Immersion Shrink Tunnel |
| Drying System | Air Knife Drying System for Removing Water Drops |
| Control System | PLC Touch Screen Automatic Control System |
| Vacuum Pump Capacity | Industrial 200m³/h Vacuum Pump (Busch is Optional) |
| Packaging Speed | 50 kg per min |
| Sealing Length | 800 mm (1000 mm is Optional) |
| Shrink Temperature | Shrink Temperature: 85°C (Adjustable) |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Highlights at a glance
Superior Vacuum Packaging Performance
Industrial 200 m³/h vacuum pump ensures powerful vacuuming and longer meat freshness.
Perfect Shrink & Tight Fit
Hot water immersion shrinking technology creates a tight film fit, reducing wrinkles and preventing blood accumulation.
High-Efficiency Automatic Production
Fully automatic process integrates vacuum packaging, shrinking and drying to save labor costs.
Better Product Appearance & Shelf Life
Air blades drying removes water drops, improves package appearance and protects secondary packaging.
Flexible Meat Processing Solutions
Optional cooling tunnel and advanced functions meet different beef, pork and red meat packaging requirements.
Application
Butcher shop, Supermarket, Central Kitchen, Food Processing Plant and so on.
Model | DZQ-800C（Vacuum packaging machine） | DZQ-1000C（Vacuum packaging machine） | ||
Voltage | 3 Phase 220/380 V 50/60 Hz | 3 Phase 220/380V 50/60Hz | ||
Pump power | 6 kw | 7kw | ||
Sealing length | 800 * 10 mm (31.5 * 0.4 inches) | 1000 * 10 mm (39.4 * 0.4 inches) | ||
Chamber size | 900 * 860 * 250 mm (35.4*33.9* 9.8 inches) | 1100 * 860 * 250 mm (43.3 * 33.9 * 9.8 inches) | ||
Pump Capacity | 200 m³/h (7062.9 ft³/h) | 200 m³/h (7062.9 ft³/h) | ||
Cycle time | 20-40 seconds | 20-40 seconds | ||
Ultimate Pressure | 0.2 Kpa | 0.2Kpa | ||
Material | Stainless Steel | Stainless Steel | ||
Dimension | 2400 * 1240 * 1500 mm | 2800 * 1240 * 1500 mm | ||
Weight | 700 kg | 750 kg | ||
Model | ST-8031（Hot water shrinking machine） | ST-10065（Hot water shrinking machine） | ||
Voltage | 3 Phase 220/380 V 50/60 Hz | 3 Phase 220/380 V 50/60 Hz | ||
Power | 25kW(Heating 3*7kW ，Pump 4kW） 60A | 36 kW (Heating 3*12 kW Pump 4 kW） 60 A | ||
Water tank size | 840 * 627 * 480 mm (33.1 * 24.7 * 18.9 inches) | 1040 * 825 * 500 mm (40.9 * 32.5 * 19.7 inches) | ||
Max Loading | Max 50 kg (Max 110.2 lbs) | Max 50 kg (Max 110.2 lbs) | ||
Dipping level | Max 300 mm (Max 11.8 inch) | Max 300 mm (Max 11.8 inch) | ||
Control | Auto/Manual function | Auto/Manual function | ||
Material | Stainless Steel | Stainless Steel | ||
Dimension | 1935 * 1018 * 1455 mm | 1988 * 1216 * 1455 mm | ||
Weight | 278 kg | 380 kg | ||
Model | FG-1554（Air Drying Machine） | |||
Voltage | 3 Phase 220/380 V 50/60 Hz | |||
Power | 6 kW | |||
Conveyor width | 530 mm (20.87 inches) | |||
Air volume | 360 m³/h (12716.9 ft³/h) | |||
Speed | 0–10 m/min (0–32.8 ft/min) | |||
Material | Stainless Steel | |||
Dimensions | 1630 * 900 * 1695 mm | |||
Weight | 400 kg | |||

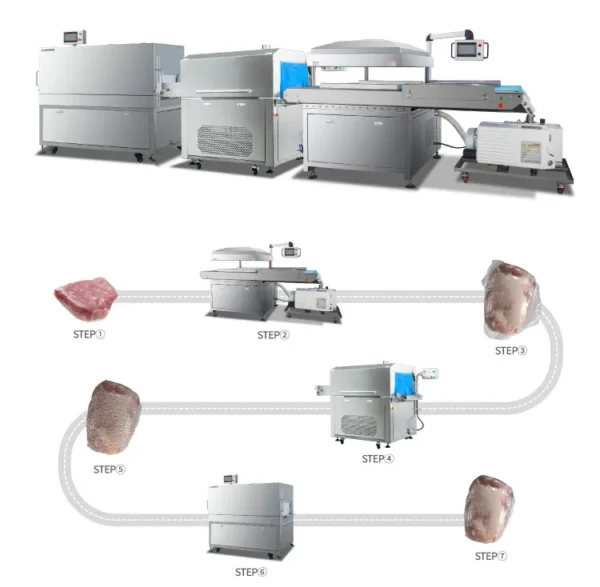

MEAT VACUUM PACKAGING SYSTEM

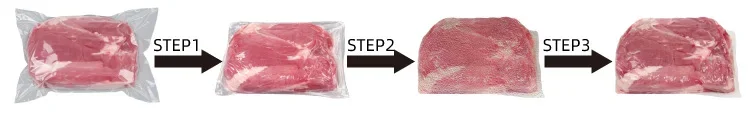

The automatic vacuum packaging line integrates vacuum sealing, hot water shrink, and air drying into one efficient system. It is modular in design, allowing flexible configuration with different machine models or customized solutions based on your product size and production capacity.

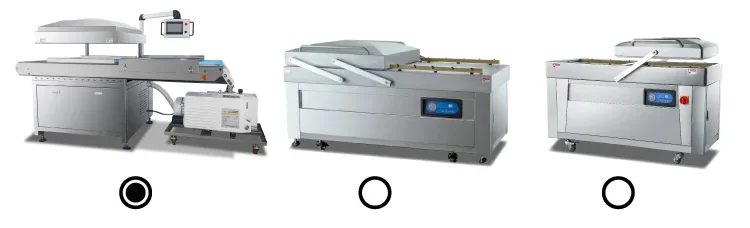

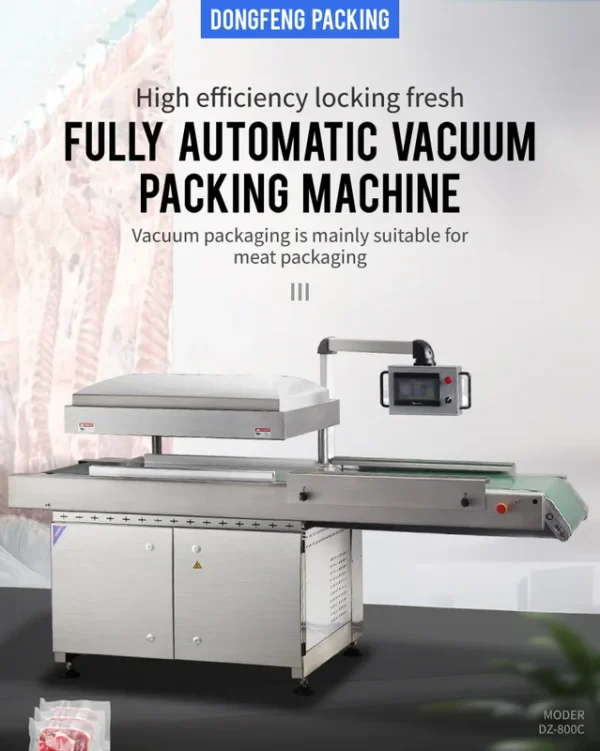

STEP 1: VACUUM PACKAGING
Available in fully automatic and semi-automatic models. Standard sealing lengths range from 400 mm to 1000 mm. For custom sizes, please contact customer service team.
Conveyor-type
（DZQ-800C/DZQ-1000C）
Flatbed-type
(DZQ-850 2SA)
Grooved-type
(DZQ-600 2SA)

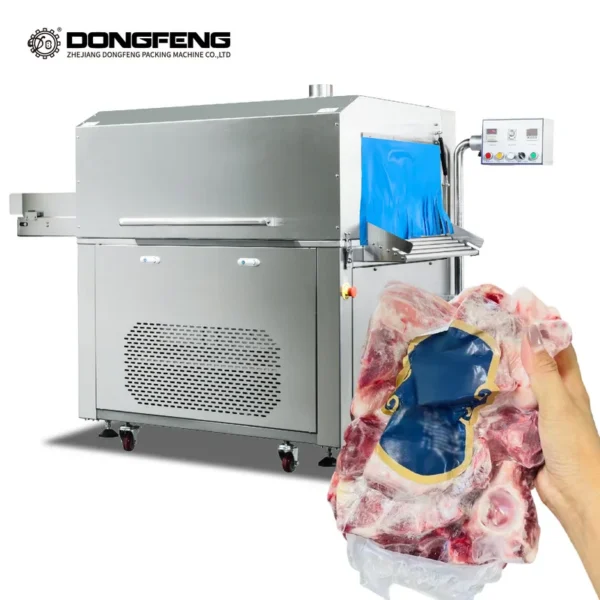

STEP 2: HOT WATER SHRINK

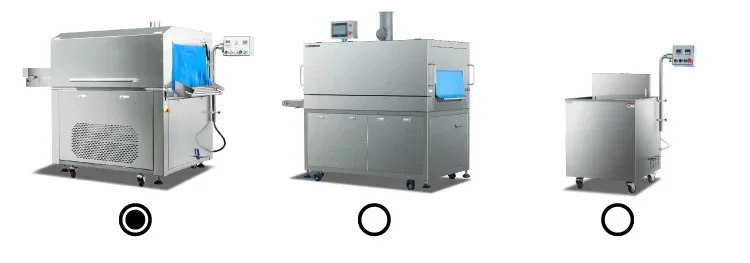

They are primarily categorized into three types: Waterfall, Tunnel, and Standard. Each type corresponds to a different production capacity and price point. For further details, please contact us.
Conveyor and dip-type
(ST-10065/ST-8031)
Conveyor-type
(ST-1552)
Standard-type
(ST-6050)

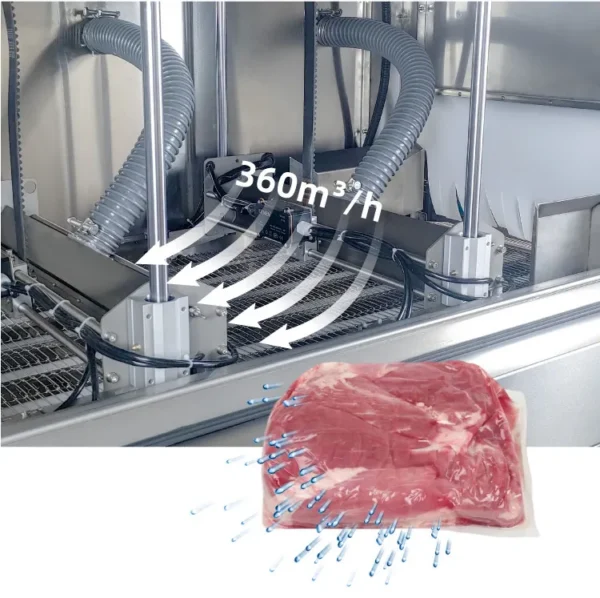

STEP 3: PACKAGE WATER REMOVAL
Utilizing high-velocity airflow, this system removes residual moisture remaining after the hot-water shrinking process. By enhancing the product's final appearance, it enables direct progression to the labeling, packaging, or warehousing stages. For further details, please contact us.
Air Drying Machine
(FG-1554)

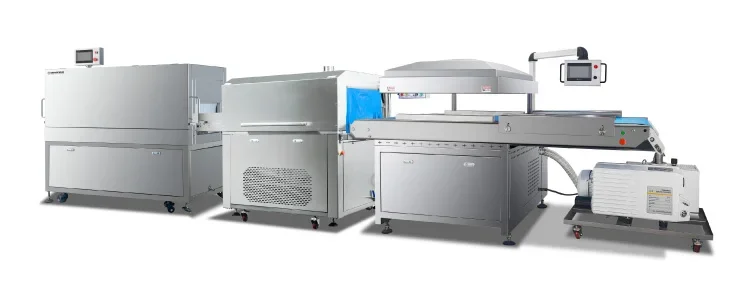

AUTOMATIC PACKAGING LINE
CUSTOMIZATION
Leveraging our robust R&D capabilities and extensive industry experience, we specialize in the development and manufacturing of various customized vacuum packaging machines. We are able to provide tailored solutions based on specific requirements.
BUSCH
(Optional)
SIEMENS
(Optional)
SCHNEIDER
(Optional)

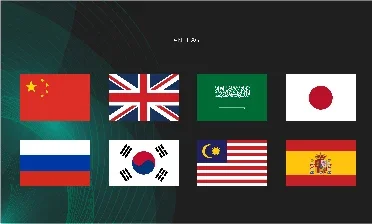

LANGUAGE
The machine comes with multiple built-in languages and supports customization of additional language packs as needed.
M TYPE SEALING
stronger, leak-proof, and more reliable vacuum packaging

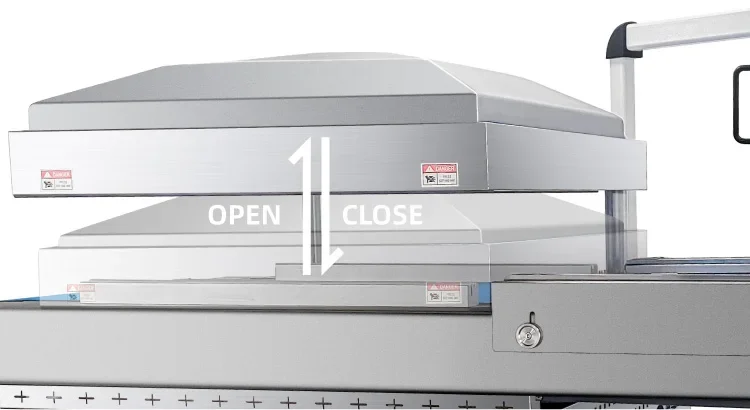

AUTOMATIC LIFTING VACUUM COVER
SEPARATE OPERATION
VACUUM CHAMBER
Automatic vacuum packaging and cutting

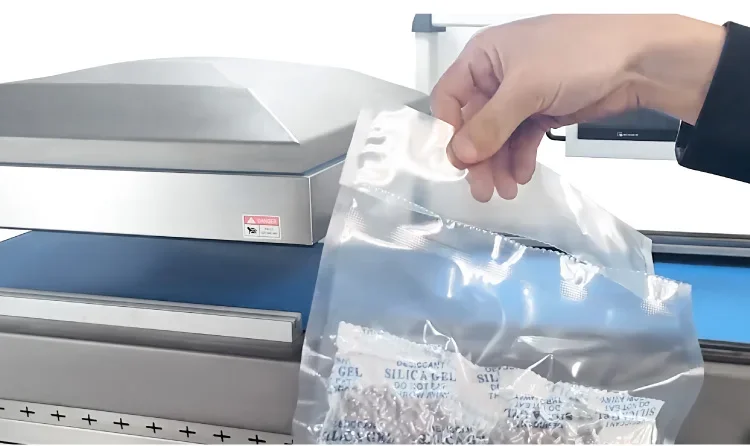

PREPARATION AREA
Place the packaging bags on the edge of the conveyor belt
CUTTING FUNCTIONS
Neat and professional packaging with no extra trimming needed, saving labor and boosting efficiency.

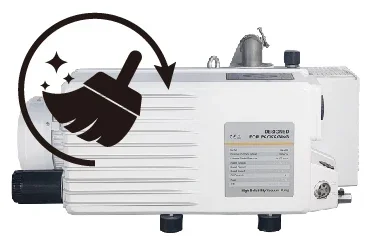

PUMP SELF-CLEANING SYSTEM
If a vacuum pump runs continuously in a humid environment or handles products with high moisture, the pump oil can easily emulsify. Professional vacuum pumps are equipped with a self-cleaning function that removes moisture, protects the pump, and extends its service life.

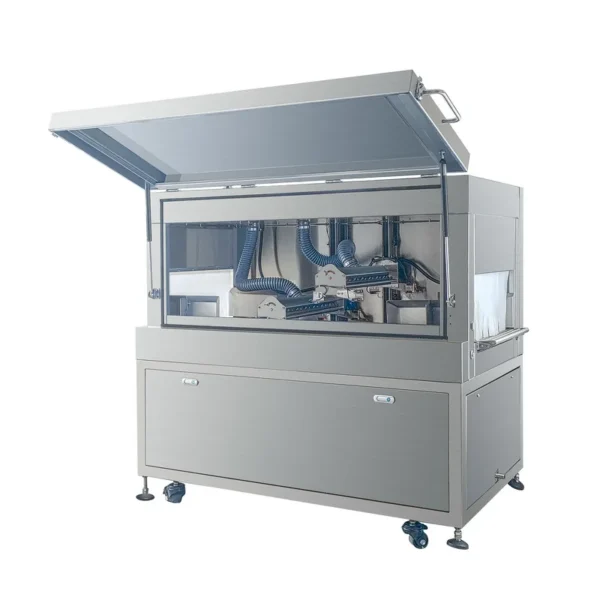

FLEXIBLE BODY
It is convenient for maintenance and observation of the internal conditions of the machine

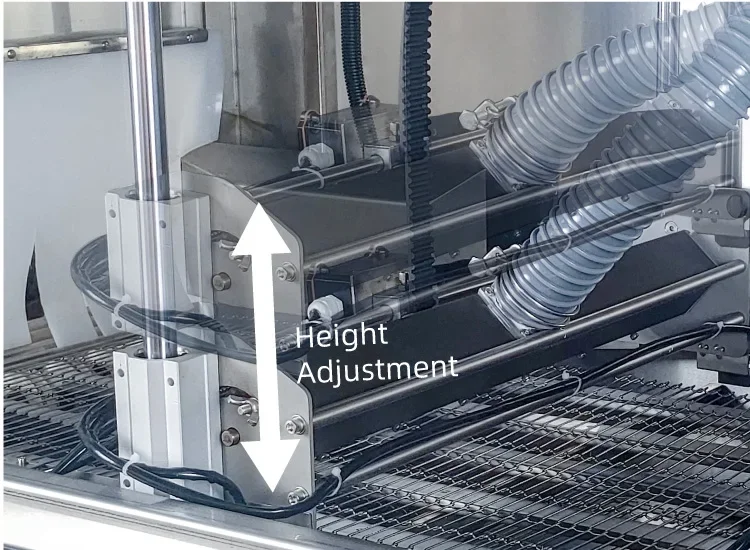

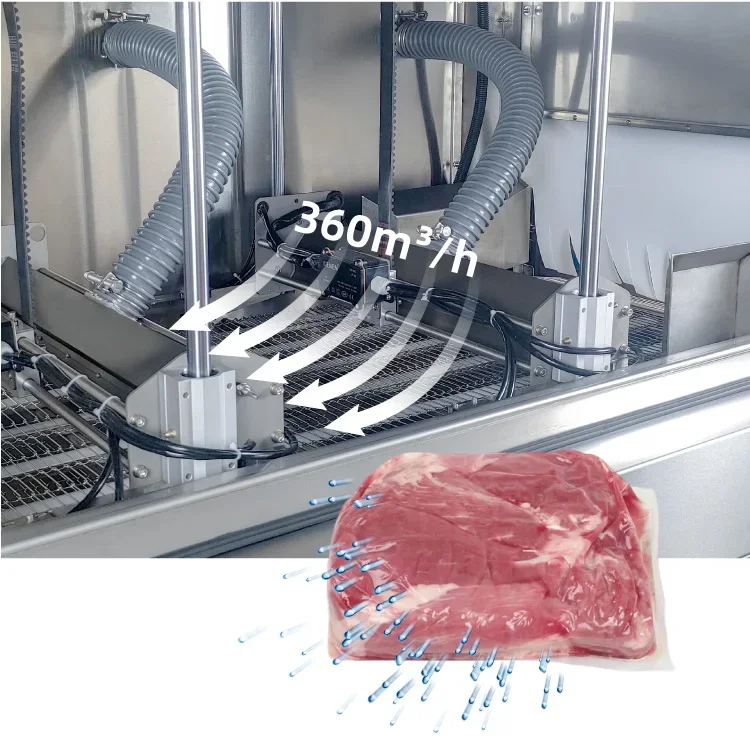

AUTOMATIC HEIGHT ADJUSTMENT
FG-1554 is equipped with an infrared sensing device that automatically adjusts the height of the air knife based on the product height, ensuring efficient air drying.
CONTINUOUS WORK
With the conveyor belt, continue to dry the product
APPLICATION
Vacuum packaging production lines are widely used in food processing, agricultural products and industrial fields, and are
especially suitable for products such as meat, seafood, cooked food and ready-made dishes.

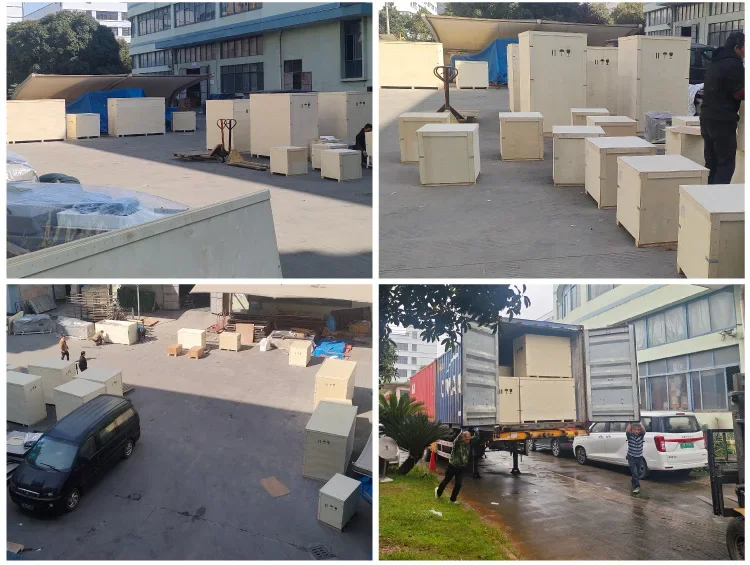

PACKAGING & SHIPPING
All orders are accompanied by a complete set of export documentation—including packing lists, commercial invoices, and bills of lading—to ensure smooth customs clearance. Additionally, we offer DDP and door-to-door services to streamline the procurement process.
COMPANY PROFILE
As a leading Chinese manufacturer specializing in advanced food packaging systems, DONGFENG PACKAGING deliver solutions across vacuum sealing, cling film wrapping, and thermal shrinking technologies. Our product offers a comprehensive selection of equipment ranging from compact benchtop units to industrial systems, engineered to meet diverse operational requirements.

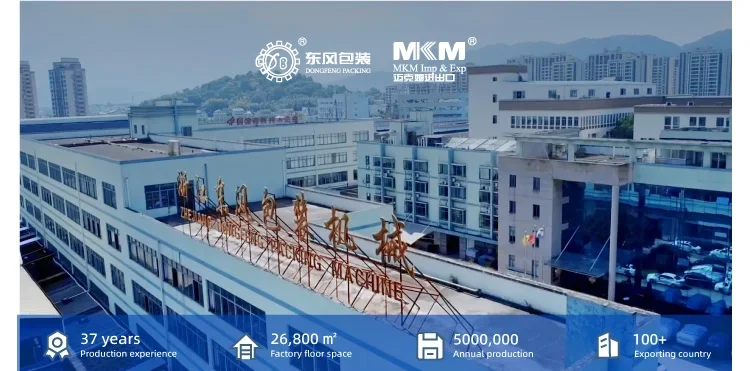

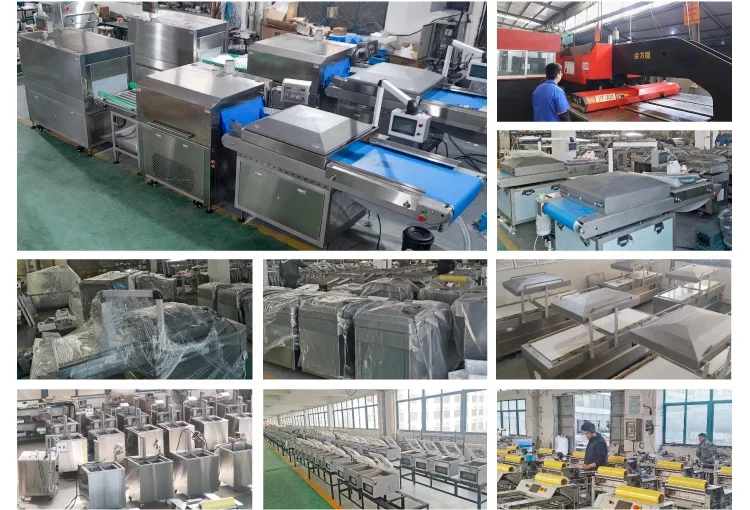

WELCOME TO VISIT OUR FACTORY
OUR EXHIBITION
We actively participate in over 12 international exhibitions annually, closely monitoring global market trends and customer needs.We have built a strong global network through long-term partnerships with distributors in multiple regions.
FAQ
1. What is the primary application of this production line? This production line is primarily used for vacuum packaging, heat-shrink processing, and surface drying. It is widely applied in the packaging of meat, seafood, ready-to-eat meals, and other moisture-sensitive products, aiming to achieve a tight-fitting, clean, aesthetically pleasing, and professional packaging finish. 2. What are the benefits of adding a hot water shrink machine? The hot water shrink process allows the vacuum bag to fit tightly against the product's surface, thereby improving its appearance, minimizing wrinkles, and significantly enhancing the product's presentation and shelf appeal. 3. Why is a dryer required after the shrinking process? After undergoing the hot water shrink treatment, water droplets may remain on the surface of the packaging. The dryer rapidly removes this moisture, ensuring the packaging surface remains clean and dry; this helps improve hygiene standards and facilitates subsequent labeling and warehouse management. 4. Can this production line handle products containing liquids or sauces? Yes. The vacuum machine can be configured specifically to handle liquid or semi-liquid products, ensuring that no leakage occurs during the packaging process, thereby achieving a secure and stable packaging result. 5. Is this production line fully automated? We offer both semi-automatic and fully automatic solutions; the specific choice depends on your production capacity requirements and budgetary considerations.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this automatic belt vacuum?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the automatic belt vacuum be supplied for my local voltage?
The standard configuration is 220 V, 380 V, 110 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Dongfeng Packing Machine Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhejiang Dongfeng Packing Machine Co., Ltd. range on HVACR Nexus.
