Key specification for this bathroom ventilation fan: 12 V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Zhejiang Lavfill Electrical Technology Co., Ltd. (11 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Bathroom Ventilation Fan
- Model Number: LFWW-09BHLV + LFWWT-09
- Power Source: Electric
- Voltage: 12 V
- Material: Plastic
- Blade Material: Plastic
- Motor Material: 100% Copper
Technical Specifications
| Voltage | 12 V |
|---|---|
| Speed | 1350RPM |
| Type | Wall-Mounted Axial Fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | No after-sales service |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Zhejiang, China |
| Brand Name | OEM/LAVFILL |
| Model Number | LFWW-09BHLV + LFWWT-09 |
| Motor Type | Slide Bearing / Ball Bearing |
| Motor Material | 100% Copper |
| Thermal Protection | Yes |
| Timer/Sensor/Humidity Sensor | Optional |
| Outlet Size | 100mm |
| Product Name | Bathroom Ventilation Fan 12V Fan Bathroom Ventilator |
| Selling Units | Single item |
| Single Package Size | 20.7X15.5X12.4 cm |
| Single Gross Weight | 3.000 kg |
Product Details
Bathroom Ventilation Fan 12V Fan Bathroom Ventilator
- The fan is suitable for wall/window/ ceiling mounting.
- Shutter, ring are optional, ring is needed for window mounting.
- Easy installation
- Shaded pole motor with thermo cut-off
- Ball bearing motor to reduce friction for long life operation
- Modern and functional design
- Front louver for safety protection
- Safety design based on IEC requirements
- Approved by SAA TUV SASO CE RoHS
- Safe and reliable 12VAC low voltage, low energy demand.
- 220V/12V Transformer provides safe power supply 12V for fan operation.
- More functions
+ With humidity sensor adjustable humidity range 60%-90%, the humidity level from 60%-90% can be shown by four LED indicators, adjustable time range 0 -30 mins, the original factory setting is 60%, 1min.
+ With timer adjustable time range 0.5 -30mins, the original factory setting is 0.5min.
+With motion sensor sensing range 0 ≤ D ≤ 4 .5m, angle ≤180°, delay time is 0.5-7mins, the original factory setting is 2m, 0.5min.
Specification

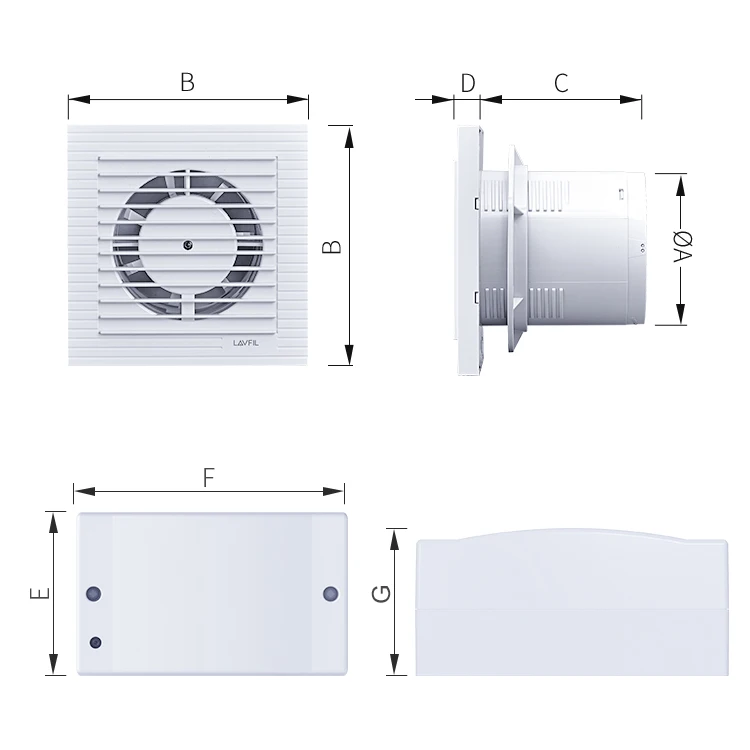

Installation Dimension
Unit: mm
| Article No. | ∅ A | B | C | D | E | F | G |
| 100mm(4'') | ∅100 | 150×150 | 102 | 13 | 85 | 140 | 66 |
Technical Parameter
| Part | Category | Rated Voltage/Frequency | Ventilator Power | Air Volume | Noise |
| Extractor Fan | Low Voltage Extractor Fan & Transformer Kit | 12V~50Hz | 12W | 95m³/h | 34dB |
| Transformer Box | Input: 220-240V~, 50Hz Output: 12-15V~, 50Hz | 20W | / | / |

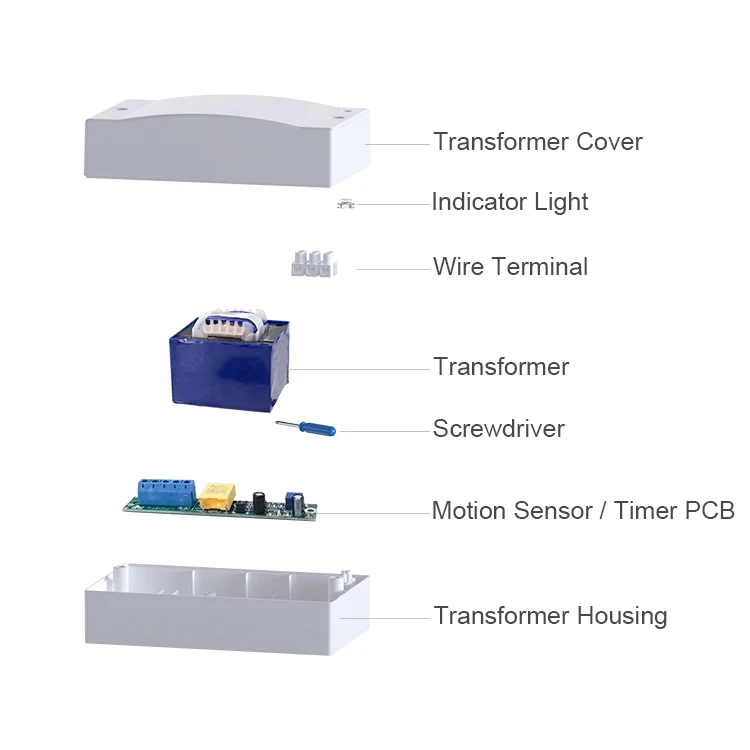

Exploded View
ZHEJIANG LAVFILL ELECTRICAL TECHNOLOGY CO., LTD.
We sincerely welcome more friends to cooperate with us.
Q1: Are you a factory or trading company?
A:We are manufacturer, we have our own export rights, specialized in producing domestic fans and fittings, hotel hair dryers, hand dryers etc..
Q2: Do you have any certificates?
A:Yes, all of domestic fans are CE RoHS SAA approved, hotel hair dryer, hand dryer are CE, RoHS approved.
Q3: Do you accept OEM or ODM?
A:Yes, we do in the means of OEM, ODM,OBM.
Q4: Where is your FOB port?
A: Ningbo Port or Shanghai port.
Q5: How can I get some samples?
A:We are glad to offer you samples, you are expected to pay for the courier cost and sample fee, we will arrange the samples to send to you. Or you can arrange a remote pick-up service upon FedEx, UPS, DHL, TNT to have the samples collected via your own account No.
Q6: How long is the delivery time for the samples?
A:In general, it needs 5-7 days to send samples.
Q7: What is your MOQ?
A:Our MOQ is 200pcs/item, 500pcs/order for EXW term, 200pcs/item, 2000pcs/order for FOB term. Use customized package, MOQ is 2000pcs/item. For customized package if the MOQ is below 2000pcs, you have to pay deposit for each package design and manufacture, only if the total mount of each item reaches 2000pcs in one year since the first shipment considering the storage cost and box damage over time, we will return the deposit.
Q8: How long is the delivery time for mass order?
A:In general, 30-35 days after receiving deposit and confirming customized details.
Q9: Can we print our logo on the products?
A:Yes, of course, we print customized logo by laser marking generally.
Q10: What about the product services and quality?
A:We put forward strict components suppliers selection, spare parts testing, safety testing, product durable testing, pre-shipment inspection by senior engineer. And we offer parts one year or three year warranty.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–499 piece: US $60 / piece
- 500–999 piece: US $30.5 / piece
- 1000+ piece: US $20.8 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this bathroom ventilation fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the bathroom ventilation fan be supplied for my local voltage?
The standard configuration is 12 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
