This axial fan is published with the manufacturer’s full specification — 24V, 48V, power source Electric. Made by Dongguan Coolcox Electronic Technology Co., Ltd. (10 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Axial Fan
- Model Number: CC20060
- Power Source: Electric
- Voltage: 24V, 48V
- Blade Material: Cast Iron
- Noise Level: 46~74dBA
- Warranty: 1 Year
Technical Specifications
| Voltage | 24V, 48V |
|---|---|
| Type | Duct Axial Fan |
| Blade Material | Cast Iron |
| Mounting Type | Mounting by screws |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | CoolCox |
| Model Number | CC20060 |
| Noise Level | 46~74dBA |
| Fan Size | 200x200x60mm |
| Applicable Industries | Home Use |
| Applicable | Ventilation |
| Selling Units | Single item |
| Single Package Size | 20X20X6 cm |
| Single Gross Weight | 0.925 kg |
Product Details

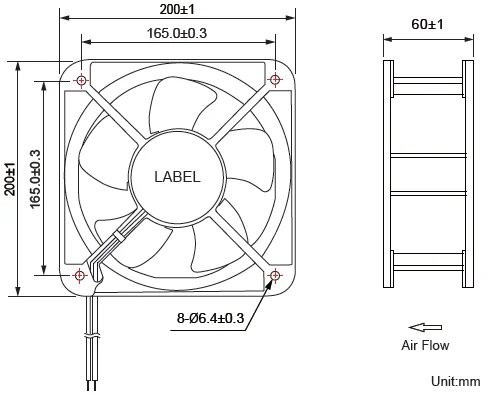

Dimensions:
Parameters:
| Parts Specs: | P&Q Curve | |
| Bearing type:2-Ball Material:
24V,48V are available |  |
Electrical Specifications:
| Insulation Resistance | 10MΩ/between unshackled wire and frame at 500VDC/min |
| Dielectric Strength | 5Ma Max./Measured between lead wire(+)and frame at 500VAC/min |
| Rotating Direction | Anti-Clockwise |
| Polarity Protect | Circuit is protected when VCC&GND are exchanged |
| No. of pole | 4Poles or 6Poles |
Environmental Specifications
| Operating Temp Range | Temperature:-10℃~+70℃ Humidity:35%~85%RH |
| Store Temperature | Temperature:-40℃~+70℃ Humidity:35%~85%RH |
| Thermal Shock | Standard:MIL-STD 202F Method 107D,Condition D |
| Insulation Shock | UL:Class A |
CoolCox implements ISO9001,ISO14001,IATF16949 ,QC080000 management systems; and the products comply with safety regulations such as UL,TUV,CE.
| FCL Shipment | LCL Shipment | |
 |  |
Air shipment:

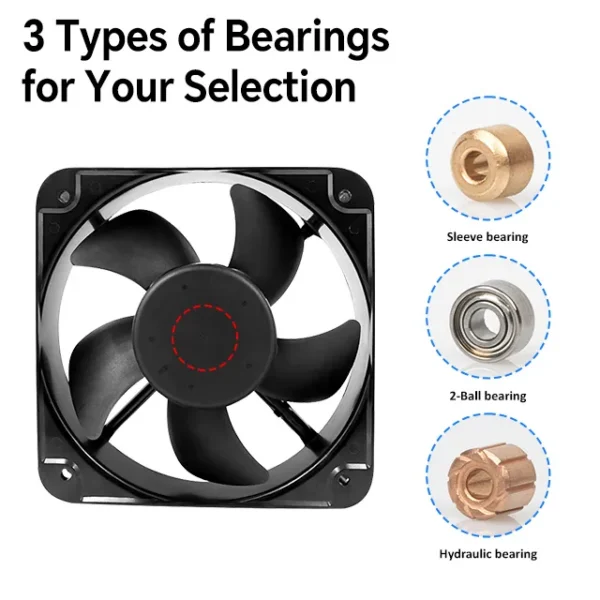

1.What is the lifetime for the different bearings?
30,000 hours for sleeve bearing
40,000 hours for hydraulic bearing
60,000 hours for FDB bearing
70,000 hours for 2-Ball bearing
2.What's the MOQ and lead time?
MOQ 2000 PCS
Lead time for samples:about 1 week
Lead tiem for mass orders:about 4 weeks
3.What functions are optional for the fans?
Auto-restart
FG,Tachometer signal output
RD, Alarm signal output
PWM Control
Waterproof
4.Why do choose CoolCox?
Professional team
Standard management
High level of automation
Quality assurance system
High customization ability
Prompt delivery ability
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–999 piece: US $21 / piece
- 1000–2999 piece: US $19 / piece
- 3000–4999 piece: US $18 / piece
- 5000+ piece: US $17 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial fan be supplied for my local voltage?
The standard configuration is 24V, 48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Coolcox Electronic Technology Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Coolcox Electronic Technology Co., Ltd. range on HVACR Nexus.
