Axial flow cooling fan — voltage 12/24 V, power source Electric. The complete factory specification follows. Made by ACTIVA INC. (15 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axial Flow Cooling Fan
- Model Number: D12025-K
- Power Source: Electric
- Voltage: 12/24 V
- Blade Material: Plastic
- Speed: 3100RPM
- Warranty: 1 Year
Technical Specifications
| Voltage | 12/24 V |
|---|---|
| Speed | 3100RPM |
| Type | High-Temperature Axial Fan |
| Blade Material | Plastic |
| Mounting Type | Industrial Equipment |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Taiwan, China |
| Brand Name | SYM BANG |
| Model Number | D12025-K |

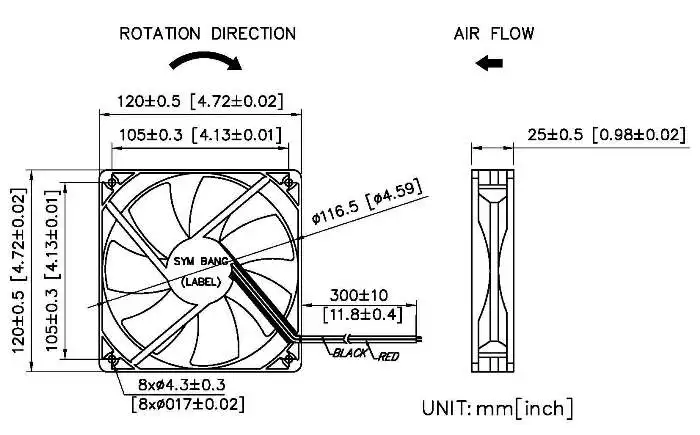

| Size | 120x120x25mm |
| Certification | CE;RoHS |
| Applicable Industries | Manufacturing Plant/Machinery Repair Shops |
| Core Components | Motor/Bearing |
| Selling Units | Single item |
| Single Package Size | 20X20X15 cm |
| Single Gross Weight | 0.300 kg |
Product Details
D12025-K 120mm 12V Ice Maker Cooling Fan
| HOUSING | Thermoplastic PBT, UL94V-0 |
| IMPELLER | Thermoplastic PBT, UL94V-0 |
| BEARING | Ball or Sleeve |
| OPERATING TEMPERATURE | -10°C to + 70°C |
| INSULATION RESISTANCE | 5mA Max. at 500 VAC for 1 minute |
| DIELETRIC STRENGTH | 10M Ω min. @500 VDC |
| WEIGHT | 165 g |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP21 (Special IP Rating On Request) |

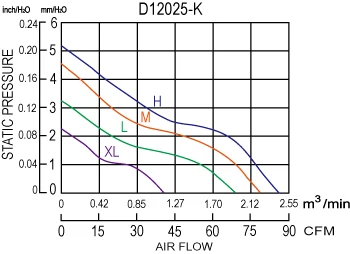

| Model No. | RATED VOLTAGE (V) | RATED CURRENT (A) | INPUT POWER (W) | SPEED (RPM) | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A)@1M | ||
| inchH2O | mmH2O | CFM | m3/min | ||||||
| D12025V12SL-K | 12 | 0.6 | 7.2 | 3100 | 0.29 | 7.37 | 98.8 | 2.8 | 40 |
| D12025V12H-K | 12 | 0.28 | 3.3 | 2500 | 0.2 | 5.08 | 85.5 | 2.42 | 36 |
| D12025V12M-K | 12 | 0.2 | 2.4 | 2200 | 0.18 | 4.57 | 78.2 | 2.213 | 31 |
| D12025V12L-K | 12 | 0.18 | 2.16 | 1900 | 0.13 | 3.3 | 69.6 | 1.97 | 29 |
| D12025V12XL-K | 12 | 0.08 | 0.96 | 1200 | 0.08 | 2.03 | 40.6 | 1.149 | 19 |
| D12025V24SL-K | 24 | 0.31 | 7.44 | 3100 | 0.29 | 7.37 | 98.8 | 2.8 | 40 |
| D12025V24H-K | 24 | 0.26 | 6.24 | 2500 | 0.2 | 5.08 | 85.5 | 2.42 | 36 |
| D12025V24M-K | 24 | 0.18 | 4.32 | 2200 | 0.18 | 4.57 | 78.2 | 2.213 | 31 |
| D12025V24L-K | 24 | 0.1 | 2.4 | 1900 | 0.13 | 3.3 | 69.6 | 1.97 | 29 |
| D12025V24XL-K | 24 | 0.05 | 1.2 | 1200 | 0.08 | 2.03 | 40.6 | 1.149 | 19 |
Applications:
- Power Supply Units
- Measuring Instruments
- Electronic Switch Systems
- Automatic Vending Machines
- Air-conditioning & Heating Apparatus
- Computers (CPU, Peripheral & Terminal Equipment)
- Medical Equipment
- Acoustic Equipment
- Flight Instrumentation
- Numerical Control(NC)Units
- Data Communications Terminal Equipment
- Office Machinery Appliances & Copying Machines
Additional Special Function:
- The output of 3rd wire Signal-Rotation Detector Function:
- Suffix basic part number with “-RD” or “RRD” for Rotation Detector Function.
- The output of 3rd wire Signal-Frequency Generator Function:
- Suffix basic part number with “-FG” for Frequency Generator Function.
- The output of 3rd wire Signal- PWM Control (Pulse Width Modulation)
- Function: Controls the fan speed automatically via an external input signal.
- Suffix basic part number with“-PWM”for F PWM Control Function.
WHY CHOOSE US:
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade | Misting Fan |
|
Our factory:
Our certificate:
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow cooling fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this axial flow cooling fan carry?
It is supplied with CE;RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial flow cooling fan be supplied for my local voltage?
The standard configuration is 12/24 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
